MTD Gold 13AX915T004 (2013) Lawn Tractor

Model: 13AX915T004 (2013)

Back To Assemblies

Save Part Not Listed?
product name

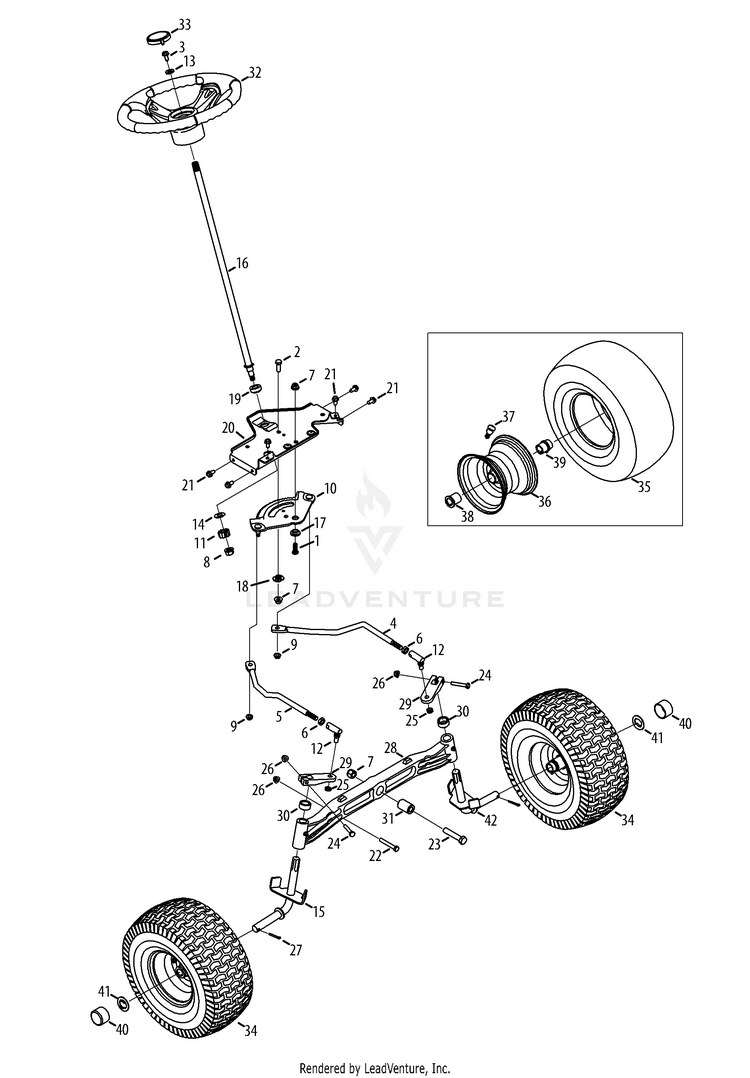

Steering & Axle

...
...
1
Hex Screw, 3/8-16, 1.00, Gr5, Spec MTD-710-04095
...
2
Hex Screw, 3/8-16, 1.00, Gr5, Std MTD-710-0514
...
3
Hex Screw, 5/16-18, 1.00, Gr5, Lock MTD-710-0643
...
4
Link, Drag LH MTD-711-04998
...
5
Link, Drag RH MTD-711-04999
...
6
Nut, Jam, 7/16-20, Gr2 MTD-912-0240
...
7
Nut, Flange Lock, 3/8-16, Grf, MTD-712-04065
...
8
Nut, Flange Lock, 7/16-20, Grb, Lock MTD-712-0459
...
9
HEX FLANGE NUT MTD-712-3004A
...
10
Gear, Steering, 11/90 Ratio MTD-717-1550F
...
11
Gear, Pinion, Steering MTD-717-1554
...
12
Ball Joint, 7/16-20, Lock MTD-923-0448A
...
13
Fl.-Wash 3/8" 1.C) x 875" OD MTD-736-3004
...
14
Washer, Flat, .51 x 1.12 x .06 MTD-736-3084
...
15
Axle Ass’y, RH .750 Dia MTD-938-04034
...
16
Shaft, Steering, .625 OD x 24.25 MTD-738-04263
...
17
Spacer, Shoulder, .385x 1.25 x .3025 MTD-738-04363
...
18
SHOULDER SPACER MTD-738-04364B
...
19
Bearing, Flange, Hex 5/8 Pm MTD-741-04237B
...
20
STEERING SUPPORT BRACKET MTD-783-06043-0637
...
21
SCREW 5/16-18 x .750 MTD-710-04484
...
22
Hex Screw, 5/16-18, 2.25, Gr5, Std MTD-710-0395
...
23
Hex Screw, 3/8-16, 2.50, Gr5, Std MTD-710-0859
...
24
Hex Screw, 5/16-18, 1.75, Gr5, Std MTD-710-3180
...
25
Nut, Hex Lock, 3/8-24, Grb MTD-912-0214
...
26
Nut, Flange Lock, 5/16-18, Grf MTD-712-04063
...
27
Pin, Cotter, 5/32, 1.25 MTD-714-0162
...
28
Axle, Pivot Bar, Cast MTD-719-04413A
...
29
Steering, Block MTD-748-04278
...
30
Spacer, .71 ID x .125 OD x .56 MTD-748-04068
...
31
PIVOT AXLE BUSHING MTD-750-05280
...
32
Steering Wheel, Standard Grip MTD-631-04028
...
33
Cap, Sprig, Small MTD-731-04040
...
34
WHEEL ASSEMBLY (15 x 6.0 x 6) (OYSTER-CARLISLE) MTD-634-04406-0911
...
35
Tire, 15 x 6 x 6 MTD-734-1731-0901
...
36
Rim Assembly, Flange Bearings MTD-634-04405-0662
...
37
Tubeless Air Valve MTD-934-0255
...
38
Flange Bearing, .760 x 1.00 x 1.20 MTD-741-0516B
...
39
Flange Bearing, .760 ID (w/grease fitting) MTD-741-0990B
...
40
BUMPER/HUB CAP MTD-731-08049A
...
41
FLAT WASHER .781 ID x1.590 OD MTD-736-04228B
...
42
AXLE ASSEMBLY (.750) (LH) MTD-638-04035P
