MTD Gold 13AX915T004 (2013) Lawn Tractor

Model: 13AX915T004 (2013)

Back To Assemblies

Save Part Not Listed?
product name

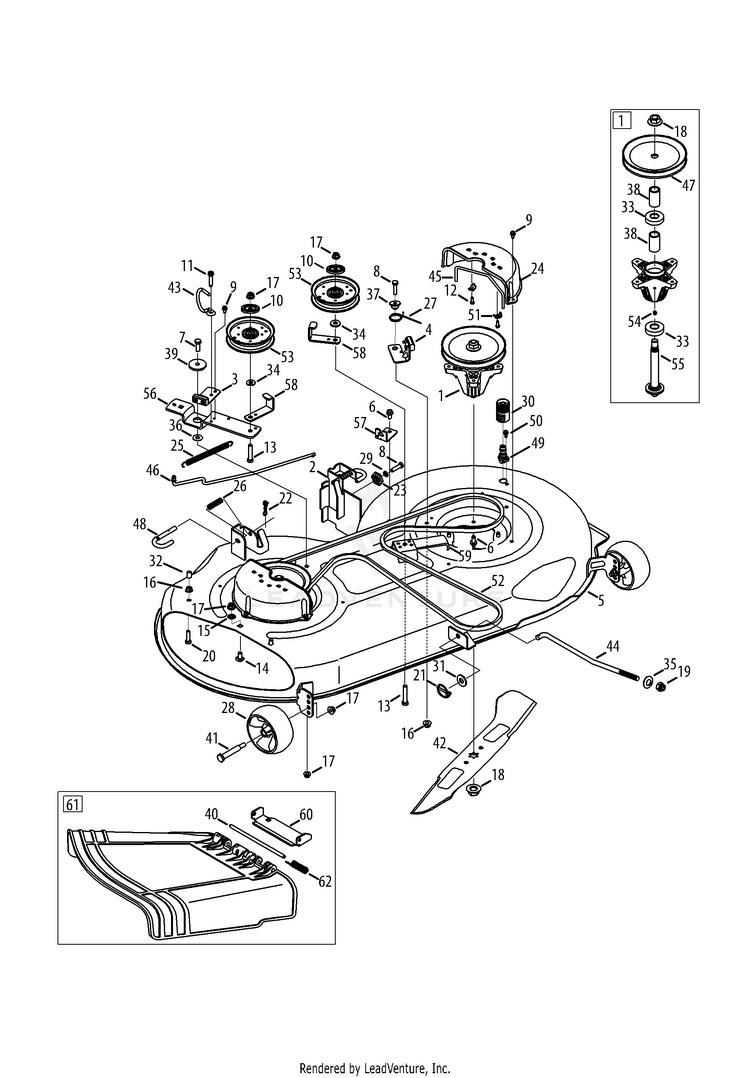

Mower Deck

...
...
1
Spindle Ass’y, Pulley, 6.93 Dia MTD-918-04865A
...
2
Bracket Assembly, Deck, Hanger LH MTD-683-0254B
...
3
Brake Ass’y, Deck MTD-983-04511
...
4
Brake Ass’y, Deck MTD-983-04525
...
5
46" DECK SHELL MTD-983-04578B
...
6
SCREW 5/16-18 x .750 MTD-710-04484
...
7
Hex Screw, 3/8-16, 1.00 MTD-710-0514
...
8
Hex Screw, 5/16-18, 1.25 MTD-710-0528
...
9
Screw, Self-tapping, 1/4-20, 0.500, MTD-710-0599
...
10
Pulley Cap MTD-783-07236
...
11
Screw, Self-tapping, 1/4-20, .75, MTD-710-0642
...
12
Special Screw, #10-16 x .625 MTD-710-04669
...
13
Hex Screw, 3/8-16, 2.00 MTD-710-3144
...
14
CARRIAGE BOLT 3/8-16 x .75 MTD-710-3178
...
15
Nut, Push, 3/8 MTD-712-0229
...
16
Nut, Flange Lock, 5/16-18 MTD-712-04063
...
17
Nut, Flange Lock, 3/8-16 MTD-712-04065
...
18
HEX NUT MTD-712-0417A
...
19
Nut, Lock, 1/2-13 MTD-712-04243
...
20
Hex Cap Screw, 5/16-18 x 1.00 MTD-710-0376
...
21
Pin, Lynch, .1875 MTD-753-04070
...
22
Bow-Tie Cotter Pin, 72 MTD-714-04040
...
23
Gear, Deck, Adjustment MTD-917-04074
...
24
Belt Cover MTD-731-06496
...
25
EXTENSION SPRING MTD-932-0384
...
26
Spring, Comp, .535 OD x 1.751 MTD-732-04652
...
27
Spring, Torsion, .992 I.D x 1.17 O.D MTD-732-04840
...
28
Wheel, Deck, 5.0 Dia Ball MTD-734-04155
...
29
Washer, Lock, 5/16, Regular Duty MTD-936-0119
...
30
Water Nozzle Adaptor MTD-921-04041
...
31
Fl-Wash. 1/2" I.D. x .93" O.D. MTD-736-0179
...
32
Cap, .290 x .500 MTD-720-05010
...
33
BALL BEARING MTD-741P0919B
...
34
Washer, Flat, .385 x .870 x .092 MTD-736-0262
...
35
Washer, Bell, .63 x 1.25 x .18 MTD-736-0317
...
36
Fl-Wash. 390" I.D. x 1.0" MTD-736-0344
...
37
Spacer, Shoulder, .50 x .145 MTD-748-04272
...
38
Spacer, .792 x 1.060 x 1.860 MTD-750-04936
...
39
Spacer, Shoulder, .8840 x .190 MTD-738-04162C
...
40
Hinge Pin MTD-711-04847B
...
41
Bolt, Shoulder, .496 x 2.50, 3/8-16 MTD-938-3056
...
42
23.25" BLADE (2N1) (STAR) MTD-942-04290A
...
43
BELT KEEPER ROD MTD-747-05323
...
44
Rod, Lift, Deck, Frt, 13.7 MTD-747-04944B
...
45
Rod, Keeper, Belt MTD-747-05011
...
46
Rod, Control, Brake MTD-747-05052A
...
47
Pulley, Deck, 6.93 Dia MTD-756-04356
...
48
Rod, Handle, Deck Release MTD-747-1116
...
49
Deck Wash Nozzle MTD-731-07487
...
50
Shoulder Screw, 1/4-20 x 0.50 MTD-738-04278
...
51
Clamp, Casing MTD-751B221535
...
52
Belt, V-Type MTD-954-04219
...
53
Pulley Kit, Idler, 4.25"Dia MTD-753-08171
...
54
Fitting, 3/16, Lnc#70, Drive Lube MTD-937-3000
...
55
Shift, Spindle, 6.11. MTD-738-1186A
...
56
Bracket, Idler, Pivot MTD-783-05946
...
57
Bracket, Cable, Deck Engage MTD-783-06243-0637
...
58
Belt Pulley Guard MTD-783-06368A-0637
...
59
Bracket, Support, Deck Stationary Idler MTD-783-06643-0637
...
60
CHUTE BRACKET MTD-783-06074A
...
61
CHUTE ASSEMBLY MTD-631-05191A
...
62
Torsion Spring, .44 ID x 2.0 MTD-732-04372
