MTD Gold 13AX915T004 (2011) Lawn Tractor

Model: 13AX915T004 (2011)

Back To Assemblies

Save Part Not Listed?
product name

Engine Accessories

...
...
1
MUFFLER SHIELD (POWDER BLACK) MTD-683-05460A-0637
...
2
Screw, Indented Washer, #8-18:0.500 MTD-710-0227
...
3
SCREW 3/8-16 X 1 MTD-710-04683C
...
4
Taptite Screw, 1/4-20:0.500 MTD-710-0599
...
5
Socket Head Screw, 5/16-18:.750 MTD-710-1314A
...
6
Taptite Screw, 1/4-20 x .625 MTD-710-1652
...
7
Sems Nut, 1/4-20 MTD-712-0271
...
8
Extension Hose, Oil Drain MTD-751-3141-14
...
9
Cable Tie, 3/16 x .05 x 7.4 MTD-725-0157
...
10
Hose Clamp, .490 DIA. MTD-726-0205
...
11
Rivet, .188 DIA x .300 L If Equipped MTD-728-04000
...
12
MUFFLER MTD-951-11943A
...
13
Muffler Deflector If Equipped MTD-751-0564B
...
14
Fuel Hose MTD-751-10349
...
15
EXHAUST DELECTOR (LONG) MTD-751-11053B
...
16
Oil Drain MTD-951-10517A
...
17
Hose, Vent If Equipped MTD-751-12089-28

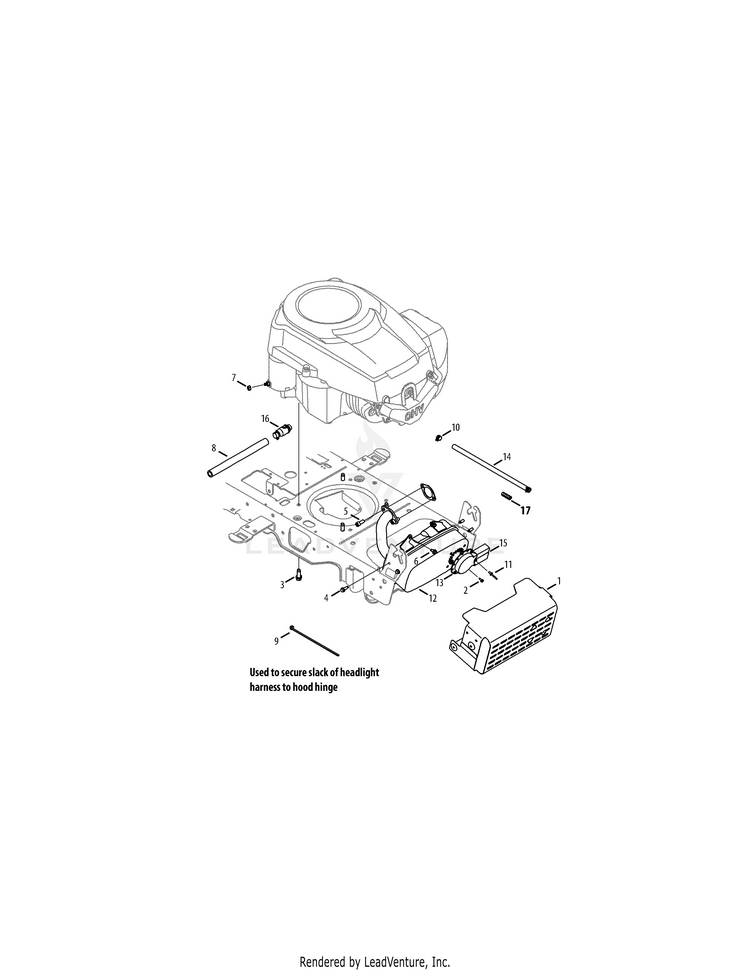

Schematic Image Zoomed
