MTD Gold 13AX915T004 (2011) Lawn Tractor

Model: 13AX915T004 (2011)

Back To Assemblies

Save Part Not Listed?
product name

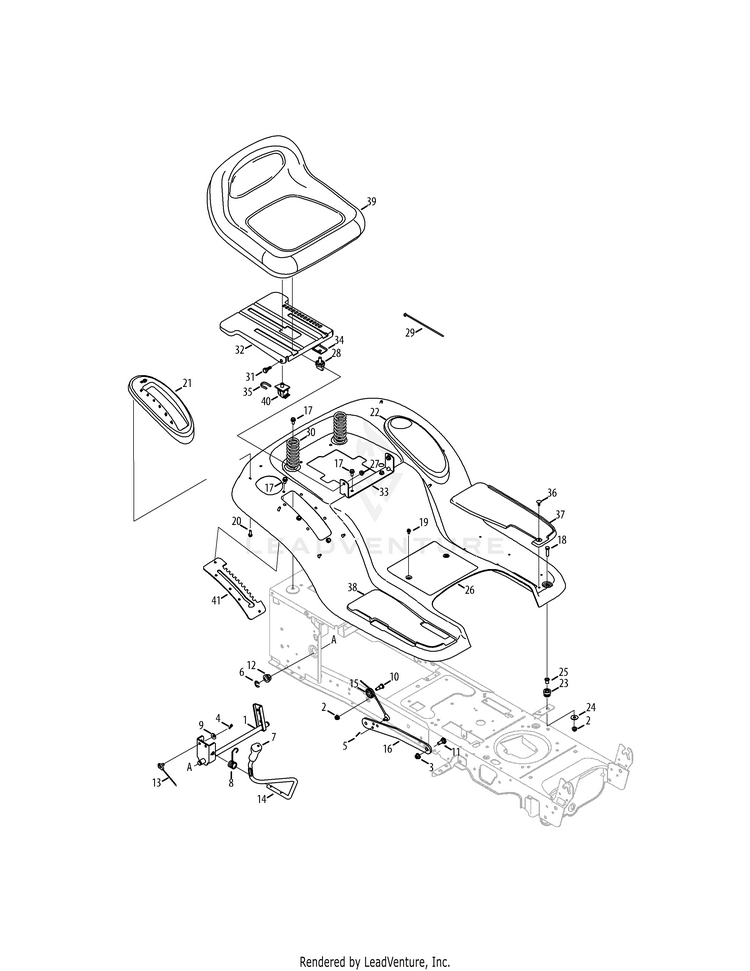

Seat & Fender

...
...
1
LIFT SHAFT ASSEMBLY (POWDER BLACK) MTD-683-04223-0637
...
2
Nut, Flange Lock, 5/16-18, Grf MTD-712-04063
...
3
Nut, Flange Lock, 3/8-16, Grf MTD-712-04065
...
4
Hairpin Clip MTD-714-0104
...
5
Pin, Cotter, Bow-Tie 72 MTD-714-04040
...
6
Ring, E Type, .625 Dia. Shaft MTD-716-0106A
...
7
Grip, Handle, 1/2 MTD-720-0311
...
8
Spring, Torsion MTD-732-0874
...
9
Washer, Spring, .401 x .870 x .063 MTD-736-0105
...
10
Screw, Shoulder, .437 x .470, 5/16-18 MTD-738-0138A
...
11
Shoulder Screw MTD-738-0380
...
12
Bearing, Hex Flange MTD-941-0225
...
13
Cable, Lift, 16.16 MTD-746-0968
...
14
Handle, Lift, MTD-747-04962A
...
15
Pulley, Roller, Cable MTD-756-04331
...
16
Lift Link MTD-783-05546A-0637
...
17
SCREW 5/16-18 x .750 MTD-710-04484
...
18
Hex Screw, 5/16-18, 1.25, Gr5, Std MTD-710-0528
...
19
Screw, Self-tapping, 1/4-20, 0.500, MTD-710-0599
...
20
Screw, HL, 1/4-15, 0.750, MTD-710-0895
...
21
Cover, Lift Lever MTD-731-06795
...
22
COVER-W/CUP HOLDER MTD-731-1993A
...
23
Grommet, .4375 ID x .750 MTD-735-0690
...
24
Washer, Flat .344 x 1.00 x .063 MTD-736-3078
...
25
Spacer, Flange, .3125 x .4375 x .625 MTD-750-3310
...
26
FENDER MTD-783-06259
...
27
HEX FLANGE NUT MTD-712-3004A
...
28
Knob, 3/8-16, .875 MTD-720-04061
...
29
Cable, Tie, 3/16 x .05 x 7.4 MTD-725-0157
...
30
Spring, Comprs, 1.50 x 3.90 x .200 MTD-732-04849
...
31
Shld. Bolt .437" x .286" MTD-738-0296
...
32
Bracket, Mounting, Seat MTD-783-06049-0637
...
33
Seat Pivot Bracket MTD-783-06088A-0637
...
34
Bracket, Knob Adjustment, Seat MTD-783-06266-0637
...
35
Clip, Retaining, Switch MTD-783-06448
...
36
Clip, Ratchet, .250 Dia MTD-726-3046
...
37
FOOT PAD (LH) MTD-735-04138
...
38
FOOT PAD (RH) MTD-735-04158
...
39
MEDIUM BACK (W/OPS) MTD-757-05242
...
40
Switch, Seat MTD-925-05013
...
41
Bracket, Lift, Man PTO, 6 Pos MTD-783-06443-0637
