MTD Gold 13AX915T004 (2011) Lawn Tractor

Model: 13AX915T004 (2011)

Back To Assemblies

Save Part Not Listed?
product name

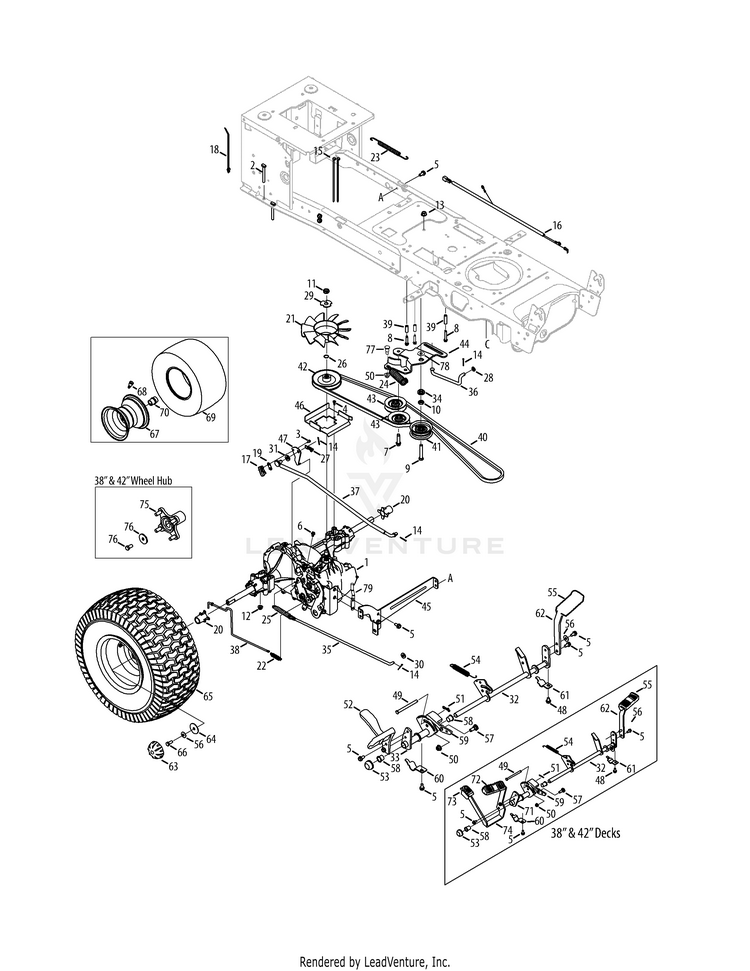

Drive & Rear Wheels

...
...
1
TRANSMISSION ASSEMBLY MTD-918-0319
...
2
Hex Screw, 5/16-18:2.75 MTD-710-0176
...
3
Screw, #8-18:0.500 MTD-710-0227
...
4
Screw, #10-16:0.500 MTD-710-0351
...
5
SCREW 5/16-18 x .750 MTD-710-04484
...
6
Taptite Screw, 1/4-20:0.375 MTD-710-0653
...
7
Screw, Sems, 3/8-16, 1.500 MTD-710-1007
...
8
Taptite Screw, 1/4-20:1.625 MTD-710-1325
...
9
Hex Screw, 3/8-16:2.25 MTD-710-3011
...
10
Jam Nut, 7/16-20 MTD-912-0240
...
11
Hex Lock Nut 1/2-20 Thread MTD-712-0346
...
12
Flangelock Nut, 5/16-18 MTD-712-04063
...
13
Flangelock Nut, 3/8-16 MTD-912-0431
...
14
Cotter Pin 3/32" Dia. x 1.0" MTD-714-0111
...
15
Cable Tie, 3/16 X .05 X 7.4 MTD-725-0157
...
16
Jumper Harness MTD-725-04791A
...
17
SAFETY SPRING SWITCH MTD-725-1644
...
18
Push Mount Cable Tie 7.5 LG MTD-926-0154
...
19
Insulator Nut Plate MTD-926-0320
...
20
Sleeve, .765 ID x 1.500 LG, 46" MTD-731-05299A
...
21
Hydro Fan MTD-731-06098
...
22
Extension Spring, .48 OD X 2.03 MTD-932-0209
...
23
Extension Spring, .500 DIA X 12.6 LG MTD-732-04606
...
24
Extension Spring, 1.00 DIA X 4.75 MTD-732-04624
...
25
Extension Spring, .59 OD X 4.00 LG MTD-732-0716D
...
26
Wire Ring MTD-732-0729
...
27
Extension Spring, .375 OD X 1.44 LG MTD-732-3118
...
28
Fl-Wash. .344" I.D. x .625" O.D. MTD-736-0264
...
29
Washer, Lock, TRANS HYDRO MTD-736-04263
...
30
Washer, Flat, .344 X .750 X .120 MTD-936-3008
...
31
Washer, Flat, .407X.812X.135:HT MTD-736-3010
...
32
BRAKE PEDAL SHAFT ASSEMBLY MTD-647-04152D
...
33
DRIVE SHAFT ASSEMBLY MTD-683-04537A
...
34
SHOULDER SPACER 1.375X.380X.183 MTD-738-04420
...
35
Rod, Brake, Hydro MTD-747-04139
...
36
FOOTPEDAL BYPASS ROD MTD-747-04957A
...
37
Rod, Control, Hydro MTD-747-04979
...
38
Rod, Hydro Bypass MTD-747-04991
...
39
Spacer, .260 X .372 X 1.420 LG MTD-750-04456
...
40
Belt, V Type, Poly MTD-954-04207
...
41
Pulley, Idler, Flat 2.75 OD MTD-756-04224
...
42
Pulley, Input, 4.13 DIA MTD-756-04308
...
43
Pulley, Idler, V-Type x 3.06 MTD-756-04325
...
44
DOUBLE IDLER BRACKET MTD-783-06027B
...
45
TRANSMISSION MOUNTING BRACKET MTD-783-06133-0637
...
46
BELT GUIDE SUPPORT MTD-783-06260-0637
...
47
SWITCH BRACKET MTD-783-1019B
...
48
Taptite Screw, 5/16-18:0.625 MTD-710-0604A
...
49
CLEVIS PIN 5/16 x 4.135 MTD-711-05068A
...
50
Flangelock Nut, 3/8-16 MTD-712-04065
...
51
Bow-Tie Cotter Pin MTD-714-04040
...
52
Control Pedal MTD-719-0584B-0637
...
53
Push Cap MTD-726-0214
...
54
Extension Spring, .63 DIA x 4.95 LG MTD-732-04587
...
55
Brake Pedal Pad MTD-735-04136
...
56
Washer, Bell, .340 x .872 x .060 MTD-736-0242
...
57
Shoulder Screw MTD-738-0380
...
58
NYLINER BEARING MTD-741-0495
...
59
Cruise Latch MTD-748-04203
...
60
Pedal Support Bracket MTD-783-05914
...
61
Pedal Support Bracket, 5/8 MTD-783-05940
...
62
FOOT BRAKE PEDAL (POWDER BLACK) MTD-783-06103A-0637
...
63
HUB CAP MTD-731-2290B
...
64
Washer, Flat, .350 x 1.59 x .062 MTD-736-0430
...
65
Wheel Assembly MTD-634-0104-0911
...
66
Hex Screw, 5/16-24 x .750 MTD-710-0627
...
67
Rim Assembly, Plastic Bead, 46" MTD-634-04369-0662
...
68
Tubeless Air Valve MTD-934-0255
...
69
Tire, 20 x 8 x 8, 38" & 46" MTD-734-1730-0901
...
70
Axle Hub MTD-941-0490
...
71
HYDRO PEDAL SHAFT ASSEMBLY MTD-983-04488
...
72
Reverse Pedal Pad MTD-735-04118A
...
73
Forward Pedal Pad MTD-735-04135
...
74
FWD/REV PEDAL MTD-783-06059-0637
...
75
Wheel Assembly Hub, 38" & 42" Not used in this application MTD-NA
...
76
Hex Screw, 5/16-24:.750 Not used in this application MTD-710-0627
...
76
Washer, Bell, .340 x .872 x .060 Not used in this application MTD-736-0242
...
77
Scr, Shldr, .50 x .685 3/8-16 MTD-738-0430
...
78
Fl-Wash. 390" I.D. x 1.0" MTD-736-0344
...
79
BELT KEEPER ROD MTD-747-05444A
