MTD Gold 13AX915T004 (2011) Lawn Tractor

Model: 13AX915T004 (2011)

Back To Assemblies

Save Part Not Listed?
product name

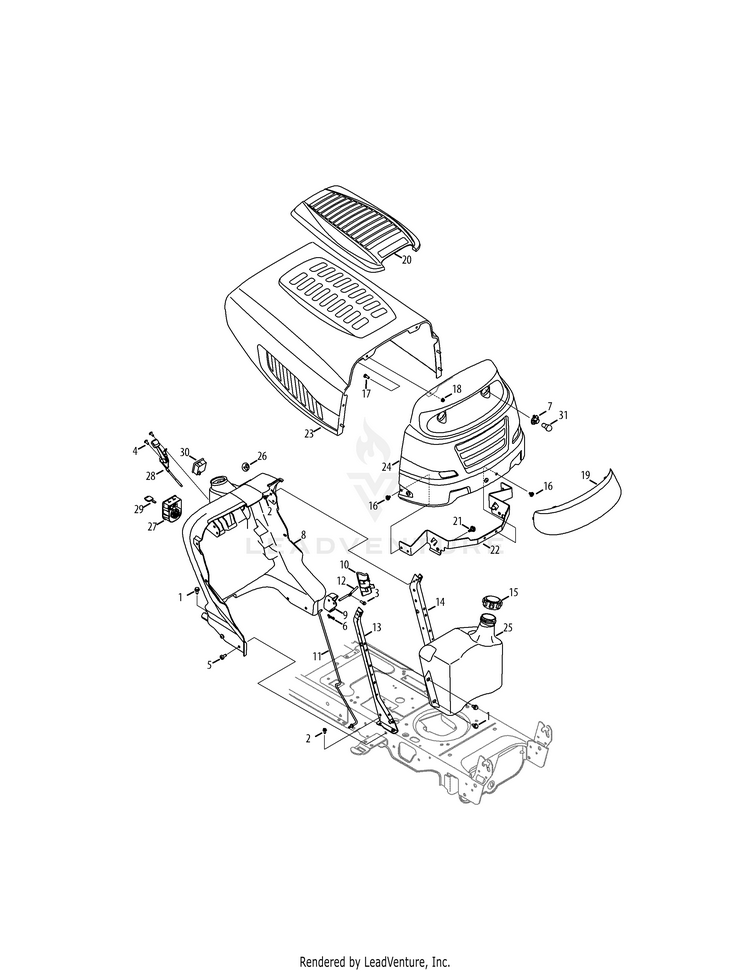

Hood & Dash

...
...
1
SCREW 5/16-18 x .750 MTD-710-04484
...
2
Taptite Screw, 1/4-20:0.500 MTD-710-0599
...
3
Hi-Lo Screw, 1/4-15:0.750 MTD-710-0895
...
4
Screw, 1/4-14:0.625 MTD-710-1017
...
5
Taptite Screw, 5/16-18:0.750 MTD-710-1611B
...
6
Bow Tie Cotter Pin MTD-714-04040
...
7
HEADLIGHT SOCKET (1/4 TURN) MTD-925-1649A
...
8
DASH PANEL TROY W/MAN PTO N/WIND MTD-731-06167
...
9
PARK/BRAKE LEVER MTD-731-06639
...
10
COVER PLATE MTD-731-06642
...
11
PARK BRAKE ROD MTD-747-05008
...
12
Lever MTD-747-1196
...
13
DASH SUPPORT MTD-783-04285F-0637
...
14
DASH SUPPORT MTD-783-04323F-0637
...
15
TANK CAP MTD-751-0603B
...
16
Taptite Screw, 5/16-18:0.375 MTD-710-04593
...
17
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
18
Flangelock Nut, 1/4-20 MTD-712-04064
...
19
GRILLE LENS 1 STYLE MTD-731P04949A
...
20
Hood Scoop MTD-731-05522A
...
21
Shoulder Screw, .43X.29:5/16-18 MTD-738-04091A
...
22
Hood Pivot Bracket MTD-783-05454-0637
...
23
Hood MTD-783-05683-0662
...
24
Grill MTD-783-05685A-0662
...
25
Fuel Tank MTD-751-0658E
...
26
Choke Plug MTD-731-1999
...
27
IGNITION MODULE SWITCH RMC (MAN PTO BLK) MTD-925-06119C
...
28
Throttle/Choke Control MTD-746-04364
...
29
Key MTD-925-1745A
...
30
HOUR METER/SERVICE MINDER MTD-925-06170B
...
31
Lamp MTD-925-0963
...
xx
CHOKE HOLE PLUG (Not Shown) MTD-726-04096
