MTD Gold 13AX795T004 (2011) Lawn Tractor

Model: 13AX795T004 (2011)

Back To Assemblies

Save Part Not Listed?
product name

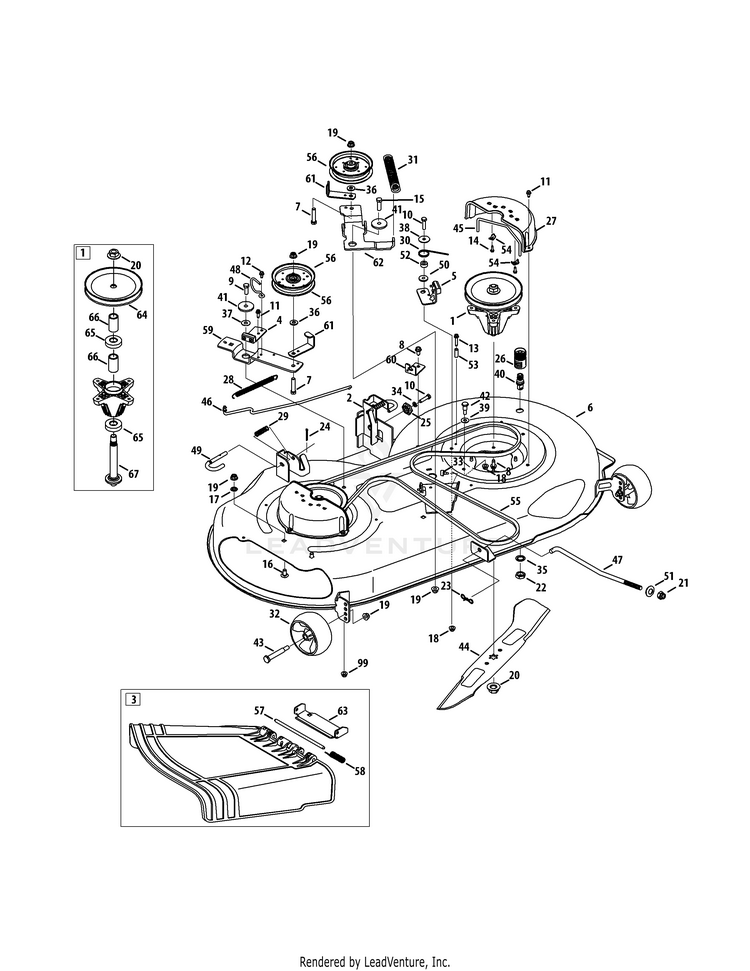

Mower Deck 46-Inch

...
...
1
Spindle Assembly MTD-918-04865A
...
2
Bracket Assembly, Deck, Hanger LH MTD-683-0254B
...
3
CHUTE ASSEMBLY MTD-631-05191A
...
4
Brake Assembly MTD-983-04511
...
5
Brake Assembly MTD-983-04525
...
6
KIT-DECK REPLACEMENT MTD-753-06766
...
7
Screw 3/8-16 1.75 Gr5 Std MTD-710-0347
...
8
SCREW 5/16-18 x .750 MTD-710-04484
...
9
Hex Head Screw, 3/8-16 1.00 MTD-710-0514
...
10
Hex Head Screw, 5/16-18 1.25 MTD-710-0528
...
11
Tap Screw, Ind. Washer, 1/4-20 0.500 MTD-710-0599
...
12
Screw, 1/4-20 x .750 MTD-710-0642
...
13
Screw, 1/4-20 x 1.50 MTD-710-0778
...
14
Special Screw, #10-16 x .625 MTD-710-04669
...
15
Screw 3/8-16 1.25 Gr5 Std MTD-710-3005
...
16
CARRIAGE BOLT 3/8-16 x .75 MTD-710-3178
...
17
Push Nut, 3/8 MTD-712-0229
...
18
Nut, Flange Lock Nut, 5/16-18 MTD-712-04063
...
19
Flangelock Nut, 3/8-16 MTD-712-04065
...
20
HEX NUT MTD-712-0417A
...
21
Lock Nut, 1/2-13 MTD-712-04243
...
22
Nut, Hex, M16-1.5 MTD-712-0641
...
23
Bow-Tie Cotter Pin MTD-714-04043
...
24
Cotter Pin 1/8" Dia. MTD-714-0470
...
25
Deck Gear MTD-917-04074
...
26
Water Nozzle Adaptor MTD-921-04041
...
26
Plug, Deck Wash MTD-738-04146
...
27
Belt Cover MTD-731-06496
...
28
EXTENSION SPRING MTD-932-0384
...
29
Compression Spring, .535 OD X 1.751 LG MTD-732-04652
...
30
Torsion Spring, .992 x 1.17 MTD-732-04773
...
31
EXTENSION SPRING MTD-732-04871A
...
32
Front Deck Wheel MTD-734-04155
...
33
Bumper .62 Dia X .3 MTD-735-0271A
...
34
Lock Washer, 5/16 MTD-936-0119
...
35
Lock Washer, 5/8 MTD-736-0225
...
36
Flat Washer, .385 X .870 X .092 MTD-736-0262
...
37
Fl-Wash. 390" I.D. x 1.0" MTD-736-0344
...
38
Flat Washer, .330 X 1.25 X .06 MTD-736-0362
...
39
Washer Flat .343 X .880 X .062 MTD-736-0371
...
40
Deck Water Nozzle MTD-737-04003D
...
40
Washer,Flat .64 x 1.24 x .06 MTD-736-0187
...
41
Shoulder Spacer .884 x .190 MTD-738-04162C
...
42
Screw Shld .437 Dia. X .54 MTD-738-0754
...
43
Shoulder Bolt, .496 X 2.50 3/8-16 MTD-938-3056
...
44
23.25" BLADE (2N1) (STAR) MTD-942-04290A
...
45
Belt Keeper Rod MTD-747-05011
...
46
Rod, Control, Brake 46" MTD-747-05052A
...
47
DECK FRONT LIFT ROD MTD-747-05141B
...
48
BELT KEEPER ROD MTD-747-05323
...
49
Deck Release Handle Rod MTD-747-1116
...
50
Shoulder Spacer MTD-748-0234
...
51
LIFT PIVOT CUP MTD-748-04069A
...
52
Spacer MTD-750-0258
...
53
Spacer, .260 X .375 X 1.030 Lg MTD-750-0566A
...
54
Casing Clamp MTD-751B221535
...
55
V-Belt MTD-954-04219
...
56
Pulley Kit, Idler, 4.25"Dia MTD-753-08171
...
57
Hinge Pin MTD-711-04847B
...
58
Torsion Spring MTD-732-04372
...
59
Idler Bracket MTD-783-05946
...
60
Deck Engage Cable Bracket MTD-783-06243-0637
...
61
4.25 Pulley Belt Guard Bracket MTD-783-06368A-0637
...
62
KIT-SERVICE DECK IDLER MTD-753-06722B
...
63
CHUTE BRACKET MTD-783-06074A
...
64
Deck Pulley, 6.93 DIA MTD-756-04356
...
65
BALL BEARING MTD-741P0919B
...
66
Spacer, .792 X 1.060 X 1.860 LG MTD-750-04936
...
67
Spindle Shaft, 6.05 LG. MTD-738-1186A
