product name

MTD Gold 13AX795S004 (2016) Lawn Tractor

Model: 13AX795S004 (2016)

Back To Assemblies

Save Part Not Listed?
product name

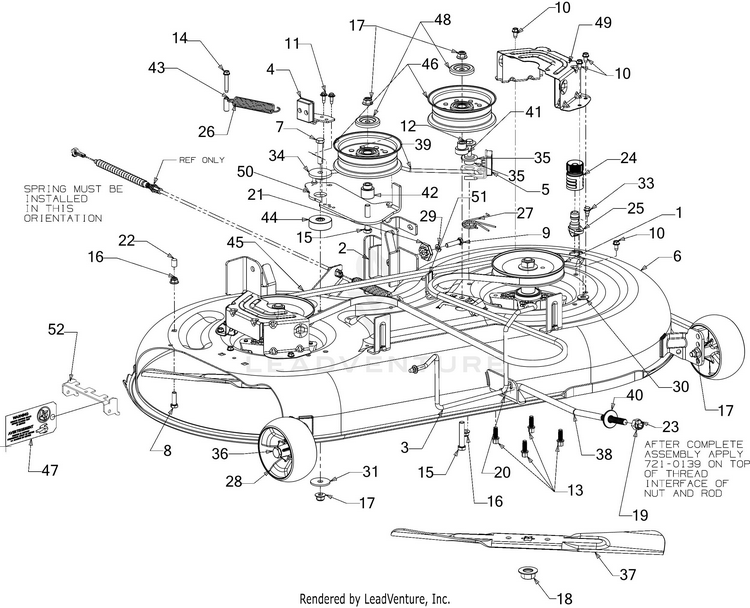

Deck

...
...
1
SPINDLE ASSEMBLY 5.4" MTD-918-06991
...
1
DECK SPINDLE HOUSING (W/O FTG) Not Shown MTD-719-07293-M
...
1
HEX NUT Not Shown MTD-712-0417A
...
1
BLADE SPINDLE SHAFT STAR 6.11 LG Not Shown MTD-738-1186A
...
1
SPACER- .792 x 1.060 x 1.860 Not Shown MTD-750-04936
...
1
DECK PULLEY 5.4" DIA Not Shown MTD-756-05031
...
1
BALL BEARING Not Shown MTD-741P0919B
...
xx
Troy-Bilt 42" SPINDLE ASSEMBLY (06991) Retail Packaged Part MTD-490-130-Y024
...
18
HEX NUT MTD-712-0417A
...
2
Bracket Assembly, Deck, Hanger LH MTD-683-0254B
...
3
BELT KEEPER ROD MTD-747-04857
...
5
RIVOT Not Shown MTD-728-0175
...
5
DECK BRAKE PAD Not Shown MTD-761-05007
...
4
RIVOT Not Shown MTD-728-0175
...
4
DECK BRAKE PAD Not Shown MTD-761-05007
...
4
DECK BRAKE ASSEMBLY (RH) MTD-983-05182B
...
5
DECK BRAKE ASSEMBLY KIT MTD-753-09904A
...
6
42" DECK ASSEMBLY (POWDER BLACK) MTD-983-05184D-0637
...
7
HEX SCREW 3/8-16 x 1.75 GR5 MTD-710-0347
...
8
SCREW 5/16-18 x 1.0 GR5 MTD-710-0376
...
9
SCREW 5/16-18 x 1.25 GR5 MTD-710-0528
...
12
SCREW 5/16-18 x 1.25 GR5 MTD-710-0528
...
10
SCREW 1/4-20 X.500 MTD-710-0599
...
11
SCREW M6-1 x .625 MTD-710-06133
...
12
SCREW 5/16-18X1.25 GR 5 MTD-710-06213
...
12
FLAT WASHER 344X1.00 MTD-736-3078
...
13
SCREW 5/16-18 X .875 MTD-710-06322
...
14
SCREW 1/4-20 x 1.50" MTD-710-0778
...
15
SCREW 3/8-16 x 2.0 GR 8 MTD-710-3096
...
16
FLANGE LOCK NUT 5/16-18 MTD-712-04063
...
17
NUT MTD-712-04065
...
19
NUT MTD-712-04243
...
20
PIN:COTTER MTD-714-04043
...
21
DECK ADJUSTMENT MTD-917-04074
...
22
VINYL CAP MTD-720-05010
...
23
LOCTITE SEALANT (NOT SERVICEABLE) MTD-NA
...
52
N/A Not Serviceable MTD-NA
...
47
N/A Not Serviceable MTD-NA
...
24
WATER NOZZLE MTD-921-04041
...
25
DECK WASH NOZZLE MTD-731-07487
...
26
EXTENSION SPRING MTD-732-04629
...
27
TORSION SPRING MTD-732-05151A
...
28
DECK WHEEL MTD-734-04155
...
28
GENUINE FACTORY PARTS® Deck Wheels (Narrow) SET 734-06305A Retail Packaged Part MTD-490-325-F073
...
29
LOCK WASHER 5/16 MTD-936-0119
...
30
Fl-Wash. .385" I.D. x 7/8" MTD-736-0300
...
31
Flat Washer, .406 x 1.5 x 11 gauge MTD-736-3039
...
32
SHOULDER SCREW MTD-738-04184A
...
33
SHOULDER SCREW 1/4-20X.50 19"PSH MTD-738-04278
...
34
SHOULDER SPACER MTD-738-05082
...
35
SHOULDER SPACER .750 x .145 MTD-738-05088
...
36
SHOULDER BOLT MTD-938-3056
...
37
21.23" BLADE (2N1) MTD-942-04308A
...
37
GENUINE FACTORY PARTS® 42" High-Lift Blade Set (Star Mount) 742-04308, 742-04312 Retail Packaged Part MTD-490-110-F108
...
37
21.23" BLADE (2N1) (XTREME) MTD-942-04308-X
...
37
42" 6 PT STAR LOW LIFT/SAND BLADE MTD-742-04312-L0606
...
38
DECK FRONT LIFT ROD MTD-747-05141B
...
39
DECK BRAKE ROD MTD-747-06538
...
40
LIFT PIVOT CUP MTD-748-04069A
...
41
SHOULDER SPACER MTD-748-05029A
...
42
SHOULDER SPACER MTD-748-05037B
...
43
SPACER MTD-750-0566A
...
44
SPACER .385ID x 1.75OD x .585THK MTD-750-06184
...
45
V-BELT A x 96.5 MTD-954-04060C
...
45
GENUINE FACTORY PARTS® 42" LT-5 Deck Belt 754-04060C, 954-04060C Retail Packaged Part MTD-490-501-F044
...
46
IDLER PULLEY 4.50" DIA MTD-756-05034A
...
48
IDLER PULLEY CAP MTD-783-08389
...
49
DECK BELT COVER (POWDER BLACK) MTD-783-08510D-0637
...
50
DECK IDLER BRACKET MTD-783-08654C
...
51
BELT KEEPER (POWDER BLACK) MTD-783-08690A-0637
