MTD Gold 13AX795S004 (2016) Lawn Tractor

Model: 13AX795S004 (2016)

Back To Assemblies

Save Part Not Listed?
product name

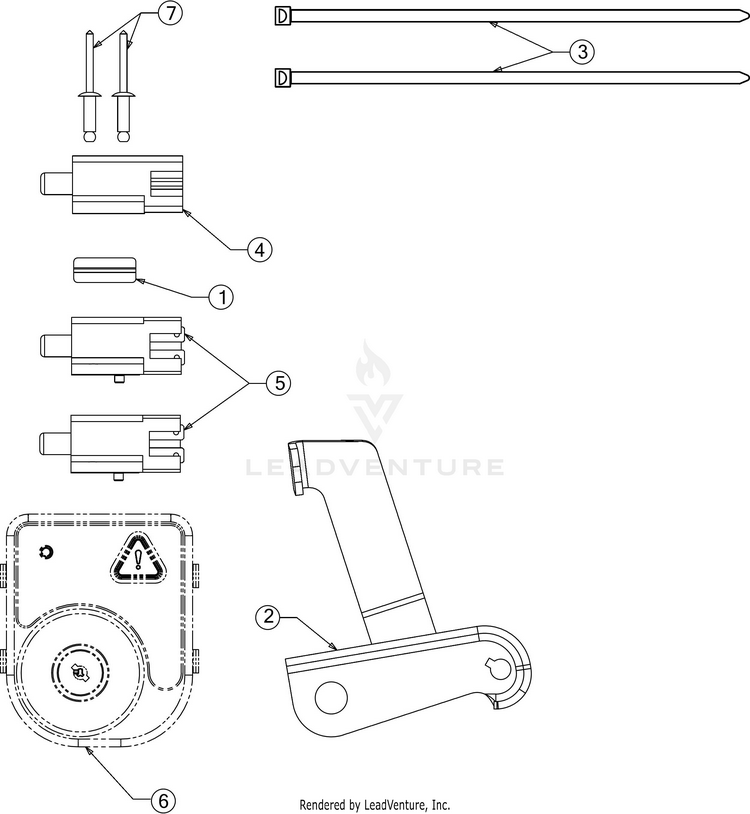

Electrical

...
...
xx
12V SOLENOID Not Shown MTD-725-06153A
...
xx
MAIN HARNESS (RMC/AM/ACDC/BULB) Not Shown MTD-725P04432P
...
1
PLATE-SWITCH MTD-17962
...
2
LATCH BRACKET MTD-683-04766-0637
...
2
LATCH SPEED BRACKET (POWDER BLACK) Not Shown MTD-783-06991A-0637
...
3
CABLE TIE 7" MTD-725-0157
...
4
SWITCH MTD-925-04039
...
5
INTERLOCK SWITCH (NO/NC) MTD-725-04363
...
6
IGNITION MODULE SWITCH RMC (MAN PTO BLK) MTD-925-06119C
...
7
POP RIVET .187 DIA MTD-728-04021
