MTD Gold 13AX795S004 (2014) Lawn Tractor

Model: 13AX795S004 (2014)

Back To Assemblies

Save Part Not Listed?
product name

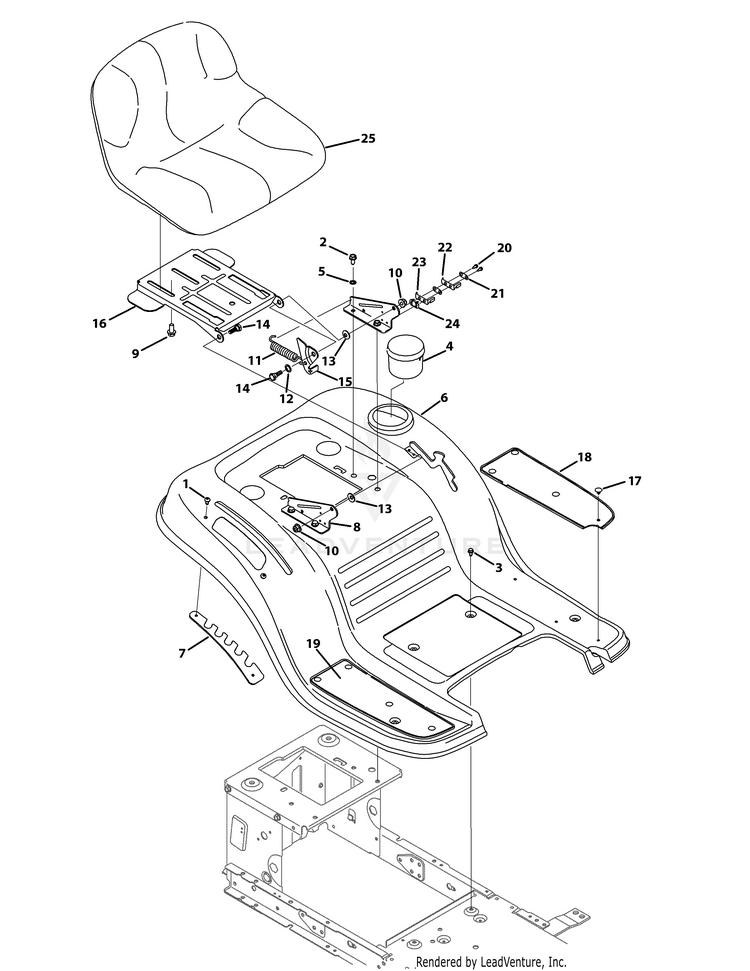

Seat & Fender

...
...
1
SCREW 1/4-20 x .5 MTD-710-05070A
...
2
SCREW 5/16-18 x .750 MTD-710-04484
...
3
Screw Pan Torx Head, 1/4-20 x .500 MTD-710-0599
...
4
Cup Holder MTD-731-04591A
...
5
Loack Washer, 5/16 MTD-736-0607
...
6
FENDER (BLACK JACK) MTD-783-04593F-0691
...
7
Lift Adjuster Bracket MTD-783-04843-0637
...
8
Seat Mount Bracket MTD-783-1489D-0637
...
9
Hex Flange, 3/8-16 x .875 MTD-710-04482
...
10
Flangelock Nut, 5/16-18 MTD-712-04063
...
11
Extension Spring MTD-732-1184
...
12
Flat Washer, .510x .750 x .033 MTD-936-0108
...
13
Bell Washer, .340 x .872 x .060 MTD-736-0242
...
14
Shld. Bolt .437" x .286" MTD-738-0296
...
15
Lift Seat Bracket MTD-783-0209D
...
16
Pivot Seat Manual Adjust Bracket MTD-783-04081D-0637
...
17
Ratchet Clip, .250 x .500 MTD-726-3046
...
18
Foot Pad, LH MTD-735-04047
...
19
Foot Pad, RH MTD-735-04048
...
20
Screw, 8-18 x .500 MTD-710-0227
...
21
Insulator Plate MTD-726-0279
...
22
Outer Seat SPring MTD-925-1303
...
23
Inner Seat Spring MTD-725-1439
...
24
Insulator Boss Plate MTD-726-0278
...
25
MED BACK SEAT, BLACK (3 PT) MTD-757-05229
