product name

MTD Gold 13AX795S004 (2013) Lawn Tractor

Model: 13AX795S004 (2013)

Back To Assemblies

Save Part Not Listed?
product name

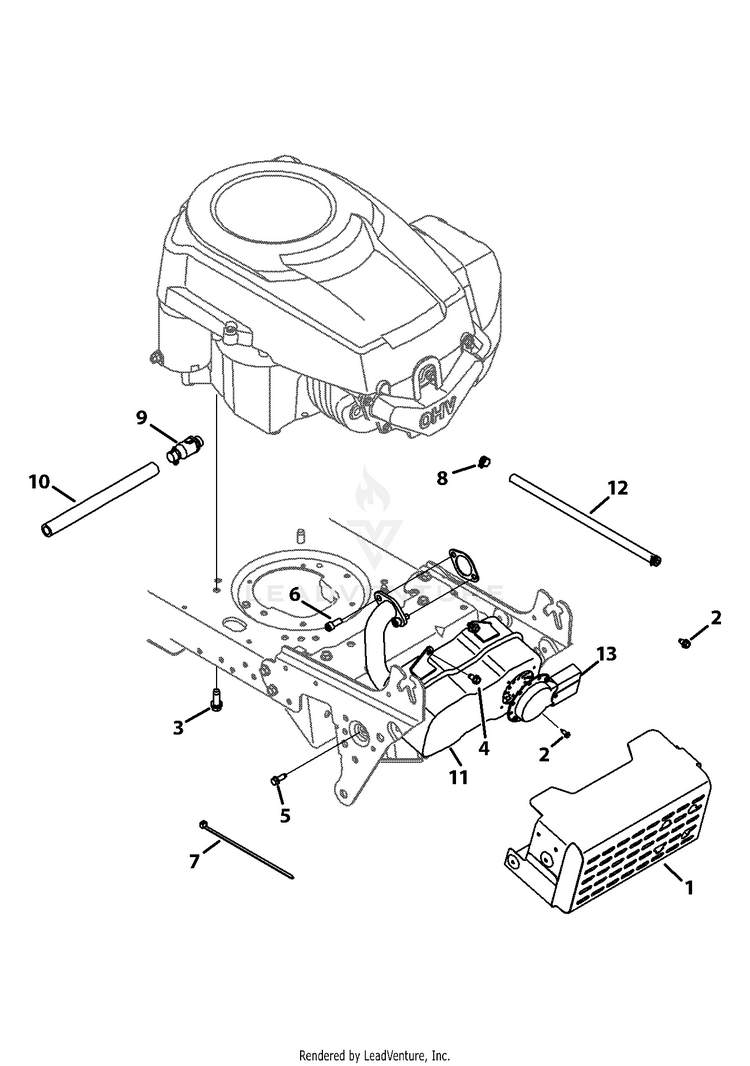

Engine Accessories

...
...
1
MUFFLER SHIELD (POWDER BLACK) MTD-683-05460A-0637
...
2
Screw, 8-18 x .500 MTD-710-0227
...
3
SCREW 3/8-16 X 1 MTD-710-04683C
...
4
Screw, 1/4-20 x .500 MTD-710-0599
...
5
Screw, 1/4-20 x .750 MTD-710-0642
...
6
Socket Screw, 5/16-18 x .750 MTD-710-1314A
...
7
Cable Tie MTD-725-0157
...
8
Clamp Hose, .490 diameter MTD-726-0205
...
9
Oil Drain MTD-951-10517A
...
10
Oil Drain, Extension Hose MTD-751-3141-14
...
11
MUFFLER MTD-951-11943A
...
12
FUEL HOSE 1/4-36" MTD-751-22813-36
...
13
EXHAUST DELECTOR (LONG) MTD-751-11053B
