product name

MTD Gold 13AX795S004 (2012) Lawn Tractor

Model: 13AX795S004 (2012)

Back To Assemblies

Save Part Not Listed?
product name

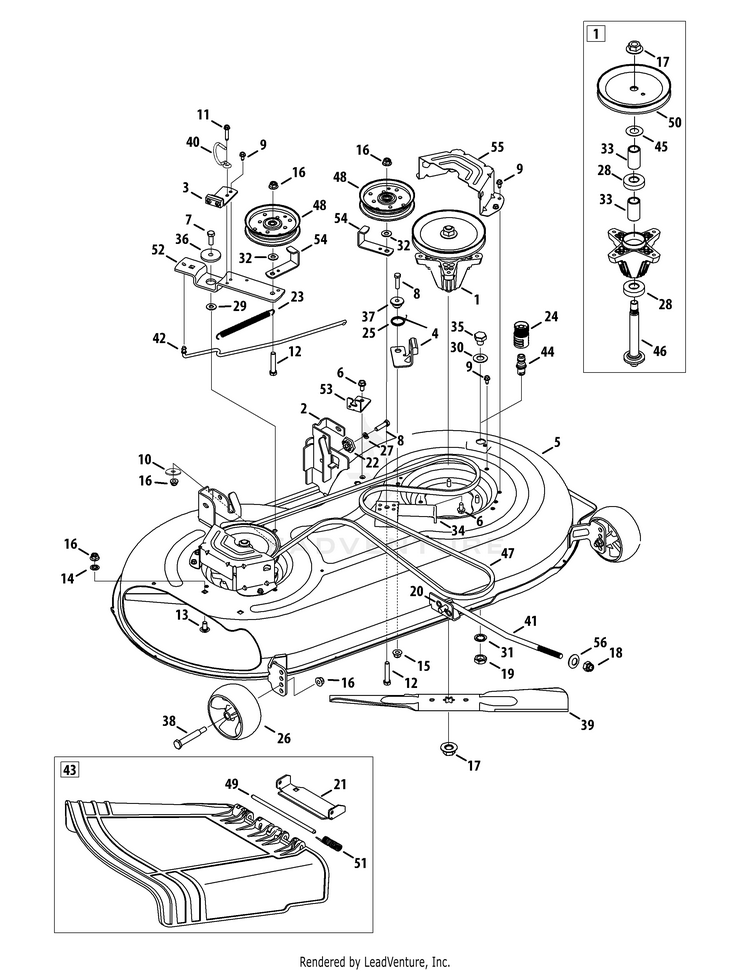

Mower Deck 42-Inch

...
...
1
SPINDLE ASSEMBLY MTD-918-04822B
...
2
Bracket Assembly, Deck, Hanger LH MTD-683-0254B
...
3
Brake Asm, Deck, 42/46 MTD-983-04511
...
4
Brake Asm, Deck, 46" MTD-983-04525
...
5
Deck Ass’y, Offset, 42" W/O wheel MTD-983-04572A-0637
...
6
SCREW 5/16-18 x .750 MTD-710-04484
...
7
Hex Screw, 3/8-16, 1.25, Gr5, Std MTD-710-3005
...
8
Screw, 5/16-18, 1.25, Gr5, Std MTD-710-0528
...
9
Screw, Tt, 1/4-20, 0.500, Hxindwsh MTD-710-0599
...
10
Flat Washer, .406 x 1.5 x 11 gauge MTD-736-3039
...
11
Screw, Self-tapping, 1/4-20, .750 MTD-710-0642
...
12
Screw, 3/8-16, 2.00, Gr5, Std MTD-710-3144
...
13
CARRIAGE BOLT 3/8-16 x .75 MTD-710-3178
...
14
Nut, Push, 3/8 MTD-712-0229
...
15
Nut, Flglk, 5/16-18, Grf, Nylon MTD-712-04063
...
16
Nut, Flglk, 3/8-16, Grf, Nylon MTD-712-04065
...
17
HEX NUT MTD-712-0417A
...
18
Nut, Flxlk, 1/2-13 MTD-712-04243
...
19
Nut, Hex, M16-1.5 MTD-712-0641
...
20
Bow-Tie Cotter Pin MTD-714-04043
...
21
CHUTE BRACKET MTD-783-06074A
...
22
Gear, Deck, Adj MTD-917-04074
...
23
EXTENSION SPRING MTD-932-0384
...
24
Water Nozzle Adapter If equipped MTD-921-04041
...
25
Spring, Torsion, .992 ID X 1.17 OD MTD-732-04840
...
26
Wheel, Deck, 5.0 Dia Ball If equipped MTD-734-04155
...
27
Washer, Lock, 5/16, Regular Duty MTD-936-0119
...
28
BALL BEARING MTD-741P0919B
...
29
Fl-Wash. 390" I.D. x 1.0" MTD-736-0344
...
30
Washer, Flat, .64 X 1.24 X .06, Ht MTD-736-0187
...
31
Washer, Lock, 5/8, Int Tooth MTD-736-0225
...
32
Washer, Flat, .385 X .870 X .092 MTD-736-0262
...
33
Spacer, .792 X 1.060 X 1.860 Lg MTD-750-04936
...
34
Bracket, Supt, Deck Stationary Idlr MTD-783-06643-0637
...
35
Plug, Bolt, M16 X 1.5 MTD-738-04146
...
36
Shoulder Spacer .884 x .190 MTD-738-04162C
...
37
Shoulder Spacer MTD-748-04272
...
38
Bolt, Shldr, .496 X 2.50, 3/8-16 MTD-938-3056
...
39
21.23" BLADE (2N1) MTD-942-04308A
...
40
BELT KEEPER ROD MTD-747-05323
...
41
DECK FRONT LIFT ROD MTD-747-05141B
...
42
Rod, Cont, Brake 42" MTD-747-05105B
...
43
CHUTE ASSEMBLY MTD-631-05191A
...
44
Deck Water Nozzle If equipped MTD-737-04003D
...
45
Fl-Wash. .76" I.D. x 1.5" O.D. x .030" Thk. MTD-736-0351
...
46
Shaft, Spdl, 6.11 Lg. MTD-738-1186A
...
47
V-Belt MTD-954-04060C
...
48
Pulley Kit, Idler, 4.25"Dia MTD-753-08171
...
49
Pin, Hinge, Dia .3125 X 7.96 Lg MTD-711-04847B
...
50
Pulley, Deck, 6.3 Dia MTD-956-1227
...
51
Spring, Torsion, .44 I.D. X 2.0 MTD-732-04372
...
52
Bracket, Idlr, Piv, 46 MTD-783-05946
...
53
Bracket, Cable, Deck Engage MTD-783-06243-0637
...
54
Belt Pulley Guard MTD-783-06368A-0637
...
55
Deck Belt Cover, 42 MTD-783-06424A-0637
...
56
LIFT PIVOT CUP MTD-748-04069A
