MTD Gold 13AP925P004 (2013) Lawn Tractor

Model: 13AP925P004 (2013)

Back To Assemblies

Save Part Not Listed?
product name

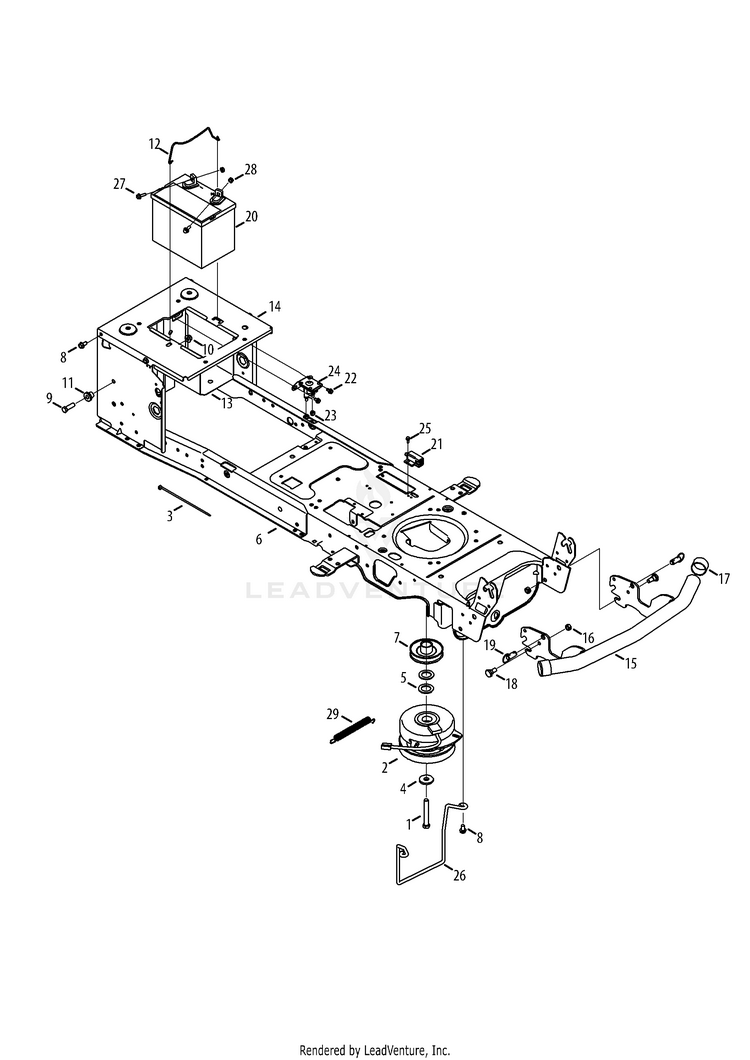

PTO & Battery

...
...
1
Hex Head Screw, 7/16-20:3.50 MTD-710-04379A
...
2
Electric PTO Clutch MTD-917-05122A
...
2
Clutch Harness Wire 11.625" MTD-725-06019
...
3
Cable Tie, 3/16 x .05 x 7.4 MTD-725-0157
...
4
Washer, Flat, .450 x 1.25 x .164 MTD-736-0322
...
5
Flat Washer, 1.031 x 1.620 x .095 MTD-736-0277
...
6
LOWER FRAME ASSEMBLY(POWDER BLACK) MTD-683-04469D-0637
...
7
Electric PTO Engine Pulley MTD-756-0978B
...
8
SCREW 5/16-18 x .750 MTD-710-04484
...
9
Hex Head Screw, 3/8-16:1.25 MTD-710-3005
...
10
Flangelock Nut, 3/8-16 MTD-712-04065
...
11
Shoulder Spacer, .38 x 1.0 x .70 MTD-738-04058
...
12
Battery Holder Rod MTD-747-04121A
...
13
BATTERY TRAY MTD-783-0349-0637
...
14
SEAT FRAME BRACKET (POWDER BLACK) MTD-783-06089-0637
...
15
Bumper MTD-683-04219B-0637
...
16
Hex Ctr. L-Nut 3/8-16 Thd. MTD-712-3000
...
17
Bumper Cap MTD-731-05674
...
18
SHOULDER SCREW .498 DIA x .340 MTD-738-0143
...
19
Quick Release Pin MTD-714-04061
...
20
BATTERY MTD-925-1707D
...
21
Interlock Switch MTD-725-04363
...
22
Taptite Screw, 1/4-20:0.375 MTD-710-0653
...
23
Flangelock Nut, 1/4-20 MTD-712-04064
...
24
12V SOLENOID MTD-725-04439B
...
25
Shoulder Screw, #10-32:.500 MTD-738-04237A
...
26
Belt Keeper Rod MTD-747-05195
...
27
Hex Head Flange, 1/4-20:.75 MTD-710-04666
...
28
Sems Nut, 1/4-20 MTD-712-0271
...
29
Spr, Extn, .56 Dia X 5.52 MTD-732-0814
...
xx
Wire harness, Main (Not Shown) MTD-925-04104
