MTD Gold 13AL795S004 (2015) Lawn Tractor

Model: 13AL795S004 (2015)

Back To Assemblies

Save Part Not Listed?
product name

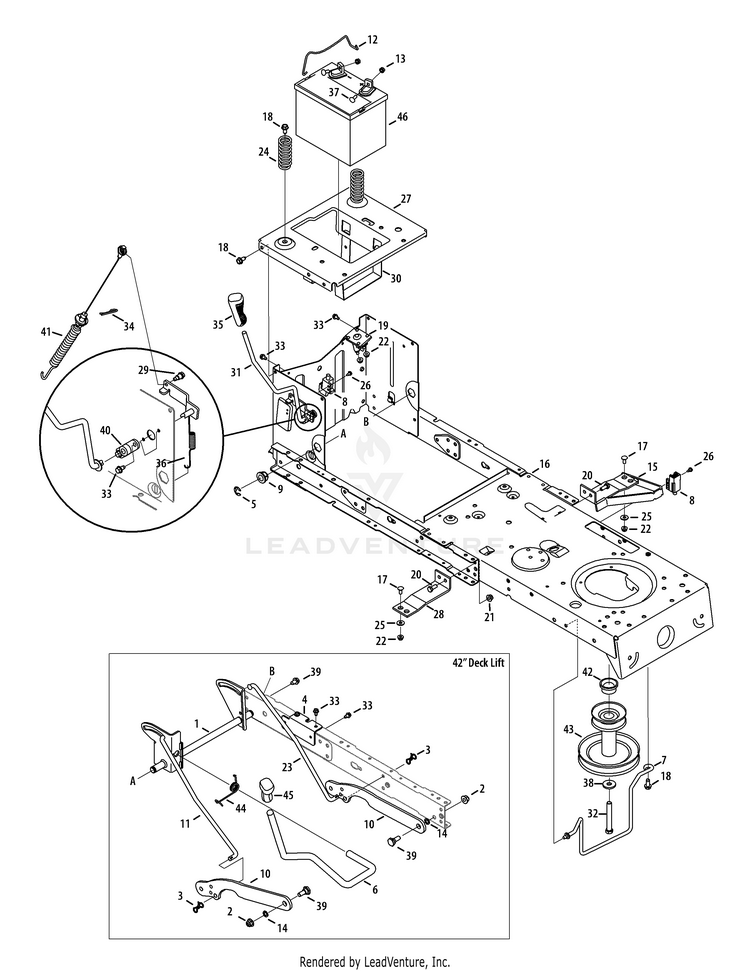

Frame and PTO Lift

...
...
1
Shaft Assembly Lift MTD-683-04334-0637
...
2
Nut, Flange Lock, 3/8-16, GrF MTD-712-04065
...
3
Pin, Cotter, Bow Tie MTD-714-04040
...
4
Frame Brace Bracket MTD-783-05389A-0637
...
5
Ring, E-Type, .625 Dia. MTD-716-0106A
...
6
Deck Handle, Lift, 46" Deck MTD-747-04653A
...
7
Rod, Belt Keeper MTD-747-04857
...
8
Switch, Interlock MTD-725-04363
...
9
Bearing, Hex Flange MTD-941-0225
...
10
Deck Lift Arm MTD-783-0678C-0637
...
11
Lift Rod, RH MTD-747-06237A
...
12
Battery Rod MTD-683-04448
...
13
Nut, Sems, 1/4-20 MTD-712-0271
...
14
Fl-Wash. .344" I.D. x .62" MTD-736-0140
...
15
RUNNINGBOARD BRACKET (LH) (BLACK JACK) MTD-683-04195-0691
...
16
FRAME ASSEMBLY (POWDER BLACK) MTD-683-05139A-0637
...
17
Screw Carriage, 1/4-20 x .75 MTD-710-0703
...
18
SCREW 5/16-18 x .750 MTD-710-04484
...
19
12V SOLENOID MTD-725-06153A
...
20
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
21
Flange Lock Nut, 5/16-18 MTD-712-04063
...
22
Nut, Flange Lock, 1/4-20, GrF MTD-712-04064
...
23
Lift Rod, LH MTD-747-06253
...
24
Compression Spacer, 1.314 x 2.55 MTD-732-0735A
...
25
Flat Washer, .28 x .74 x .063 MTD-736-0173
...
26
Shoulder Screw, #10-32 x .500 MTD-738-04237A
...
27
Seat Bracket, Frame MTD-783-04548D-0691
...
28
Running Board Bracket MTD-783-04637-0637
...
29
SHOULDER SCREW MTD-738-04425
...
30
Battery Bracket MTD-783-04869A-0637
...
31
PTO Handle Assembly MTD-647-05041-0691
...
32
Hex Screw, 7/16-20 x 3.25 MTD-710-3157A
...
33
Screw, 1/4-20, 0.500 MTD-710-0599
...
34
Inter. Cotter Pin 3/8" Dia. MTD-714-0145
...
35
Grip, Handle, 3/8 MTD-720-04049A
...
36
Spring, Extension MTD-732-04276A
...
37
Screw, Carriage, 1/4-20, .75, Gr5 MTD-710-04666
...
38
Washer, Flat, .450 x 1.250 x .164 MTD-736-0322
...
39
Shoulder Screw MTD-738-0380
...
40
Bearing, PTO MTD-741-04119A
...
41
Deck Engage Cable MTD-946-05124A
...
42
Spacer, 1.010 x 1.400 x .825 MTD-750-0956
...
43
ENGINE PULLEY (3.56 x 6.12 DIA) MTD-956-04067B
...
44
Spring, Torsion 46" Deck MTD-732-04438
...
45
Grip, Handle, 5/8 MTD-720-0298
...
46
BATTERY MTD-925-1707D
