MTD Gold 13AL795S004 (2015) Lawn Tractor

Model: 13AL795S004 (2015)

Back To Assemblies

Save Part Not Listed?
product name

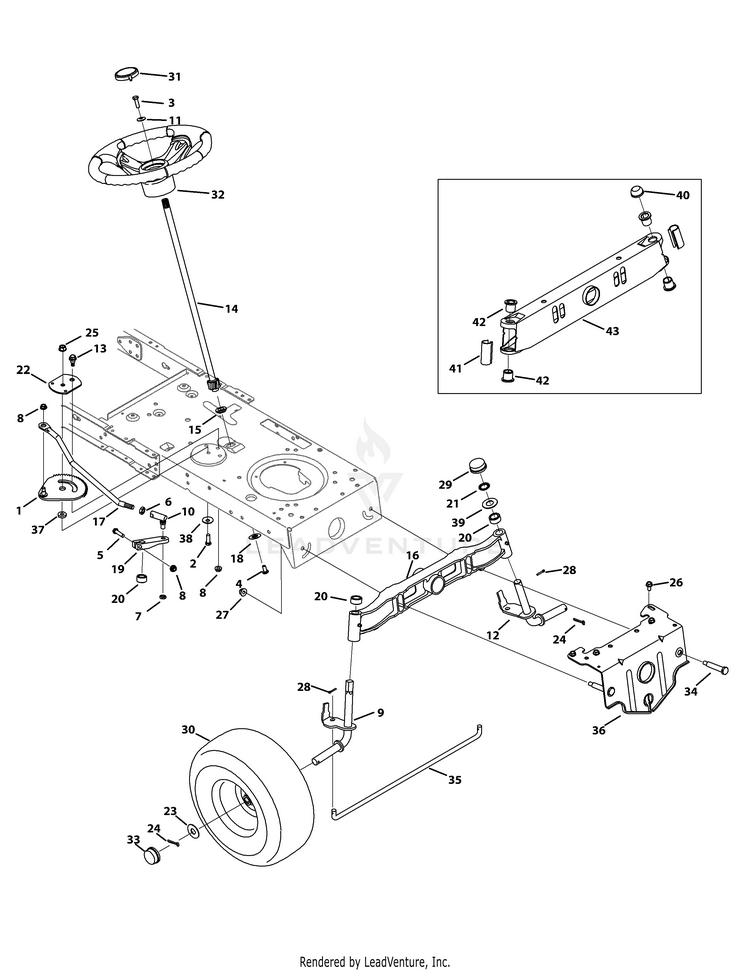

Front End Steering

...
...
1
FRONT STEERING GEAR ASSEMBLY MTD-617Z04094A
...
2
Hex Screw, 3/8-16 x 1.00 MTD-710-0514
...
3
Hex Screw, 5/16-18 x 1.00, Lock MTD-710-0643
...
4
Machine Screw, 5/16-18 x .750 MTD-710-1309
...
5
Hex Screw, 5/16-18 x 1.75 MTD-710-3180
...
6
Jam Nut, 7/16-20 MTD-912-0240
...
7
Jamlock Nut, 3/8-24 MTD-912-0214
...
8
Flangelock Nut, 5/16-18 MTD-712-04063
...
9
Front RH Axle MTD-938-04013
...
10
Ball Joint, 7/16-20 MTD-923-0448A
...
11
Bell Washer, .340 x .872 x .060 MTD-736-0242
...
12
Front LH Axle MTD-938-04014A-0637
...
13
Shoulder Bolt, 5/16-18 x .435 x .350 MTD-738-04141
...
14
STEERING SHAFT (5/8 DIA SPLINE) MTD-738P07154
...
15
Bearing, Flange, Hex 5/8 MTD-741-04124
...
16
CAST PIVOT BAR AXLE MTD-919-04177E
...
17
Steering Link MTD-747-05385A
...
18
Cap, 1.25 x .16 MTD-948-0389
...
19
Steering, Block MTD-748-04278
...
20
Spacer, .71 x .125 x .56 MTD-748-04068
...
21
Push Nut 3/4 Dia. MTD-726-04035
...
22
STABILIZER PLATE MTD-783P08577A
...
23
FLAT WASHER .781 ID x1.590 OD MTD-736-04228B
...
24
Cotter Pin, 5/32 x 1.25 MTD-714-0162
...
25
Flangelock Nut, 3/8-16 MTD-912-0431
...
26
SCREW 5/16-18 x .750 MTD-710-04484
...
27
Flangelock Nut, 3/8-16 MTD-712-04065
...
28
Cotter Pin, .125 x .75 MTD-914-0474
...
29
HUB CAP MTD-731-04693
...
30
Wheel Assembly MTD-634-05067-0911
...
31
Sprig Cap MTD-731-04040
...
31
No Sprig Cap MTD-731-04039
...
32
Steering Wheel MTD-631-04028
...
33
Hub Cap MTD-931-0484A
...
34
Shoulder Bolt, 3/8-16 x .500 x 2.38 MTD-738-04128
...
35
Fixed Rod MTD-747-04299A
...
36
PIVOT BAR BRACKET (POWDER BLACK) MTD-783-05326D-0637
...
37
Spacer, .38 ID x .854 OD x .20 MTD-750-06192A
...
38
Bell Washer, .390 x 1.13 x .062 MTD-736-0331
...
39
Flat Washer MTD-736-0316
...
40
Push Cap, 3/4 MTD-726-0341
...
41
Standard Axle Cap MTD-731-04057A
...
42
Flange Bearing, .760 x .941 x 1.0 MTD-741-0660A
...
43
Pivot Axle MTD-683-0128B-0637
