product name

MTD Gold 13AL795S004 (2015) Lawn Tractor

Model: 13AL795S004 (2015)

Back To Assemblies

Save Part Not Listed?
product name

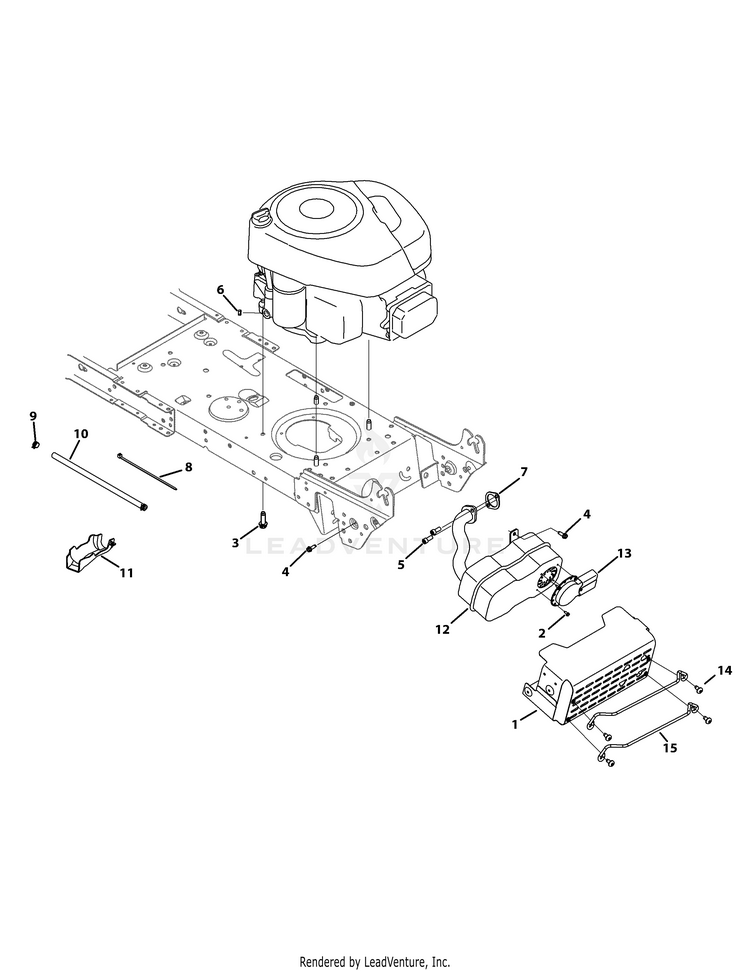

Engine Accessories B&S

...
...
1
MUFFLER SHIELD (POWDER BLACK) MTD-683-05460A-0637
...
2
Screw, 8-18 x .500 MTD-710-0227
...
3
Screw, 3/8-16 x 1.0 MTD-710-04683C
...
4
Screw, 1/4-20 x .750 MTD-710-0642
...
5
Socket Screw, 5/16-18 x .750 MTD-710-1314A
...
6
Sems Nut, 1/4-20 MTD-712-0271
...
7
Exhaust Gasket, 10 HP Briggs MTD-BS-692236
...
8
Cable Tie MTD-725-0157
...
9
Clamp Hose, .490 diameter MTD-726-0205
...
10
FUEL HOSE 1/4-36" MTD-751-22813-36
...
11
Oil Drain Sleeve MTD-731-05628
...
12
MUFFLER (B&S SINGLE W/DEFLECTOR) MTD-951-05956B
...
13
EXHAUST DELECTOR (LONG) MTD-751-11053B
...
14
Pan Torx Screw 1/4 MTD-710-05070A
...
15
Muffler Guard Rod MTD-747-06404A-0637
