MTD Gold 13AL795S004 (2014) Lawn Tractor

Model: 13AL795S004 (2014)

Back To Assemblies

Save Part Not Listed?
product name

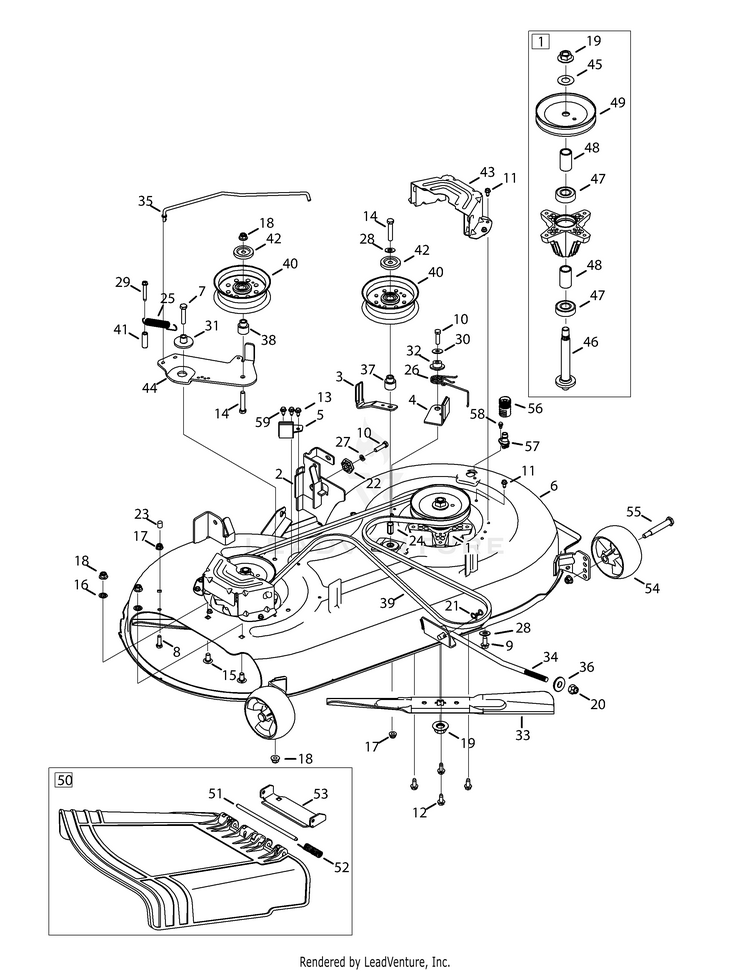

Mower Deck

...
...
1
Spindle Ass’y, Pulley, 6.2 Dia MTD-918-06991
...
2
Bracket Assembly, Deck, Hanger LH MTD-683-0254B
...
3
BELT KEEPER (POWDER BLACK) MTD-783-08690A-0637
...
4
DECK BRAKE ASSEMBLY KIT MTD-753-09904A
...
5
DECK BRAKE ASSEMBLY (RH) MTD-983-05182B
...
6
42" DECK ASSEMBLY (BLACK JACK) MTD-983-05098-0691
...
7
Hex Screw, 3/8-16 x 1.75 MTD-710-0347
...
8
Hex Cap Screw, 5/16-18 x 1.00 MTD-710-0376
...
9
SCREW 5/16-18 x .750 MTD-710-04484
...
10
Hex Screw, 5/16-18, 1.25, Gr5, Std MTD-710-0528
...
11
Screw, Self-tapping, 1/4-20, 0.500 MTD-710-0599
...
12
Screw, 5/16-18 x 0.750 MTD-710-1260A
...
13
Tap Screw, 1/4-20, 0.625 MTD-710-1652
...
14
Hex Screw, 3/8-16, 2.00, Gr8, Std MTD-710-3096
...
15
CARRIAGE BOLT 3/8-16 x .75 MTD-710-3178
...
16
Nut, Push, 3/8 MTD-712-0229
...
17
Nut, Flange Lock, 5/16-18, Grf MTD-712-04063
...
18
Nut, Flange Lock, 3/8-16, Grf MTD-712-04065
...
19
HEX NUT MTD-712-0417A
...
20
Nut, Lock, 1/2-13 MTD-712-04243
...
21
Bow-Tie Cotter Pin MTD-714-04043
...
22
Gear, Deck, Adjustment MTD-917-04074
...
23
Cap, .290 x .500 MTD-720-05010
...
24
Rivet Nut, 3/8-16 MTD-728-05016
...
25
Extension Spring, .750 X 4.77 MTD-732-04629
...
26
TORSION SPRING MTD-732-05151A
...
27
Washer, Lock, 5/16, Regular Duty MTD-936-0119
...
28
Fl-Wash. .385" I.D. x 7/8" MTD-736-0300
...
29
Screw, Self Tapping, 1/4-20, 1.50 MTD-710-0778
...
30
Flat Washer, .344 x 1.0 x .063 MTD-736-3078
...
31
Shoulder Spacer, .854 x .190 MTD-738-05064
...
32
Shoulder Spacer, .75 x .145 MTD-738-05088
...
33
21.23" BLADE (2N1) MTD-942-04308A
...
34
DECK FRONT LIFT ROD MTD-747-05141B
...
35
Brake Rod MTD-747-06232
...
36
LIFT PIVOT CUP MTD-748-04069A
...
37
Shoulder Spacer, Idler MTD-748-05029A
...
38
SHOULDER SPACER MTD-748-05037B
...
39
V-Belt MTD-954-04060C
...
40
IDLER PULLEY 4.50" DIA MTD-756-05034A
...
41
Spacer, .260 x .375 x 1.030 MTD-750-0566A
...
42
Pulley Cap MTD-783-08389
...
43
DECK BELT COVER (POWDER BLACK) MTD-783-08510D-0637
...
44
IDLER BRACKET MTD-783-08654C
...
45
Fl-Wash. .76" I.D. x 1.5" O.D. x .030" Thk. MTD-736-0351
...
46
Shift, Spindle, 6.11. MTD-738-1186A
...
47
BALL BEARING MTD-741P0919B
...
48
Spacer, .792 x 1.060 x 1.860 MTD-750-04936
...
49
Pulley, Deck, 5.4 Dia MTD-756-05031
...
50
CHUTE ASSEMBLY MTD-631-05191A
...
51
Pin, Hinge, Dia .3125 x 7.96 MTD-711-04847B
...
52
Spring, Torsion, .44 I.D. X 2.0 MTD-732-04372
...
53
CHUTE BRACKET MTD-783-06074A
...
54
Wheel, Deck, 5.0 Dia Ball MTD-734-04155
...
55
Bolt, Shoulder, .496 x 2.50, 3/8-16 MTD-938-3056
...
56
Water Nozzle Adapter MTD-921-04041
...
57
Deck Wash Nozzle MTD-731-07487
...
58
Shoulder Screw, 1/4-20 x 0.50 MTD-738-04278
...
59
Shoulder Screw, 1/4-20 MTD-738-04184A
