MTD Gold 13AL795S004 (2014) Lawn Tractor

Model: 13AL795S004 (2014)

Back To Assemblies

Save Part Not Listed?
product name

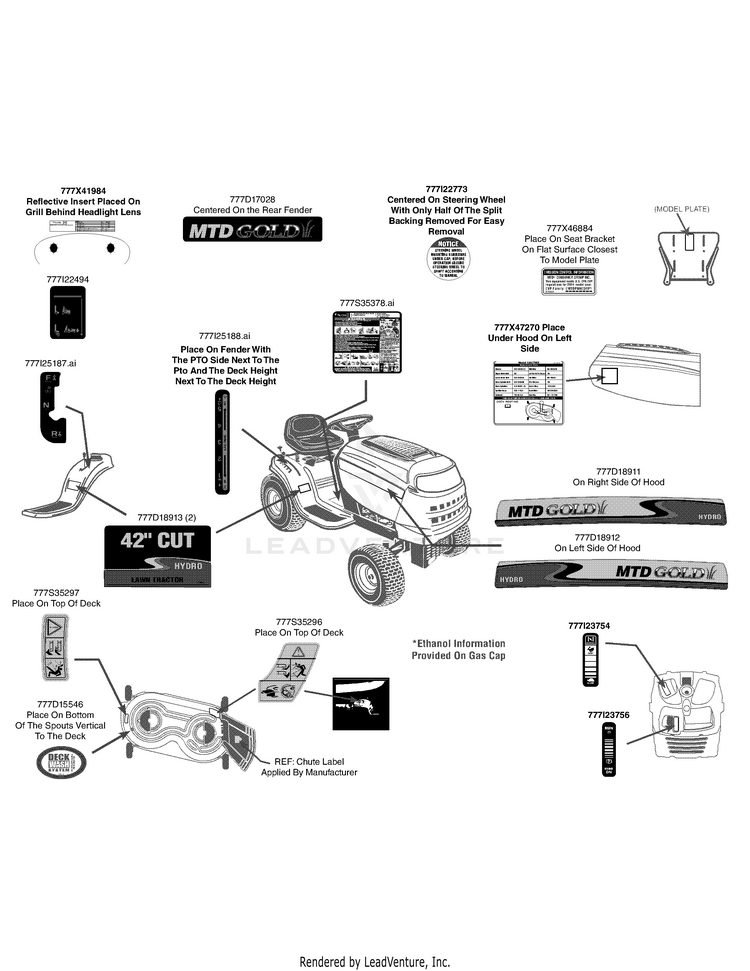

Label Map

...
...
777D17028
LABEL-MTD GOLD FENDER MTD-777D17028
...
777D18911
LABEL-HYDRO MTD GOLD (RH) HOOD MTD-777D18911
...
777D18912
LABEL-HYDRO MTD GOLD (LH) HOOD MTD-777D18912
...
777D18913
LABEL-RIDER 42" HYDRO MTD-777D18913
...
777D15546
Label-Deck Wash MTD-777D15546
...
777I22494
Label:Lt-5 Trans MTD-777I22494
...
777I22773
Label-Rider:Secure MTD-777I22773
...
777I23754
Label-Rider Lt-5 T MTD-777I23754
...
777I23756
Label-Rider Lt5 Hy MTD-777I23756
...
777I25187
Label-Rider Lt5 Cp MTD-777I25187
...
777I25188
Label-Rider Lt5 Cp MTD-777I25188
...
777S35378
Label-Rider Lt5 Hy MTD-777S35378
...
777X41984
Label:Rider 1&5 St MTD-777X41984
...
777X46884
LABEL-RIDER EMISSIONS 2014 MTD-777X46884
...
777X47270
LABEL-PARTS LIST AL795SS MTD-777X47270
...
777S35296
Label-Rider Safety MTD-777S35296
...
777S35297
Label-Rider Safety MTD-777S35297
