MTD Gold 13AL795H004 (2009) Lawn Tractor

Model: 13AL795H004 (2009)

Back To Assemblies

Save Part Not Listed?
product name

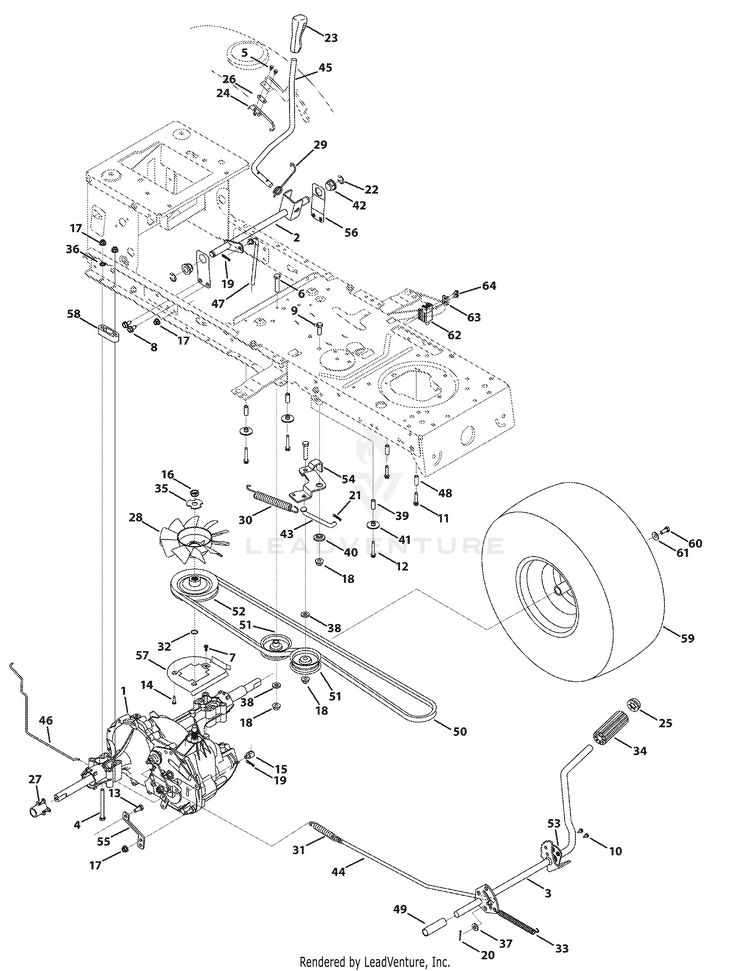

Transmission 918-04198

...
...
1
TRANSMISSION MTD-918-04198
...
2
CONTROL ASSEMBLY MTD-647-04038A
...
3
PEDAL ASSEMBLY (POWDER BLACK) MTD-647-04054A-0637
...
4
Hex Screw, 5/16-18:2.75 MTD-710-0176
...
4
Hex Screw, 5/16-18 x 3.5 MTD-710-1266
...
5
Screw, #8-18:0.500 MTD-710-0227
...
6
Hex Screw, 3/8-16:1.75 MTD-710-0347
...
7
Screw, #10-16:0.500 MTD-710-0351
...
8
SCREW 5/16-18 x .750 MTD-710-04484
...
9
Hex Screw, 3/8-16:1.00 MTD-710-0514
...
10
Screw, 5/16-18:0.625 MTD-710-0604A
...
11
Screw, 1/4-20:1.250 MTD-710-0809
...
12
Screw, 1/4-20:1.625 MTD-710-1325
...
12
Screw, 1/4-20 x 1.75 MTD-710-1026
...
13
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
14
Screw, #10-24:0.750 MTD-710-3009
...
15
Ferrule, 5/16-24 X .312 DIA. MTD-711-04448
...
16
Hex Lock Nut 1/2-20 Thread MTD-712-0346
...
17
Flangelock Nut, 5/16-18 MTD-712-04063
...
18
Flangelock Nut, 3/8-16 MTD-712-04065
...
19
Hairpin Clip MTD-714-0104
...
20
Cotter Pin 3/32" Dia. x 1.0" MTD-714-0111
...
21
Cotter Pin, 3/32 X 1.25 MTD-714-3004
...
22
E Rign, .625 DIA MTD-716-0106A
...
23
Handle Grip MTD-720-0311
...
24
Hydro Spring Switch MTD-725-04249
...
25
Push Cap, 5/8 MTD-726-0214
...
26
Insulator Plate Nut MTD-926-0320
...
27
Sleeve, .765 ID x 1.500 LG MTD-731-05299A
...
28
Hydro Fan MTD-731-06098
...
29
Torsion Spring MTD-732-04225
...
30
Extension Spring, .75 DIA. X 6.02 MTD-732-04229
...
31
Extension Spring, .59 OD X 4.00 LG MTD-732-0716D
...
32
Wire Ring MTD-732-0729
...
33
Extension Spring, .50 DIA X 6.37 LG MTD-732-0963
...
34
FOOT PAD MTD-735-0239A
...
35
Lock Washer, TRANS HYDRO MTD-736-04263
...
36
Lock Washer, 5/16 EXT TOOTH MTD-736-0607
...
37
Flat Washer, .344 X .750 X .120 MTD-936-3008
...
38
Flat Washer, .407X.812X.135:HT MTD-736-3010
...
39
Spacer, .260 x .375 x 1.030 LG MTD-750-0566A
...
39
Spacer, .260 x .372 x 1.420 MTD-750-04456
...
40
Shoulder Spacer, .625 ID X .169 MTD-938-0347
...
41
SHOULDER SPACER .375 MTD-938-04178
...
41
Fl-Wash. .285" I.D. x 1.25" O.D. MTD-736-0211
...
42
Hex Flange Bearing MTD-941-0225
...
43
DECLUTCHING ROD MTD-747-04283B
...
44
BRAKE ROD MTD-747-04286
...
44
BRAKE ROD MTD-747-04679
...
45
Hydro Control Handle MTD-747-04296A
...
46
HYDRO BYPASS ROD MTD-747-04316
...
46
HYDRO BYPASS ROD MTD-747-04621
...
47
Hydro Control Rod MTD-747-04407A
...
48
Spacer, .260 x .375 x 1.030 LG MTD-750-0566A
...
49
Spacer, .640 ID X .76 OD X 2.63 MTD-750-0802
...
50
V Belt, 4L SEC X 78.2 LG MTD-954-04074A
...
51
Flat Idler Pulley2.75 OD MTD-756-04224
...
52
INPUT PULLEY 5.0 DIA MTD-756-04309
...
53
Support Pedal Bracket MTD-783-04536B-0637
...
54
Idler Arm MTD-783-04570B-0637
...
55
HYDRO TORQUE BRACKET MTD-783-04579A-0637
...
56
Handle Bracket MTD-783-04585A
...
57
DISENGAGE BRACKET MTD-783-04600A-0637
...
58
Spacer, T-Axle, 46" only MTD-948-0334
...
59
Wheel, 20 x 8 x 8 - Yellow MTD Gold MTD-634-0104-0941
...
59
Wheel, 20 x 8 x 8 - Gray MasterCut MTD-634-0104-0911
...
59
Rim Only Not shown MTD-634-04369-0662
...
59
Rim-Wheel, Rear - Gray Not shown MTD-634-04369-0662
...
59
TIRE-20X8 MULTI TRAC Not shown MTD-734-1730
...
59
Valve-Air, Tubeless Not shown MTD-934-0255
...
60
Hex Screw, 5/16-24 x .750 MTD-710-0627
...
61
Bell Washer, .340 x .872 x .060 MTD-736-0242
...
62
Switch Interlock MTD-725-04363
...
63
Plate Switch MTD-17962
...
64
Rivot MTD-728-04021
Schematic Image Zoomed
