MTD Gold 13AL795H004 (2009) Lawn Tractor

Model: 13AL795H004 (2009)

Back To Assemblies

Save Part Not Listed?
product name

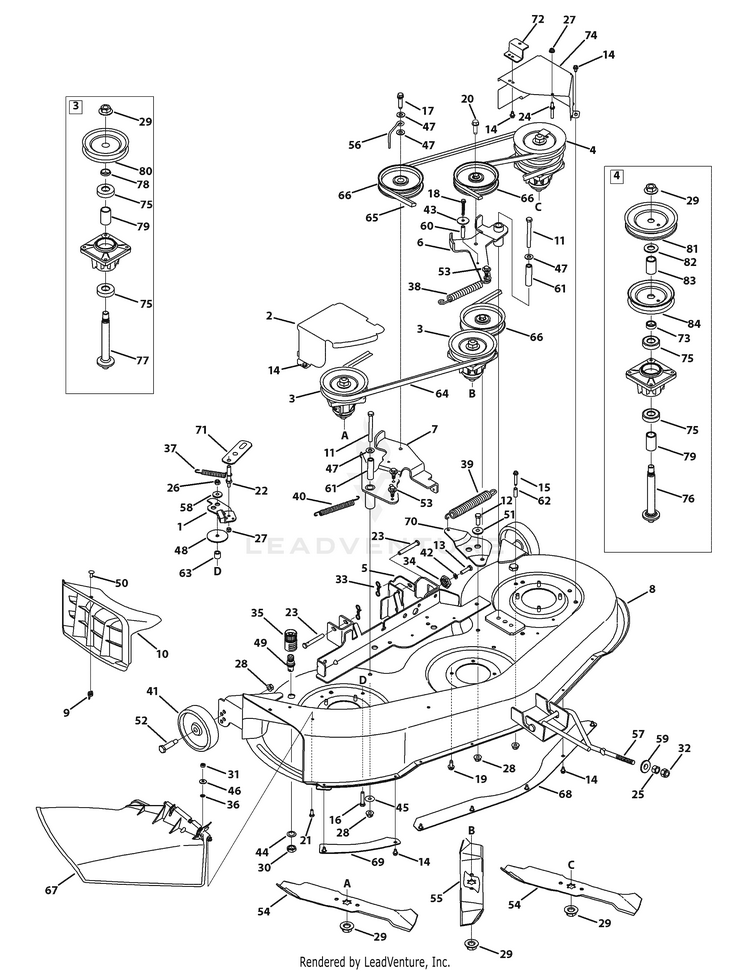

Mower Deck 46 Inch

...
...
1
Deck Brake Assembly MTD-97116
...
2
46" Deck Belt Cover, RH MTD-71258E-0691
...
3
Spindle Assembly, 5.00 Dia. w/ Stud MTD-918-0230B
...
4
Spindle Ass’y, Double Pulley MTD-918-04134D
...
5
Bracket Assembly, Deck, Hanger LH MTD-683-0254B
...
6
46" LH Idler Bracket MTD-683-04250A-0637
...
7
46" IDLER BRACKET ASSEMBLY (RH) (POWDER BLACK) MTD-683-04251A-0637
...
8
46" DECK ASSEMBLY W/NOZZLE (BLACK JACK) MTD-983-04413A-0691
...
9
WING NUT 1/4-20 MTD-712-3087
...
10
Mulch Plug MTD-731-05264
...
11
Hex Screw, 3/8-16 x 3.50 MTD-710-04754
...
12
Hex Screw, 3/8-16 x 1.0 MTD-710-0514
...
13
Hex Screw, 5/16-18 x 1.25 MTD-710-0528
...
14
Screw, 1/4-20 x .500 MTD-710-0599
...
15
Screw, 1/4-20 x 1.500 MTD-710-0778
...
16
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
17
Screw, 3/8-16 x 1.500 MTD-710-1007
...
18
Screw, 1/4-20 x 1.750 MTD-710-1026
...
19
Screw, 5/16-18 x .750 MTD-710-1260A
...
20
Screw, 3/8-16 x 1.250 MTD-710-1315
...
21
Hex Screw, 1/4-20 x .75 MTD-710-3015
...
22
PIN 1/4-20:3/8 x 2.685 MTD-711-04636
...
23
CLEVIS PIN 3/8 x 2.75 MTD-711-04669
...
24
Belt Guard Pin, 1/4 x 1.43 MTD-911-0993
...
25
HEX NUT MTD-712-0206
...
26
Flangelock Nut, 5/16-18 MTD-712-04063
...
27
Flangelock Nut, 1/4-20 MTD-712-04064
...
28
FLangelock Nut, 3/8-16 MTD-712-04065
...
29
HEX NUT MTD-712-0417A
...
30
Nut, Hex, M16-1.5 MTD-712-0641
...
31
HEX NUT MTD-712-3006
...
32
Hexlock Nut, 1/2-13 MTD-712-3083
...
33
Cotter Pin, Bow-Tie MTD-714-04043
...
34
Deck Adjuster Gear MTD-917-04074
...
35
Water Nozzle Adapter MTD-921-04041
...
36
Push Nut, .25 x .50 MTD-726-0233
...
37
Extension Spring, .50 x 3.97 MTD-932-0429A
...
38
Extension Spring, .75 x 6.835 MTD-732-04400
...
39
Extension Spring, .91 x 7.33 MTD-932-0594A
...
40
Extension Spring, .56 x 5.52 MTD-732-0814
...
41
DECK WHEEL (5.0 DIA X 1.38) MTD-734-06265
...
42
Lock Washer, 5/16 MTD-936-0119
...
43
Fl-Wash. .285" I.D. x 1.25" O.D. MTD-736-0211
...
44
Lock Washer, 5/8 MTD-736-0225
...
45
Flat Washer, .385 x 1.0 x .135 MTD-736-0258
...
46
SPRING WASHER BELL MTD-736-0270
...
47
Fl-Wash. .385" I.D. x 7/8" MTD-736-0300
...
48
Flat Washer, .34 x 2.25 x .10 MTD-736-0418A
...
49
Deck Water Nozzle MTD-737-04003D
...
50
Carriage Screw, 1/4-20 x .62 MTD-710-0134
...
51
Shoulder Spacer, .625 x .169 MTD-938-0347
...
52
Shoulder Bolt, 3/8-16 x .496 x 1.525 MTD-938-0373
...
53
Shoulder Screw, .5/16-18 x 43 x .29 MTD-738-04091A
...
54
46" BLADE (STAR) MTD-742-0611A-0637
...
55
14.88" BLADE (MULCH) (STAR) MTD-742-0612A-0637
...
56
Belt Keeper Rod MTD-747-04530
...
57
46" Front Deck Rod MTD-747-04645
...
58
Shoulder Spacer MTD-748-0234
...
59
LIFT PIVOT CUP MTD-748-04069A
...
60
Spacer, .260 x .372 x 1.420 MTD-750-04456
...
61
Spacer, .380 x .625 x 2.515 MTD-750-04999
...
62
Spacer, .260 x .375 x 1.030 MTD-750-0566A
...
63
SPACER .375X.63X.5 MTD-750-1320
...
64
V-Type Belt, 79.10 MTD-954-0349
...
65
V-Type Belt, 91.4 MTD-954-04142
...
66
Pulley Kit, Idler, 4.25"Dia MTD-753-08171
...
67
CHUTE ASSEMBLY MTD-631-05229
...
68
46" Deck Center Skirt MTD-783-0141-0637
...
69
46" Deck RH Skirt MTD-783-0142-0637
...
70
46" IDLER BRACKET (POWDER BLACK) MTD-783-04641A-0637
...
71
BRAKE BRACKET MTD-783-05321-0637
...
72
Deck Stop Bracket MTD-783-05360-0637
...
73
SPACER: .792 x 1.0 MTD-750-1304
...
74
Deck Belt Cover LH MTD-783-1348D-0637
...
75
BALL BEARING MTD-741P0919B
...
76
Spindle Shaft, 6.58 MTD-938-1128
...
77
Spindle Shaft, 4.450 MTD-738-0927
...
78
Spacer, .750 x 1.150 x .230 MTD-748-0434
...
79
Spacer, .792 x 1.060 x 1.860 MTD-750-04936
...
80
Deck Pulley, 5.00 Diameter MTD-756-1187
...
81
Deck Pulley, 5.75 Diameter MTD-756-1188
...
82
Flat Washer, .760 x 1.50 x .120 MTD-736-0315
...
83
Spacer, .792 x 1.060 x 1.680 MTD-750-04440
...
84
Deck Pulley, 5.00 x .80 MTD-756-04094
