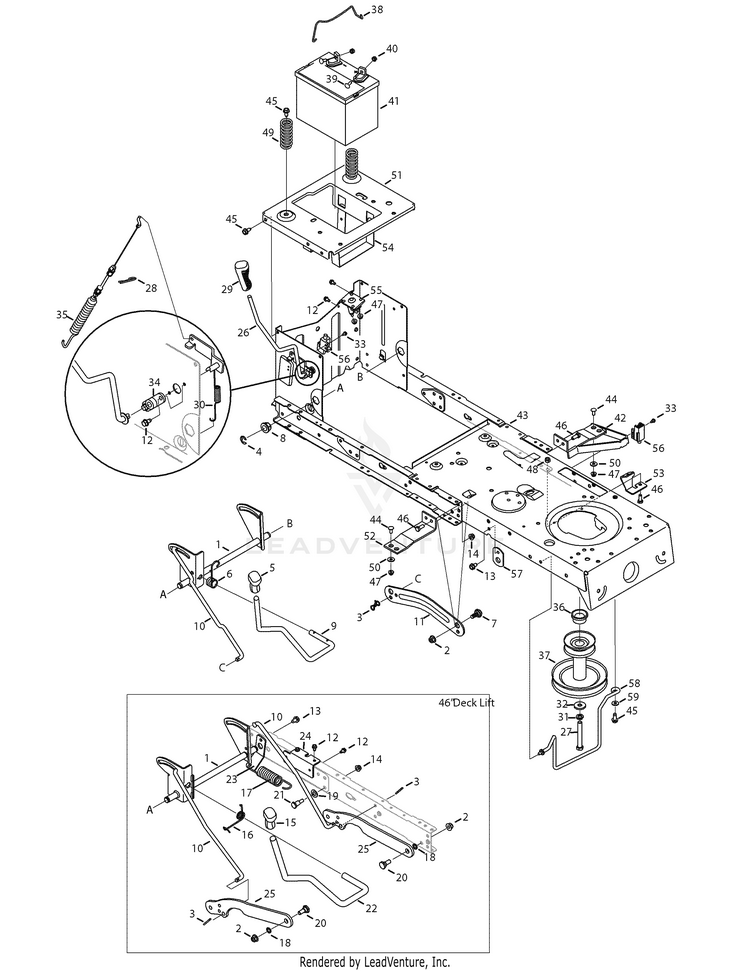

MTD Gold 13AL795H004 (2008) Lawn Tractor

Model: 13AL795H004 (2008)

Back To Assemblies

Save Part Not Listed?
product name

PTO

...
...
1
LIFT SHAFT ASSEMBLY (38/42" Deck) MTD-683-04155A
...
1
Shaft, Lift (46" Deck) MTD-683-04334-0637
...
2
Nut, Flange Lock, 3/8-16, GrF MTD-712-04065
...
3
Pin, Cotter .08 x 1.56 Intern. RH MTD-714-04043
...
3
Pin, Cotter .080 x 1.25 Intern. LH (Not Shown) MTD-714-0470
...
4
Ring, E-Type, .625 Dia. MTD-716-0106A
...
5
Grip, Handle, 1/2 MTD-720-0311
...
6
TORSION SPRING (38/42" Deck) MTD-732-04225
...
7
SHOULDER SCREW .625X.165X3/8-16 MTD-738-04130A
...
8
FLANGE BEARING MTD-941-0225
...
9
DECK LIFT HANDLE (38/42" Deck) MTD-747-04282
...
10
Rod, Lift MTD-747-04393
...
11
Deck Lift Arm RH (42" Deck) MTD-783-04494C
...
11
Lift Arm, Deck - LH (Not Shown) MTD-783-04711
...
12
Screw, 1/4-20, 0.500 MTD-710-0599
...
13
Screw, 5/16-18, 0.625 MTD-710-0604A
...
14
Flange Lock Nut, 5/16-18 MTD-712-04063
...
15
Grip, Handle, 5/8 MTD-720-0298
...
16
TORSION SPRING (46" Deck) MTD-732-04438
...
17
Extension Spring MTD-732-0934
...
18
Washer, Flat, .385 x .62 x .063 MTD-736-0140
...
19
Washer, Flat, .474 x .879 x .064 MTD-736-0226
...
20
Bolt, Shldr. .500 x .270 3/8-16 MTD-738-0380
...
21
Screw, Shldr. , .437 x .54 MTD-738-0754
...
22
Handle, Lift (46" Deck) MTD-747-04653A
...
23
LIFT BRACKET 50" DECK MTD-783-04462A
...
24
BRACKET MTD-783-05389A
...
25
Deck Lift Link MTD-783-0678C
...
26
PTO Handle Assembly MTD-647-04096A-0637
...
27
SCREW 7/16-20 x 3.25 GR5 (38/42" Deck) MTD-710-04608
...
27
Hex Head Cap Screw, 7/16-20 x 2.75 (46" Deck) (Not Shown) MTD-710-04377
...
28
Pin, Click, .092 x 1.64 MTD-714-0145
...
29
Grip, Handle, 3/8 MTD-720-04049A
...
30
Spring, Extension MTD-732-04276A
...
31
Washer, Lock, 7/16 MTD-736-0171
...
32
Washer, Flat, .450 x 1.250 x .164 MTD-736-0322
...
33
Shoulder Screw, #10-16, 0.500 MTD-738-04237A
...
34
PTO Bearing MTD-741-04119A
...
35
Deck Engagement Cable MTD-946-04173E
...
36
Spacer, 1.010 x 1.400 x .825 (38/42" Deck) MTD-750-0956
...
37
ENGINE PULLEY (3.56 x 6.12 DIA) (38/42" Deck) MTD-956-04067B
...
37
ENGINE PULLEY 3.56 x 6.12 DIA (46" Deck) (Not Shown) MTD-756-04208A
...
38
Hold Down Rod, Battery MTD-683-04448
...
39
Screw, Carriage, 1/4-20, .75, Gr5 MTD-710-04666
...
40
Nut, Sems, 1/4-20 MTD-712-0271
...
41
BATTERY MTD-925-1707D
...
41
BATTERY (Not Shown) MTD-925-1707D
...
42
Support Bracket Assembly MTD-683-04195
...
43
Frame Assembly MTD-683-04450
...
44
Carriage Screw, 1/4-20 x .62 MTD-710-0134
...
45
SCREW 5/16-18 x .750 MTD-710-04484
...
46
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
47
Nut, Flange Lock, 1/4-20, GrF MTD-712-04064
...
48
Hex Lock Nut, 5/16-18 MTD-712-0429
...
49
Spring, Compr. , 1.28 OD x 3.125 MTD-732-04035
...
50
Flat Washer, .28 x .74 x .063 MTD-736-0173
...
51
Seat Bracket Frame MTD-783-04548D-0637
...
52
RUNNINGBOARD BRACKET MTD-783-04637
...
53
Frame Support Bracket MTD-783-04753
...
54
Battery Bracket MTD-783-04869A-0637
...
55
12V SOLENOID MTD-725-04439B
...
56
Switch, Interlock MTD-725-04363
...
57
Pedal Support Bracket MTD-783-04536B
...
58
Belt Keeper Rod Assembly (42" Deck) MTD-747-04857
...
58
Rod, Belt Keeper (46" Deck) (Not Shown)(46" Deck) MTD-683-04414-0637
...
59
Washer, Flat, .406 x .875 x .059 MTD-736-0300
