MTD Gold 13AL795H004 (2008) Lawn Tractor

Model: 13AL795H004 (2008)

Back To Assemblies

Save Part Not Listed?
product name

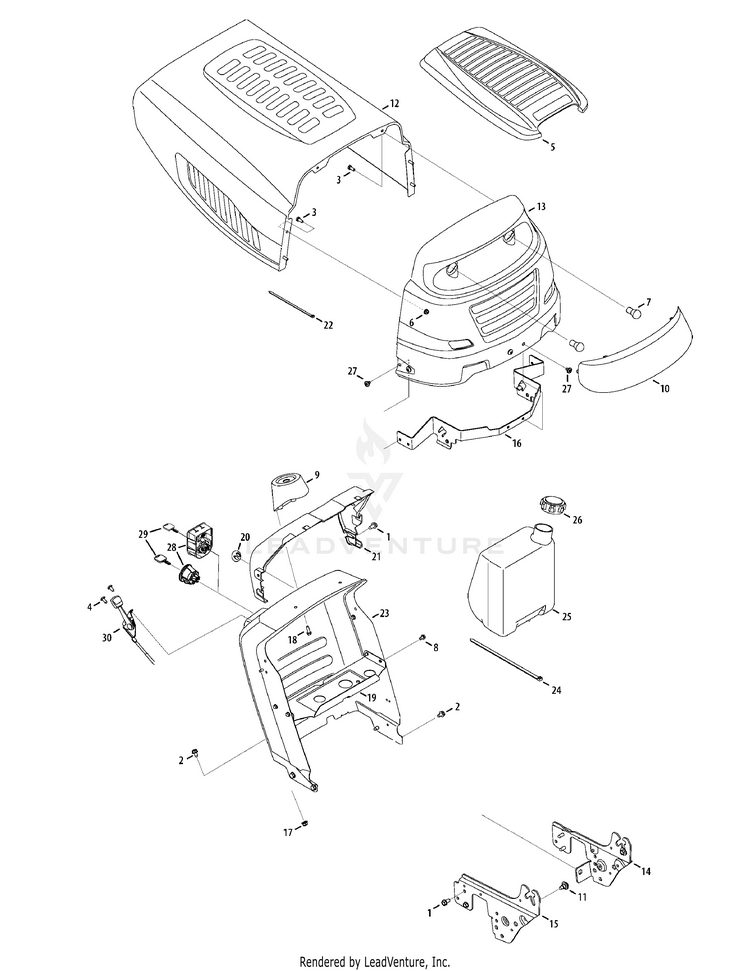

Hood & Control Assembly

...
...
1
SCREW 5/16-18 x .750 MTD-710-04484
...
2
Screw, 5/16-18, 0.625 MTD-710-0604A
...
3
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
4
SCREW 1/4-20 x .500 MTD-710-04483
...
5
5-Style Hood Cover MTD-731-05522A
...
6
Nut, Flange Lock, 1/4-20, Gr5 MTD-712-04064
...
7
Miniature Lamp 12V Socket Type MTD-925-0963
...
8
Screw, 1/4-20, 0.500 MTD-710-0599
...
9
Support, Steering MTD-731-04945
...
10
GRILLE LENS 1 STYLE MTD-731P04949A
...
11
Screw, Shoulder, .43 x.29, 5/16-18 MTD-738-04091A
...
12
Hood Style 5 MTD-783-05683
...
13
GRILLE-1 STYLE MTD-783-05685A
...
14
Pivot Bracket, LH MTD-783-05327B
...
15
PIVOT SUPPORT BRACKET (RH) MTD-783-05328B
...
16
Hood Pivot Bracket MTD-783-05454-0637
...
17
Flange Lock Nut 5/16-18 MTD-712-04063
...
18
Screw, 1/4-15, 0.750 MTD-710-0895
...
19
Gas Tank Support Bracket MTD-783-04584B-0637
...
20
Dash Plug MTD-731-05265
...
21
Collar, Dash MTD-731-05078C
...
22
Cable Tie MTD-725-0157
...
23
Dash, NO RMC MTD-783-04873B
...
23
DASH-LT-5 RMC (Not Shown) MTD-783-04892B
...
24
Cable Tie, 34.75 MTD-726-0230
...
25
FUEL TANK 1.36 GAL MTD-751-0555D
...
26
TANK CAP MTD-751-0603B
...
27
Self-Tapping Screw 5/16-18 x .375 MTD-710-04593
...
28
3 POSITION KEY SWITCH MTD-925-04659
...
28
Ignition Switch (Not Shown) MTD-925-1741
...
28
IGNITION MODULE SWITCH RMC (MAN PTO BLK) (Not Shown) MTD-925-06119C
...
29
Key MTD-925-1745A
...
30
Throttle/Choke Control, 25" MTD-746-04364
...
xx
HARNESS ASSEMBLY (Not Shown) MTD-725-04566D
...
xx
MAIN HARNESS (4 POS/ACDC/BULB) (Not Shown) MTD-925-04433H
...
xx
Headlight Lens Reflector (5 Style) (Not Shown) MTD-777X41984
...
xx
LABEL-RIDER T STYL (Not Shown) MTD-777X42188
...
xx
LABEL-RIDER T STYL (Not Shown) MTD-777X42187
