MTD Gold 13AL795H004 (2008) Lawn Tractor

Model: 13AL795H004 (2008)

Back To Assemblies

Save Part Not Listed?
product name

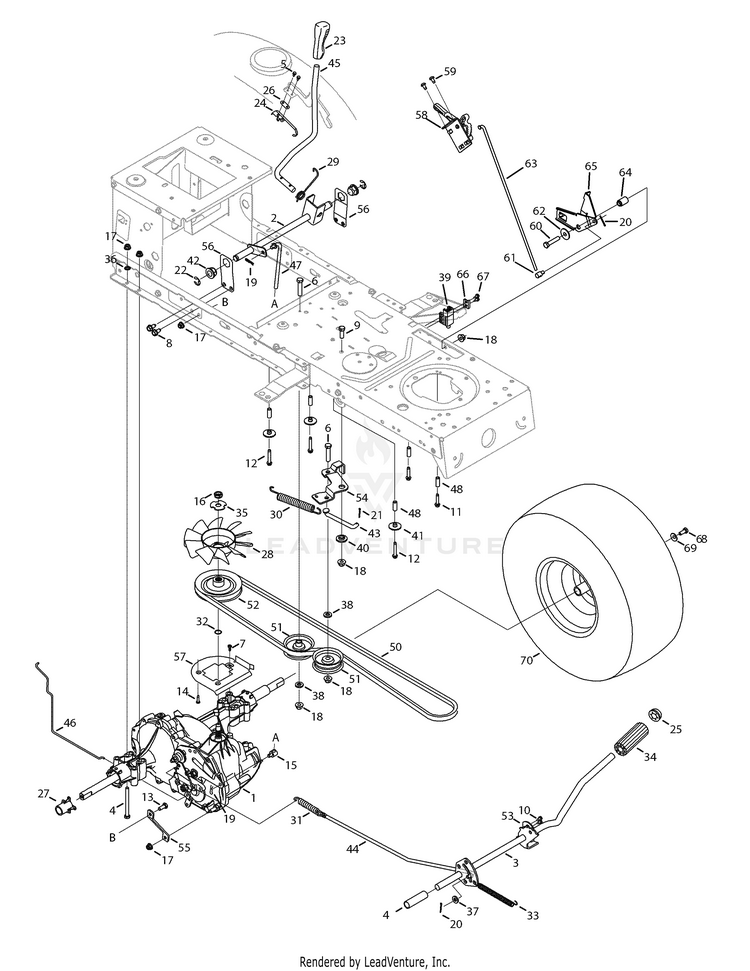

Drive System

...
...
1
TRANSMISSION MTD-918-04198
...
2
CONTROL ASSEMBLY MTD-647-04038A
...
3
PEDAL ASSEMBLY MTD-647-04054A
...
4
Hex Screw, 5/16-18, 2.75, Gr5, MTD-710-0176
...
4
Hex Screw, 5/16-18, 3.50, Gr5, (Not Shown)(46" Deck Models only) MTD-710-1266
...
5
Screw, #8-18, 0.500 MTD-710-0227
...
6
Hex Screw, 3/8-16, 1.75 MTD-710-0347
...
7
Screw, B, #10-16, 0.500 MTD-710-0351
...
8
SCREW 5/16-18 x .750 MTD-710-04484
...
9
Hex Screw, 3/8-16, 1.00, Gr5 MTD-710-0514
...
10
Screw, 5/16-18, 0.625 MTD-710-0604A
...
11
Screw, 1/4-20, 1.250 MTD-710-0809
...
12
Screw, 1/4-20, 1.625 MTD-710-1325
...
12
Screw, 1/4-20, 1.75 (Not Shown)(46" Deck Models only) MTD-710-1026
...
13
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
14
Screw, #10-24 x 0.75 MTD-710-3009
...
15
Ferrule, 5/16-24 x .312 Dia. MTD-711-04448
...
16
Nut, Hex Lock, 1/2-20, Gr5 MTD-712-0346
...
17
Nut, Flange Lock, 5/16-18, Grf MTD-712-04063
...
18
Nut, Flange Lock, 3/8-16, Grf MTD-712-04065
...
19
Pin, Cotter, .072 Dia. x 1.13 MTD-714-0104
...
20
Pin, Cotter, 3/32, 1.0 MTD-714-0111
...
21
Pin, Cotter, 3/32 x 1.25 MTD-714-3004
...
22
Ring, E-Type, .625 Dia. MTD-716-0106A
...
23
Grip, Handle, 1/2 MTD-720-0311
...
24
Spring Switch, Hydro MTD-725-04249
...
25
Push Cap, 5/8 MTD-726-0214
...
26
Insulatop Nut Plate MTD-926-0320
...
27
Sleeve, .765 ID x 1.500 LG MTD-731-05299A
...
28
Fan, Hydro MTD-731-06098
...
29
Spring, Torsion MTD-732-04225
...
30
Spring, Extension, .75 OD x 6.02 MTD-732-04229
...
31
Ext. Spring .59 OD x 4.00 Lg. MTD-732-0716D
...
32
Ring, Wire MTD-732-0729
...
33
Spring, Extension, .50 Dia x 6.37 MTD-732-0963
...
34
FOOT PAD MTD-735-0239A
...
35
Hydro Trans Lock Washer MTD-736-04263
...
36
Washer, Lock 5/16 Ext. Tooth MTD-736-0607
...
37
FLAT WASHER MTD-936-3008
...
38
Washer, Flat, .407x.812x.135 MTD-736-3010
...
39
SWITCH MTD-925-04039
...
40
Shld. Spacer .625" I.D. MTD-938-0347
...
41
SHOULDER SPACER .375 MTD-938-04178
...
41
Washer, Flat, .285 x 1.25 x .06 (Not Shown)(46" Deck Models only) MTD-736-0211
...
42
FLANGE BEARING MTD-941-0225
...
43
DECLUTCHING ROD MTD-747-04283B
...
44
BRAKE ROD MTD-747-04286
...
44
BRAKE ROD (Not Shown)(46" Deck Models only) MTD-747-04679
...
45
Hydro Control Handle MTD-747-04296A
...
46
HYDRO BYPASS ROD MTD-747-04316
...
46
HYDRO BYPASS ROD (Not Shown)(46" Deck Models only) MTD-747-04621
...
47
Control Rod, Hydrostatic MTD-747-04407A
...
48
Spacer, .260 x .372 x 1.030 MTD-750-0566A
...
48
Spacer, .260 x .372 x 1.420 (Not Shown)(46" Deck Models only) MTD-750-04456
...
49
Spacer, .640 x .76 x 2.63 MTD-750-0802
...
50
Drive Belt MTD-954-04074A
...
51
Idler Pulley, Flat 2.75 OD MTD-756-04224
...
52
INPUT PULLEY 5.0 DIA MTD-756-04309
...
53
Support Bracket, Pedal MTD-783-04536B
...
54
Idler Arm MTD-783-04570B-0637
...
55
HYDRO TORQUE BRACKET MTD-783-04579A-0637
...
56
Mounting Bracket, Handle MTD-783-04585A
...
57
DISENGAGE BRACKET MTD-783-04600A-0637
...
58
Hydro Assembly MTD-983-04226
...
59
SCREW 1/4-20 x .500 MTD-710-04483
...
60
Hex Screw, 3/8-16, 2.00 MTD-710-3144
...
61
ADJUSTMENT FERRULE 1/4-20 x 1.00 MTD-711-0736
...
62
Washer, Flat, .411 x 1.25 x .100 MTD-736-0133
...
63
Control Rod MTD-747-04430
...
64
Flange Spacer MTD-750-04465B
...
65
SPEED TRANSMISSION LATCH MTD-783-04862
...
65
SPEED LATCH BRACKET (Not Shown) MTD-783-04903
...
66
Plate, Switch MTD-17962
...
67
Pop Rivet, .187 dia. MTD-728-04021
...
68
Screw, 5/16-24, .750, Gr5 MTD-710-0627
...
69
Bell Washer, .34 x .872 x .060 MTD-736-0242
...
70
Wheel Assembly MTD-634-0104
...
70
TIRE-20X8 MULTI TRAC (Not Shown) MTD-734-1730
...
70
RIM ASSEMBLY (8.0 x 7.0 x .750) (Not Shown) MTD-634-04369
