MTD Gold 13AL771H004 (2008) Lawn Tractor

Model: 13AL771H004 (2008)

Back To Assemblies

Save Part Not Listed?
product name

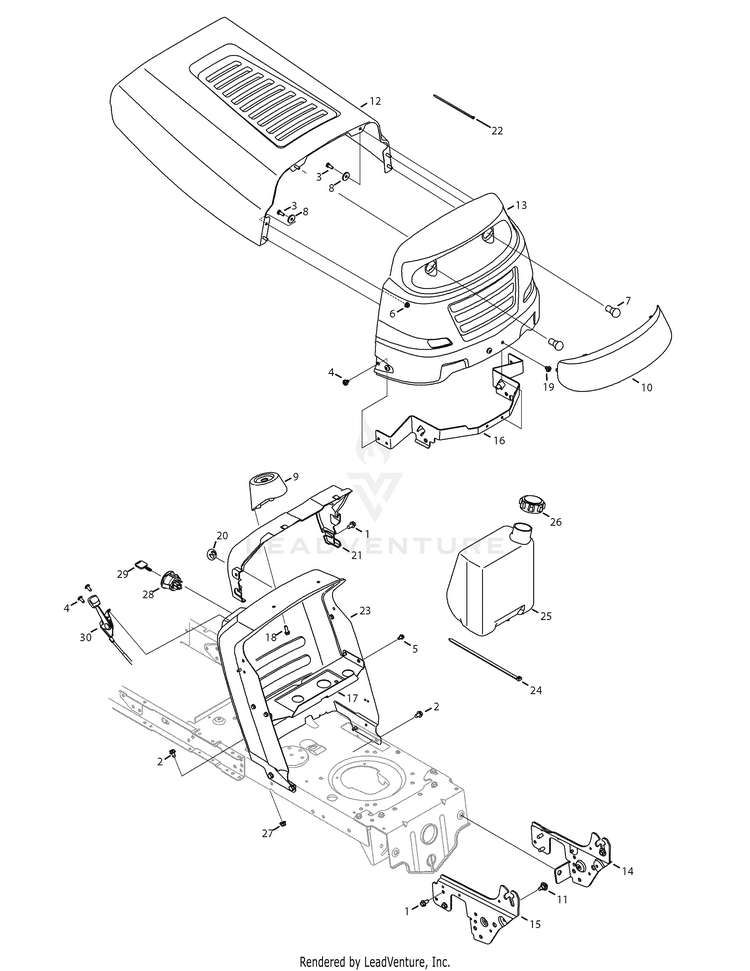

Hood & Control Assembly 771

...
...
1
SCREW 5/16-18 x .750 MTD-710-04484
...
2
Screw, 5/16-18, 0.625 MTD-710-0604A
...
3
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
4
SCREW 1/4-20 x .500 MTD-710-04483
...
5
Screw, 1/4-20, 0.500 MTD-710-0599
...
6
Nut, Flange Lock, 1/4-20, Gr5 MTD-712-04064
...
7
Miniature Lamp 12V Socket Type MTD-925-0963
...
8
Washer, Flat, .265 x .938 x .120 MTD-736-0176
...
9
Support, Steering MTD-731-04945
...
10
GRILLE LENS 1 STYLE MTD-731P04949A
...
11
Screw, Shoulder, .43 x.29, 5/16-18 MTD-738-04091A
...
12
HOOD-1 STYLE MTD-783-05684
...
13
GRILLE-1 STYLE MTD-783-05685A
...
14
SUPPORT BRACKET (LH) MTD-783-05327B-0637
...
15
SUPPORT BRACKET (RH) MTD-783-05328B-0637
...
16
Hood Pivot Bracket MTD-783-05454-0637
...
17
Gas Tank Support Bracket MTD-783-04584B-0637
...
18
Screw, 1/4-15, 0.750 MTD-710-0895
...
19
Self-Tapping Screw 5/16-18 x .375 MTD-710-04593
...
20
Dash Plug MTD-731-05265
...
21
Collar, Dash MTD-731-05078C
...
22
Cable Tie MTD-725-0157
...
23
Dash, NO RMC MTD-783-04873B
...
24
Cable Tie, 34.75 MTD-726-0230
...
25
FUEL TANK 1.36 GAL MTD-751-0555D
...
26
TANK CAP MTD-751-0603B
...
27
Flange Lock Nut 5/16-18 MTD-712-04063
...
28
3 POSITION KEY SWITCH MTD-925-04659
...
28
Ignition Switch (Not Shown) MTD-925-1741
...
29
Key MTD-925-1745A
...
30
Throttle/Choke Control, 25" (Single Cylinder Engine) MTD-746-04364
...
xx
MAIN HARNESS (3 POS/ACDC/BULB) (Not Shown) MTD-925-04567K
...
xx
MAIN HARNESS (4 POS/ACDC/BULB) (Not Shown) MTD-925-04433H
...
xx
Headlight Lens Reflector (Not Shown) MTD-777X41984
