MTD Gold 13AF698G300 (2002) Lawn Tractor

Model: 13AF698G300 (2002)

Back To Assemblies

Save Part Not Listed?
product name

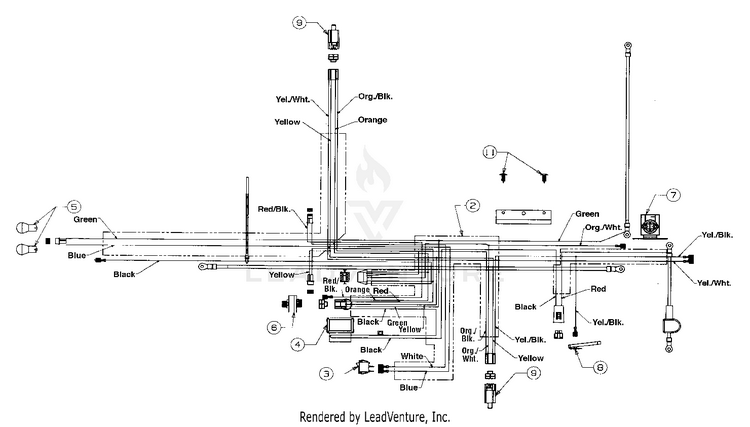

Electrical Briggs & Stratton Overhead Valve

...
...
2
Wire Harness MTD-929-0305E
...
xx
HARNESS ASSEMBLY MTD-629-0304D
...
3
Light Switch (If equipped) MTD-925-0634
...
4
Ammeter (If equipped) MTD-925-0925
...
5
Miniature Lamp 12V Socket Type MTD-925-0963
...
6
Ignition Switch MTD-925-1396A
...
7
Solenoid MTD-925-1426A
...
8
Safety Switch (Reverse) MTD-725-1643
...
9
Safety Switch MTD-925-1657A
...
11
Ratchet MTD-726-3046
