MTD Gold 13AD698G722 (2004) Lawn Tractor

Model: 13AD698G722 (2004)

Back To Assemblies

Save Part Not Listed?
product name

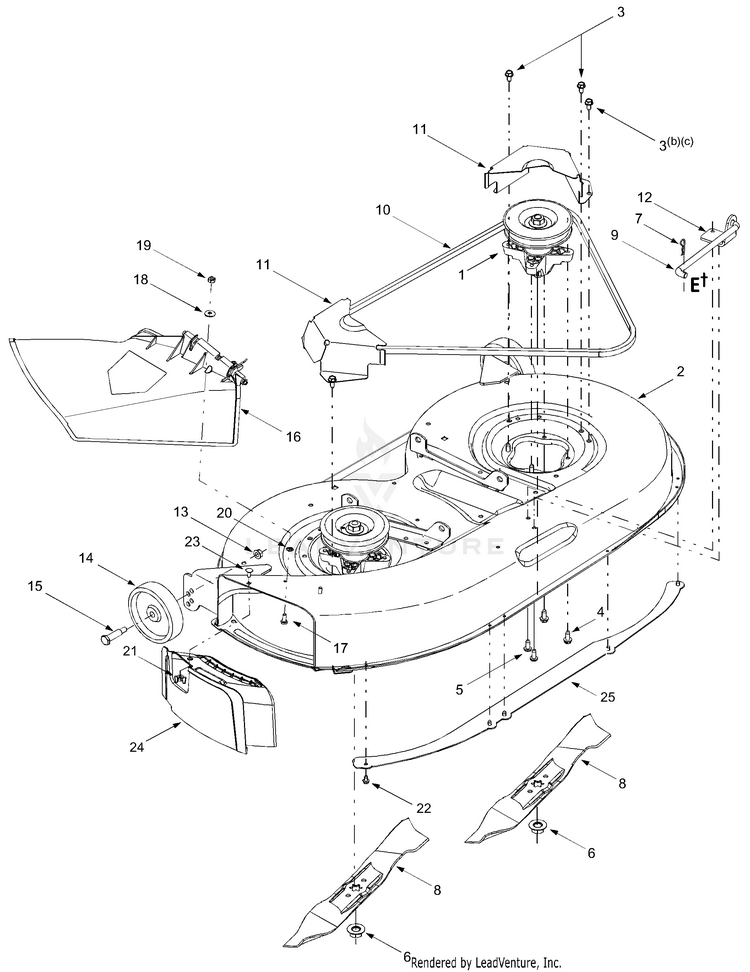

Deck Assembly F And G

...
...
1
Blade Spdl Ass'y. Tractor models with 38 inch Deck Assembly Only MTD-918-0138C
...
1
Spindle Assembly Tractor models with 42 inch Deck Assembly & 42 inch Deck Assembly with Deck Wheels MTD-918-0142C
...
2
38" DECK ASSEMBLY W/O WHEEL BRACKET Tractor models with 38 inch Deck Assembly Only MTD-983-04003A
...
2
42" DECK ASSEMBLY W/O WHEEL BRACKET Tractor models with 42 inch Deck Assembly MTD-983-04004A
...
2
42" DECK ASSEMBLY Tractor models with 42 inch Deck Assembly with Deck Wheels MTD-983-04035A
...
3
Self-tapping Screw, 5/16-12 x .75 Note b & c: Screw used on 42 inch Deck Assembly MTD-710-0726
...
4
Screw, 5/16-18 x .75 MTD-710-1260A
...
5
Self-tapping Screw, 5/16-18 x .75 MTD-710-1616A
...
6
HEX NUT MTD-712-0417A
...
7
Internal Cotter Pin, .080 x 1.56 MTD-714-04023
...
8
3 in 1 Blade Tractor models with 38 inch Deck Assembly Only MTD-942-0610A
...
8
Blade, 21.23", Star 3-in-1 Tractor models with 42 inch Deck Assembly & 42 inch Deck Assembly with Deck Wheels MTD-942-0616A
...
9
HANGAR DECK LINK MTD-947-04018A
...
10
V-Belt Tractor models with 38 inch Deck Assembly Only MTD-954-0329A
...
10
Upper V-belt Tractor models with 42 inch Deck Assembly & 42 inch Deck Assembly with Deck Wheels MTD-954-0371A
...
11
Belt Cover Tractor models with 38 inch Deck Assembly Only MTD-783-04148A
...
11
Belt Cover Tractor models with 42 inch Deck Assembly & 42 inch Deck Assembly with Deck Wheels MTD-783-04149B
...
12
Anti-sway Stabilizer Bracket MTD-783-04211-0637
...
13
Flange Lock Nut 3/8-16 Tractor models with 42 inch Deck Assembly with Deck Wheels MTD-912-0431
...
14
DECK WHEEL (5.0 DIA X 1.38) Tractor models with 42 inch Deck Assembly with Deck Wheels MTD-734-06265
...
15
Shld. Bolt .498" Dia. x 1.53" Tractor models with 42 inch Deck Assembly with Deck Wheels MTD-938-0373
...
16
CHUTE ASSEMBLY MTD-631-05229
...
17
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
18
SPRING WASHER BELL MTD-736-0270
...
19
HEX NUT MTD-712-3006
...
20
Push Nut, 1/4 MTD-726-0233
...
21
WING NUT 1/4-20 MTD-712-3087
...
22
Self-tapping Screw, 1/4-20 x .5 MTD-710-0599
...
23
Carriage Screw, 1/4-20 x .62 MTD-710-0134
...
24
Mulch Plug MTD-731-2363
...
25
Deck Skirt Tractor models with 42 inch Deck Assembly & 42 inch Deck Assembly with Deck Wheels MTD-753-0884
