MTD Gold 12AVB26N704 (2014) Self Propelled Mower

Model: 12AVB26N704 (2014)

Save Part Not Listed?
product name

.Quick Reference

...
...
xx
Spark Plug MTD-BS-591868
...
xx
Pre-Filter MTD-BS-493537S
...
xx
Air Filter MTD-BS-797301
...
xx
Fuel Filter MTD-BS-298090S
...
xx
Fuel Cap MTD-BS-799585
...
xx
Drive Belt MTD-954-04260
...
xx
Control Cable (brake) MTD-946-04661A
...
xx
Drive Cable MTD-946-04655A
...
xx
Blade MTD-942-0741A
...
xx
Blade Bolt MTD-710-1044
...
xx
BLADE ADAPTER MTD-687-02528
...
xx
Wheels - Front MTD-634-05040
...
xx
WHEEL ASSEMBLY (11 x 2) MTD-634-05063
...
xx
21" GRASSBAG (BLACK) MTD-764-04082D
...
xx
Grass Bag Frame MTD-647-04271-0637
...
xx
Trailshield MTD-731-07203
...
xx
Discharge Chute MTD-731-07486
...
xx
21" MULCH PLUG (HINGED) MTD-687-06029
...
xx
Blade Removal Tool (Optional Accessory) MTD-490-850-0005
...
xx
SPARK PLUG WRENCH 3/4, 5/8, 13/16 (Optional Accessory) MTD-490-850-0018
...
xx
SPARK PLUG WRENCH 3/4, 5/8, 13/16 (Optional Accessory) MTD-490-850-0018
...
xx
SIPHON PUMP (Optional Accessory) MTD-490-850-0008
...
xx
Side Discharge Blower (Optional Accessory) MTD-490-850-0016
...
xx
UTILITY CARGO CARR (Optional Accessory) MTD-490-850-0015
...
xx
FLOOR MAT (Optional Accessory) MTD-735-04255
...
xx
MOWER KICK STAND (Optional Accessory) MTD-490-850-0012
...
xx
Mower Cover (Optional Accessory) MTD-490-290-0012
...
xx
COATING-GRAPHITE MOWER (Optional Accessory) MTD-490-900-0062
...
xx
STA-BIL 32 OZ (Optional Accessory) MTD-22287
...
xx
FUEL STABILIZER (Optional Accessory) MTD-22208

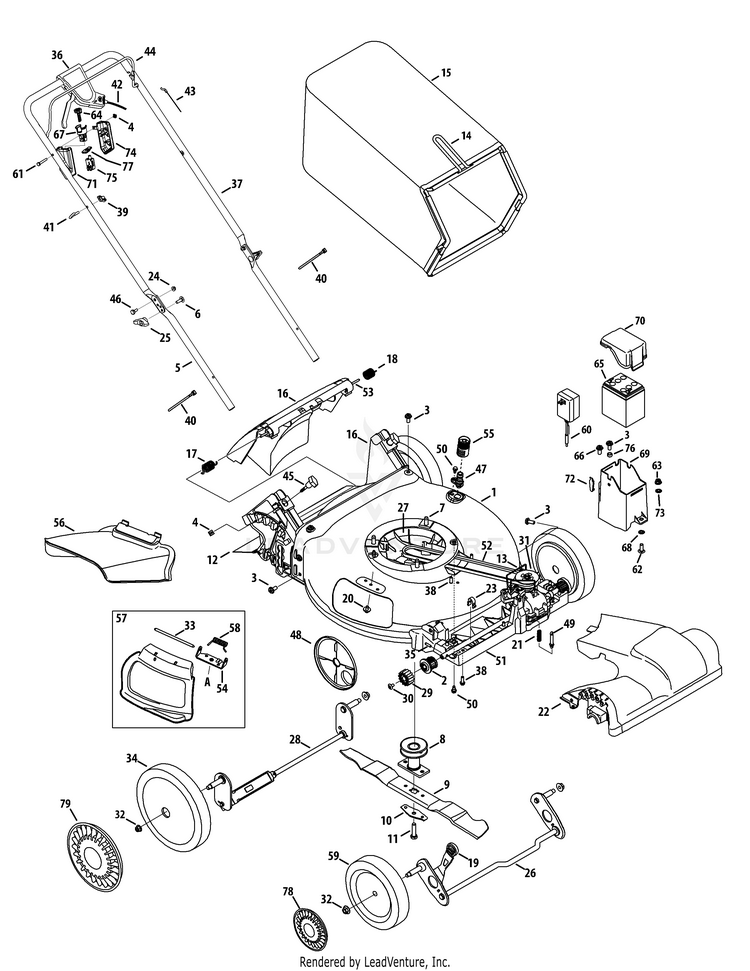

General Assembly

...
...
1
21" DECK (3N1) (BLACK JACK) MTD-787-01871B-0691
...
2
Bearing Assembly MTD-941-00019
...
3
Screw, 5/16-14 x .750 MTD-710-04995A
...
4
Nut, Sq., 1/4-20 MTD-712-04222
...
5
LOWER HANDLE (POWDER BLACK) MTD-749-07298-0637
...
6
Carriage Screw ,5/16-18 MTD-710-04998
...
7
SCREW 3/8-16 X 1 MTD-710-04683C
...
8
BLADE ADAPTER MTD-687-02528
...
9
Mulching Blade MTD-942-0741A
...
10
BLADE BELL SUPPORT MTD-736-0524B-1
...
11
Screw, 3/8-24 x 1.50 MTD-710-1044
...
12
Trailing Shield MTD-731-07203
...
13
TRANSMISSION WIRE MTD-732-04675B
...
14
Grass Catcher Frame MTD-647-04271-0637
...
15
21" GRASSBAG (BLACK) MTD-764-04082D
...
16
REAR DOOR & BAFFLE ASSEMBLY MTD-631-08159
...
17
TORSION SPRING (RH) MTD-732-05061B
...
18
Torsion Spring - LH MTD-732-05062A
...
19
Adjustment Lever Knob MTD-720-04131A
...
20
Screw, 1/4-20 x .500 MTD-710-05073
...
21
Compression Spring MTD-732-04704
...
22
FRONT COVER MTD-731-07797A
...
23
Front Axle Clip MTD-787-01793
...
24
Nut, Flange Lock, 1/4-20 MTD-712-04064
...
25
Wing Knob MTD-720-04124
...
26
Front Axle Assembly MTD-911-04150
...
27
ENGINE BAFFLE ASSEMBLY MTD-931-04535C
...
28
REAR AXLE MTD-611-04144B
...
29
Spur Gear, 14T - RH MTD-917-04801
...
29
Spur Gear, 14T - LH MTD-917-04802
...
30
Screw, 1/4-20 x .390 MTD-710-04531
...
31
TRANSMISSION KIT (SP FWD 53CM WALK) MTD-753-09444
...
32
Flange Lock Nut, 3/8-16 MTD-712-04217
...
33
Front Wheel, MTD-634-05040
...
34
WHEEL ASSEMBLY (11 x 2) MTD-634-05063
...
35
Dowel Pin MTD-715-04099
...
36
Control Lever Assembly MTD-753-06060A
...
37
UPPER SQUEEZE HANDLE (POWDER BLACK) MTD-749-04679D-0637
...
38
Screw, 1/4-15 x .750 MTD-710-0895
...
39
Knob MTD-720-0279
...
40
Cable Tie MTD-725-0157
...
41
Rope Guide MTD-710-1205
...
42
Drive Cable MTD-946-04655A
...
43
Control Cable 37.58" MTD-946-04661A
...
44
Blade Control MTD-747-05209C-0637
...
45
WING KNOB 1/4-20 MTD-720-05066A
...
46
Sldr. Screw, .375 x .126 x 1/4-20 MTD-738-04419A
...
47
Water Nozzle MTD-731-07487
...
48
Wheel Dust Cover MTD-731-07240A
...
49
Spring Body MTD-731-07355
...
50
Scr., Shldr., 1/4-20 x .50 MTD-738-04278
...
51
LOWER TRAY MTD-731-07789A
...
52
V-Belt MTD-954-04260
...
53
Pivot Rod MTD-747-05183
...
54
Chute Deflector Bracket MTD-787-01779
...
55
Water Nozzle Adapter MTD-921-04041
...
56
Side Discharge Chute MTD-731-07486
...
57
21" MULCH PLUG (HINGED) MTD-687-06029
...
58
Torsion Spring MTD-732-1014C
...
59
Hinge Pin MTD-747-0710A
...
60
BATTERY CHARGER Models with Electric Start Only MTD-725-06121C
...
61
Screw, 1/4-20 x 1.75 Models with Electric Start Only MTD-710-0136
...
62
Bolt, Carr., 5/16-18 x 1.00 Models with Electric Start Only MTD-710-0276
...
63
Hex L-Nut 5/16-18 Thd. Models with Electric Start Only MTD-712-0429
...
64
Key Models with Electric Start Only MTD-731-09728
...
65
BATTERY 12V Models with Electric Start Only MTD-725P04903
...
66
SHOULDER SCREW 5/16-14 x .972 Models with Electric Start Only MTD-738-04431A
...
67
KEY SWITCH ASSEMBLY Models with Electric Start Only MTD-931-05131A
...
68
Speed Nut Models with Electric Start Only MTD-726-0201
...
69
Battery Housing Models with Electric Start Only MTD-731-07135
...
70
Battery Housing Top Models with Electric Start Only MTD-731-07154A
...
71
PUSH START HOUSING (RH) Models with Electric Start Only MTD-731-09753B
...
72
LID SEAL Models with Electric Start Only MTD-735-04213C
...
73
Washer, Bell, .340 x .872 x .080 Models with Electric Start Only MTD-736-0242
...
74
Electric Start Housing, LH Models with Electric Start Only MTD-731-09755
...
75
Plunger Switch Models with Electric Start Only MTD-725-06114
...
76
Spacer, .340 x .460 x .246 Models with Electric Start Only MTD-750-05377
...
77
PLUNGER BRACKET Models with Electric Start Only MTD-787-03162
...
78
Hubcap MTD-731-09429
...
79
Hubcap MTD-731-07875
...
xx
HARNESS Models with Electric Start Only MTD-925-06140B
...
xx
Fuse (Not Shown) Models with Electric Start Only MTD-725-05106

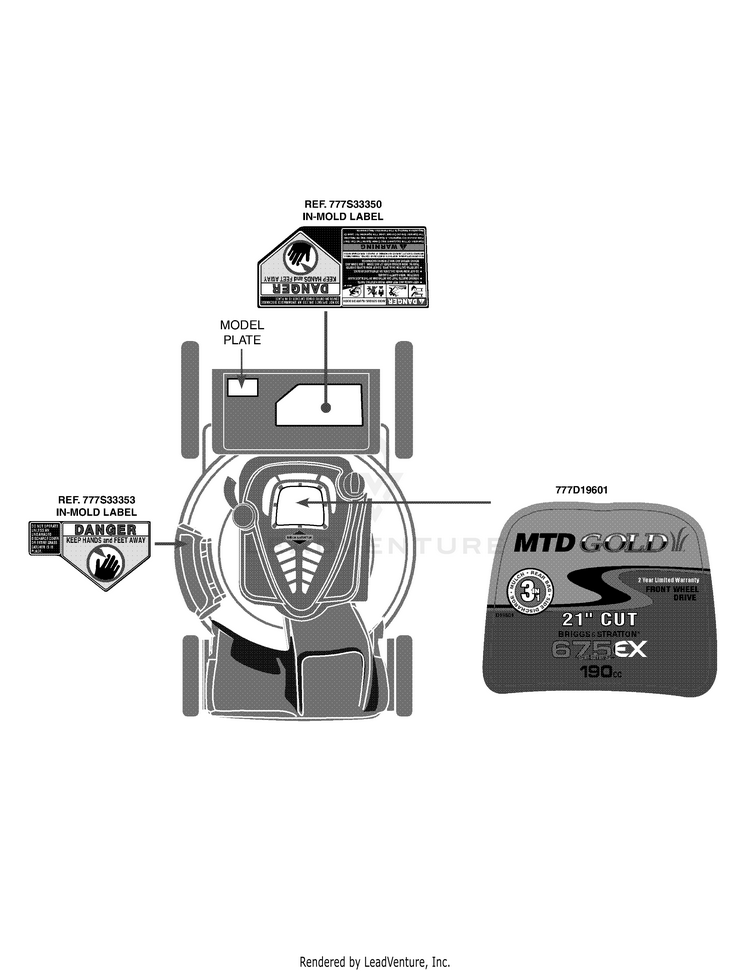

Label Map

...
...
777D19601
LABEL-MOWER SHROUD MTD GOLD 21" MTD-777D19601
