MTD Gold 12AVB26M004 (2012) Self Propelled Mower

Model: 12AVB26M004 (2012)

Save Part Not Listed?
product name

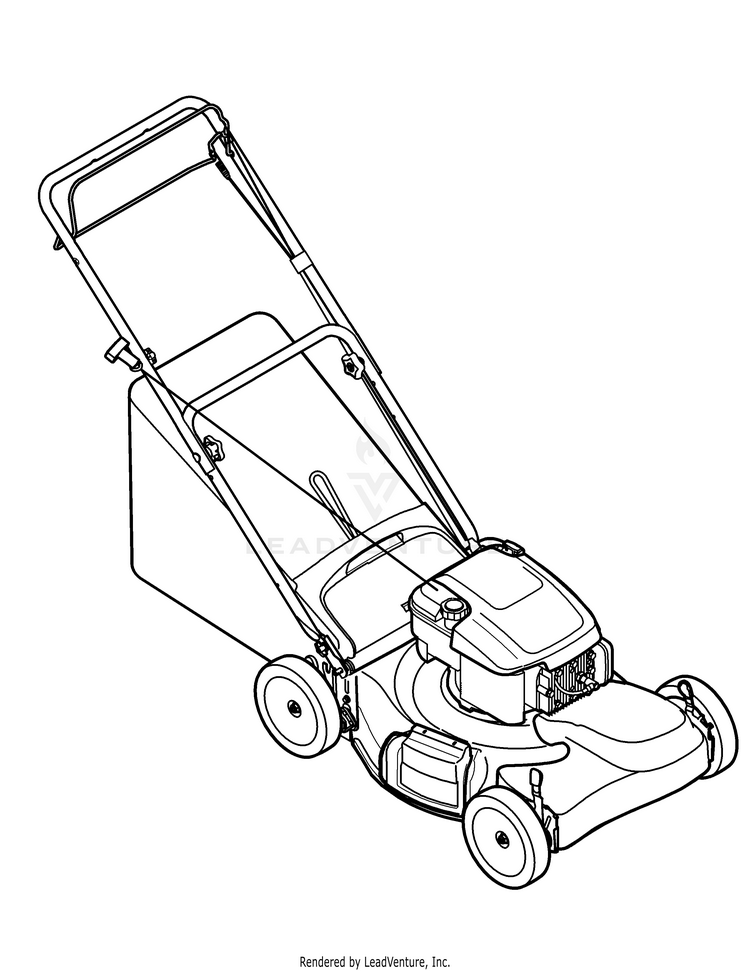

.Quick Reference 12AXB2X

...
...
xx
Spark Plug B&S Engine MTD-BS-591868
...
xx
Pre Filter B&S Engine MTD-BS-493537S
...
xx
AIR FILTER B&S Engine MTD-BS-491588S
...
xx
Fuel Filter B&S Engine MTD-BS-298090S
...
xx
Fuel Cap B&S Engine MTD-BS-796577
...
xx
Spark Plug MTD/Powermore Engine MTD-951-10292A
...
xx
Pre & Air Filter Kit MTD/Powermore Engine MTD-951-10298
...
xx
FUEL FILTER MTD/Powermore Engine MTD-951-12296A
...
xx
Fuel Cap MTD/Powermore Engine MTD-951-10300
...
xx
Drive Cable MTD-946-04655A
...
xx
CONTROL CABLE 48" 5P70M0B or 5P70M0C engines MTD-946-04703A
...
xx
Control Cable, 37.58" Briggs engine MTD-946-04661A
...
xx
Control Cable 2P70M0D engine MTD-946-1130
...
xx
Belt MTD-954-04260
...
xx
Blade Adapter Powermore Engine MTD-987-02527
...
xx
BLADE ADAPTER Briggs engine MTD-687-02528
...
xx
Blade MTD-942-0741A
...
xx
BLADE BELL SUPPORT MTD-736-0524B-1
...
xx
Blade Bolt MTD-710-1044
...
xx
Front Wheel MTD-734-2042A
...
xx
WHEEL ASSEMBLY (11 x 2) MTD-634-05063
...
xx
Trailshield MTD-731-07203
...
xx
Discharge Chute MTD-731-07486
...
xx
21" MULCH PLUG (HINGED) MTD-687-06029
...
xx
21" GRASSBAG (BLACK) MTD-764-04082D
...
xx
GRASSBAG FRAME ASSEMBLY MTD-647-04271-0637
...
xx
Key If Equipped MTD-925-0201
...
xx
Key Switch If Equipped MTD-725-05112
...
xx
BATTERY 12V If Equipped MTD-725P04903
...
xx
BATTERY CHARGER If Equipped MTD-725-06121C

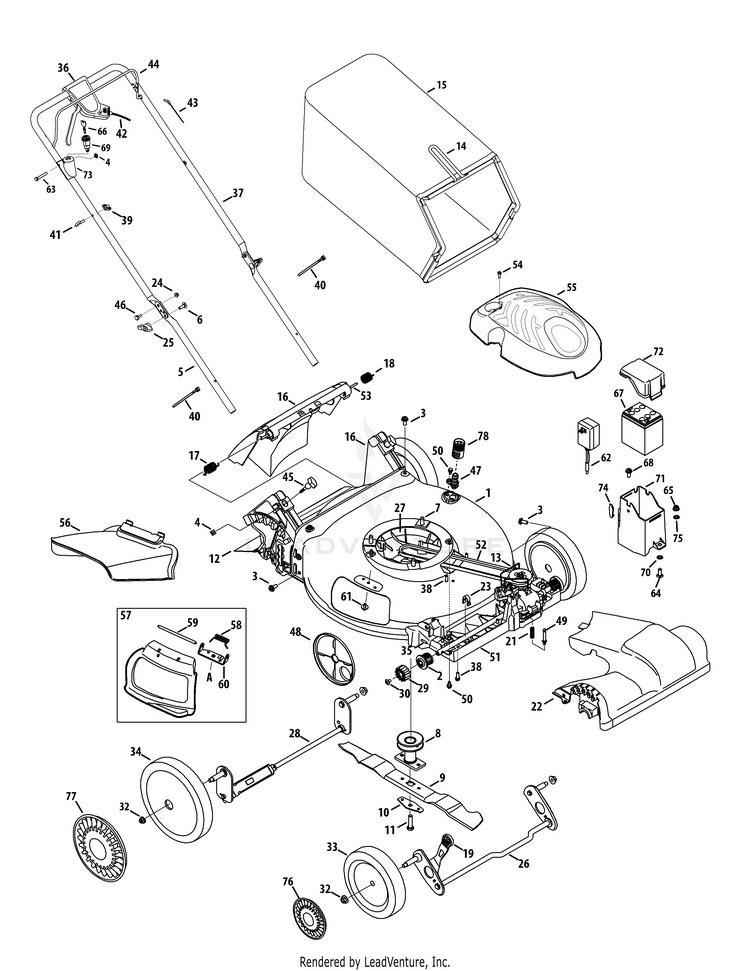

General Assembly 12AXB2X

...
...
1
21" DECK (3N1) (BLACK JACK) MTD-787-01871B-0691
...
1
21" DECK (3N1) (BLACK JACK) 12AGB2JA004 Only MTD-787-01871B-0691
...
2
Bearing Assembly MTD-941-00019
...
3
SCREW 5/16-14 X .750 MTD-710-04995A
...
4
Nut, Sq., 1/4-20 MTD-712-04222
...
5
LOWER HANDLE (POWDER BLACK) MTD-749-07298-0637
...
6
Carriage Screw ,5/16-18 MTD-710-04998
...
7
Screw, 3/8-16 x 1.00 MTD-710-0654A
...
8
Blade Adapter MTD-987-02527
...
8
BLADE ADAPTER (Briggs engine only) MTD-687-02528
...
9
Mulching Blade MTD-942-0741A
...
10
BLADE BELL SUPPORT MTD-736-0524B-1
...
11
Screw, 3/8-24 x 1.50 MTD-710-1044
...
12
Trailing Shield MTD-731-07203
...
13
TRANSMISSION WIRE MTD-732-04675B
...
14
GRASSBAG FRAME ASSEMBLY MTD-647-04271-0637
...
15
21" GRASSBAG (BLACK) MTD-764-04082D
...
16
REAR DOOR & BAFFLE ASSEMBLY MTD-631-08159
...
17
TORSION SPRING (RH) MTD-732-05061B
...
18
Torsion Spring - LH MTD-732-04674A
...
19
Adjustment Lever Knob MTD-720-04131A
...
20
Screw, 1/4-20 x .500 MTD-710-05073
...
21
Compression Spring MTD-732-04704
...
22
FRONT COVER MTD-731-07797A
...
23
Front Axle Clip MTD-787-01793
...
24
Nut, Flange Lock, 1/4-20 MTD-712-04064
...
25
Wing Knob MTD-720-04124
...
26
Front Axle Assembly MTD-911-04150
...
27
ENGINE BAFFLE ASSEMBLY MTD-931-04535C
...
28
REAR AXLE MTD-611-04144B
...
29
Spur Gear, 14T - RH MTD-917-04801
...
29
Spur Gear, 14T - LH MTD-917-04802
...
30
Screw, 1/4-20 x .390 MTD-710-04531
...
31
TRANSMISSION KIT (SP FWD 53CM WALK) MTD-753-09444
...
32
Flange Lock Nut, 3/8-16 MTD-712-04217
...
33
Front Wheel MTD-734-2042A
...
34
WHEEL ASSEMBLY (11 x 2) MTD-634-05063
...
35
Dowel Pin MTD-715-04099
...
36
KIT MTD-753-06060A
...
37
UPPER SQUEEZE HANDLE (POWDER BLACK) MTD-749-04679D-0637
...
38
Screw, 1/4-15 x .750 MTD-710-0895
...
39
Knob MTD-720-0279
...
40
Cable Tie MTD-725-0157
...
41
Rope Guide MTD-710-1205
...
42
Drive Cable MTD-946-04655A
...
43
CONTROL CABLE 48" (5P70M0B or 5P70M0C engines) MTD-946-04703A
...
43
Control Cable, 37.58" (Briggs engine) MTD-946-04661A
...
43
Control Cable (2P70M engine) 40.00" Lg MTD-946-1130
...
44
Blade Control MTD-747-05209A
...
45
Wing Nut, Red MTD-720-05067A
...
46
Sldr. Screw, .375 x .126 x 1/4-20 MTD-738-04419A
...
47
Water Nozzle MTD-731-07487
...
48
Wheel Dust Cover MTD-731-07240A
...
49
Spring Body MTD-731-07355
...
50
Screw., Shldr., 1/4-20 x .50 MTD-738-04278
...
51
LOWER TRAY MTD-731-07789A
...
52
V-Belt MTD-954-04260
...
53
Pivot Rod MTD-747-05183
...
54
Screw, #12-16 x 1.00 If Equipped MTD-710-04744
...
55
ENGINE SHROUD ASSEMBLY (OYSTER GRAY) If Equipped MTD-931-04471
...
56
Side Discharge Chute MTD-731-07486
...
57
21" MULCH PLUG (HINGED) MTD-687-06029
...
58
Torsion Spring MTD-732-1014C
...
59
Hinge Pin MTD-747-0710A
...
60
Chute Deflector Bracket MTD-787-01779
...
61
Screw, 1/4-20 x .500 MTD-710-05073
...
62
BATTERY CHARGER If Equipped MTD-725-06121C
...
63
Screw, 1/4-20 x 1.75 If Equipped MTD-710-0136
...
64
Bolt, Carr., 5/16-18 x 1.00 If Equipped MTD-710-0276
...
65
Hex L-Nut 5/16-18 Thd. If Equipped MTD-712-0429
...
66
Key If Equipped MTD-925-0201
...
67
BATTERY 12V If Equipped MTD-725P04903
...
68
SHOULDER SCREW 5/16-14 x .972 If Equipped MTD-738-04431A
...
69
Key Switch If Equipped MTD-725-05112
...
70
Speed Nut If Equipped MTD-726-0201
...
71
Battery Housing If Equipped MTD-731-07135
...
72
TOP BATTERY HOUSING If Equipped MTD-731-07154A
...
73
Electric Start Housing If Equipped MTD-731-07155
...
74
LID SEAL If Equipped MTD-735-04213C
...
75
Washer, Bell, .340 x .872 x .080 If Equipped MTD-736-0242
...
76
Hubcap, Grey MTD-731-07001
...
77
Hubcap, 11", Grey MTD-731-07875
...
78
Water Nozzle Adapter MTD-921-04041
...
xx
HARNESS (Not Shown) If Equipped MTD-925-06140B

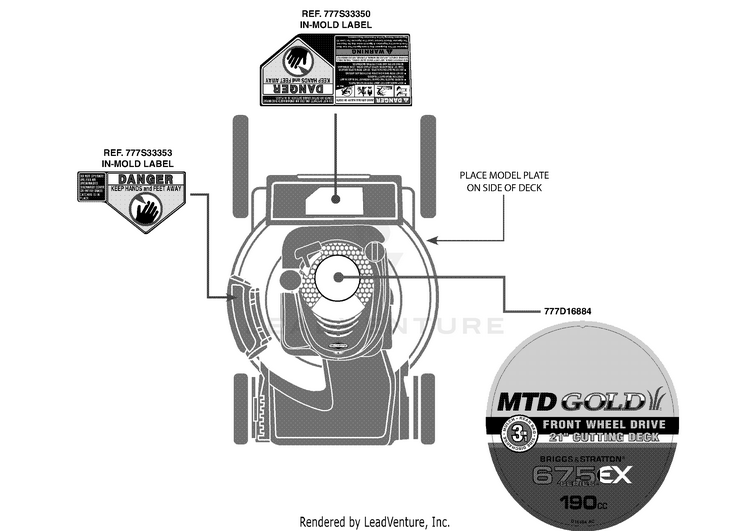

Label Map 12AVB26M004

...
...
