MTD Gold 12AV569S204 (2009) Self Propelled Mower

Model: 12AV569S204 (2009)

Save Part Not Listed?
product name

.Quick Reference

...
...
xx
SPARK PLUG RJ19LM MTD-759-3338
...
xx
Pre Filter MTD-BS-493537S
...
xx
AIR FILTER MTD-BS-491588S
...
xx
Fuel Filter MTD-BS-298090S
...
xx
Cap-Fuel Tank (Service Cap) MTD-BS-796577
...
xx
Control Cable - 40.00" MTD-946-1130
...
xx
Variable Speed Cable MTD-946-04206A
...
xx
V-Type Belt MTD-954-04082A
...
xx
Blade Adapter MTD-748-04082
...
xx
21-inch Mulching Blade MTD-942-0741A
...
xx
BLADE BELL SUPPORT MTD-736-0524B-1
...
xx
Blade Bolt MTD-710-1257
...
xx
Wheel Ass'y 8 x 2.125 Gear Zag MTD-734-2042A
...
xx
Wheels - Rear - Yellow MTD-734-04046
...
xx
Wheels - Rear - Gray MTD-734-04093
...
xx
Hub Cap MTD-731-0981C
...
xx
Trailshield MTD-731-05642A
...
xx
Discharge Chute MTD-731-04177
...
xx
Mulch Cover MTD-987-02055
...
xx
Grass Bag Assembly MTD-964-04007A
...
xx
Grass Bag Frame MTD-747-04080A

Drive Assembly

...
...
1
Slev. Spacer, 1.8" Lg. MTD-750-04405
...
2
SLEEVE SPACER .520IDX9.1LG MTD-750-04404
...
3
TT Screw MTD-710-0654A
...
4
21" DECK (BLACK JACK) MTD-787-01278-0691
...
5
TT Screw, 1/4-20 x 0.5 MTD-710-0599
...
6
SPRING WASHER BELL MTD-736-0270
...
7
Hinged Mulch Plug Assembly MTD-987-02055
...
8
PLATE-ADAPTER MTD-17032A
...
9
Torsion Spring MTD-732-1014C
...
10
Hinge Pin MTD-747-0710A
...
11
Transmission Ass’y Com plete MTD-918-04377B
...
12
Height Adj. Assembly - LH MTD-987-02193A
...
12
Height Adj. Assembly - RH MTD-987-02194A
...
13
Handle Bracket Assembly - LH MTD-987-02280A
...
13
Handle Bracket Assembly - RH MTD-987-02279A
...
14
Pivot Plate Assembly MTD-987-02334
...
15
Front Lever - RH MTD-732-0706
...
15
Front Lever - LH MTD-732-0707
...
16
FRONT BAFFLE MTD-782P5002B
...
17
Flange Lock Nut, 3/8-16 MTD-712-04065
...
18
Wheel Ass'y 8 x 2.125 Gear Zag MTD-734-2042A
...
19
Rear Wheel, 12 x 2.125, Yellow MTD-734-04046
...
19
Rear Wheel, 12 x 2.125, Gray MTD-734-04093
...
20
Screw, 1/4-20 x .390 MTD-710-04531
...
21
Gear 14T FWD - RH MTD-717-1762
...
21
Gear 14T FWD - LH MTD-717-1761
...
22
Dowel Pin MTD-915-0221
...
23
Wheel Dust Cap MTD-782-7551A
...
24
Snap Ring MTD-716-0102
...
25
Flat Washer MTD-736-0474
...
26
Hex Screw, 3/8-16 x .75 MTD-710-0216
...
27
Wave Washer MTD-736-0447
...
28
Bearing Assembly MTD-987-02347
...
29
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
30
TT Screw w/washer, 1/4-20 x .625 MTD-710-1652
...
31
Shoulder Screw, .500 Dia. x .385 MTD-738-04266
...
32
Pivot Arm Assembly - RH MTD-987-02335
...
32
PIVOT ARM ASSEMBLY (LH) MTD-987-02336
...
33
HEIGHT ADJUSTMENT LEVER MTD-732-0866
...
34
Foam Grip MTD-720-0312
...
35
Washer, Spring, .500 x 1.00 x .022 MTD-736-0182
...
36
Hubcap If Equipped MTD-731-0981C

General Assembly

...
...
1
Variable Speed Cable MTD-946-04206A
...
2
REAR BAFFLE 21" MTD-731-04150C
...
3
Screw, 1/4-15 x 1.000 MTD-710-1241
...
4
Deluxe Bail Cover - Yellow MTD-731-05564
...
4
Deluxe Bail Cover - Gray MTD-731-2626
...
5
Blade Control MTD-747-1161A-0637
...
6
UPPER HANDLE MTD-749-04206-0637
...
7
CABLE BRACKET MTD-787-01258A
...
8
KIT MTD-753-06060A
...
9
Handle Knob MTD-720-0279
...
10
Star Knob MTD-720-04072A
...
11
Eye Bolt MTD-710-1205
...
12
Control Cable - 40.00" MTD-946-1130
...
13
Carriage Bolt, 5/16-18 x 2.0 MTD-710-1174
...
14
Cable Tie MTD-725-0157
...
15
Hairpin Clip MTD-714-0104
...
16
Wing Nut MTD-712-0397A
...
17
Grass Bag Assembly MTD-964-04007A
...
18
Grass Bag Frame MTD-747-04080A
...
19
BLADE BELL SUPPORT MTD-736-0524B-1
...
20
Rear Trailing Shield MTD-731-05642A
...
21
Rear Discharge Door MTD-731-06847
...
22
Carriage Bolt, 1/4-20 MTD-710-0703
...
23
Torsion Spring - RH MTD-732-04090A
...
24
Pivot Rod MTD-747-04588
...
25
Transmission Cover - Black MTD-931-05013A
...
25
Transmission Cover - Gray MTD-931-05013A
...
26
Shoulder Screw, # 12 -24 MTD-710-1650
...
27
Engine Baffle MTD-753-06116
...
28
Lower Handle MTD-749-0928A-0637
...
29
V-Belt MTD-954-04082A
...
30
Pulley Assembly, Drive MTD-656-04047A
...
31
Torx Screw MTD-710-04329
...
32
Baffle Bracket MTD-787-01593
...
33
Blade Adapter, 25mm MTD-748-04082
...
34
Wave Washer MTD-736-0447
...
35
Belt Keeper Wire MTD-732-04294
...
36
Scr., 1/4-14 x.625 MTD-710-0896
...
37
Hex Screw, 3/8-24 x 2.50 MTD-710-1257
...
38
21-inch Mulching Blade MTD-942-0741A
...
39
Side Discharge Chute MTD-731-04177
...
40
EXTENSION SPRING MTD-732-04317

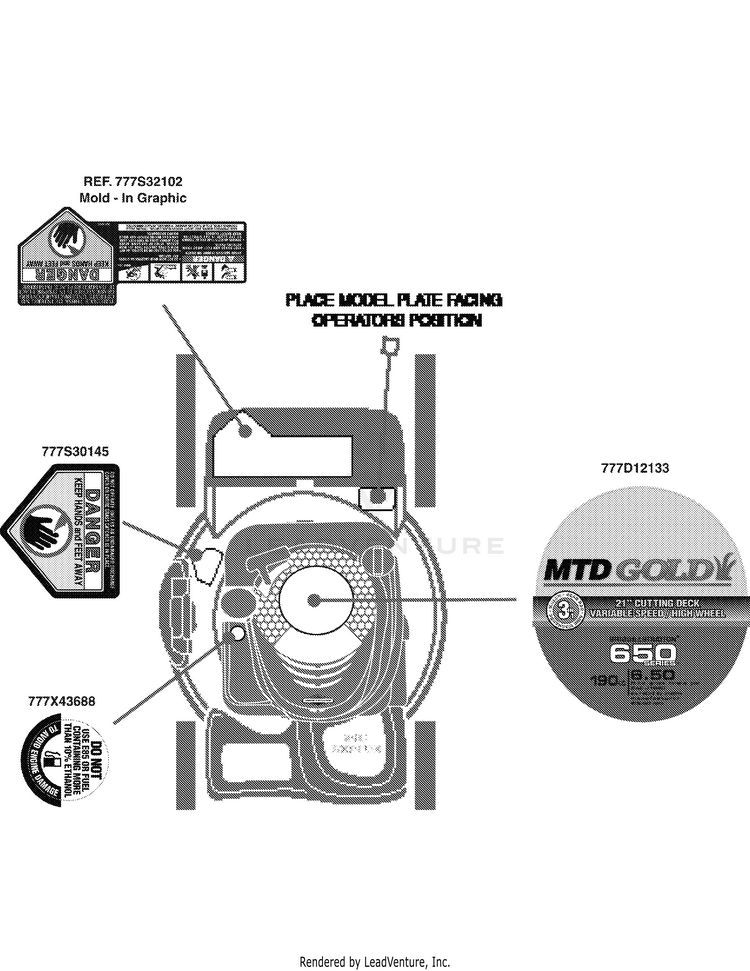

Label Map MTD Gold

...
...
777S32102
LABEL-MOWER DISCHRG DOOR SAFETY Mold-in Graphic MTD-NA
...
777S30145
LABEL MTD-977S30145
...
777X43688
LABEL-ETHANOL MTD-777X43688
...
777D12133
LABEL-MOWER SHROUD MTD GOLD 21" MTD-777D12133
