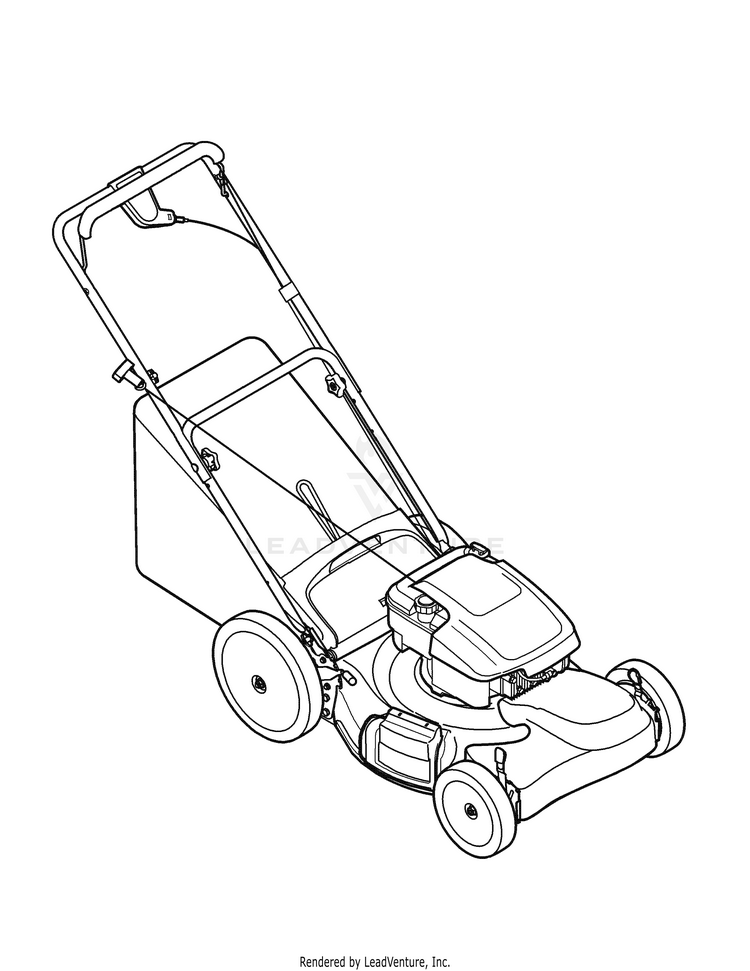

MTD Gold 12AV569S204 (2008) Self Propelled Mower

Model: 12AV569S204 (2008)

Save Part Not Listed?
product name

.Quick Reference 569S

...
...
xx
SPARK PLUG RJ19LM MTD-759-3338
...
xx
Pre Filter MTD-BS-493537S
...
xx
AIR FILTER MTD-BS-491588S
...
xx
Fuel Filter MTD-BS-298090S
...
xx
Control Cable - 40.00" MTD-946-1130
...
xx
Variable Speed Cable MTD-946-04206A
...
xx
Drive Belt MTD-754-040802A
...
xx
Blade Adaptor MTD-748-04082
...
xx
21-inch Mulching Blade MTD-942-0741A
...
xx
BLADE BELL SUPPORT MTD-736-0524B-1
...
xx
Blade Bolt MTD-710-1257
...
xx
Wheel Ass'y 8 x 2.125 Gear Zag MTD-734-2042A
...
xx
Wheels MTD-734-04093
...
xx
Hub Cap MTD-731-0981C
...
xx
Rear Trailing Shield MTD-731-05642A
...
xx
Discharge Chute MTD-731-04177
...
xx
Grass Bag Assembly MTD-964-04007A
...
xx
Grass Bag Assembly MTD-964-04007A
...
xx
Grass Bag Frame MTD-747-04080A
...
xx
Mulch Cover MTD-987-02055

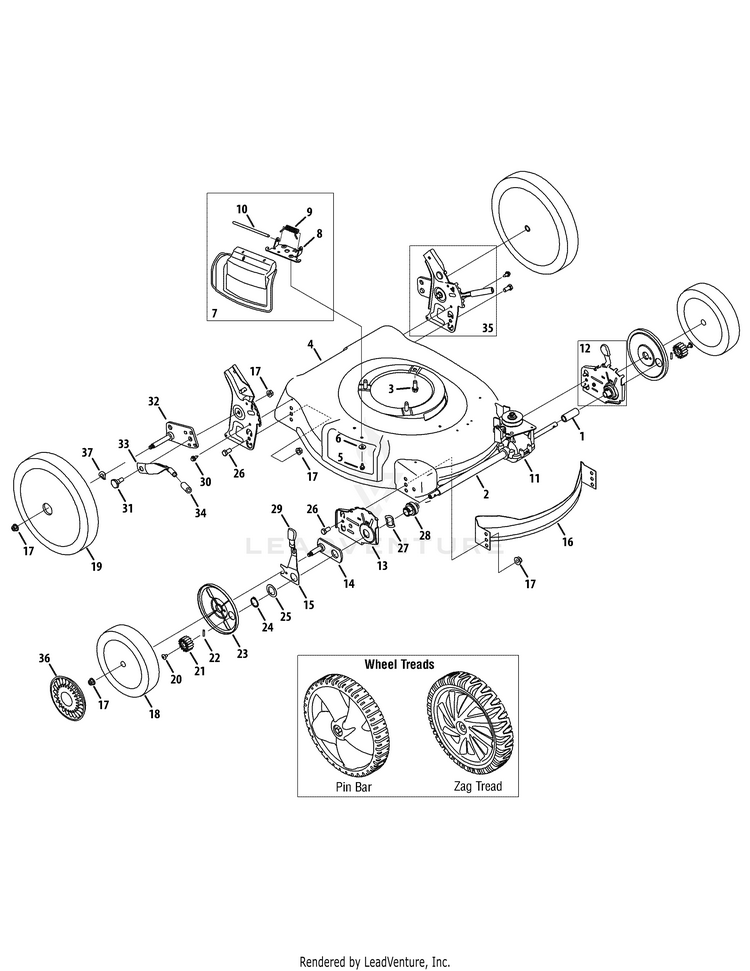

Drive

...
...
1
Sleeve Spacer, 1.8'' MTD-750-04405
...
2
SLEEVE SPACER .520IDX9.1LG MTD-750-04404
...
3
Self-Tapping Sems Screw MTD-710-0654A
...
4
21" DECK MTD-787-01278
...
5
TT Screw, 1/4-20 x 0.5 MTD-710-0599
...
6
SPRING WASHER BELL MTD-736-0270
...
7
Mulch Cover MTD-987-02055
...
8
PLATE-ADAPTER MTD-17032A
...
9
Torsion Spring MTD-732-1014C
...
10
Hinge Pin MTD-747-0710A
...
11
Transmission Ass’y Com plete MTD-918-04377B
...
12
Height Adjustment Ass’y - LH MTD-987-02193A
...
12
Height Adjustment Ass’y - RH MTD-987-02194A
...
13
ADJUSTMENT PLATE (RH) MTD-787-01298A-0637
...
13
ADJUSTMENT PLATE (LH) MTD-787-01299A-0637
...
14
Pivot Plate Assembly MTD-987-02334
...
15
Front Lever - RH MTD-732-0706
...
15
Front Lever - LH MTD-732-0707
...
16
FRONT BAFFLE MTD-782P5002B
...
17
Flange Lock Nut, 3/8-16 MTD-712-04065
...
18
WHEEL ASSEMBLY (8 x 1.8) (YELLOW) MTD-634-04100A
...
18
Wheel Ass'y 8 x 2.125 Gear Zag MTD-734-2042A
...
19
Rear Wheel, 12 x 1.8, Pin Bar Tread MTD-734-04089
...
19
Rear Wheel, 12 x 2.125, Zag Tread MTD-734-04093
...
20
Screw, 1/4-20 x .390 MTD-710-04531
...
21
Gear 14T RH FWD MTD-717-1762
...
21
Gear 14T LH FWD MTD-717-1761
...
22
Dowel Pin MTD-915-0221
...
23
Wheel Dust Cap MTD-781-7551A
...
24
Snap Ring MTD-716-0102
...
25
Flat Washer MTD-736-0474
...
26
Hex Screw, 3/8-16 x .75 MTD-710-0216
...
27
Wave Washer MTD-736-0447
...
28
Front Bearing Assembly MTD-987-02347
...
29
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
30
TT Screw w/Washer, 1/4-20 x .625 MTD-710-1652
...
31
Shoulder Screw, .500 Dia x .385 MTD-738-04266
...
32
Rear Pivot Arm Assy - RH MTD-987-02335
...
32
PIVOT ARM ASSEMBLY (LH) MTD-987-02336
...
33
HEIGHT ADJUSTMENT LEVER MTD-732-0866
...
34
Foam Grip MTD-720-0312
...
35
Rear Handle Bracket Assy. - LH MTD-987-02280A
...
35
Rear Handle Bracket Assy. - RH MTD-987-02279A
...
36
Hub Cap (If Equipped) MTD-731-0981C
...
37
Washer, Spring, .500 x 1.00 x .022 MTD-736-0182

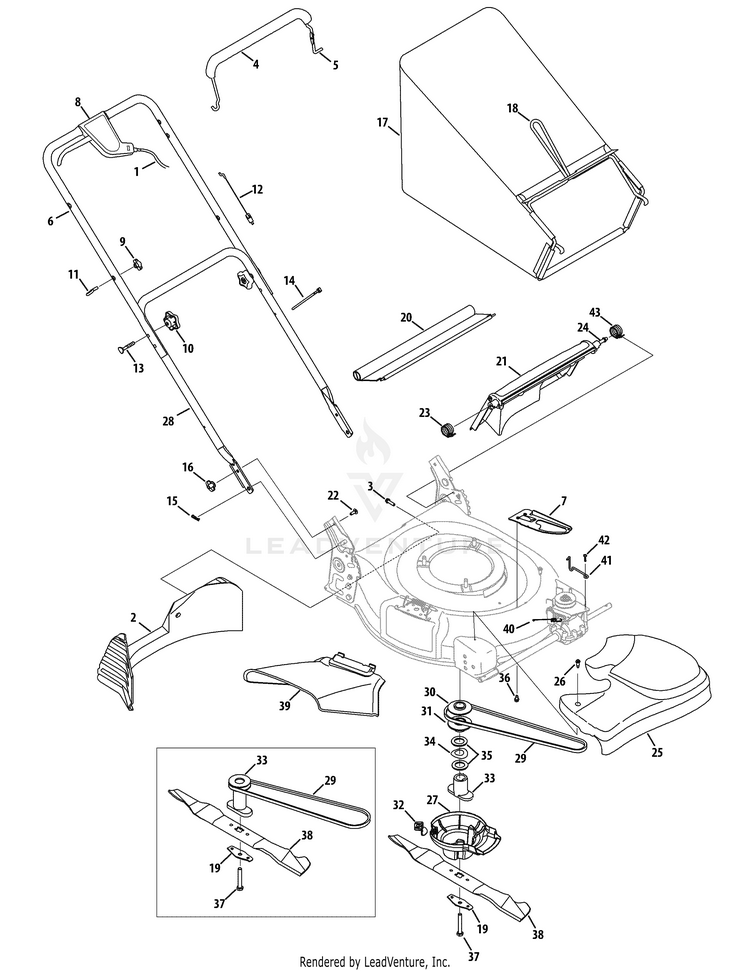

General Assembly

...
...
1
Variable Speed Cable MTD-946-04206A
...
2
REAR BAFFLE 21" MTD-731-04150C
...
3
Screw, 1/4-15 x 1.000 MTD-710-1241
...
4
Deluxe Bail Cover - Yellow (If Eqipped) MTD-731-04204
...
4
Deluxe Bail Cover - Gray (If Eqipped) MTD-731-2626
...
5
Blade Control MTD-747-1161A
...
6
UPPER HANDLE MTD-749-04206-0637
...
7
CABLE BRACKET MTD-787-01258A
...
8
KIT MTD-753-06060A
...
9
Handle Knob MTD-720-0279
...
10
Star Knob MTD-720-04072A
...
11
Eye Bolt MTD-710-1205
...
12
Control Cable - 40.00" MTD-946-1130
...
13
Carriage Bolt, 5/16-18 x 2.0 MTD-710-1174
...
14
Cable Tie MTD-725-0157
...
15
Cotter Pin MTD-714-0104
...
16
Wing Nut MTD-712-0397A
...
17
Grass Bag Assembly MTD-964-04007A
...
17
Grass Bag Assembly MTD-964-04007A
...
18
Grassbag Frame MTD-747-04080A
...
19
BLADE BELL SUPPORT MTD-736-0524B-1
...
20
Rear Trailing Shield MTD-731-05642A
...
21
Rear Discharge Door MTD-731-06847
...
22
Carriage Bolt, 1/4-20 MTD-710-0703
...
23
Torsion Spring - RH MTD-732-04090A
...
24
Pivot Rod MTD-747-04588
...
25
TRANSMISSION COVER (YELLOW) MTD-931-05021A
...
25
Transmission Cover MTD-931-05013A
...
26
Shoulder Screw, #12-24 MTD-710-1650
...
27
Engine Baffle MTD-753-06116
...
28
Lower Handle MTD-749-0928A-0637
...
29
V-Type Belt MTD-954-04082A
...
30
Half Pulley, Upper, 25mm ID (Equipped with 25mm Blade Adapter) MTD-956-04161
...
31
Half Pulley, Keyed, 25mm ID (Equipped with 25mm Blade Adapter) MTD-956-04160
...
32
Baffle Bracket MTD-787-01593
...
33
Blade Adapter, 25mm MTD-748-04082
...
xx
Blade Adapter w/ Pulley MTD-948-04015A
...
34
Spacer Washer (Equipped with 25mm Blade Adapter) MTD-736-0447
...
35
Flat Washer (Equipped with 25mm Blade Adapter) MTD-736-0277
...
36
Screw, 1/4-14 x .625 MTD-710-0896
...
37
Hex Screw, 3/8-24 x 2.50 MTD-710-1257
...
38
21-inch Mulching Blade MTD-942-0741A
...
39
Side Discharge Chute MTD-731-04177
...
40
EXTENSION SPRING MTD-732-04317
...
41
Belt Keeper Wire MTD-732-04294
...
42
Torx Screw MTD-710-04329
...
43
Torsion Spring - LH MTD-732-04089A

Label Map 569

...
...

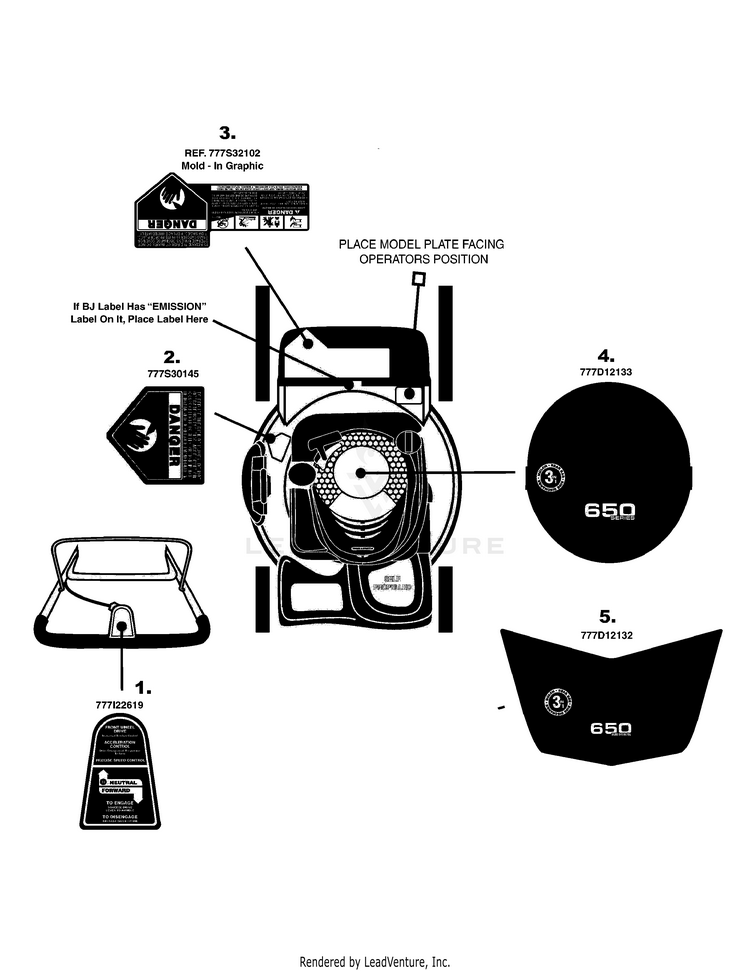

1
LABEL-MOWER SQ LEVER MTD-777I22619
...
2
LABEL MTD-977S30145
...
3
LABEL MTD-NA
...
4
LABEL-MOWER SHROUD MTD GOLD 21" MTD-777D12133
...
5
LABEL-MOWER SHROUD MTD GOLD 21" MTD-777D12132
