product name

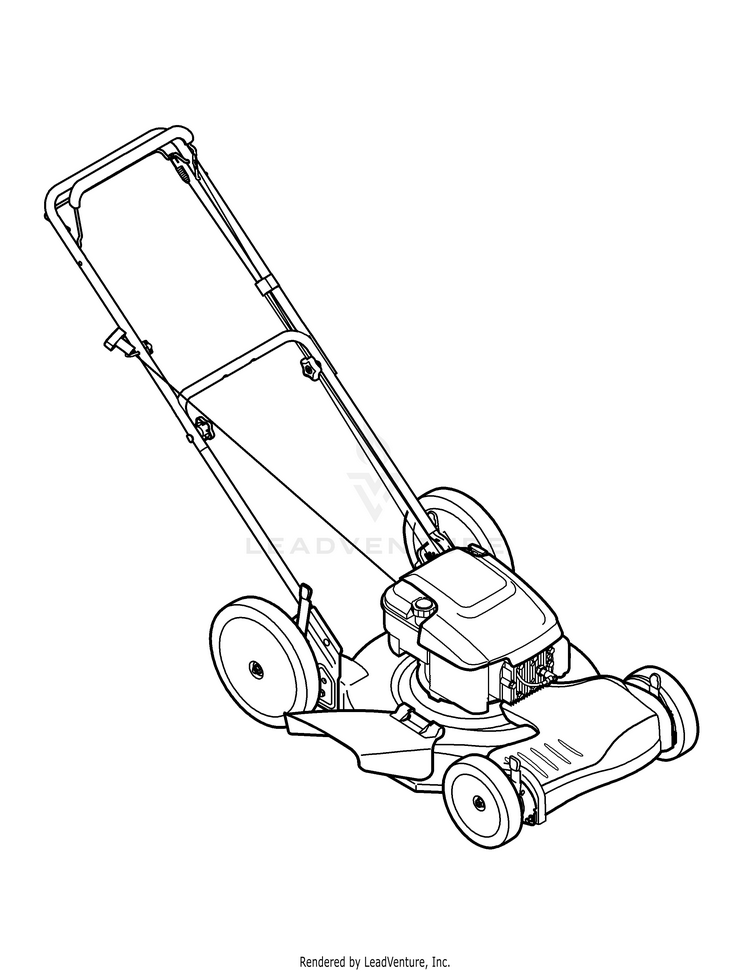

MTD Gold 12A-529R004 (2008) Self Propelled Mower

Model: 12A-529R004 (2008)

Save Part Not Listed?
product name

.Quick Reference

...
...
xx
SPARK PLUG RJ19LM 802592S MTD-759-3338
...
xx
Pre Filter MTD-BS-493537S
...
xx
AIR FILTER MTD-BS-491588S
...
xx
Fuel Filter MTD-BS-298090S
...
xx
Cable Control MTD-946-1132
...
xx
Drive Control Cable MTD-946-04204
...
xx
V-Belt, 3L x 32.90 MTD-954-04100
...
xx
Blade MTD-742-0742A-0637
...
xx
Blade Bolt MTD-710-1044
...
xx
Blade Adaptor MTD-748-04016A
...
xx
BLADE BELL SUPPORT MTD-736-0524B-1
...
xx
Wheel Ass'y 8 x 2.125 Gear Zag (Front) MTD-734-2042A
...
xx
Wheels, 812 x 2.125 Zag (Rear) MTD-734-04093
...
xx
Hub Cap MTD-731-0981C
...
xx
Trailshield MTD-731-2537
...
xx
CHUTE DEFLECTOR MTD-931-1034B
...
xx
Grass Bag MTD-NA
...
xx
Grass Bag Frame MTD-NA

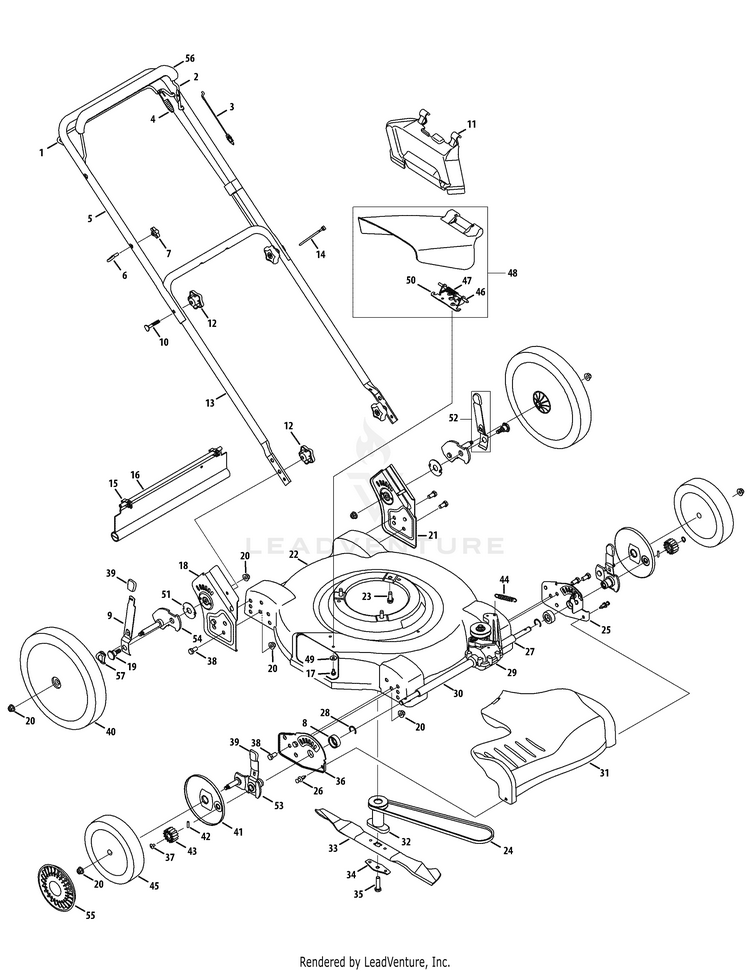

General Assembly

...
...
1
Drive Control MTD-747-1214
...
2
Blade Control MTD-747-1161A
...
3
Cable Control MTD-946-1132
...
4
Drive Control Cable MTD-946-04204
...
5
Upper Handle MTD-749-1092A
...
6
Eye Bolt MTD-710-1205
...
7
Wing Nut, 1/4-20 MTD-720-0279
...
8
Bearing Support Spacer MTD-748-0390
...
9
SPRING LEVER MTD-732-0984B
...
10
Carriage Bolt, 5/16-18 x 2.0 MTD-710-1174
...
11
Muliching Baffle MTD-631-04045
...
12
Star Knob MTD-720-04072A
...
13
Lower Handle MTD-749-04037
...
14
Cable Tie MTD-725-0157
...
15
HINGE CLIP MTD-17098P
...
16
Trail Shield MTD-731-2537
...
17
Hex Screw, 1/4-20 x .500 MTD-710-0599
...
18
HANDLE BRACKET (RH) MTD-982-3062A
...
19
Shoulder Screw, .625 x .412 MTD-738-04267
...
20
Lock Nut, 3/8-16 MTD-712-04065
...
21
HANDLE BRACKET ASSEMBLY (LH) MTD-682-3063A
...
22
22" DECK ASSEMBLY MTD-687-02046
...
23
Hex Washer Screw, 3/8-16 x 1.0 MTD-710-0654A
...
24
V-Belt, 3L x 32.90 MTD-954-04100
...
25
HEIGHT ADJUSTMENT PLATE MTD-782-0585A-0637
...
26
Rivet MTD-728-0199
...
27
SLEEVE SPACER .550IDX2.22LG MTD-750-04407
...
28
Retainer Ring MTD-716-0198
...
29
TRANSMISSION MTD-918-04375B
...
30
SLEEVE SPACER MTD-750-04406A
...
31
TRANSMISSION COVER MTD-931-04014
...
32
Blade Adapter MTD-748-04016A
...
33
Blade MTD-742-0742A-0637
...
34
BLADE BELL SUPPORT MTD-736-0524B-1
...
35
Hex Cap Screw, 3/8-24 x 1.5 MTD-710-1044
...
36
HEIGHT ADJUSTMENT PLATE MTD-782-0584-0637
...
37
Screw, 1/4-20 x .390 MTD-710-04531
...
38
Hex Cap Screw, 3/8-16 x .75 MTD-710-0216
...
39
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
40
Rear Wheel, 12 x 2.125 Zag MTD-734-04093
...
41
Wheel Dust Cover MTD-731-04643
...
42
Dowel Pin MTD-915-0221
...
43
Spur Gear 14T - RH MTD-717-1762
...
43
Spur Gear 14T - LH MTD-717-1761
...
44
Extension Spring, .47 OD x 2.50 MTD-732-04049
...
45
Wheel Ass'y 8 x 2.125 Gear Zag MTD-734-2042A
...
46
Hinge Pin MTD-747-0710A
...
47
Torsion Spring MTD-732-1014C
...
48
CHUTE DEFLECTOR MTD-931-1034B
...
49
SPRING WASHER BELL MTD-736-0270
...
50
PLATE-ADAPTER MTD-17032A
...
51
THRUST BEARING MTD-741-0717
...
52
HEIGHT LEVER ASSEMBLY MTD-687-02052
...
53
HEIGHT ADJUSTMENT ASSEMBLY (RH) Shown for RH on this model and application MTD-987-02140A
...
53
Front Lever Assembly Shown for LH on this model and application MTD-987-02141A
...
54
PIVOT ARM ASSEMBLY (LH) MTD-687-02079
...
54
PIVOT ARM ASSEMBLY (RH) MTD-987-02344
...
55
Hub Cap (If Equipped) MTD-731-0981C
...
56
Deluxe Bail Cover (If Equipped) MTD-731-2626
...
57
Washer, Spring .500 x 1.00x x.022 (If Equipped) MTD-736-0182

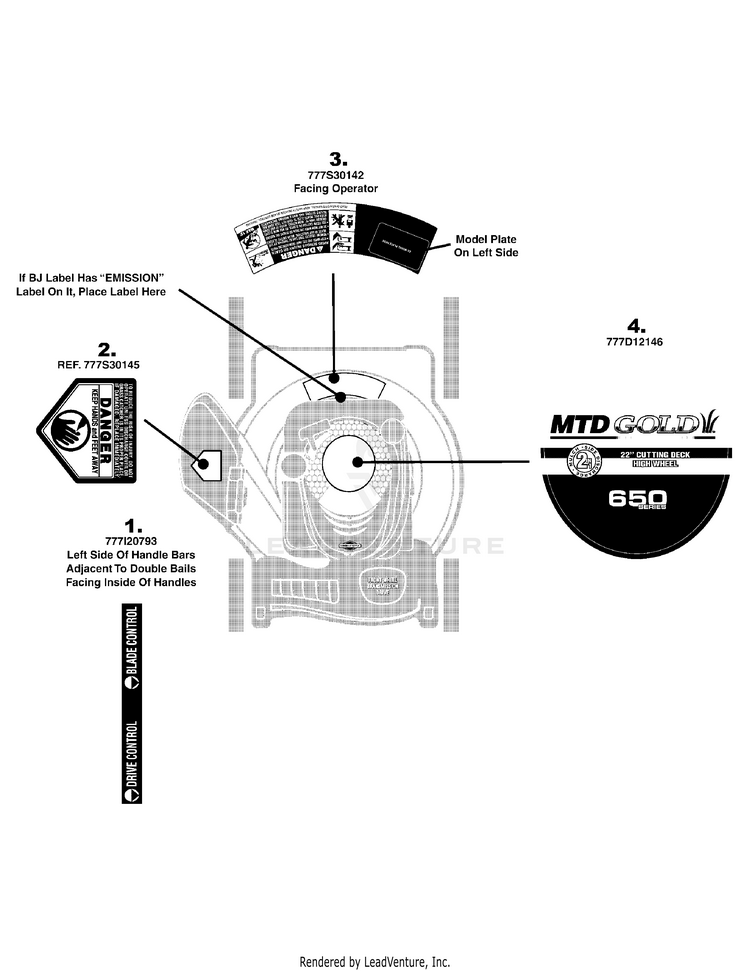

Label Map

...
...
1
LABEL-HANDLE MTD-777I20793
...
2
LABEL MTD-977S30145
...
3
LABEL-DANGER CURVE MTD-777S30142
...
4
LABEL-MOWER SHROUD MTD GOLD 22" MTD-777D12146
