MTD Gold 12A-289W722 (2004) Self Propelled Mower

Model: 12A-289W722 (2004)

Save Part Not Listed?
product name

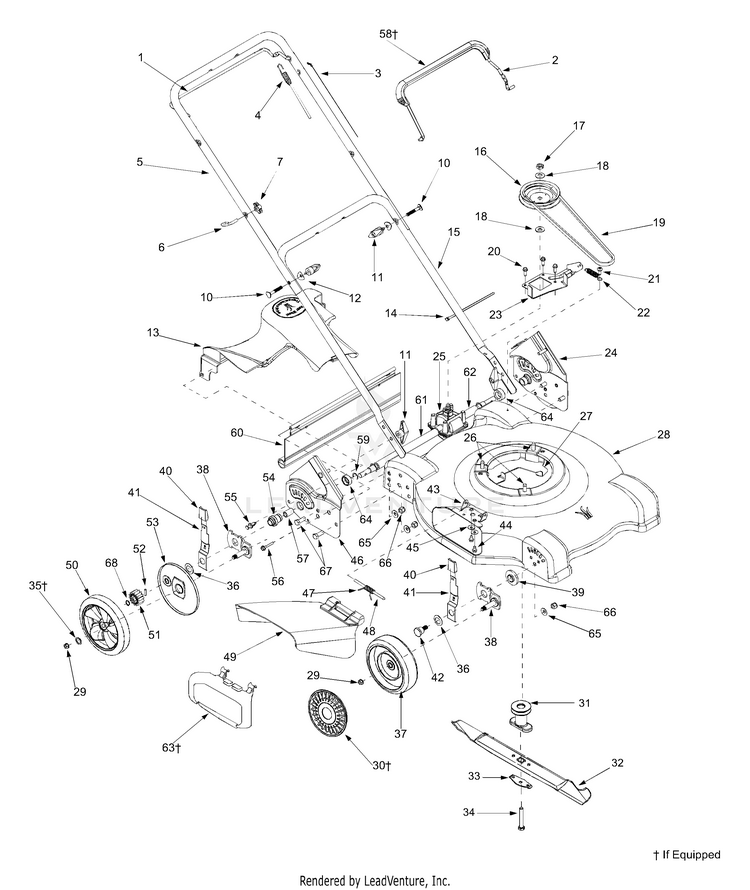

General Assembly

...
...
1
Drive Control Handle MTD-747-1214
...
2
Blade Control Handle MTD-747-1161A
...
3
Control Cable MTD-946-1113A
...
xx
Cable Control MTD-946-1132
...
xx
Control Cable MTD-946-1114
...
4
DRIVE CONTROL CABLE MTD-946-1093A
...
5
Upper Handle MTD-749-1092A
...
6
Eye Bolt MTD-710-1205
...
7
Wing Nut 1/4-20 MTD-720-0279
...
10
Carriage Bolt 5/16-18 x 2.0 MTD-710-1174
...
11
Wing Nut 5/16-18 MTD-720-0284
...
12
Shoulder Washer.320 ID x.93 OD MTD-736-0451
...
13
TRANSMISSION COVER MTD-731-0074
...
14
Cable Tie MTD-725-0157
...
15
Lower Handle MTD-749-04037
...
16
INPUT PULLEY MTD-756-1169
...
17
Hex Jam Nut 7/16-20 MTD-912-0240
...
18
Bell Washer.45 ID x 1.00 OD MTD-736-0407
...
19
V-BELT 3L x 39.44" MTD-954-0484
...
20
Hex Washer Screw 1/4-20 x.75 MTD-710-0642
...
21
SHOULDER SCREW .375X.25AB1/4-20 MTD-738-1002
...
22
EXTENSION SPRING MTD-732-0993
...
23
BELT KEEPER BRACKET MTD-782-9061
...
24
HANDLE BRACKET ASSEMBLY (LH) MTD-682-3073
...
25
TRANSMISSION MTD-918-0607A
...
26
Hex Washer Screw 3/8-16 x 1.0 MTD-710-0654A
...
27
ENGINE BELT BRACKET MTD-782-9063B-0637
...
28
22" DECK ASSEMBLY MTD-687-02049
...
29
Flange Lock Nut 3/8-16 MTD-912-0431
...
30
Hub Cap MTD-731-0981C
...
31
One Piece Blade Adapter MTD-748-04016A
...
32
Blade MTD-742-0742A-0637
...
33
BLADE BELL SUPPORT MTD-736-0524B-1
...
34
Hex Cap Screw 3/8-24 x 2.5 MTD-710-1044
...
35
Flat Washer 1/2 x 1.00 x.030 If equipped MTD-736-3013
...
36
Bell Washer.401 ID x.870 OD MTD-736-0741
...
37
Front Wheel 7 x 2 Link Black BB MTD-734-1980
...
xx
Front Wheel 7 x 1.8 Spoke Bar Gray MTD-734-1988
...
38
Pivot Arm Assembly MTD-987-02094
...
39
Height Adjuster Bearing MTD-741-0751
...
40
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
41
Spring Lever MTD-732-1026
...
42
Shoulder Screw 3/8-16 MTD-738-1172
...
43
PLATE-ADAPTER MTD-17032A
...
44
Hex Washer Screw 1/4-20 x.50 MTD-710-0599
...
45
SPRING WASHER BELL MTD-736-0270
...
46
HANDLE BRACKET ASSEMBLY (RH) MTD-682-3072
...
47
Torsion Spring MTD-732-1014C
...
48
Hinge Pin MTD-747-0710A
...
49
CHUTE DEFLECTOR MTD-931-1034B
...
50
Front Wheel MTD-734-04223A
...
xx
Wheel MTD-634-0190A
...
51
Spur Gear 14T RH MTD-717-1762
...
xx
Spur Gear 14T LH MTD-717-1761
...
52
Dowel Pin MTD-915-0221
...
53
Wheel Cover MTD-731-04643
...
54
BEARING SUPPORT MTD-748-0455
...
55
Plastic Rivet MTD-728-0199
...
56
SCREW 1/4-20 x 2 MTD-710-1802
...
57
SLEEVE BEARING .504 X.627 X1.0 MTD-741-0710
...
58
Deluxe Bail Cover If equipped MTD-731-2626
...
59
Retainer Ring MTD-716-0198
...
60
Trail Shield MTD-731-04019
...
61
SLEEVE SPACER MTD-750-1210
...
62
SLEEVE SPACER MTD-750-1209
...
63
Snap Mulching Plug If equipped MTD-631-04045
...
64
Bearing Spacer MTD-748-0390
...
65
Bell Washer.401 ID x.870 OD MTD-736-0105
...
66
Hex Lock Nut 3/8-16 MTD-712-0130
...
67
Hex Cap Screw 3/8-16 x 1.0 MTD-710-0514
...
68
Snap Ring.500 MTD-716-0865

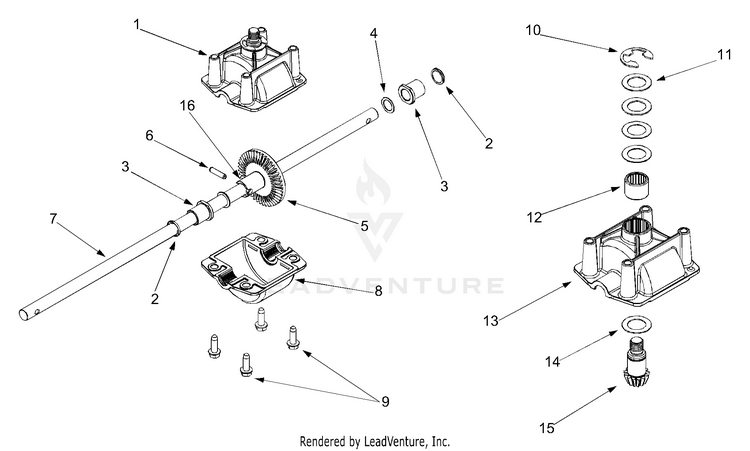

Transmission Assembly

...
...
1
UPPER HOUSING ASSEMBLY MTD-618-0392
...
2
Oil Seal MTD-921-0329
...
3
Bearing MTD-941-0673
...
4
Flat Washer .504 ID x .70 OD MTD-936-0520
...
xx
FLAT WASHER MTD-736-0711
...
xx
FLAT WASHER MTD-736-0712
...
xx
FLAT WASHER MTD-736-0713
...
5
BEVEL GEAR 44T MTD-917-1723
...
6
SPRING PIN MTD-715-0139
...
7
OUTPUT SHAFT MTD-911-1649
...
8
LOWER HOUSING MTD-719-0538
...
9
SCREW 1/4-20 x .750 MTD-710-1276
...
10
E-Ring.750 MTD-716-0231
...
11
FLAT WASHER MTD-936-0336
...
xx
Flat Washer.625 ID x 1.0 OD MTD-736-0337
...
xx
FLAT WASHER MTD-936-0349
...
xx
Flat Washer.632 ID x 1.0 OD x.035 MTD-736-0494
...
xx
THRUST WASHER MTD-736-0495
...
12
NEEDLE BEARING .625X .813X .625 MTD-741-0735
...
13
UPPER HOUSING MTD-719-0537
...
14
FLAT WASHER MTD-936-0336
...
xx
Flat Washer.632 ID x 1.0 OD x.035 MTD-736-0494
...
15
INPUT SHAFT MTD-711-1390A
...
16
SPACER .505X.75.97 MTD-750-1242
Schematic Image Zoomed
