MTD 752-305 (1987) Lawn Tractor

Model: 752-305 (1987)

Back To Assemblies

Save Part Not Listed?
product name

Parts

...
...
1
8" "V"-PULLEY (Transaxle) MTD-756-0341
...
2
L-Wash. 1/2" I.D. MTD-736-0921
...
3
NUT MTD-712-3029
...
4
Transaxle Brace MTD-14066
...
5
BELT GUARD MTD-747-0322
...
6
V-BELT 1/2 x 89 MTD-954-0248
...
7
Idler Pulley MTD-756-04209
...
8
Shoulder Bolt MTD-938-0155
...
9
TWO STEP ENGINE PULLEY 3.10" & 5.56" DIA. MTD-756-0342
...
10
Hex Nut 3/8-16 Thd.* MTD-712-0798
...
11
L-Wash. 3/8" I.D. MTD-736-0169
...
12
FLAT IDLER PULLEY W/FLANGES MTD-756-0225
...
13
Belleville Wash. .400" I.D. x .88" O.D. x .063 MTD-736-0105
...
14
IDLER BRACKET ASSEMBLY MTD-94076A-0637
...
15
Idler Pulley MTD-756-0487
...
16
Hex Bolt 3/8-16 x 1.25" Lg. MTD-710-3005
...
17
Hairpin Cotter 5/16" Dia. MTD-714-0104
...
18
FOOT PAD MTD-735-0239A
...
19
Intern. Cotter Pin 5/16" Dia. MTD-714-0104
...
20
Hex Cent. L-Nut 3/8-16 Thd. MTD-712-0375
...
21
Hairpin Cotter 3/32" Dia. x 3/4" Lg MTD-714-0507
...
22
CLUTCH ROD BRAKE MTD-747-0318
...
23
BRACKET MTD-13859
...
24
Cotter Pin 1/8" Dia. x 1.00" Lg.* MTD-714-0474
...
25
CLUTCH BRAKE PEDAL ASS'Y. MTD-14040
...
26
BRAKE CAM ROD (13.60" LG.) MTD-747-0319
...
27
EXTENSION SPRING .59" O.D. x .93" LG. MTD-732-0381
...
28
HEX NUT 5/16-18 MTD-712-3010
...
29
Lock Wash. 5/16" I.D. MTD-936-0119
...
30
CAM-PARKIN MTD-13832
...
31
Fl-Wash. .375" I.D. x 1.00" O.D. x .030" MTD-936-0101
...
32
Hand Brake Lever Ass'y. MTD-14073
...
33
GRIP MTD-720-0189
...
34
Spacer MTD-948-0278
...
35
Shoulder Bolt .496" Dia. x 2.00" Lg. (3/8-16) MTD-738-0129
...
36
Spring, Extension MTD-932-0478
...
37
BRACKET-DECK CONTROL MTD-13887A
...
38
DECK CONTROL ROD MTD-747-0307
...
39
Hex Wash. Hd. TT-Tap Scr. 1/4-20 x 1.50" Lg. MTD-710-0778
...
40
PARKING BRAKE CAM MTG. BRKT. MTD-13833
...
41
HEX NUT 5/16-18 MTD-712-3010
...
42
Lock Wash. 5/16" I.D. MTD-936-0119
...
43
Hex Cap Screw 3/8-24 x 1.5 MTD-710-0459A
...
44
CONVOLUTED CONDUIT MTD-731-0757-4
...
45
Spring, Extension, .50 Dia. x 6.37 MTD-732-0308A
...
46
Hex Wash. Hd. AB Tap Scr. 5/16-24 x 75a Lg. MTD-710-0726
...
47
Transaxle (See Breakdown) MTD-NA
...
48
Hex Bolt 5/16-18 x 2.50" Lg.* MTD-710-0378
...
49
Hex Wash. Hd. AB Tap Scr. 5/16-24 x .75" Lg. MTD-710-0726
...
50
TENSION SPRING MTD-732-0433
...
51
KEY-HI-PRO #4-3/32X5/8 DIA MTD-914-0129
...
52
WASHER-HDN MTD-717-0234
...
53
Transaxle Belt Keeper Ass'y. MTD-14193
...
54
Transaxle Support Bracket MTD-14067
...
55
Lock Wash. 5/16" I.D. MTD-936-0119
...
56
HEX NUT 5/16-18 MTD-712-3010
...
57
Shoulder Bolt MTD-938-0155
...
58
BRACKET-ID MTD-13822
...
59
THROTTLE KNOB MTD-720-0166
...
60
Parking Brake Link MTD-747-0300
...
61
Fl-Wash. .375" I.D. x 1.00" O.D. x .030" MTD-936-0101
...
62
Hairpin Cotter MTD-714-0145

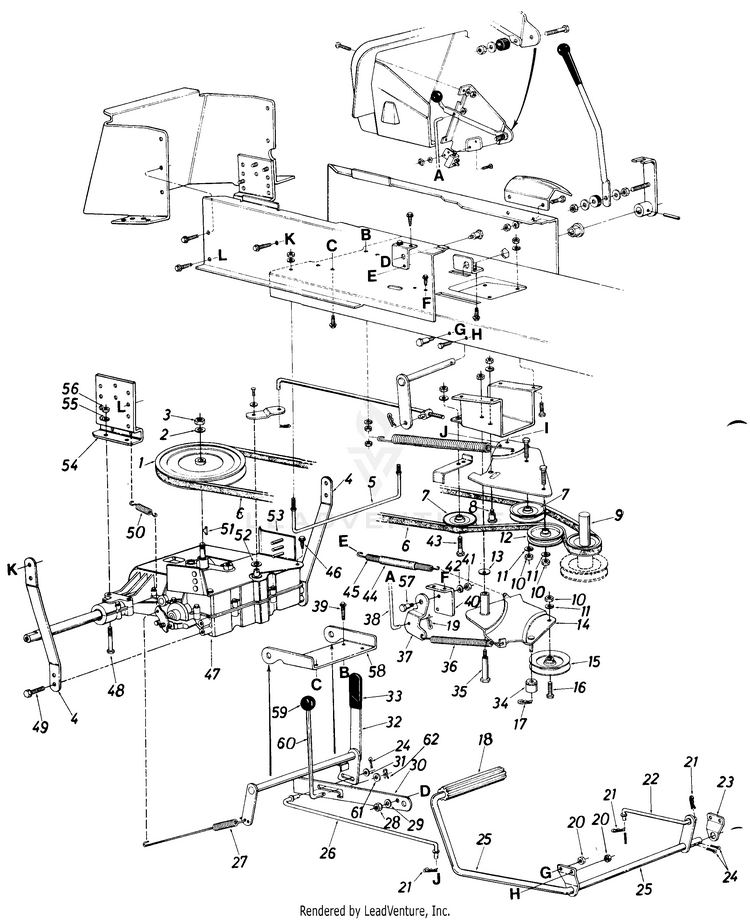

Schematic Image Zoomed
