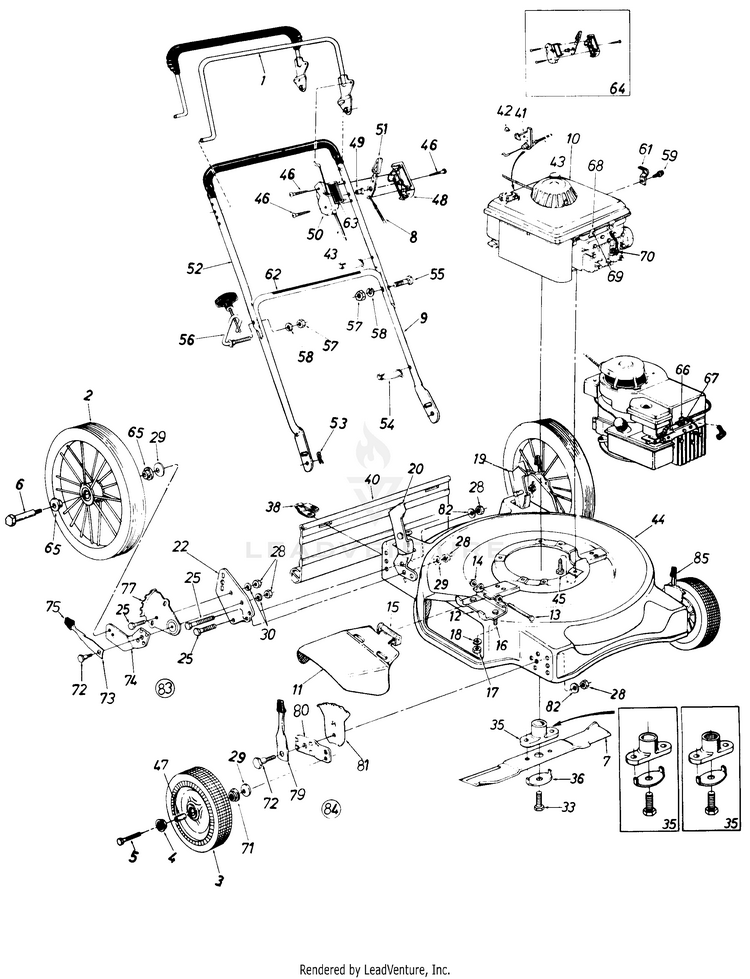

MTD 506F014 (1988) Push Walk-Behind Mower

Model: 506F014 (1988)

Save Part Not Listed?
product name

Parts

...
...
1
CONTROL HANDIE ASS'Y.-L.H. (Standard) MTD-14321
...
xx
BAIL (LH) (Deluxe) MTD-731-0609
...
2
WHEEL ASSEMBLY W/TIRE MTD-734-0244
...
3
WHEEL ASSEMBLY MTD-734-1259
...
4
BALL BEARING MTD-941-0484
...
5
SCREW 3/8-16X1.875 GR2 MTD-710-1020
...
6
Shoulder Screw MTD-938-0481A
...
7
22" BLADE MTD-742-0522
...
8
Throttle Wire 55" Lg. (502R, 506R) (ATTACHING THROTTLE WIRE TO LEVER Modles 502R and 506R: Use upper hole in lever as shown. Model 508R use lower hole in lever.) MTD-946-0671A
...
xx
Throttle Cable (508R) (ATTACHING THROTTLE WIRE TO LEVER Modles 502R and 506R: Use upper hole in lever as shown. Model 508R use lower hole in lever.) MTD-946-1115
...
9
Lower Handle MTD-749-0928A-0637
...
10
Engine MTD-NA
...
11
CHUTE DEFLECTOR MTD-931-1034B
...
12
ADAPTER PLATE MTD-11130
...
13
PIVOT PIN MTD-711-0555
...
14
PUSH NUT MTD-726-0106
...
15
TORSION SPRING MTD-732-0253
...
16
Hex Bolt 1/4-20 x .50" Lg. MTD-910-0289
...
17
HEX NUT 1/4-20 MTD-912-0287
...
18
L-Wash. 1/4" I.D. MTD-936-0329
...
19
BRACKET ASSEMBLY-H MTD-17189
...
20
BRACKET ASSY-HDLE-RH MTD-17188
...
22
MOUNTING PLATE MTD-16645
...
25
Hex Bolt 3/8-16 x .75" Lg. MTD-710-0216
...
28
Hex Nut 3/8-16 Thd.* MTD-712-0798
...
29
Bell-Wash. .400" I.D. x .881" MTD-736-0105
...
30
L-Wash. 3/8" I.D.* MTD-736-0169
...
33
Hex Bolt 7/16-20 x 1.5" Lg. (Used w/Splined Adapter) MTD-710-0757
...
xx
Hex Cap Screw 3/8-24 x 1.5 (Used w/Keyed Adapter) MTD-710-0459A
...
35
SPLINED BLADE ADAPTER KIT MTD-753-0485
...
xx
KIT-BLADE MTD-753-0462
...
36
KIT-BLADE MOUNTING MTD-753-0525
...
38
HINGE CLIP MTD-17098P
...
40
Rear Flap MTD-731-0872B
...
41
BRACKET-CA (B&S) MTD-14924
...
42
RIVET (B&S) MTD-728-0171
...
43
THROTTLE CABLE (502R, 506R) MTD-746-0476
...
xx
49" CONTROL CABLE (508R) MTD-946-0478A
...
44
DECK ASSEMBLY-22IN MTD-97046
...
45
TT Screw, 3/8-16 x 1.00 MTD-710-0654A
...
46
Truss Mach. "B"-Tap Scr. #12 x 1.50" Lg. MTD-710-0796
...
47
Spacer MTD-750-0434
...
48
PANEL MTD-731-0817
...
49
CONROL DISC PIN MTD-731-0524
...
50
CIUTCH PANEL HALF MTD-731-0816
...
51
Throttle Control Lever (ATTACHING THROTTLE WIRE TO LEVER Modles 502R and 506R: Use upper hole in lever as shown. Model 508R use lower hole in lever.) MTD-931-0972
...
52
UPPER HANDLE MTD-749-0754
...
53
Intern. Cot. Pin 5/16" Dia. MTD-714-0104
...
54
Cable Tie MTD-725-0157
...
55
BOLT-CARRIAGE-CURV 5/16-18 x 1.38 MTD-710-0671
...
56
OPE GUIDE BOLT MTD-710-0842
...
57
HEX NUT 5/16-18 MTD-712-3010
...
58
Lock Wash. 5/16" I.D. MTD-936-0119
...
59
Hex B-Tap Scr. #10 x .38" (B&S) MTD-910-0429
...
61
CABLE CLAMP (B&S) MTD-12894
...
62
LABEL MTD-777-5776
...
63
Control Label-Throttle MTD-777-5774
...
64
CONTROL HOUSING COMP. MTD-753-0430
...
65
FLANGE BEARING MTD-748-0147
...
66
CLAMP-CONDUIT (502R) MTD-751-0369
...
67
Hex AB-Tap Scr. #8 x .38" Lg. (502R) MTD-710-0227
...
68
CLIP-CASING (506R) MTD-751-0463
...
69
Hex Wash. Hd. Self-Tap Scr. (506R) MTD-710-0651
...
70
INSULATOR-SPARK PLUG MTD-735-0639
...
71
FORTIFLEX BEARING MTD-741-0267
...
72
Shoulder Bolt .50" Dia. MTD-738-0507B
...
73
SPRING LEVER MTD-732-0417A
...
74
BAR-PIVOT (RH) *ON MTD-14765
...
xx
BAR-PIVOT (LH) *ON MTD-14766
...
75
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
xx
Hex Bolt 3/8-16 x .75" Lg. MTD-710-0216
...
77
Index Plate MTD-14764C
...
79
Front Spring Lever MTD-94832
...
80
Pivot Bar MTD-15262B
...
81
Height Adjustment Plate MTD-787-01290A
...
82
BELL WASHER MTD-936-0356
...
83
ADJUSTER-H MTD-16106
...
xx
ADJUSTER-H (Not Shown) MTD-16107
...
84
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
85
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
