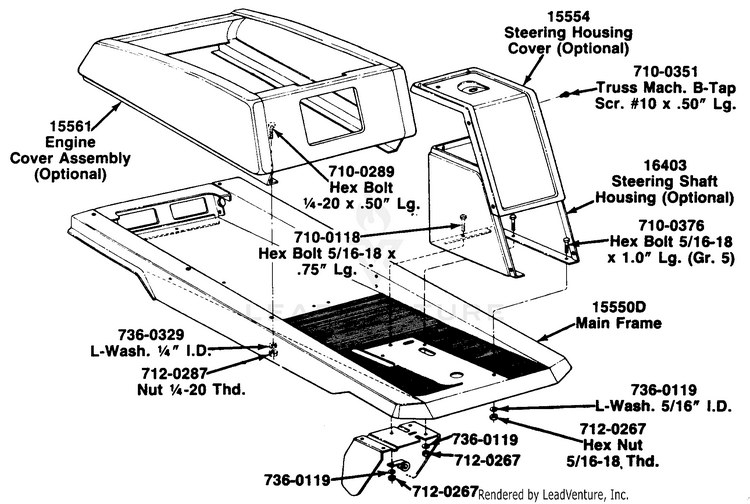

MTD 504-192 (1989) Lawn Tractor

Model: 504-192 (1989)

Back To Assemblies

Save Part Not Listed?
product name

Parts

...
...
15561
Engine Cover Assembly MTD-15561
...
736-0329
L-Wash. 1/4" I.D. MTD-936-0329
...
712-0287
HEX NUT 1/4-20 MTD-912-0287
...
710-0118
USE 710-3008 SCREW-HEX 5/16 X MTD-710-0118
...
710-0289
Hex Bolt 1/4-20 x .50" Lg. MTD-910-0289
...
15554
COVER-STEE MTD-15554
...
712-0267
HEX NUT 5/16-18 MTD-712-3010
...
15550D
FRAME MTD-15550D
...
710-0351
SCREW-TRUSS MACH MTD-710-0351
...
710-0376
SCREW-HEX CAP 5 MTD-710-0376
...
16403
HOUSING-STEER SHFT MTD-16403
...
736-0119
Lock Wash. 5/16" I.D. MTD-936-0119
...
712-0267
HEX NUT 5/16-18 MTD-712-3010
...
712-0267
HEX NUT 5/16-18 MTD-712-3010
...
736-0119
Lock Wash. 5/16" I.D. MTD-936-0119
...
736-0119
Lock Wash. 5/16" I.D. MTD-936-0119
