MTD 504-120 (1987) Lawn Tractor

Model: 504-120 (1987)

Back To Assemblies

Save Part Not Listed?
product name

Parts

...
...
1
GRIP MTD-720-0143
...
2
Truss Mach. Scr. 5/16-18 x .75" Lg. MTD-710-0323
...
3
BRACKET-DECK INDEX MTD-16397
...
4
DECK LIFT HANDLE MTD-747-0651
...
5
SPRING PIN3/16 x 1.50 MTD-915-0134
...
6
Fl-Wash. .385" I.D. x .87" O.D. MTD-736-0187
...
7
FERRULE MTD-711-0749
...
8
Cotter Pin 1/8" Dia. x 1.00" Lg. MTD-714-0115
...
9
Fl-Wash. .531" I.D. x .930" O.D. MTD-736-0160
...
10
DECK LIFT HANDLE RETAINER ASS'Y . MTD-16402
...
11
Fl-Wash. .385" I.D. x .87" O.D. MTD-736-0300
...
12
BRACKET ASSY-LIFT-LH MTD-15578
...
13
Fl-Wash. .635" I.D. x 1.04" O.D. MTD-736-0162
...
14
COMPRESSION SPRING MTD-732-0430
...
15
Spring Pin Spir. 1/4" Dia. x 1.50" Lg. MTD-715-0114
...
16
Lock Wash. 5/16" I.D. MTD-936-0119
...
17
HEX NUT 5/16-18 MTD-712-3010
...
18
SHAFT-HGT ADJ-RR MTD-738-0550
...
19
BRACKET ASSY-LIFT-RH MTD-15609
...
20
SCREW-DECK ADJ 3/8-16 THD MTD-710-0866
...
21
Fl-Wash. .385" I.D. x .87" O.D. MTD-736-0300
...
22
Intern. Cotter Pin 1/2" Dia. MTD-714-0145
...
23
Deck Link Ass'y.-Rear MTD-15600
...
24
Hex Nut 3/8-16 Thd.* MTD-712-0798
...
25
L-Wash. 3/8" I.D. MTD-736-0169
...
26
EXTENSION SPRING MTD-732-0540
...
27
BRACKET ASSY-DECK DR MTD-15644
...
28
LEVER ASSEMBLY-BLADE E MTD-15568A
...
29
GRIP MTD-720-0143
...
30
EXTENSION SPRING MTD-732-0540
...
31
DECK LIFT ASS'Y. FRONT MTD-15573
...
32
CONNECTING ROD MTD-747-0426
...
33
CLEVIS PIN MTD-711-0753
...
34
BRACKET-PIVOT BAR MTD-15613
...
35
Hex TT-Tap Scr. 1/4-20 x .75" Lg. MTD-710-0642
...
36
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
37
ACTUATOR-SWITCH MTD-732-0435
...
38
Fl-Wash. .531" I.D. x .930" O.D. MTD-736-0160
...
39
Spacer .511" I.D. x .70" O.D. x.38" Lg. MTD-750-0515
...
40
Lock Wash. 5/16" I.D. MTD-936-0119
...
41
HEX NUT 5/16-18 MTD-712-3010
...
42
HOOK SPRING MTD-732-0451B

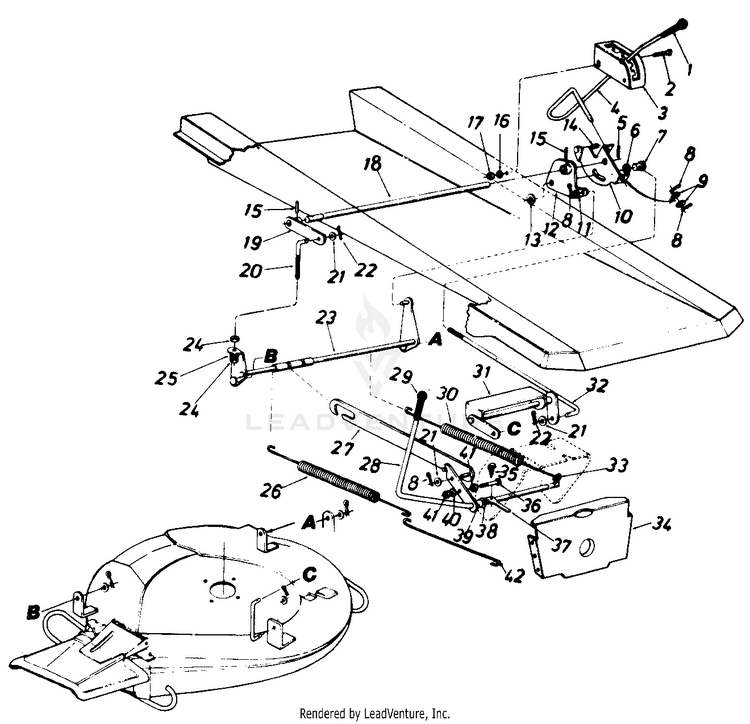

Schematic Image Zoomed
