product name

MTD 421-192 (1989) Push Walk Behind Mower

Model: 421-192 (1989)

Save Part Not Listed?

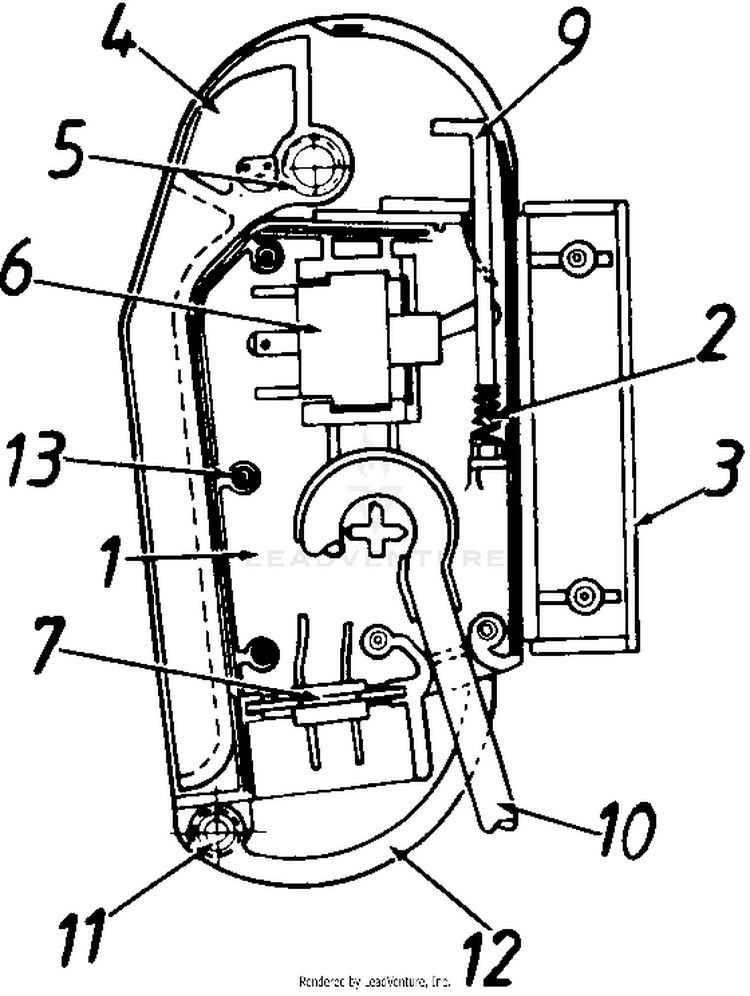

product name

Cord & Switch Box Complete

...
...
1
Jumper Wire (Not Shown) MTD-706-14516
...
2
LATCH SPRING MTD-706-15794
...
3
HOUSING UPPER HALF MTD-706-15787
...
xx
HOUSING LOWER HALF MTD-706-15787-01
...
4
HANDLE-SWITCH BO MTD-706-15788
...
5
SPRING MTD-706-11682
...
6
SWITCH MTD-706-14260
...
7
2 PRONG PLUG (POLARIZED) MTD-929-0304
...
9
LATCH MTD-706-15791-01
...
10
CORD ASS'Y. MTD-706-14517
...
11
PLUG RETAINER SPRING MTD-932-0680
...
12
PLUG RETAINER MTD-706-11689-00-90
...
13
SCREW MTD-706-12461-08
...
xx
CORD & SWITCH BOX COMP. MTD-706-14518

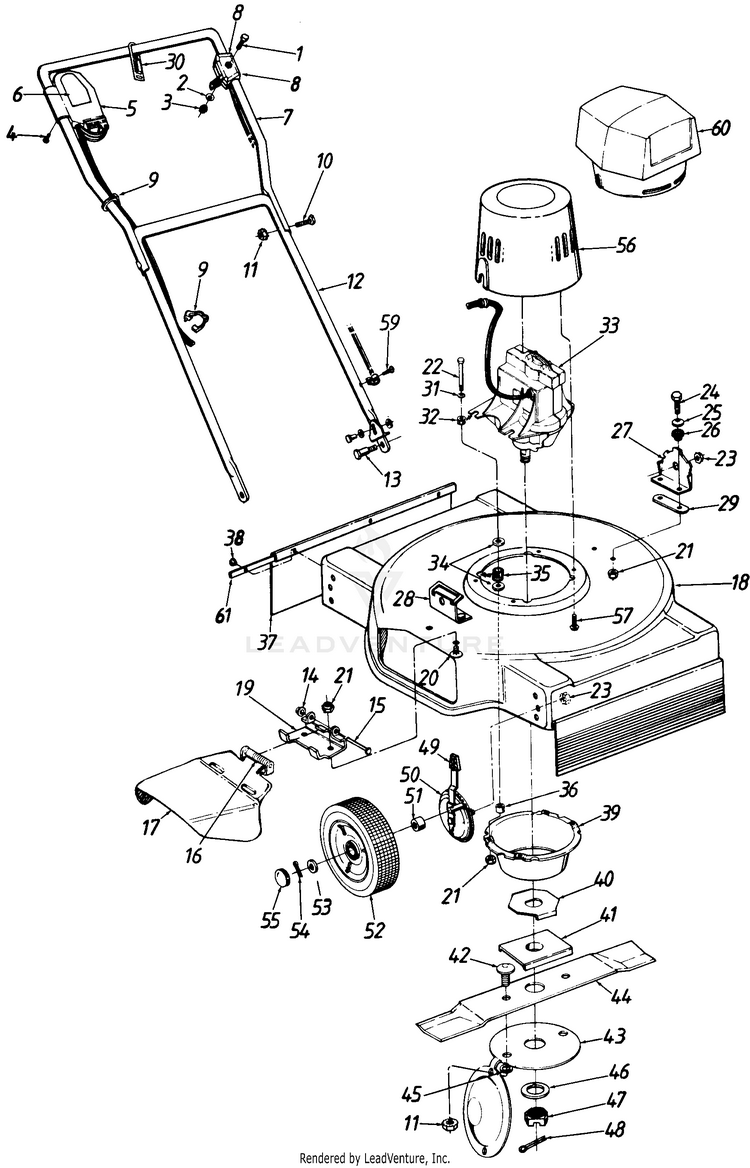

Parts

...
...
1
Hex Bolt 1/4-20 x 1.5" MTD-710-0606
...
2
R-Wash. .218 I.D. x .5" O.D. MTD-736-0142
...
3
Acorn Lock Nut 1/4-20 MTD-712-0442
...
4
SCREW #7-19 C 1.0 MTD-710-1150
...
5
CORD & SWITCH BOX COMP. (See Breakdown) MTD-706-14518
...
6
LABEL SWITCH BOX MTD-706-10145
...
7
UPPER HANDLE MTD-706-10314-01-90
...
8
CABLE RELEASE CONTROL MTD-706-15676
...
9
CABLE TIE MTD-706-13161
...
10
Hex Bolt 5/16-18 x 11/4" Lg.* MTD-710-0874
...
11
HEX KEPS L-NUT 5/16-18 THD. MTD-706-10003-02
...
12
LOWER HANDLE ASS'Y. MTD-706-10479-02
...
13
SHOULDER BOLT MTD-706-10655
...
14
PUSH NUT MTD-726-0106
...
15
PIVOT PIN MTD-711-0555
...
16
TORSION SPRING MTD-732-0253
...
17
CHUTE DEFLECTOR MTD-931-1034B
...
18
19" Deck Ass'y. MTD-706-10415-04-19
...
19
ADAPTER PLATE MTD-11130
...
20
Carriage Bolt 1/4-20 x .62" MTD-710-0134
...
21
Hex Lock Nut MTD-712-0324
...
22
Hex Bolt 1/4-20 x 21/2" Lg. (Grade 5) MTD-706-10028-40
...
23
HEX SEMS NUT 3/8-16 THD. MTD-706-10003-03
...
24
Hex Bolt 1/4-20 x .875" Lg. MTD-710-0206
...
25
Flat Washer, .260 x .720 x .060 MTD-736-3090
...
26
LUG INSULATOR MTD-731-1219
...
27
HANDLE BRACKET L.H. MTD-706-10482-00-90
...
28
HANDLE BRACKET R.H. MTD-706-10481-00-90
...
29
INSULATOR STRIP MTD-706-10111
...
30
CORD RESTRAINT MTD-725-0899
...
31
Flat Washer, .260 x .720 x .060 MTD-736-3090
...
32
INSULATOR MTD-706-10144
...
33
Motor & Switch Ass'y. Comp. (Incl. Ref. 32) MTD-706-14520
...
34
Fl-Wash. .27" I.D. x .948" MTD-736-0176
...
35
GROMMET ASS'Y. MTD-706-10392-01
...
36
SPACER-SPLIT MTD-706-10024-01
...
37
FLAP REAR & FRONT MTD-706-10149
...
38
POP RIVET MTD-928-0180
...
39
Motor Shield MTD-706-10401
...
40
BLADE ADAPTER MTD-706-10430
...
41
ADAPTER INSULATOR MTD-706-10092
...
42
BOLT:CAR:5/16-18:.75 MTD-710-0451
...
43
BLADE INSULATOR MTD-706-10091
...
44
19" Blade MTD-706-10417-01
...
45
RETAINER-B MTD-706-10117
...
46
FL-WASH. 1/2" I.D. H.T. MTD-706-12923-01
...
47
Castle Nut 1/2 " I .D. MTD-706-12922
...
48
COTTER PIN MTD-706-13018-16
...
49
ADJUSTER KNOB MTD-706-10709-00-90
...
50
HEIGHT ADJ. ASS'Y. (RF/LR) MTD-706-10127
...
xx
HEIGHT ADJ (LF/RR) MTD-706-10128
...
51
SPACER MTD-706-15641
...
52
7" Wheel Ass'y. MTD-706-10226
...
53
Fl-Wash. .5" I.D. x .875" O.D. MTD-736-3068
...
54
COTTER PIN-3/32 MTD-914-0507
...
55
HUB CAP MTD-706-10740
...
56
MOTOR COVER MTD-706-10047-00-90
...
57
SCREW #10-16 x .750 MTD-710-1128
...
xx
Label-Flip Over MTD-706-10143
...
59
SCREW #10-16 x .750 MTD-710-1128
...
60
COVER-MOTO (Optional Part) MTD-706-10088-01-90
...
61
STRAP MTD-706-10420
