MTD 31AM63EF706 (2010) Snow Thrower

Model: 31AM63EF706 (2010)

Save Part Not Listed?
product name

Auger & Housing

...
...
1
CLEANOUT TOOL MOUNTING CLIP MTD-731-11421
...
2
3 BLADE 12" IMPELLER MTD-684-04057C-0637
...
3
Hex Screw, 3/8-16 x 1.75 MTD-710-0347
...
4
SCREW 5/16-18 x .750 MTD-710-04484
...
5
Carriage Bolt, 5/16-18 x .750 MTD-710-0451
...
6
Flange Lock Nut, 5/16-18 MTD-712-04063
...
7
Flange Lock Nut, 3/8-16 MTD-712-04065
...
8
Bow-Tie Cotter Pin MTD-714-04040
...
9
Cable Tie, 3/16 x .05 x 7.4 MTD-725-0157
...
10
Nut, Push-on, .25 Dia. MTD-726-04012
...
11
Extension Spring MTD-732-04460
...
12
Wave Washer, .625 x .885 x .015 MTD-736-0174
...
13
Bell Washer, .340 x .872 x .060 MTD-736-0242
...
14
Chute Cleanout Tool MTD-931-2643
...
15
SHOULDER SCREW .498 DIA x .340 MTD-738-0143
...
16
Shld. Bolt .625 Dia. x .170 Lg. MTD-738-0281
...
17
Shear Pin, .25 x 1.50 MTD-738-04124A
...
18
Hex Flange Bearing, .75 ID MTD-941-0245
...
19
Ball Bearing, .75 ID x 1.85 OD MTD-941-0309
...
20
Idler Pulley, 2.75 OD MTD-756-04224
...
21
BEARING HOUSING 1.85 ID MTD-790-00075B
...
22
AUGER IDLER BRACKET MTD-790-00080D
...
23
3-Prong Extension Cord (Electric Start Only) MTD-929-0071B
...
24
Skid Shoe MTD-784-5580-0637
...
25
Slide Shoe MTD-790-00091-0637
...
25
Slide Shoe MTD-790-00091-0637
...
25
Slide Shoe MTD-790-00091-0637
...
26
Carriage Screw, 1/4-20 x .75 MTD-710-0703
...
27
Flange Lock Nut, 1/4-20 MTD-712-04064
...
28
CHUTE ADAPTER MTD-731-04705D
...
28
Chute Adapter, 5" (4-way) " (4-way) MTD-731-07525
...
29
Carriage Screw, 5/16-18 x 1.00 MTD-710-0276
...
30
Fl-Wash. .344" I.D. MTD-736-0159
...
31
Plastic Bushing, .380 ID MTD-941-0475
...
32
Chute Crank Bracket MTD-784-5647-0637
...
32
Chute Crank Bracket, Big Block Engines (478-SU, 483-SU or 490-SU Engines) MTD-731-07117
...
33
Spacer, 1.250 x .75 ID x 3/16 LG MTD-731-04871
...
34
Carriage Bolt, 5/16-18 x 1.00 MTD-710-04071
...
35
Gearbox Assembly, 22" MTD-918-04170C
...
35
24" GEARBOX ASSEMBLY MTD-918-04171C
...
35
26" GEARBOX ASSEMBLY MTD-918-04172C
...
35
28" GEARBOX ASSEMBLY MTD-918-04173B
...
35
30" GEARBOX ASSEMBLY MTD-918-04165B
...
36
Spiral Assembly, LH MTD-684-04107A-0637
...
36
Spiral Assembly, LH MTD-684-04107A-0637
...
37
Spiral Assembly, RH MTD-684-04108A-0637
...
37
Spiral Assembly, RH MTD-684-04108A-0637
...
38
22" AUGER HOUSING (MTD RED) MTD-684-04266A-0638
...
38
24" AUGER HOUSING MTD-684-04265A
...
38
24" AUGER HOUSING (MASTERCRAFT GREEN) MTD-684-04265A-0709
...
38
24" AUGER HOUSING MTD-684-04265A
...
38
26" AUGER HOUSING MTD-684-04264A
...
38
26" AUGER HOUSING (MASTERCRAFT GREEN) MTD-684-04264A-0709
...
38
26" AUGER HOUSING (MTD RED) MTD-684-04264-0638
...
38
28" AUGER HOUSING (BLACK JACK) MTD-684-04268-0691
...
38
28" AUGER HOUSING MTD-684-04268A
...
38
30" AUGER HOUSING (BLACK JACK) MTD-684-04267-0691
...
38
30" AUGER HOUSING (MTD RED) MTD-684-04267-0638
...
39
Spacer, 1.2500 x .75 ID x 1.00 MTD-731-04870
...
40
Flat Washer, .76 x 1.49 x .06 MTD-736-0188
...
41
FLANGE BUSHING MTD-741-0493C
...
42
Bearing Housing, 1" MTD-790-00087A
...
43
Shave Plate 2.25 x 21.66 LG MTD-790-00117-0637
...
43
Shave Plate 24" MTD-790-00120-0637
...
43
Shave Plate 24" MTD-790-00120-0637
...
43
Shave Plate 24" MTD-790-00120-0637
...
43
Shave Plate: Auger 26" MTD-790-00121-0637
...
43
Shave Plate: Auger 26" MTD-790-00121-0637
...
43
Shave Plate: Auger 26" MTD-790-00121-0637
...
43
Shave Plate: Auger 28" MTD-790-00118-0637
...
43
Shave Plate: Auger 28" MTD-790-00118-0637
...
43
Shave Plate: Auger 30" MTD-790-00119-0637
...
43
Shave Plate: Auger 30" MTD-790-00119-0637
...
44
Housing Assembly, RH MTD-918-0123A
...
45
Housing Assembly, LH MTD-918-0124A
...
46
Hex Washer Screw, 1/4-20 x .750 MTD-710-0642
...
47
22" AUGER SHAFT MTD-711-04286A
...
47
24" AUGER SHAFT MTD-711-04285A
...
47
26" AUGER AXLE MTD-711-06144
...
47
28" AUGER AXLE MTD-711-06145
...
47
Auger Axle, 30" MTD-711-04282A
...
48
Hi-Pro Key MTD-914-0161
...
49
Dowel Pin, .25 OD x 1.25 LG MTD-715-04021
...
50
Worm Shaft, .75 OD MTD-917-04126
...
51
WORM GEAR 20T 24",26",28"& 30" MTD-917-04861
...
51
WORM GEAR 20T 22" MTD-917-04861
...
52
Thrust Collar, .756 ID x .600 MTD-718-04071
...
53
Plug, 1/4 x .437 MTD-721-0325
...
54
Oil Seal, .75 x 1.131 x .188 MTD-721-0327
...
55
Fl-Wash. .76" I.D. x 1.5" O.D. x .030" Thk. MTD-736-0351
...
56
Flat Washer, .51 x 1.12 x .06 MTD-736-3084
...
57
Flange Bearing, .75 ID x 1.0 OD x .59 MTD-741-0662
...
58
Flange Bearing, .50 ID x .75 OD x .59 MTD-741-0663
...
59
Auger Cable MTD-946-04230B
...
60
Fl-Wash. .344" I.D. MTD-736-0159
...
61
Slide Shoe, Polymer MTD-731-05984A
...
61
Deluxe Polymer Reversible Shoe Kit (Will replace 731-05984A, includes hardware & 2 shoes) MTD-753-06205
...
62
Carriage Screw, 5/16-18 x 1.00 MTD-710-0276

Chute, Standard 2-Way

...
...
1
Lower Chute Assembly MTD-631-04131B
...
2
Lower Chute MTD-731-04912B
...
3
Carriage Bolt, 5/16-18 x 1.00 MTD-710-04071
...
4
Carriage Bolt, 5/16-18 x .750 MTD-710-0451
...
5
Flange Lock Nut, 5/16-18 MTD-712-04063
...
6
Wing Knob MTD-720-0284
...
7
UPPER CHUTE (W/LBL MANUAL TILT) MTD-731-04426C
...
8
Flange Keeper MTD-731-04869A
...
9
Chute Crank MTD-684-04104-0637
...
10
Hairpin Clip MTD-714-0104
...
11
Crank Knob MTD-720-0201A
...
12
Push Cap 3/8" Rod MTD-726-0100
...
13
Rubber Grommet MTD-735-0234
...
14
Flat Washer .375 ID x .738 OD MTD-736-0185
...
15
Eye Bolt MTD-747-04263
...
16
Joint Assembly MTD-684-04350
...
17
Chute Crank MTD-684-04351
...
18
Taptite Screw, 1/4-20 x .500 MTD-710-0599
...
19
Hairpin Cotter MTD-714-0101
...
20
Pin, .156 x .875 MTD-715-04095
...
21
SCREW 5/16-18 x .750 MTD-710-04484
...
22
Shift Knob MTD-720-04102
...
23
Upper Chute Rod MTD-747-05154
...
24
Chute Rod Eye Bolt MTD-747-05157
...
25
Lower Chute Rod MTD-747-05159
...
26
Carriage Screw, 5/16-18 x 1.00 MTD-710-0276
...
27
Fl-Wash. .344" I.D. MTD-736-0159
...
28
Plastic Bushing, .380 ID MTD-941-0475
...
29
Chute Crank Bracket MTD-784-5647-0637

Drive System

...
...
1
FRICTION WHEEL DISC ASSEMBLY MTD-656-04055A
...
2
FRICTION WHEEL ASSEMBLY MTD-684-04153C
...
3
Friction Wheel Support Bracket MTD-684-04154B
...
4
Rod Shift Assembly MTD-684-04156A
...
5
Hex Head Screw, 5/16-24 x .750 MTD-710-0627
...
6
Taptite Screw, 1/4-20 x 1.000 MTD-710-0788
...
7
Taptite Screw, 1/4-20 x .625 MTD-710-1652
...
8
Flange Lock Nut, 3/8-16 MTD-712-04065
...
9
HEX NUT MTD-712-0417A
...
10
Key MTD-714-0126
...
11
E-Ring MTD-916-0104
...
12
Retaining E-Ring, .875 Dia. MTD-716-0136
...
13
"E" - Ring MTD-716-0231
...
14
Hex Shaft, 7-Tooth MTD-917-04209A
...
15
Gear, 80-Tooth MTD-917-04230
...
16
Speed Nut, .500 MTD-726-0221
...
17
Extension Spring MTD-932-0264
...
18
TORSION SPRING MTD-732-04311A
...
19
Bell Washer, .340 x .872 x .060 MTD-736-0242
...
20
Washer, Flat, .793 x 1.24 x .060 MTD-736-0287
...
21
Flat Washer, .75 x 1.00 x .060 MTD-736-04161
...
22
Fl-Wash. .344" I.D. x .62" MTD-736-0140
...
23
Belt Cover MTD-731-07101
...
24
Shoulder Screw, .368 x .113, 1/4-20 MTD-738-04184A
...
25
Shoulder Screw, 1/4-28, .340 x .355 MTD-738-0924A
...
26
Hex Flange Bearing MTD-941-0245
...
27
Ball Bearing, 17 x 40 x 12 MTD-941-0563
...
28
Drive Cable MTD-946-04229B
...
29
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
30
Spacer, .508 ID x .75 OD x .68 MTD-748-0190
...
31
Cable Roller MTD-756-0625
...
32
Auger Cable Front Guide Bracket MTD-790-00096-0637
...
33
DRIVE FRAME HOUSING (MTD RED) MTD-790-00180F-0638
...
33
DRIVE FRAME HOUSING (POWDER BLACK) MTD-790-00180E-0637
...
33
DRIVE FRAME HOUSING (POWDER BLACK) MTD-790-00180E-0637
...
34
AUGER CABLE GUIDE BRACKET MTD-790-00206B
...
35
CABLE GUIDE BRACKET (DRIVE) MTD-790-03997
...
36
Frame Cover - Red MTD-790-00316-0638
...
36
Frame Cover - Black MTD-790-00316-0691
...
36
FRAME COVER MTD-790-00316
...
37
Flange Lock Nut, 5/16-18 MTD-712-04063
...
38
Flange Lock Nut, 1/4-20 MTD-712-04064
...
39
Washer, Flat, .469 x .875 x .105 MTD-936-3015
...
40
Pivot Bracket, Speed Selector MTD-790-00217A
...
41
Shift Bracket, Speed Selector MTD-790-00218A
...
42
Idler Pulley Assembly MTD-684-04169
...
43
Hex Screw, 3/8-24 x 1.25 MTD-710-0191
...
44
Sems Screw, 3/8-16 x 1.00 MTD-710-0654A
...
45
Hex Screw, 5/16-24 x 1.25 MTD-710-0672
...
46
Hex Screw, 1/4-20 x 1.25 MTD-710-0809
...
47
SHOULDER SCREW MTD-738-04439
...
48
Nut, Push-on, .25 Dia. MTD-726-04012
...
49
BELT COVER SERVICE KIT (631-05323) MTD-753-09065
...
49
BELT COVER MTD-731-05353B
...
49
BELT COVER (SMALL BLOCK) MTD-631-05321
...
50
TORSION SPRING MTD-732-04308C
...
51
Plug, 3/8 ID MTD-735-04099
...
52
Plug, 1/2 ID MTD-735-04100
...
53
Lock Washer, 5/16 MTD-936-0119
...
54
Flat Washer, .406 x 1.25 x .157 MTD-736-0247
...
55
Washer, Lock, 1/4 MTD-936-0329
...
56
Flat Washer, .34 x 1.50 x .150 MTD-736-0505
...
57
Pin, Spirol, 2.5" MTD-715-04020
...
58
Adapter Pulley, .75 Dia. MTD-748-04053A
...
59
Shoulder Spacer, .3175 x .5 x .0975 MTD-748-04112B
...
60
Spacer, .875 ID x 1.185 OD MTD-750-04303
...
61
Spacer, .340 x .750 x .330 MTD-750-04477A
...
62
Shoulder Space, .260 x .785 x .538 MTD-750-04571
...
63
BELT .500 x 37.00 (478-SU, 483-SU or 490-SU Engines) MTD-954-04195A
...
63
Auger Drive Belt Standard MTD-954-04050A
...
64
V-BELT 3/8 x 35.68" (478-SU, 483-SU or 490-SU Engines) MTD-954-04201A
...
64
V-BELT 3L 34.18 Standard MTD-954-04260
...
65
Auger Drive Pulley, 8.1 x .5 MTD-756-04109
...
66
HALF PULLEY A2.76 x 1.140 SPLINE MTD-756-06563
...
67
Pulley Half, 3/8 x 1.716 OD MTD-756-04252
...
68
Drive Idler Bracket MTD-790-00208D
...
69
ENGINE PLATE (FRONT COVER) (478-SU, 483-SU or 490-SU Engines) MTD-790-00332A
...
69
COVER PLATE (POWDER BLACK) Standard MTD-790-00289B-0637
...
70
Hex Bolt M8-1.25: 20 MTD-710-1681
...
71
Fl-Wash. .344" I.D. x .625" O.D. MTD-736-0264
...
72
Cable Guide MTD-732-04677
...
73
Cable Guide MTD-732-0705
...
74
Friction Disc Bearing Pin MTD-738-04164A
...
75
Ball Bearing, 30 x 55 x 13 MTD-741-04098
...
76
Bearing Assembly MTD-618-0063A
...
77
Screw, 1/4-14 x .625 MTD-710-0896
...
78
FRICTION WHEEL 5.50OD MTD-935-04054A
...
79
Friction Plate MTD-790-00174C
...
80
Spacer, 1.25 x .75 x 3.0 (found on models w/a 22" auger housing only) MTD-731-04873
...
80
SPACER (found on models w/a 22" auger housing only) MTD-731-04877
...
81
AXLE:.75 x 20 LG MTD-938-04181
...
81
WHEEL AXLE SHAFT .75 x 22" MTD-938-04493
...
82
Washer, Flat, .38 x 1.38 x .125 MTD-736-0320
...
83
Friction Wheel Ass’y, Single-Speed Single-Speed MTD-684-04360A
...
84
SHAFT-.75 DIA 7 TOOTH Single-Speed MTD-917-04793
...
85
Snow Hog Wheel, 13 x 4 x 6 MTD-634-04144A-0911
...
85
Snow Hog Wheel, 15 x 5 x 6 MTD-634-04142A-0911
...
85
Snow Hog Wheel, 15 x 4.8 MTD-634-04141-0911

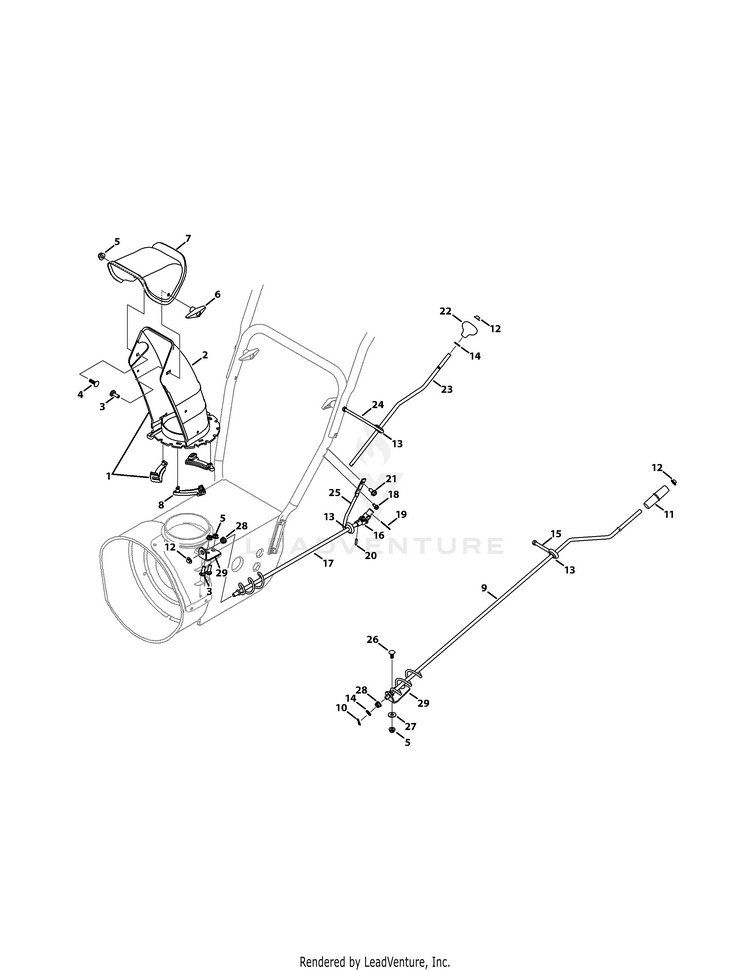

Handle Panel - Style E & F

...
...
1
SCREW 5/16-18 x .750 MTD-710-04484
...
2
Clutch Lock Handle Assembly, LH MTD-631-04133A
...
2
Clutch Lock Handle Assembly, RH MTD-631-04134B
...
3
HANDLE ASSEMBLY (LH) MTD-684-04105D
...
4
HANDLE ASSEMBLY (RH) MTD-684-04106D
...
5
Clutch Pivot Lock Rod Assembly MTD-684-04250
...
6
Hex Washer Screw, #8-16 x .50 MTD-710-04326
...
7
Hex Washer Screw, 1/4-20 x .625 MTD-710-04586
...
7
Hex Head Screw, 1/4-20 x 1.50 Models w/o Clutch Lock MTD-710-0606
...
8
Carriage Screw, 5/16-18 x 2.25 MTD-710-0572
...

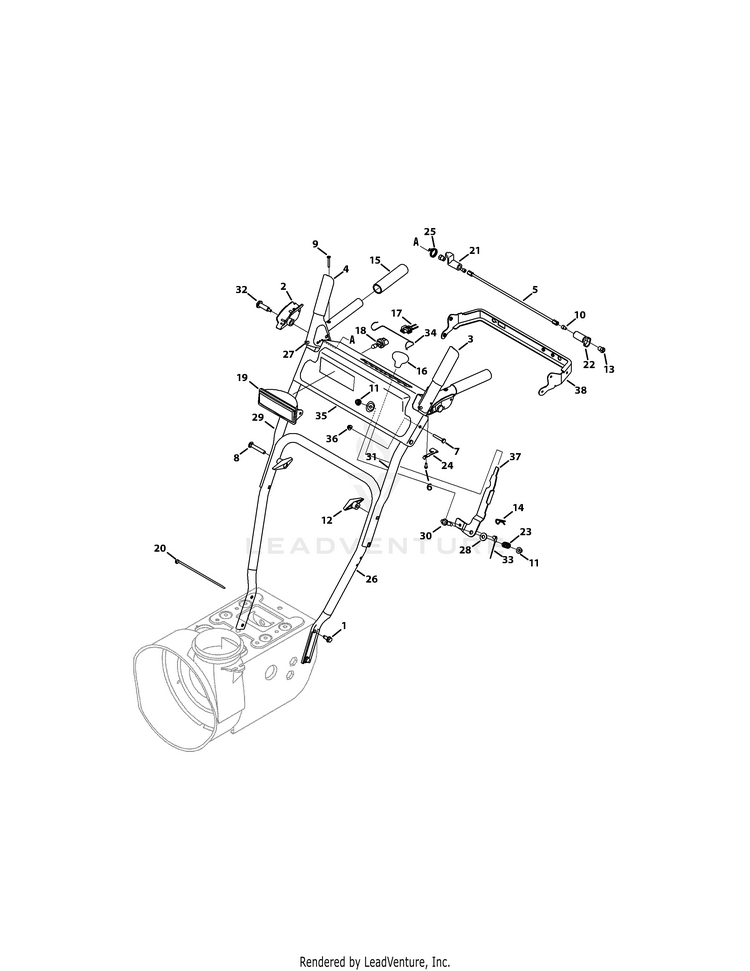

9
Machine Screw, #10-24 x 1.375 MTD-710-1233
...
10
Socket Screw, 1/4-20 x .50 MTD-710-3069
...
11
Flange Lock Nut, 5/16-18 MTD-712-04063
...
12
Wing Knob MTD-720-0284
...
13
Hex Nut, 1/4-20 MTD-712-04081A
...
14
Inter. Cotter Pin 3/8" Dia. MTD-714-0145
...
15
Grip, 1.0 ID x 5.0 LG MTD-720-0274
...
16
Shift Knob MTD-720-04039
...
17
Snow Thrower Harness Models with Light MTD-725-05153
...
18
Halogen Lamp Models with Light MTD-925-1658
...
19
Lens/Lamp Assembly Housing Models with Light MTD-925-1672
...
20
Cable Tie MTD-926-0154
...
21
Lock Plate MTD-731-04894D
...
22
CLUTCH LOCK CAM MTD-731-04896C
...
23
Compression Spring, .39 x .60 x .88 MTD-732-0193
...
24
Clutch Lock Spring MTD-732-04219C
...
25
TORSION SPRING MTD-732-04238B
...
26
Lower Handle MTD-749-04138C-0637
...
27
Bumper, Rubber MTD-735-0199A
...
28
Flat Washer, .385 x .870 x .092 MTD-736-0262
...
29
Upper RH Handle MTD-749-04190A-0637
...
30
Shoulder Bolt, 5/16-18 x .905 MTD-738-04118
...
31
Upper LH Handle MTD-749-04191A-0637
...
32
Shoulder Screw, .437 x 1.345 x 1/4-20 MTD-738-04348
...
33
Speed Selector Cable MTD-946-04397A
...
34
Headlight Retainer Models with Light MTD-747-1136
...
35
Handle Panel w/ Light Models with Light MTD-790-00209A-0638
...
35
Handle Panel w/ Light Models with Light MTD-790-00209A-0637
...
35
HANDLE PANEL W/SHIFT MTD-790-00219-0638
...
35
HANDLE PANEL-STEEL (BLACK JACK) MTD-790-00219A-0691
...
36
Flange Lock Nut, 1/4-20 Models w/o Clutch Lock MTD-712-04064
...
37
Speed Shift Lever MTD-790-00313A-0637
...
38
HANDLE SUPPORT BRACKET MTD-790-00248E-0637
...
38
CONNECTOR-AMP 1-48 MTD-729-04035
...
xx
Wire Harness to be used with Light Kit below MTD-725-05198
...
xx
KIT-LIGHT MTD-490-241-0009

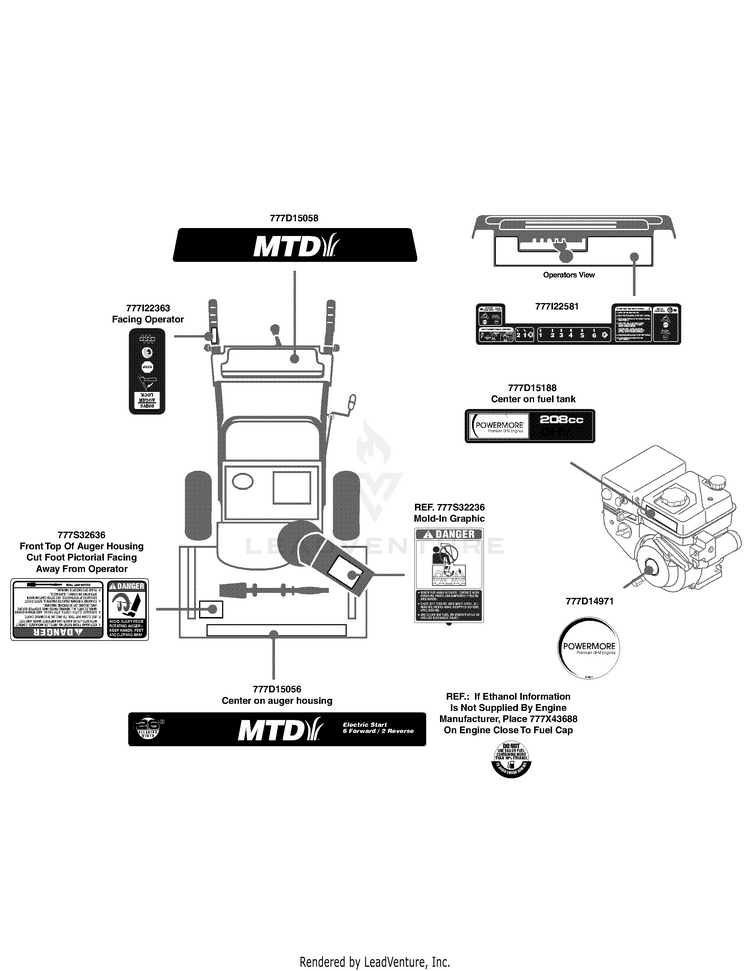

Label Map 31AM63EF706

...
...
777D15058
LABEL-SNOW HANDLE PANEL MTD-777D15058
...
777I22363
LABEL-DRV/AUGR LOCK MTD-777I22363
...
777S32636
LABEL-SNOW HOUSING MTD-777S32636
...
777D15056
LABEL-SNOW AUGER HSG 26" MTD-777D15056
...
777X43688
LABEL-ETHANOL MTD-777X43688
...
777D14971
LABEL-ENGINE POWERMORE MTD-777D14971
...
777S32236
LABEL:SNOW CHUTE MTD-777S32236
...
777D15188
LABEL-ENGINE/FUELTANK:PMORE/208 MTD-777D15188
...
777I22581
LABEL-OPERATOR PAN MTD-777I22581

Engine Assembly 370-SUB 2010 & After

...
...
1
Bolt M6×16 MTD-710-04968
...
2
Valve Cover MTD-951-11054B
...
3
Breather Hose MTD-951-14855
...
4
VALVE COVER GASKET (Also Available in Kit Below) MTD-751P11565B
...
5
Retainer, In.Valve Spring (Also Available in Kit Below) MTD-951-12000
...
6
ROCKER ARM KIT (Kit contains 1<BR/> each of Lock Nut, Pivot Nut, Stud, Rocker Arm) MTD-951-11892
...
7
Nut, Pivot Locking (Also Available in Kit Below) MTD-751-11124
...
8
Adjusting Nut, Valve (Also Available in Kit Below) MTD-751-11123
...
9
Rocker Arm (Also Available in Kit Below) MTD-951-11893
...
10
Bolt, Pivot (Also Available in Kit Below) MTD-710-04902
...
11
EXHAUST VALVE ADJUSTER (Also Available in Kit Below) MTD-751P12002A
...
12
Retainer, Ex.Valve Spring (Also Available in Kit Below) MTD-951-12003
...
13
VALVE SPRING (Also Available in Kit Below) MTD-751P12004A
...
14
Intake Valve Seal (Also Available in Kit Below) MTD-951-11894
...
15
Bolt M8×55 MTD-710-04933
...
16
Push Rod Guide (Also Available in Kit Below) MTD-951-11895
...
17
Cylinder Head (Furnish Cylinder Head Kit) MTD-NA
...
18
Spark Plug/F6Rtc MTD-951-10292A
...
19
MUFFLER ASSEMBLY MTD-951-11282
...
20
Muffler Stud Assy MTD-710-05001
...
20
Muffler Stud M8×36 MTD-951-10657
...
21
MUFFLER GASKET (Also Available in Kit Below) MTD-751P11289A
...
22
Nut, M8 MTD-712-04214
...
23
Exhaust Pipe Shield MTD-951-11111
...
24
Bolt M6×10 MTD-710-04940
...
25
Bolt M6×12 MTD-710-04915
...
26
MUFFLER SHROUD MTD-951-10642B
...
27
Stud M6×117 MTD-710-04939
...
28
Stud M6×105 MTD-710-04910
...
29
CARBURETOR INSULATOR GASKET (Also Available in Kit Below) MTD-751P11567B
...
30
Carburetor Insulator (Also Available in Kit Below) MTD-951-11896A
...
31
CARBURETOR GASKET (Also Available in Kit Below) MTD-751P12005B
...
32
PRIMER MTD-951-10639B
...
33
Carburetor Assembly (Hy-170Sa) MTD-951-14026A
...
34
CARBURETOR GASKET (Also Available in Kit Below) MTD-751P11897B
...
35
Choke Control Brkt MTD-951-11112
...
36
Air Cleaner Housing MTD-951-10634A
...
37
Nut MTD-712-04213
...
38
Choke Knob MTD-951-11284
...
39
THROTTLE LEVER KNOB MTD-751P10757A
...
40
Ignition Switch Assembly MTD-951-10637
...
41
Key Switch Base (Furnish Assembly) MTD-NA
...
42
Ignition Key MTD-951-10630
...
43
Choke Push Rod MTD-951-10640
...
44
Air Filter Heating Pipe Cvr. MTD-951-10635
...
45
Bolt M6×25 MTD-710-04919
...
46
CYLINDER HEAD GASKET (Also Available in Kit Below) MTD-951-11572
...
47
Push Rod Kit MTD-951-10648
...
48
Tappet (Also Available in Kit Below) MTD-951-11899
...
49
Dowel Pin 10×16 (Also Available in Kit Below) MTD-715-04108
...
50
Valve Kit (Also Available in Kit Below) MTD-951-10647A
...
51
Valve Kit (Also Available in Kit Below) MTD-951-10647A
...
52
PISTON RING SET (Also Available in Kit Below) MTD-751P12111A
...
53
PISTON PIN SNAP RING (Also Available in Kit Below) MTD-951-11632
...
54
Piston (Also Available in Kit Below) MTD-951-12007
...
55
PISTON PIN (Also Available in Kit Below) MTD-951-11633
...
56
Bolt M6×12 MTD-710-05103
...
57
Air Shield MTD-951-11113
...
58
CONNECTING ROD (Also Available in Kit Below) MTD-751P11573A
...
59
Governor Shaft (Also Available in Kit Below) MTD-951-14053
...
60
Washer 5.2×1.9 (Also Available in Kit Below) MTD-736-04461
...
61
OIL SEAL (Also Available in Kit Below) MTD-951-11902A
...
62
Cotter Pin (Also Available in Kit Below) MTD-714-04078
...
63
CAMSHAFT ASSEMBLY (Also Available in Kit Below) MTD-951-11575
...
64
Radial Ball Bearing, 6205 (Also Available in Kit Below) MTD-951-11369
...
65
WOODRUFF KEY (Also Available in Kit Below) MTD-751P10307A
...
66
Crankshaft Assembly (Also Available in Kit Below) MTD-NA
...
67
GOVERNOR GEAR (Also Available in Kit Below) MTD-751P11576A
...
68
DOWEL PIN 9 X 14 (Also Available in Kit Below) MTD-715-04096A
...
69
DOWEL PIN 9 X 14 (Also Available in Kit Below) MTD-715-04096A
...
70
CRANKCASE GASKET (Also Available in Kit Below) MTD-751P11371B
...
71
Cover Comp, Left Crankcase (Also Available in Kit Below) MTD-NA
...
72
Bolt M8×32 (Also Available in Kit Below) MTD-710-04932
...
73
Oil Fill Plug Asm (Also Available in Kit Below) MTD-951-11283
...
74
Oil Filler Plug (Furnish Assembly) MTD-NA
...
75
O-RING 15.8 x 2.5 MTD-951-11577
...
76
OIL SEAL (Also Available in Kit Below) MTD-751P11368A
...
77
Crankcase (Furnish Crankcase Kit) MTD-NA
...
78
OIL DRAIN PIPE (Also Available in Kit Below) MTD-951-11350A
...
79
FLAT WASHER (Also Available in Kit Below) MTD-736-04440A
...
80
Oil Drain Plug Bolt (Also Available in Kit Below) MTD-710-04906
...
81
OIL SEAL (Also Available in Kit Below) MTD-751P11370A
...
82
Ignition Module MTD-951-10646A
...
83
Air Flow Shield MTD-951-11110
...
84
Bolt M6×10 MTD-710-04940
...
85
Bolt M6×25 MTD-710-04919
...
86
Alternator Assembly MTD-951-12050A
...
87
Flywheel MTD-951-12051
...
88
COOLING FAN MTD-951-10909B
...
89
Starter Cup MTD-951-10911
...
90
FLYWHEEL NUT M14-1.5 MTD-712-04287A
...
91
Bolt M6×12 MTD-710-05103
...
92
Recoil Starter (Furnish Components) MTD-NA
...
93
FAN COVER-COMPLETE MTD-951-11509
...
94
FLAT WASHER MTD-736-04455B
...
95
Bolt M6×10 MTD-710-04974
...
96
Recoil Starter MTD-951-14151
...
97
Throttle Control Asm MTD-951-10758
...
98
Bolt M6×12 MTD-710-05103
...
99
Governor Shield MTD-951-11108
...
100
Governor Spring MTD-951-11935
...
101
THROTTLE SPRING MTD-751P10664A
...
102
THROTTLE LINKAGE MTD-751P10665A
...
103
Governor Arm Assembly (Furnish Components) MTD-NA
...
104
Governor Arm Brkt MTD-951-11106
...
105
Nut M6 MTD-712-05015
...
106
Governor Arm Bolt MTD-710-04908
...
107
CARBURETOR HOSE CLAMP MTD-951-11700A
...
108
Fuel Hose (Furnish Assembly) MTD-NA
...
109
Bolt M6×12 MTD-710-04915
...
110
Engine/Dipstick Cover MTD-951-11914
...
111
Bolt MTD-710-04905
...
112
Bolt M6×12 MTD-710-04915
...
113
Dipstick Assembly (Furnish Components) MTD-NA
...
114
Oil Fill Tube O-Ring MTD-951-11381
...
115
Oil Fill Tube Assembly MTD-951-11913
...
116
Dipstick O-Ring MTD-951-11904
...
117
Dipstick Assembly MTD-951-11912
...
118
Fuel Cap Assembly MTD-951-12533
...
119
Fuel Level Indicator MTD-951-11933
...
120
Fuel Tank Assembly MTD-951-10653B
...
121
Fuel Tank Nipple MTD-951-10651
...
121
Bolt M6×10 MTD-710-04940
...
122
Flexible Clamp MTD-951-11680
...
123
Switch Housing Mounting Bracket MTD-951-11114
...
124
Nut M6 MTD-712-05015
...
125
Bolt M4×55 MTD-710-04965
...
126
Bolt M4×60 MTD-710-04935
...
127
Bolt M6×32 MTD-710-05182
...
128
DOWEL PIN MTD-715-04088A
...
129
Electric Starter MTD-951-10645A
...
130
Bolt M6×18 MTD-710-04979
...
131
Blower Housing Shield MTD-951-11109
...
133
Starter Handle MTD-731-05696
...
135
Primer Bulb MTD-951-11824
...
136
Clamp MTD-726-04101
...
137
Hose MTD-731-07059
...
138
Fuel Line Kit MTD-951-10650
...
139
Valve Cover Kit MTD-951-12626
...
140
Oil Drain Assembly MTD-951-10641
...
a
Choke Shaft MTD-NA
...
b
Choke Plate MTD-NA
...
c
Throttle Shaft MTD-NA
...
d
Throttle Plate MTD-NA
...
e
Screw M3×5 MTD-NA
...
f
Lock Washer MTD-NA
...
g
Gasket, Throttle Plate MTD-NA
...
h
Idle Jet Assembly MTD-NA
...
i
Idle Speed Adjusting Screw MTD-NA
...
j
Mixture Screw MTD-NA
...
k
PRIMER HOSE MTD-951-11699A
...
l
Hose Clamp MTD-951-11906
...
m
Carburetor Body MTD-NA
...
n
Float Pin MTD-NA
...
o
Emulsion Tube MTD-NA
...
p
Needle Valve MTD-NA
...
q
Main Jet MTD-NA
...
r
Needle Valve Spring MTD-NA
...
s
Float MTD-NA
...
t
Fuel Bowl Gasket MTD-951-11589
...
u
Fuel Bowl MTD-NA
...
v
FUEL BOWL GASKET MTD-951-11348A
...
w
Fuel Bowl Mounting Bolt MTD-710-04945
...
x
FUEL DRAIN PLUG GASKET MTD-951-11349A
...
y
FUEL DRAIN PLUG MTD-710-04938
...
xx
Short Block Assembly (Incl. Ref No. 4,21,29,30,46,48,49,52-55,58-71,76-81, Not shown) MTD-951-11060B
...
xx
Gasket Kit - Complete (Incl. Ref No. 4,21,29-31,34,46,60,61,70,76,79 & 81, Not shown) MTD-951-11059A
...
xx
Gasket Kit - External (Incl. Ref No. 4,21,29-31,34 & 79, Not shown) MTD-951-10661B
...
xx
Cylinder Head Kit (Incl. Ref No. 4,5,7-14,16,17,21,29,30,46,50 & 51, Not shown) MTD-951-10722B
...
xx
Carburetor Kit - Huayi (Incl. Ref No. g,n,o,p,q,r,s,t,v & x, Not shown) MTD-951-12788A
...
xx
Crankcase Cover Kit (Incl. Ref No. 64,70-76,76, Not shown) MTD-951-11246
...
xx
Crankshaft Kit (Incl. Ref No. 64-66,76 & 81, Not shown) MTD-951-11247A
...
xx
Crankcase Kit (Incl. Ref No. 61,64,76,77 & 81, Not shown) MTD-951-11249
...
xx
COMPLETE ENGINE 208cc (Not shown) MTD-952Z670-WUC
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
