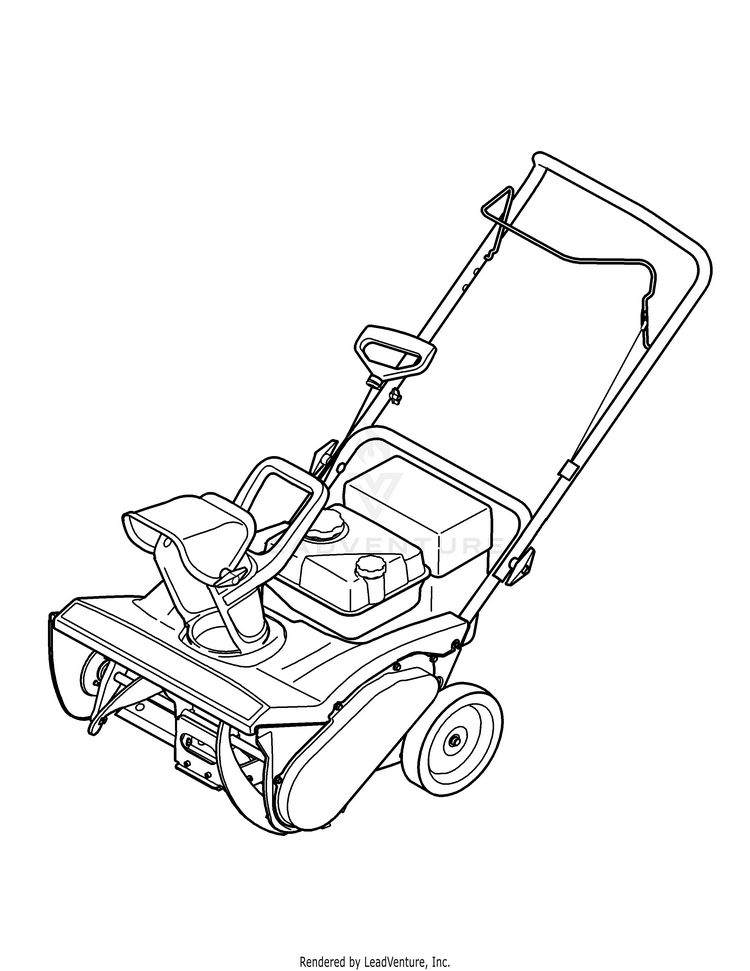

MTD 31AM2N1B706 (2009) Snow Thrower

Model: 31AM2N1B706 (2009)

Save
 Part Not Listed?Part Not Listed?
product name

.Quick Reference

...
...
xx
SPARK PLUG (F6RTC/RN11YC/BPR6ES) MTD-951-10292A
...
xx
Ignition Key MTD-951-10630
...
xx
Extension Cord MTD-NA
...
xx
Snow Removal Tool MTD-NA
...
xx
Control Cable MTD-946-04237
...
xx
Auger Assembly MTD-684-04252-0637
...
xx
Shave Plate MTD-731-1033
...
xx
Impeller Assembly MTD-NA
...
xx
Slide Shoe MTD-NA
...
xx
Shear Pin MTD-NA
...
xx
Bow Tie Cotter Pin MTD-NA
...
xx
Lamp MTD-NA
...
xx
Belt MTD-954-04204
...
xx
Spiral Cresent MTD-735-04032
...
xx
Rubber Paddle MTD-735-04033
...
xx
Friction Wheel MTD-NA
...
xx
Friction Wheel Rubber MTD-NA
...
xx
COMPLETE WHEEL Model 31AM2N1B704 MTD-734-04063B
...
xx
Wheel Yard Machines Models MTD-734-04070
...
xx
Wheel, 9 x 2.125 Bar Model 31AM2P5B704 MTD-734-2010B

Drive & Auger Assembly

...
...
1
Hex Screw, #12-16 x .75 MTD-710-04373A
...
2
Electric Starter Support Bracket MTD-790-00335-0637
...
3
Hex Screw, 1.4-14 x .500 MTD-710-0599
...
4
Hex Screw, 3.8-24 x 1.25 MTD-710-1810
...
5
Flat Washer, .406 x 1.25 x .157 MTD-736-0247
...
6
Pulley Half, 4L-V x 2.30 MTD-756-04353
...
7
V-Belt MTD-954-04204
...
8
Spacer, .875 x 1.185 MTD-750-04303
...
9
Spacer, .88 x 1.18 x .74 MTD-750-05084
...
10
V-Type Pulley, 1.2 x 35.7 MTD-756-04232
...
11
Hex Screw, 5.16-24 x 1.75 MTD-710-0409
...
12
Lock Washer, 5.16 MTD-936-0119
...
13
Cable Tie, 7.5 MTD-926-0154
...
14
Engine Support Bracket MTD-790-00334-0637
...
15
Hex Washer Screw, 3.8-16 x 1.000 MTD-710-0654A
...
16
Spacer, .875 x .320 x 1.027 MTD-750-04297B
...
17
Hex Washer Screw, 1.4-14 x .625 MTD-710-0896
...
18
Hex Washer Screw, 1.4-20 x .375 MTD-710-0653
...
19
BELT COVER SINGLE (POWDER BLACK) MTD-790-00045C-0637
...
19
BELT COVER SINGLE (OYSTER GRAY) MTD-790-00045C-0662
...
20
Hex Screw, 1.4-20 x 1.25 MTD-710-0106
...
21
Shoulder Spacer, .260 x .785 x .538 MTD-750-04571
...
22
Pulley Assembly, 1.917 MTD-684-04168
...
23
Flange Lock Nut, 5.16-18 MTD-712-04063
...
24
Shoulder Spacer MTD-748-0234
...
25
Idler Bracket w/ Brake MTD-790-00238A-0637
...
26
Flange Lock Nut, 1.4-20 MTD-712-04064
...
27
Bearing Cup MTD-790-00249-0637
...
28
Ball Bearing, 1.25 x 37 x 12.6301 MTD-741-04188A
...
29
Hex Screw, 1.4-20 x .750 MTD-710-0642
...
30
Lock Washer, 1.4 MTD-936-0329
...
31
Shoulder Screw, .340 x .335 x 1.4-28 MTD-738-0924A
...
32
Cable Roller MTD-756-0625
...
33
Fl-Wash. .27" I.D. x .948" MTD-736-0176
...
34
Hex Lock Nut, 1.4-28 MTD-712-0896
...
35
Extension Spring .33 OD x 1.12 Lg. MTD-732-0357A
...
36
Auger Assembly, 21inch MTD-684-04252-0637
...
37
Hex Screw, 1.4-14 x .625 MTD-710-0896
...
38
Rubber Pad MTD-735-04033
...
39
Spiral Crescent MTD-735-04032
...
40
RH Spacer MTD-750-04758
...
41
LH Spacer MTD-750-04757
...
42
Push Cap, 1.2 MTD-726-0299
...
43
Auger Housing - Red MTD-684-04315-0638
...
43
Auger Housing - Gray MTD-684-04315-0662
...
43
Auger Housing - Gray MTD-684-04314-0662
...
44
COMPLETE WHEEL MTD-734-04063B
...
45
Wheel, 7 x 1.61- White MTD-734-04070
...
46
Flat Washer .51 " I.D. x 1.0" O.D. MTD-736-0326
...
47
Wheel, 9 x 2.125 Bar MTD-734-2010B
...
48
Flat Washer, .53 x .93 x .050 MTD-936-0160
...
49
Hub Cap MTD-731-07001
...
xx
Amp Connector Not Shown MTD-729-04035
...
xx
Rubber Auger Replacement Kit Not Shown MTD-753-04472

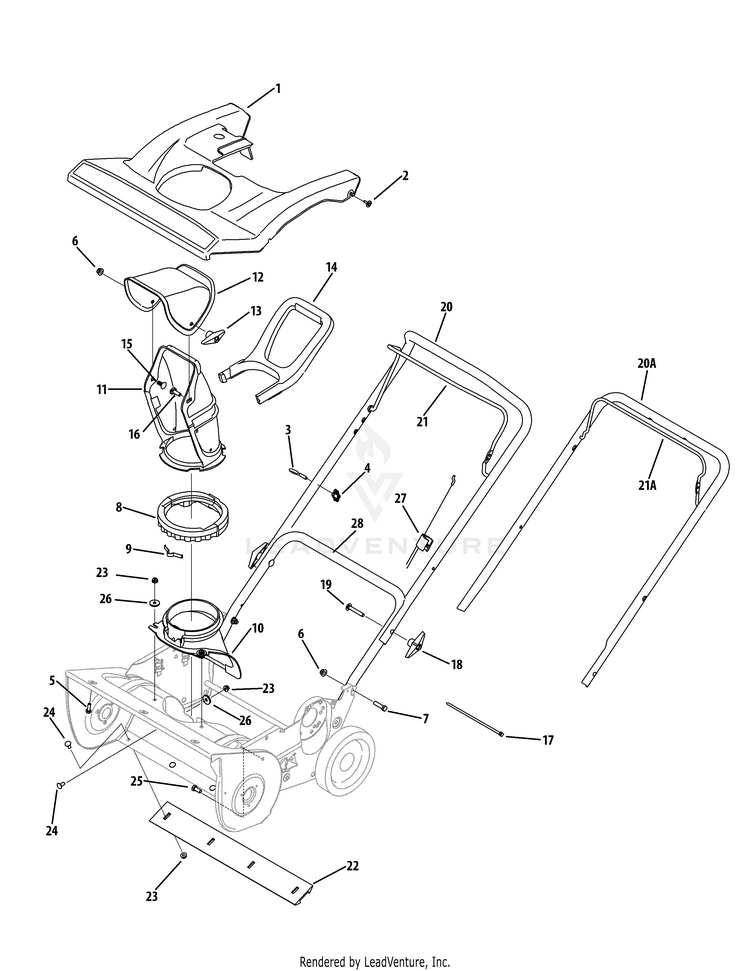

Shroud, Chute, Handle & Auger Housing

...
...
1
Shroud MTD-731-06452
...
2
Hex Washer Screw, 10-16 x .625 MTD-710-04669
...
3
Eye Bolt, 1.4-20 MTD-710-1205
...
4
Knob Handle MTD-720-0279
...
5
Hex Washer Screw, 1.4-15 x .750 MTD-710-0895
...
6
Flange Lock Nut, 5.16-18 MTD-712-04063
...
7
Hex Screw, 5.16-18 x 1.25 MTD-710-0528
...
8
Lower Chute Ring MTD-931-04353
...
9
Chute Adjustment Spring MTD-932-04111
...
10
Chute Adapter MTD-931-04886
...
11
Lower Chute, 5h Diameter MTD-931-04127
...
12
UPPER CHUTE (W/LBL MANUAL TILT) MTD-731-04426C
...
13
Wing Knob MTD-720-04072A
...
14
Chute Handle MTD-731-04388A
...
15
Carriage Bolt, 5.16-18 x .750 MTD-710-0451
...
16
Carriage Bolt, 5.16-18 x 1.00 MTD-710-04071
...
17
Cable Tie, 3.16 x .05 x 7.4 MTD-725-0157
...
18
Wing Nut MTD-720-04072A
...
19
Carriage Screw, 5.16-18 x 2.00 MTD-720-04072A
...
20
Gullwing Handle MTD-749-04106A-0637
...
20A
Handle MTD-749-04459-0637
...
21
Gullwing Control Bail MTD-747-04159A-0637
...
21A
Control Bail MTD-747-04165-0637
...
22
Shave Plate, 21h MTD-731-1033
...
23
Flange Lock Nut, 1.4-20 MTD-712-04064
...
24
Carriage Screw, 1.4-20 x .62 MTD-710-0134
...
25
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
26
Fl-Wash. .27" I.D. x .948" MTD-736-0176
...
27
Control Cable MTD-946-04237
...
28
Lower Handle MTD-749-04114B-0637

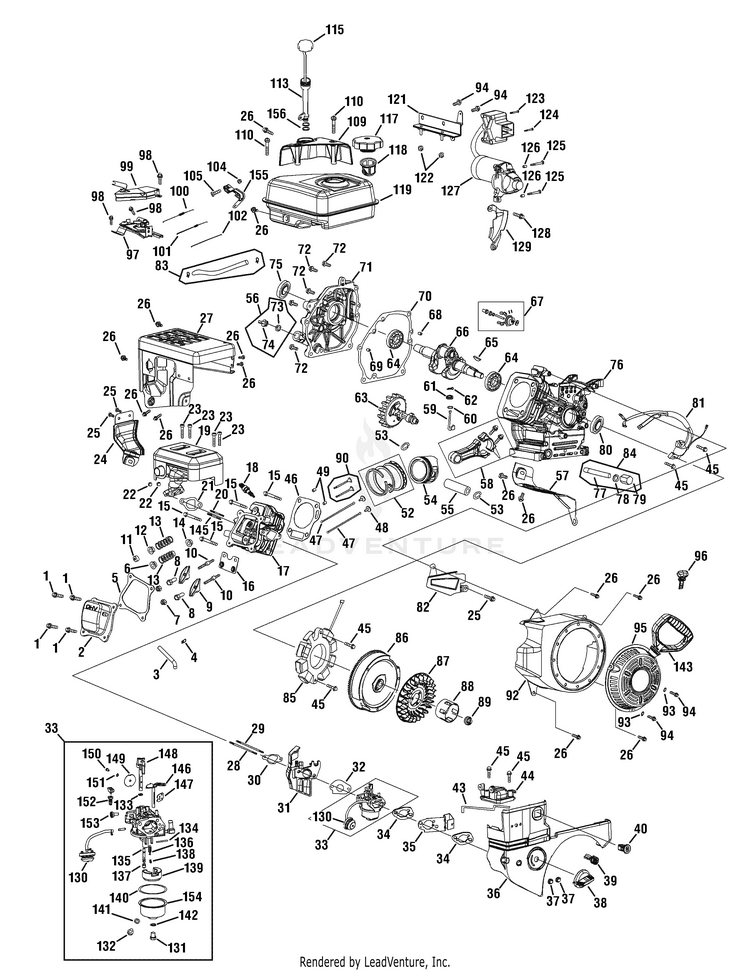

Engine Assembly 365-SUB

...
...
1
Bolt, Flange M6 x 16 MTD-710-04968
...
2
Valve Cover MTD-951-11054B
...
2
Valve Cover Furnish 951-11063, Valve Cover Kit MTD-951-11054B
...
3
Breather Hose MTD-951-14855
...
4
Hose Clamp MTD-726-04101
...
5
Head Cover Gasket Furnish 951-11061A, Gasket Kit Complete MTD-NA
...
5
Head Cover Gasket Furnish 951-10722A, Cylinder Head Assembly MTD-NA
...
5
Head Cover Gasket Furnish 951-10661B, Gasket Kit External MTD-NA
...
5
Head Cover Gasket Furnish 951-11063, Valve Cover Kit MTD-NA
...
5
Head Cover Gasket Furnish 951-11062A, Short Block Assembly MTD-NA
...
6
Intake Valve Spring Seat Furnish 951-10722A, Cylinder Head Assembly MTD-NA
...
7
Pivot Locking Nut MTD-751-11124
...
7
Pivot Locking Nut Furnish 951-10722A, Cylinder Head Assembly MTD-751-11124
...
8
Valve Adjusting Nut MTD-751-11123
...
8
Valve Adjusting Nut Furnish 951-10722A, Cylinder Head Assembly MTD-751-11123
...
9
Rocker Arm Furnish 951-10722A, Cylinder Head Assembly MTD-NA
...
10
Pivot Bolt MTD-710-04902
...
10
Pivot Bolt Furnish 951-10722A, Cylinder Head Assembly MTD-710-04902
...
11
Exhaust Valve Adjuster Furnish 951-10722A, Cylinder Head Assembly MTD-NA
...
12
Exhaust Valve Spring Seat Furnish 951-10722A, Cylinder Head Assembly MTD-NA
...
13
Valve Spring Furnish 951-10722A, Cylinder Head Assembly MTD-NA
...
14
Intake Valve Seal Furnish 951-10722A, Cylinder Head Assembly MTD-NA
...
15
Bolt MTD-710-04933
...
16
Push Rod Guide Plate Furnish 951-10722A, Cylinder Head Assembly MTD-NA
...
17
Cylinder Head - Complete Furnish 951-10722A, Cylinder Head Assembly MTD-NA
...
18
SPARK PLUG (F6RTC/RN11YC/BPR6ES) MTD-951-10292A
...
19
Muffler Assembly MTD-951-11282
...
20
Stud MTD-710-05001
...
20
Stud Furnish 951-10657, Muffler Stud Assembly MTD-710-05001
...
21
MUFFLER GASKET MTD-751P11289A
...
21
MUFFLER GASKET Furnish 951-11061A, Gasket Kit Complete MTD-751P11289A
...
21
MUFFLER GASKET Furnish 951-10722A, Cylinder Head Assembly MTD-751P11289A
...
21
MUFFLER GASKET Furnish 951-10661B, Gasket Kit External MTD-751P11289A
...
21
MUFFLER GASKET Furnish 951-11062A, Short Block Assembly MTD-751P11289A
...
22
Nut MTD-712-04214
...
23
HEX FLANGE BOLT M5x10 MTD-710-09956
...
24
Exhaust Pipe Shield MTD-951-11111
...
25
Bolt MTD-710-04940
...
26
Bolt MTD-710-04915
...
27
Muffler Shield MTD-951-10642B
...
28
Stud, M6 x117 MTD-710-04939
...
29
Stud, M6 x 105 MTD-710-04910
...
30
Carburetor Insulator Gasket Furnish 951-11061A, Gasket Kit Complete MTD-NA
...
30
Carburetor Insulator Gasket Furnish 951-10722A, Cylinder Head Assembly MTD-NA
...
30
Carburetor Insulator Gasket Furnish 951-10661B, Gasket Kit External MTD-NA
...
30
Carburetor Insulator Gasket Furnish 951-11062A, Short Block Assembly MTD-NA
...
31
Carburetor Insulator Plate Furnish 951-11061A, Gasket Kit Complete MTD-NA
...
31
Carburetor Insulator Plate Furnish 951-10722A, Cylinder Head Assembly MTD-NA
...
31
Carburetor Insulator Plate Furnish 951-10661B, Gasket Kit External MTD-NA
...
31
Carburetor Insulator Plate Furnish 951-11062A, Short Block Assembly MTD-NA
...
32
Carburetor Gasket Furnish 951-11061A, Gasket Kit Complete MTD-NA
...
32
Carburetor Gasket Furnish 951-10661B, Gasket Kit External MTD-NA
...
33
Carburetor Assembly MTD-951-12705
...
33
Carburetor Assembly (Incl. Ref No. 130-142, 146-154) MTD-951-12705
...
34
Carburetor Gasket Plate Furnish 951-11061A, Gasket Kit Complete MTD-NA
...
34
Carburetor Gasket Plate Furnish 951-10661B, Gasket Kit External MTD-NA
...
35
Choke Control Bracket MTD-951-11112
...
36
Air Cleaner Housing MTD-951-10634A
...
37
Nut MTD-712-04213
...
38
Choke Knob MTD-951-11284
...
39
THROTTLE LEVER KNOB MTD-751P10757A
...
40
Ignition Switch MTD-951-10637
...
43
Choke Push Rod MTD-951-10640
...
44
Heater Box MTD-951-10635
...
45
Bolt MTD-710-04919
...
46
Cylinder Head Gasket Furnish 951-11061A, Gasket Kit Complete MTD-NA
...
46
Cylinder Head Gasket Furnish 951-10722A, Cylinder Head Assembly MTD-NA
...
46
Cylinder Head Gasket Furnish 951-11062A, Short Block Assembly MTD-NA
...
47
Push Rod Kit (incl. intake and exhaust rod) MTD-951-10648
...
48
Tappet Furnish 951-11062A, Short Block Assembly MTD-NA
...
49
Dowel Pin 10×16 MTD-715-04108
...
49
Dowel Pin 10×16 Furnish 951-11062A, Short Block Assembly MTD-715-04108
...
52
Piston Ring Set Furnish 951-11062A, Short Block Assembly MTD-NA
...
53
Piston Pin Snap Ring Furnish 951-11062A, Short Block Assembly MTD-NA
...
54
Piston Furnish 951-11062A, Short Block Assembly MTD-NA
...
55
Piston Pin Furnish 951-11062A, Short Block Assembly MTD-NA
...
56
Oil FIll Plug Assembly (Incl. Ref No. 73-74) MTD-951-11283
...
57
Air Shield MTD-951-11113
...
58
Connecting Rod Assembly Furnish 951-11062A, Short Block Assembly MTD-NA
...
59
Governor Shaft MTD-951-14053
...
59
Governor Shaft Furnish 951-11062A, Short Block Assembly MTD-951-14053
...
60
Washer MTD-736-04461
...
60
Washer Furnish 951-11061A, Gasket Kit Complete MTD-736-04461
...
60
Washer Furnish 951-11062A, Short Block Assembly MTD-736-04461
...
61
Governor Seal Furnish 951-11061A, Gasket Kit Complete MTD-NA
...
61
Governor Seal Furnish 951-11248 Crankcase Kit MTD-NA
...
61
Governor Seal Furnish 951-11062A, Short Block Assembly MTD-NA
...
62
Cotter Pin MTD-714-04078
...
62
Cotter Pin Furnish 951-11061A, Gasket Kit Complete MTD-714-04078
...
62
Cotter Pin Furnish 951-11062A, Short Block Assembly MTD-714-04078
...
63
Camshaft Assembly Furnish 951-11062A, Short Block Assembly MTD-NA
...
64
Radial Ball Bearing MTD-951-11369
...
64
Radial Ball Bearing Furnish 951-11248 Crankcase Kit MTD-951-11369
...
64
Radial Ball Bearing Furnish 951-11246, Crankcase Cover Kit MTD-951-11369
...
64
Radial Ball Bearing Furnish 951-11247, Crankshaft Kit MTD-951-11369
...
64
Radial Ball Bearing Furnish 951-11062A, Short Block Assembly MTD-951-11369
...
65
WOODRUFF KEY MTD-751P10307A
...
65
WOODRUFF KEY Furnish 951-11247, Crankshaft Kit MTD-751P10307A
...
65
WOODRUFF KEY Furnish 951-11062A, Short Block Assembly MTD-751P10307A
...
66
Crankshaft Assembly Furnish 951-11247, Crankshaft Kit MTD-NA
...
66
Crankshaft Assembly Furnish 951-11062A, Short Block Assembly MTD-NA
...
67
Governor Gear/Shaft Assembly Furnish 951-11062A, Short Block Assembly MTD-NA
...
68
DOWEL PIN 9 X 14 MTD-715-04096A
...
68
DOWEL PIN 9 X 14 Furnish 951-11062A, Short Block Assembly MTD-715-04096A
...
69
Dowel Pin, 9 x 14 MTD-715-04089
...
69
Dowel Pin, 9 x 14 Furnish 951-11062A, Short Block Assembly MTD-715-04089
...
70
CRANKCASE GASKET MTD-751P11371B
...
70
CRANKCASE GASKET Furnish 951-11061A, Gasket Kit Complete MTD-751P11371B
...
70
CRANKCASE GASKET Furnish 951-11248 Crankcase Kit MTD-751P11371B
...
70
CRANKCASE GASKET Furnish 951-11246, Crankcase Cover Kit MTD-751P11371B
...
70
CRANKCASE GASKET Furnish 951-11062A, Short Block Assembly MTD-751P11371B
...
71
Case Cover Furnish 951-11246, Crankcase Cover Kit MTD-NA
...
71
Cover Complete, Left Crankcase Furnish 951-11062A, Short Block Assembly MTD-NA
...
72
Cover Bolt MTD-710-04932
...
72
Cover Bolt Furnish 951-11246, Crankcase Cover Kit MTD-710-04932
...
72
Cover Bolt Furnish 951-11062A, Short Block Assembly MTD-710-04932
...
73
O-Ring Furnish 951-11283, Oil Fill Assembly MTD-NA
...
73
O-Ring Furnish 951-11246, Crankcase Cover Kit MTD-NA
...
73
O-Ring Furnish 951-11062A, Short Block Assembly MTD-NA
...
74
Oil FIll Plug Furnish 951-11283, Oil Fill Assembly MTD-NA
...
74
Oil Fill Plug Furnish 951-11246, Crankcase Cover Kit MTD-NA
...
74
Oil Fill Plug Furnish 951-11062A, Short Block Assembly MTD-NA
...
75
OIL SEAL MTD-751P11368A
...
75
OIL SEAL Furnish 951-11061A, Gasket Kit Complete MTD-751P11368A
...
75
OIL SEAL Furnish 951-11246, Crankcase Cover Kit MTD-751P11368A
...
75
OIL SEAL Furnish 951-11247, Crankshaft Kit MTD-751P11368A
...
75
OIL SEAL Furnish 951-11062A, Short Block Assembly MTD-751P11368A
...
76
Crankcase Furnish 951-11248 Crankcase Kit MTD-NA
...
76
Crankcase Furnish 951-11062A, Short Block Assembly MTD-NA
...
77
Oil Drain Pipe Furnish 951-11062A, Short Block Assembly MTD-NA
...
78
FLAT WASHER MTD-736-04440A
...
78
FLAT WASHER Furnish 951-11061A, Gasket Kit Complete MTD-736-04440A
...
78
FLAT WASHER Furnish 951-10661B, Gasket Kit External MTD-736-04440A
...
78
FLAT WASHER Furnish 951-11062A, Short Block Assembly MTD-736-04440A
...
79
Oil Drain Plug Washer Furnish 951-11062A, Short Block Assembly MTD-NA
...
80
OIL SEAL MTD-751P11370A
...
80
OIL SEAL Furnish 951-11061A, Gasket Kit Complete MTD-751P11370A
...
80
OIL SEAL Furnish 951-11248 Crankcase Kit MTD-751P11370A
...
80
OIL SEAL Furnish 951-11247, Crankshaft Kit MTD-751P11370A
...
80
OIL SEAL Furnish 951-11062A, Short Block Assembly MTD-751P11370A
...
81
Ignition Module MTD-951-10646A
...
82
Air Flow Shield MTD-951-11110
...
83
Fuel Line Kit (incl. clamps and fuel line) MTD-951-10650
...
84
Oil Drain Assembly, includes 77, 78, 79 MTD-951-10641
...
85
Alternator Assembly MTD-951-12050A
...
86
Flywheel MTD-951-10805
...
87
COOLING FAN MTD-951-10909B
...
88
Starter Cup MTD-951-10911
...
89
Flywheel Nut M14 MTD-712-04287
...
90
Valve Kit MTD-951-10647A
...
90
Valve Kit Furnish 951-10722A, Cylinder Head Assembly MTD-951-10647A
...
92
Recoil Housing MTD-951-12644
...
93
FLAT WASHER MTD-736-04455B
...
94
Bolt MTD-710-04914
...
95
Recoil Starter MTD-951-14151
...
96
Ignition Key MTD-951-10630
...
97
Throttle Control Assembly MTD-951-10758
...
98
Bolt M6×12 MTD-710-04915
...
99
Governor Shield MTD-951-11108
...
100
Governor Spring MTD-951-10654
...
101
THROTTLE SPRING MTD-751P10664A
...
102
THROTTLE LINKAGE MTD-751P10665A
...
104
Nut MTD-712-04216
...
105
Bolt M6×20 MTD-710-04918
...
109
Engine/Dipstick Cover MTD-951-10662
...
110
Bolt MTD-710-04905
...
113
Dipstick Assembly MTD-631-05020AP
...
115
Dipstick Assembly MTD-631-05020AP
...
117
Fuel Cap Assembly MTD-951-12533
...
118
Fuel Filter MTD-951-10652
...
119
Fuel Tank Assembly MTD-951-10653B
...
121
Switch Housing MTG Bracket MTD-951-11114
...
122
Nut M6 MTD-712-05015
...
123
Screw, M4 x 55 MTD-710-04965
...
124
Bolt, M4 x 60 MTD-710-04935
...
125
Bolt MTD-710-04943
...
126
DOWEL PIN MTD-715-04088A
...
127
Electric Starter MTD-951-10645A
...
128
Bolt MTD-710-05003
...
129
Blower Housing Shield MTD-951-11109
...
130
PRIMER MTD-951-10639B
...
130
PRIMER Furnish 951-10974, Carburetor Assembly MTD-951-10639B
...
131
Bolt MTD-710-04945
...
131
Bolt Furnish 951-10974, Carburetor Assembly MTD-710-04945
...
132
FUEL DRAIN PLUG MTD-710-04938
...
132
FUEL DRAIN PLUG Furnish 951-10974, Carburetor Assembly MTD-710-04938
...
133
Gasket, Throttle Plate Furnish 951-10974, Carburetor Assembly MTD-NA
...
133
Gasket, Throttle Plate Choose a Carburetor Kit Below MTD-NA
...
134
Float Pin Furnish 951-10974, Carburetor Assembly MTD-NA
...
134
Float Pin Choose a Carburetor Kit Below MTD-NA
...
135
Emulsion Tube Furnish 951-10974, Carburetor Assembly MTD-NA
...
135
Emulsion Tube Choose a Carburetor Kit Below MTD-NA
...
136
Needle Valve Furnish 951-10974, Carburetor Assembly MTD-NA
...
136
Needle Valve Choose a Carburetor Kit Below MTD-NA
...
137
Main Jet Furnish 951-10974, Carburetor Assembly MTD-NA
...
137
Main Jet Choose a Carburetor Kit Below MTD-NA
...
138
Needle Valve Spring Furnish 951-10974, Carburetor Assembly MTD-NA
...
138
Needle Valve Spring Choose a Carburetor Kit Below MTD-NA
...
139
FLOAT Furnish 951-10974, Carburetor Assembly MTD-731P09132A
...
139
FLOAT Choose a Carburetor Kit Below MTD-731P09132A
...
140
Fuel Bowl Gasket Furnish 951-10974, Carburetor Assembly MTD-NA
...
140
Fuel Bowl Gasket Choose a Carburetor Kit Below MTD-NA
...
141
Fuel Drain Plug Gasket Furnish 951-10974, Carburetor Assembly MTD-NA
...
141
Fuel Drain Plug Gasket Choose a Carburetor Kit Below MTD-NA
...
142
Fuel Bowl Gasket Furnish 951-10974, Carburetor Assembly MTD-NA
...
142
Fuel Bowl Gasket Choose a Carburetor Kit Below MTD-NA
...
143
Starter Handle MTD-731-05696
...
145
Muffler Stud Assembly (Incl. Ref No. 20) MTD-951-10657
...
146
Choke Shaft Furnish 951-10974, Carburetor Assembly MTD-NA
...
147
Choke Plate Furnish 951-10974, Carburetor Assembly MTD-NA
...
148
Throttle Shaft Furnish 951-10974, Carburetor Assembly MTD-NA
...
149
Throttle Plate Furnish 951-10974, Carburetor Assembly MTD-NA
...
150
Screw, M3×5 Furnish 951-10974, Carburetor Assembly MTD-NA
...
151
Lock Washer Furnish 951-10974, Carburetor Assembly MTD-NA
...
152
Idle Jet Assembly Furnish 951-10974, Carburetor Assembly MTD-NA
...
153
Idle Speed Adjusting Screw Furnish 951-10974, Carburetor Assembly MTD-NA
...
154
Fuel Bowl Furnish 951-10974, Carburetor Assembly MTD-NA
...
155
Governor Arm Bracket MTD-951-11106
...
156
O-Ring MTD-951-11380
...
xx
Fuel Tank Nipple (Not Shown) MTD-951-10651
...
xx
Gasket Kit, External (Incl. Ref No. 5, 21, 30 ,31, 32, 34, 78) (Not Shown) MTD-951-10661B
...
xx
Cylinder Head Kit (Incl. Ref No. 5-14, 16, 17, 21, 30, 31, 46, 90) (Not Shown) MTD-951-10722B
...
xx
Carburetor Repair Kit - HAUYI (Incl. Ref No. 133-142) (Not Shown) MTD-951-14050
...
xx
Carburetor Repair Kit - DENI (Incl. Ref No. 133-142) (Not Shown) MTD-951-12712
...
xx
Gasket Kit, Complete (Incl. Ref No. 5, 21, 30-32, 34, 46, 60-62, 70, 75, 78, 80) (Not Shown) MTD-951-11061A
...
xx
Short Block (Incl. Ref No. 5, 21, 30, 31, 46, 48, 49, 52-55, 58-80) (Not Shown) MTD-951-11062B
...
xx
Valve Cover Kit (Incl. Ref No. 2, 5) (Not Shown) MTD-951-12626
...
xx
Starter Pinion Shaft (Not Shown) MTD-951-11176
...
xx
Crankcase Cover Kit (Incl. Ref No. 64, 70-75) (Not Shown) MTD-951-11246
...
xx
Crankshaft Assembly (Incl. Ref No. 64-66 )(Not Shown) MTD-951-11247A
...
xx
Crankcase Kit (Incl. Ref No. 61, 64,70, 76, 80) (Not Shown) MTD-951-11248A
...
xx
COMPLETE ENGINE 208cc (Not Shown) MTD-952Z670-WUB
...
...
...
Processing
