MTD 31A-63BD706 (2016) Snow Thrower

Model: 31A-63BD706 (2016)

Back To Assemblies

Save Part Not Listed?
product name

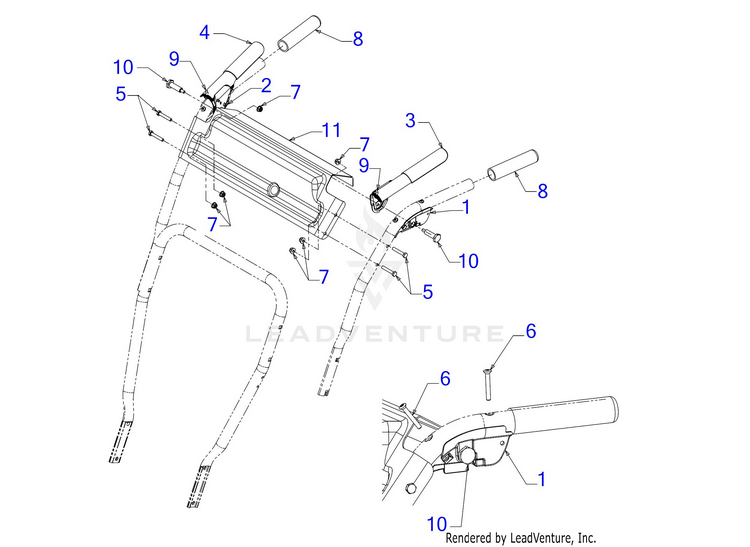

Handle Panel

...
...
1
CLUTCH LOCK HANDLE ASSEMBLY (LH) MTD-631-04133A
...
1
HEX NUT (Not Shown) MTD-712-0161
...
2
CLUTCH LOCK HANDLE ASSEMBLY (RH) MTD-631-04134B
...
2
HEX NUT (Not Shown) MTD-712-0161
...
3
HANDLE ASSEMBLY (LH) MTD-684-04105D
...
4
HANDLE ASSEMBLY (RH) MTD-684-04106D
...
5
SCREW 1/4-20 x 1.50 GR.5 MTD-710-0606
...
6
SCREW #10-24 x 1.375 MTD-710-1233
...
7
FLANGE LOCK NUT MTD-712-04064
...
8
GRIP MTD-720-0274
...
9
Bumper, Rubber MTD-735-0199A
...
10
SHOULDER SCREW .437 x 1.345 1/4-20 MTD-738-04348
...
11
HANDLE PANEL (MTD RED) MTD-790-00100-0638
