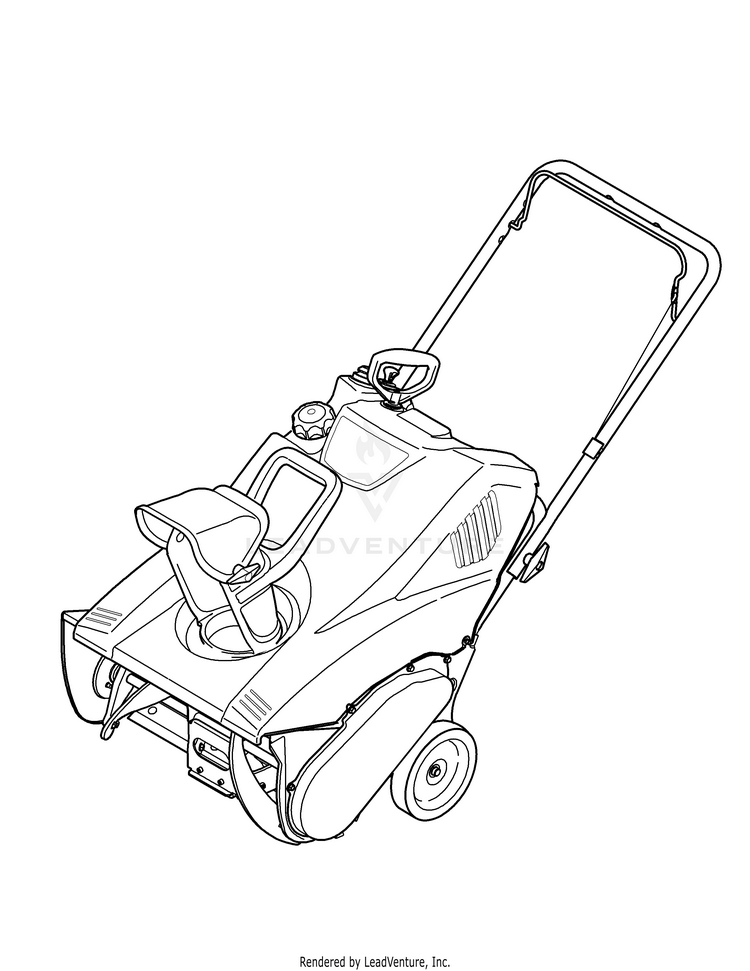

MTD 31A-2M1A706 (2009) Snow Thrower

Model: 31A-2M1A706 (2009)

Save Part Not Listed?
product name

.Quick Reference

...
...
xx
Spark Plug MTD-951-10292A
...
xx
Ignition Key MTD-951-10630
...
xx
Extension Cord MTD-NA
...
xx
Snow Removal Tool MTD-NA
...
xx
Control Cable MTD-946-04237
...
xx
Auger Assembly MTD-684-04252-0637
...
xx
Shave Plate MTD-731-1033
...
xx
Impeller Assembly MTD-NA
...
xx
Slide Shoe MTD-NA
...
xx
Shear Pin MTD-NA
...
xx
Bow Tie Cotter Pin MTD-NA
...
xx
Lamp MTD-NA
...
xx
Belt MTD-954-0101A
...
xx
Spiral Cresent MTD-735-04032
...
xx
Rubber Paddle MTD-735-04033
...
xx
Friction Wheel MTD-NA
...
xx
Friction Wheel Rubber MTD-NA
...
xx
Wheels MTD-734-04070
...
xx
AUGER SERVICE KIT MTD-753-04472

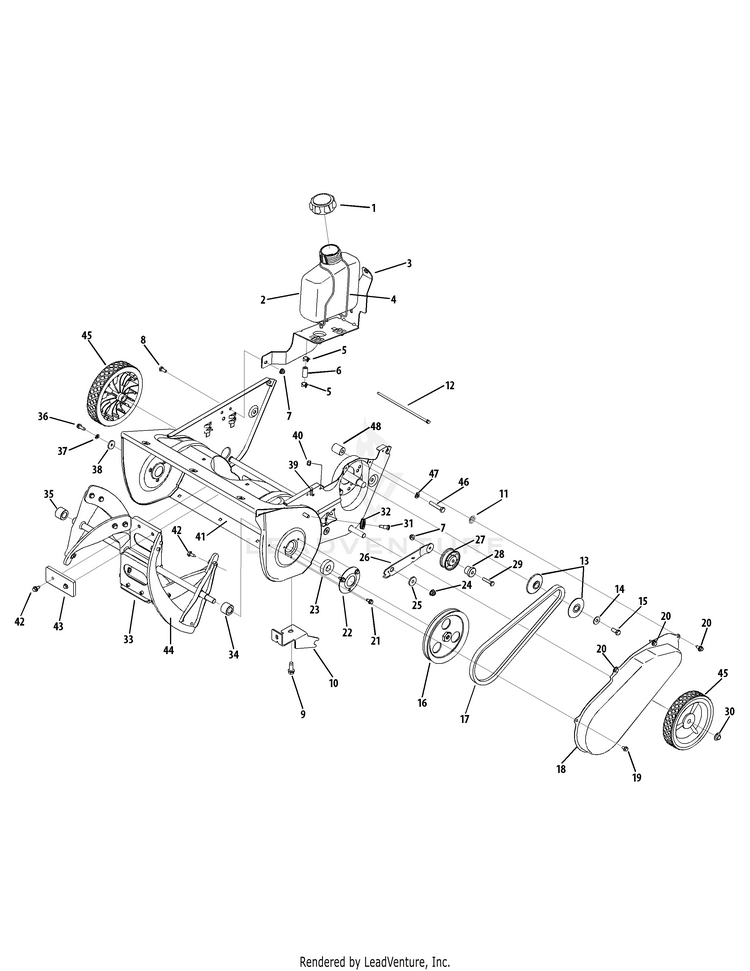

Drive & Auger Assembly

...
...
1
FUEL CAP MTD-751-10487C
...
2
FUEL TANK 2 QUART MTD-951-10023
...
3
FUEL TANK BRACKET MTD-790-00134-0637
...
4
GAS TANK SUPPORT WIRE MTD-747-04236
...
5
Hose Clamp, .490 MTD-726-0205
...
6
Fuel Line Hose MTD-751-10349
...
7
Flange Lock Nut, 1.4-20 MTD-712-04064
...
8
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
9
Screw, 3.8-16 x 1.000 MTD-710-0654A
...
10
ENGINE BRACKET MTD-790-00216-0637
...
11
Push Nut, .25 ID x .50 OD MTD-726-0233
...
12
Cable Tie, 7.5h MTD-926-0154
...
13
Pulley Half, .625 ID x .225 OD MTD-956-0416B
...
14
Bell Washer, .340 x .872 x .060 MTD-736-0242
...
15
Hex Bolt, 5.16-24 x .750 MTD-710-0627
...
16
Pulley, 1.2 x 6.00 MTD-756-04232
...
17
V-Belt MTD-954-0101A
...
18
BELT COVER SINGLE (POWDER BLACK) MTD-790-00045C-0637
...
18
BELT COVER SINGLE (MASTERCRAFT GREEN) MTD-790-00045C-0709
...
19
Hex Screw, 1.4-20 x .375 MTD-710-0653
...
20
Hex Screw, 1.4-14 x .625 MTD-710-0896
...
21
Hex Screw, 1.4-14 x .500 MTD-710-0599
...
22
Bearing Cup MTD-790-00249-0637
...
23
Ball Bearing, .625 x 37 x 12 MTD-741-04188A
...
24
Flange Lock Nut, 5.16-18 MTD-712-04063
...
25
Shoulder Spacer MTD-748-0234
...
26
Idler Bracket MTD-790-00238A-0637
...
27
Idler Pulley Assembly, 1.917 MTD-684-04168
...
28
Shoulder Spacer, .280 x .785 x .538 MTD-750-04571
...
29
Hex Screw, 1.4-20 x 1.25 MTD-710-0106
...
30
Push Cap, 1.2 MTD-726-0299
...
31
Shoulder Screw, MTD-738-0924A
...
32
Cable Roller MTD-756-0625
...
33
Auger Assembly, 21 inch MTD-684-04252-0637
...
34
LH Spacer MTD-750-04757
...
35
RH Spacer MTD-750-04758
...
36
Hex Screw, 1.4-20 x .750 MTD-710-0642
...
37
Lock Washer, 1.4 MTD-936-0329
...
38
Fl-Wash. .27" I.D. x .948" MTD-736-0176
...
39
Extension Spring .33 OD x 1.12 Lg. MTD-732-0357A
...
40
Hex Lock Nut, 1.4-28 MTD-712-0896
...
41
Auger Housing Assembly, 21 - Red MTD-684-04227-0638
...
41
21" AUGER HOUSING (MASTERCRAFT GREEN) MTD-684-04227-0709
...
42
Hex Screw, 1.4-14 x .625 MTD-710-0896
...
43
Rubber Pad MTD-735-04033
...
44
Spiral Crescent MTD-735-04032
...
45
Wheel, 7 x 1.61 MTD-734-04070
...
46
Hex Bolt, 5.16-24 x 1.75 MTD-710-0409
...
47
Lock Washer, 5.16 MTD-936-0119
...
48
SPACER MTD-750-04297B
...
xx
AUGER SERVICE KIT Not Shown MTD-753-04472

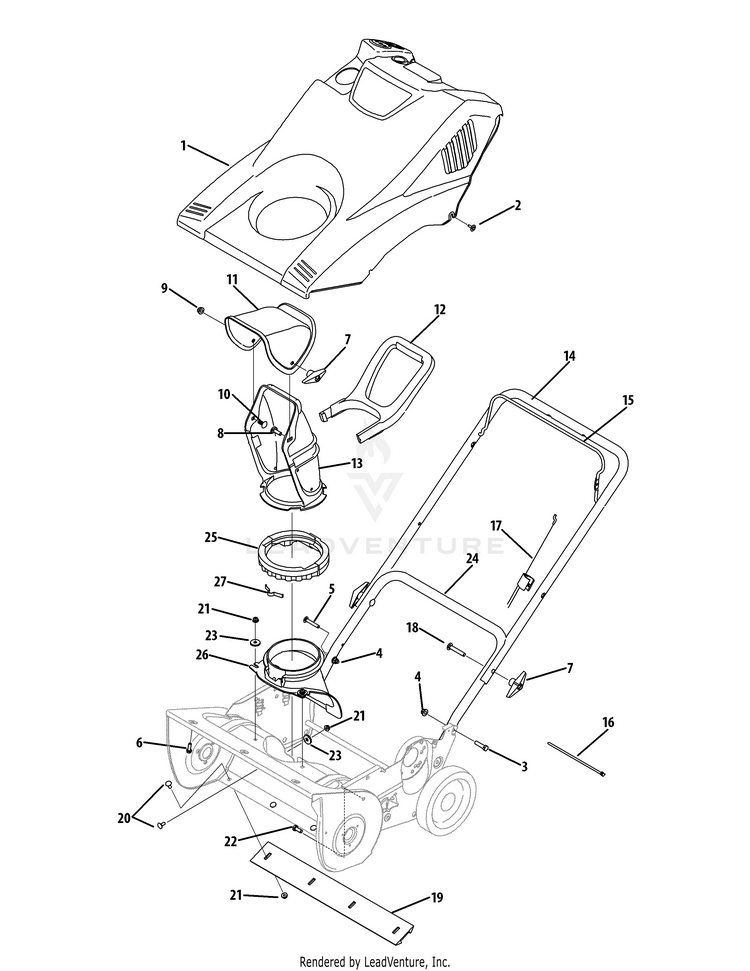

Shroud, Chute & Handle

...
...
1
KIT-SERVICE SNOW S MTD-753-06906
...
1
Grommet, Electric Start Not shown, If equipped MTD-728-04006
...
1
Ignition Switch Not Shown, with key MTD-951-10637
...
1
Ignition Key Not shown MTD-951-10630
...
2
Hex Screw, 10-16 x .625 MTD-710-04669
...
3
Hex Flange Screw, 5.16-18 x 1.25 MTD-710-1090
...
4
Flange Lock Nut, 5.16-18 MTD-712-04063
...
5
Hex Flange Screw, 5.16-18 x 1.50 MTD-710-1882
...
6
Hex Screw, 1.4-15 x .750 MTD-710-0895
...
7
Wing Nut, 5.16-18 MTD-720-04072A
...
8
Carriage Bolt, 5.16-18 x 1.00 MTD-710-04071
...
9
Flange Lock Nut, 5.16-18 MTD-712-04063
...
10
Carriage Bolt, 5.16-18 x .750 MTD-710-0451
...
11
UPPER CHUTE (W/LBL MANUAL TILT) MTD-731-04426C
...
12
Chute Handle MTD-731-04388A
...
13
Lower Chute MTD-931-04127
...
14
Upper Handle MTD-749-04459-0637
...
15
Bail Control MTD-747-04165-0637
...
16
Cable Tie, 3.16 x .05 x 7.4 MTD-725-0157
...
17
Control Cable MTD-946-04237
...
18
Carriage Bolt, 5.16-18 x 2.00 MTD-710-04532
...
19
Shave Plate, 21h MTD-731-1033
...
20
Carriage Screw, 1.4-20 x .62 MTD-710-0134
...
21
Flange Lock Nut, 1.4-20 MTD-712-04064
...
22
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
23
Fl-Wash. .27" I.D. x .948" MTD-736-0176
...
24
LOWER HANDLE (POWDER BLACK) MTD-749-04114B-0637
...
25
Lower Chute Ring MTD-931-04353
...
26
Chute Adapter MTD-931-04886
...
27
Chute Adjustment Spring MTD-932-04111

Engine Assembly 161-JWA

...
...
1
Bolt M6×28 MTD-710-04931
...
1
Bolt M6×28 Furnish 951-10950A, Short Block Assembly MTD-710-04931
...
2
O-Ring Furnish 951-10951A, Gasket Kit Complete MTD-NA
...
2
O-Ring Furnish 951-10952A, Gasket Kit External MTD-NA
...
4
Crankcase Cover Furnish 951-11095, Crankcase Cover Kit MTD-NA
...
4
Crankcase Cover Furnish 951-10950A, Short Block Assembly MTD-NA
...
5
Oil Seal Furnish 951-10951A, Gasket Kit Complete MTD-NA
...
5
Oil Seal Furnish 951-10950A, Short Block Assembly MTD-NA
...
6
Bearing Furnish 951-11096, Crankshaft Kit MTD-NA
...
6
Bearing Furnish 951-10950A, Short Block Assembly MTD-NA
...
7
Crankshaft Assembly Furnish 951-11096, Crankshaft Kit MTD-NA
...
7
Crankshaft Assembly Furnish 951-10950A, Short Block Assembly MTD-NA
...
8
DOWEL PIN 9 X 14 MTD-715-04096A
...
8
DOWEL PIN 9 X 14 Furnish 951-10950A, Short Block Assembly MTD-715-04096A
...
9
Crankcase Cover Gasket Furnish 951-11095, Crankcase Cover Kit MTD-NA
...
9
Crankcase Cover Gasket Furnish 951-10951A, Gasket Kit Complete MTD-NA
...
9
Crankcase Cover Gasket Furnish 951-10950A, Short Block Assembly MTD-NA
...
10
Governor Assembly Furnish 951-10950A, Short Block Assembly MTD-NA
...
11
O-Ring, 5.2 x 1.9 Furnish 951-10951A, Gasket Kit Complete MTD-NA
...
11
O-ring Gov. Shaft Furnish 951-10950A, Short Block Assembly MTD-NA
...
12
Cotter Pin MTD-714-04078
...
12
Cotter Pin Furnish 951-10950A, Short Block Assembly MTD-714-04078
...
13
Governor Arm Shaft Furnish 951-10950A, Short Block Assembly MTD-NA
...
14
Bearing Furnish 951-11096, Crankshaft Kit MTD-NA
...
14
Bearing Furnish 951-10950A, Short Block Assembly MTD-NA
...
14
Bearing Furnish 951-11097, Crankcase Kit MTD-NA
...
15
Crankcase Complete Furnish 951-10950A, Short Block Assembly MTD-NA
...
15
Crankcase Complete Furnish 951-11097, Crankcase Kit MTD-NA
...
16
Oil Drain Plug Bolt MTD-710-04906
...
16
Oil Drain Plug Bolt Furnish 951-10950A, Short Block Assembly MTD-710-04906
...
16
Oil Drain Plug Bolt Furnish 951-10370, Oil Drain Plug Assembly MTD-710-04906
...
17
FLAT WASHER MTD-736-04440A
...
17
FLAT WASHER Furnish 951-10951A, Gasket Kit Complete MTD-736-04440A
...
17
FLAT WASHER Furnish 951-10952A, Gasket Kit External MTD-736-04440A
...
17
FLAT WASHER Furnish 951-10950A, Short Block Assembly MTD-736-04440A
...
17
FLAT WASHER Furnish 951-10370, Oil Drain Plug Assembly MTD-736-04440A
...
18
Ignition Coil MTD-951-10958
...
19
OIL ALERT SIDE PLATE MTD-951-11102
...
20
Flange Bolt MTD-710-04919
...
21
FLYWHEEL MTD-951-10908
...
22
Cooling Fan MTD-951-10910
...
23
Starter Cup MTD-951-10911
...
24
FLYWHEEL NUT M14-1.5 MTD-712-04287A
...
25
FAN COVER MTD-951-11107
...
26
Flange Bolt MTD-710-04914
...
28
Recoil Starter Handle MTD-731-05696
...
29
Nut M6 MTD-712-05015
...
30
Governor Arm Bracket MTD-951-11106
...
31
Bolt MTD-710-04908
...
32
Throttle Return Spring MTD-951-10954
...
33
Governor Rod MTD-951-11152
...
34
Governor Return Spring MTD-951-10953
...
36
Cover Shield MTD-951-11103
...
37
Governor Spring Bracket MTD-951-11104
...
38
Flange Bolt MTD-710-04921
...
39
Muffler Assembly MTD-951-10901
...
40
Carburetor Insulator Plate Furnish 951-10949A, Cylinder Head Assembly MTD-NA
...
40
Carburetor Insulator Plate Furnish 951-10950A, Short Block Assembly MTD-NA
...
41
Nut M6 MTD-712-05015
...
42
Intake Heater Box Base MTD-951-10962
...
43
Intake Heater Box MTD-951-10961
...
44
BOLT M4X45 MTD-710-04913
...
45
Carburetor Gasket, Heater Box Furnish 951-10951A, Gasket Kit Complete MTD-NA
...
45
Heat Pipe Intake Gasket Furnish 951-10950A, Short Block Assembly MTD-NA
...
46
PRIMER MTD-951-10639B
...
46
PRIMER Furnish 951-10639, Carburetor Assembly MTD-951-10639B
...
47
CARBURETOR ASSEMBLY MTD-951-10956A
...
47
CARBURETOR ASSEMBLY (Incl. Ref. No. 46, 98-107, 109, 120-129) MTD-951-10956A
...
48
Camshaft Assembly Furnish 951-10950A, Short Block Assembly MTD-NA
...
50
Pivot Bolt MTD-710-04902
...
50
Pivot Bolt Furnish 951-10949A, Cylinder Head Assembly MTD-710-04902
...
51
Rocker Arm Furnish 951-10949A, Cylinder Head Assembly MTD-NA
...
51
Rocker Arm Furnish 753-06132 Push Rod-Rocker Arm Kit MTD-NA
...
52
Valve Adjusting Nut MTD-751-11123
...
52
Valve Adjusting Nut Furnish 951-10949A, Cylinder Head Assembly MTD-751-11123
...
53
Pivot Locking Nut MTD-751-11124
...
53
Pivot Locking Nut Furnish 951-10949A, Cylinder Head Assembly MTD-751-11124
...
54
Intake Valve Furnish 951-10912, Valve Kit MTD-NA
...
55
Exhaust Valve Furnish 951-10912, Valve Kit MTD-NA
...
56
Valve Spring Furnish 951-10949A, Cylinder Head Assembly MTD-NA
...
57
Intake Valve Spring Seat Furnish 951-10949A, Cylinder Head Assembly MTD-NA
...
58
Exhaust Valve Spring Seat Furnish 951-10949A, Cylinder Head Assembly MTD-NA
...
59
Exhaust Valve Adjuster Furnish 951-10949A, Cylinder Head Assembly MTD-NA
...
60
Valve Lifter Furnish 951-10950A, Short Block Assembly MTD-NA
...
61
PUSH ROD KIT MTD-951-12614
...
61
PUSH ROD KIT Furnish 951-10950A, Short Block Assembly MTD-951-12614
...
62
Push Rod Guide Plate Furnish 951-10949A, Cylinder Head Assembly MTD-NA
...
62
Push Rod Guide Plate Furnish 753-06132 Push Rod-Rocker Arm Kit MTD-NA
...
63
Piston Ring Set - Oil Furnish 951-10950A, Short Block Assembly MTD-NA
...
64
Piston Pin Clip Furnish 951-10950A, Short Block Assembly MTD-NA
...
65
Piston Furnish 951-10950A, Short Block Assembly MTD-NA
...
66
Piston Pin Furnish 951-10950A, Short Block Assembly MTD-NA
...
67
Connecting Rod Complete Furnish 951-10950A, Short Block Assembly MTD-NA
...
68
Bolt MTD-710-04916
...
69
Valve Cover MTD-951-11054B
...
69
Valve Cover Furnish 951-11063A, Valve Cover Kit MTD-951-11054B
...
70
Head Cover Gasket Furnish 951-10951A, Gasket Kit Complete MTD-NA
...
70
Head Cover Gasket Furnish 951-10952A, Gasket Kit External MTD-NA
...
70
Head Cover Gasket Furnish 951-10949A, Cylinder Head Assembly MTD-NA
...
70
Valve Cover Gasket Furnish 951-11063A, Valve Cover Kit MTD-NA
...
70
Head Cover Gasket Furnish 951-10950A, Short Block Assembly MTD-NA
...
71
Bolt MTD-710-04922
...
72
Breather Hose MTD-731-07059
...
73
Spark Plug MTD-951-10292A
...
73
GENUINE FACTORY PARTS® Spark Plug 751-10292 Snow, Ride MTD-490-250-F012
...
74
Cylinder Head - Complete Furnish 951-10949A, Cylinder Head Assembly MTD-NA
...
75
Muffler Stud Assembly MTD-951-10657
...
76
Cylinder Head Gasket Furnish 951-10951A, Gasket Kit Complete MTD-NA
...
76
Cylinder Head Gasket Furnish 951-10949A, Cylinder Head Assembly MTD-NA
...
76
Cylinder Head Gasket Furnish 951-10950A, Short Block Assembly MTD-NA
...
77
Dowel Pin 10×16 MTD-715-04108
...
77
Dowel Pin 10×16 Furnish 951-10949A, Cylinder Head Assembly MTD-715-04108
...
78
Carburetor Studs MTD-710-04909
...
79
Carburetor Insulator Gasket Furnish 951-10951A, Gasket Kit Complete MTD-NA
...
79
Carburetor Insulator Gasket Furnish 951-10952A, Gasket Kit External MTD-NA
...
79
Carburetor Insulator Gasket Furnish 951-10949A, Cylinder Head Assembly MTD-NA
...
79
Carburetor Insulator Gasket Furnish 951-10950A, Short Block Assembly MTD-NA
...
80
DOWEL PIN MTD-715-04089
...
80
DOWEL PIN Furnish 951-10950A, Short Block Assembly MTD-715-04089
...
81
Carburetor Gasket Furnish 951-10951A, Gasket Kit Complete MTD-NA
...
81
Carburetor Gasket Furnish 951-10952A, Gasket Kit External MTD-NA
...
82
Hose Clamp MTD-726-04101
...
83
Bolt MTD-710-04916
...
84
Oil Seal, 22 x 35 x 7 Furnish 951-10951A, Gasket Kit Complete MTD-NA
...
84
Oil Seal Furnish 951-10950A, Short Block Assembly MTD-NA
...
84
Oil Seal Furnish 951-11097, Crankcase Kit MTD-NA
...
85
SIDE PLATE MTD-951-11105
...
87
NUT MTD-712-04210
...
88
Flange Bolt MTD-710-04918
...
90
Muffler Gasket MTD-951-10959
...
90
Muffler Gasket Furnish 951-10951A, Gasket Kit Complete MTD-951-10959
...
90
Muffler Gasket Furnish 951-10952A, Gasket Kit External MTD-951-10959
...
90
Muffler Gasket Furnish 951-10949A, Cylinder Head Assembly MTD-951-10959
...
90
Muffler Gasket Furnish 951-10950A, Short Block Assembly MTD-951-10959
...
91
Recoil Starter Assembly MTD-951-10955
...
92
WOODRUFF KEY MTD-751P10307A
...
92
WOODRUFF KEY Furnish 951-11096, Crankshaft Kit MTD-751P10307A
...
92
WOODRUFF KEY Furnish 951-10950A, Short Block Assembly MTD-751P10307A
...
94
CYLINDER HEAD ASSEMBLY (Incl. Ref. No. 40, 50-53, 56-59, 62, 70, 74, 76, 77, 79, 90, 108) MTD-951-10949A
...
95
Oil Drain Plug and Washer Assembly (Incl. Ref. No. 16-17) MTD-951-10370
...
96
DIPSTICK ASSEMBLY MTD-951-10957
...
96
DIPSTICK ASSEMBLY Furnish 951-11095, Crankcase Cover Kit MTD-951-10957
...
96
DIPSTICK ASSEMBLY Furnish 951-10950A, Short Block Assembly MTD-951-10957
...
97
SHORTBLOCK ASSEMBLY (Incl. Ref. No. 1, 4-17, 40, 45, 48, 60, 61, 63-67, 70, 76, 79, 80, 84, 90, 92, 96) MTD-951-10950A
...
98
Float Pin Furnish 951-10948, Carburetot Kit Major MTD-NA
...
98
Float Pin Furnish 951-10639, Carburetor Assembly MTD-NA
...
99
Needle Valve Spring Furnish 951-10948, Carburetot Kit Major MTD-NA
...
99
Needle Valve Spring Furnish 951-10639, Carburetor Assembly MTD-NA
...
100
Needle Valve Furnish 951-10948, Carburetot Kit Major MTD-NA
...
100
Needle Valve Furnish 951-10639, Carburetor Assembly MTD-NA
...
101
Bowl Gasket Furnish 951-10948, Carburetot Kit Major MTD-NA
...
101
Bowl Gasket Furnish 951-10639, Carburetor Assembly MTD-NA
...
102
Main Jet Furnish 951-10948, Carburetot Kit Major MTD-NA
...
102
Main Jet Furnish 951-10639, Carburetor Assembly MTD-NA
...
103
Fuel Drain Plug Gasket Furnish 951-10948, Carburetot Kit Major MTD-NA
...
103
Fuel Drain Plug Gasket Furnish 951-10639, Carburetor Assembly MTD-NA
...
104
Float Furnish 951-10948, Carburetot Kit Major MTD-NA
...
104
Float Furnish 951-10639, Carburetor Assembly MTD-NA
...
105
Main Nozzle Furnish 951-10948, Carburetot Kit Major MTD-NA
...
105
Main Nozzle Furnish 951-10639, Carburetor Assembly MTD-NA
...
106
Idle Speed Adjusting Screw Furnish 951-10948, Carburetot Kit Major MTD-NA
...
106
Idle Speed Adjusting Screw Furnish 951-10639, Carburetor Assembly MTD-NA
...
107
O-Ring- Main Cup Bolt Furnish 951-10948, Carburetot Kit Major MTD-NA
...
107
O-Ring- Main Cup Bolt Furnish 951-10639, Carburetor Assembly MTD-NA
...
108
VALVE KIT (Incl. Ref. No. 54-55) MTD-951-10912
...
108
VALVE KIT Furnish 951-10949A, Cylinder Head Assembly MTD-951-10912
...
109
Throttle Shaft Dust Seal Furnish 951-10948, Carburetot Kit Major MTD-NA
...
109
Throttle Shaft Dust Seal Furnish 951-10639, Carburetor Assembly MTD-NA
...
110
Bolt M6×12 MTD-710-04915
...
120
Fuel Bowl Furnish 951-10639, Carburetor Assembly MTD-NA
...
121
Choke Shaft Furnish 951-10639, Carburetor Assembly MTD-NA
...
122
Choke Plate Furnish 951-10639, Carburetor Assembly MTD-NA
...
123
Throttle Shaft Furnish 951-10639, Carburetor Assembly MTD-NA
...
124
Throttle Plate Furnish 951-10639, Carburetor Assembly MTD-NA
...
125
Screw Furnish 951-10639, Carburetor Assembly MTD-NA
...
126
Idle Jet Assembly Furnish 951-10639, Carburetor Assembly MTD-NA
...
127
Lock Washer Furnish 951-10639, Carburetor Assembly MTD-NA
...
128
Drain Bolt Furnish 951-10639, Carburetor Assembly MTD-NA
...
129
Fuel Bowl Gasket Furnish 951-10639, Carburetor Assembly MTD-NA
...
xx
Ignition Key Not Shown MTD-951-10630
...
xx
Carburetor Kit - Major Not Shown (Incl. Ref. No. 98-107, 109) MTD-951-12623
...
xx
Gasket Kit - Complete Not Shown (Incl. Ref. No. 2, 5, 9, 11, 17, 45, 70, 76, 79, 81, 84, 90) MTD-951-10951A
...
xx
Gasket Kit - External Not Shown (Incl. Ref. No. 2, 17, 70, 79, 81, 90) MTD-951-10952A
...
xx
Valve Cover Kit Not Shown (Incl. Ref. No. 69-70) MTD-951-12626
...
xx
CRANKCASE COVER KIT Not Shown (Incl. Ref. No. 4, 9, 96) MTD-951-11095
...
xx
CRANKSHAFT KIT Not Shown (Incl. Ref. No. 6, 7, 14, 92) MTD-951-11096
...
xx
CRANKSHAFT KIT Not Shown (Incl. Ref. No. 14, 15, 84) MTD-951-11097
...
xx
PUSH ROD/ROCKER ARM KIT Not Shown includes Push Rods, Rocker Arms, Rocker Studs, Valve Adjusting Nuts, Locking Pivot Nuts, Valve Cover Gasket, Push Rod Guide MTD-953-06132
...
xx
COMPLETE ENGINE 123cc Not Shown MTD-952Z161-JWA-12
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
