MTD 31A-050-706 (2012) Snow Thrower

Model: 31A-050-706 (2012)

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

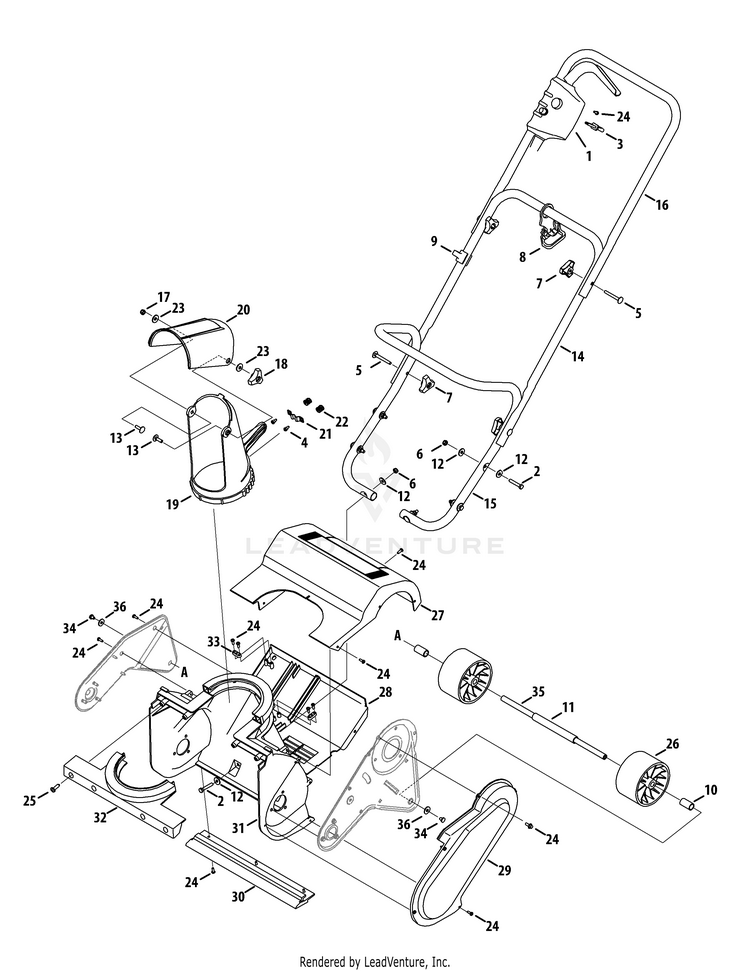

Frame, Handle & Chute

...
...
1
SWITCH W/KEY MTD-725-05152
...
2
SCREW M6-1X35 MTD-710-04197
...
3
Key MTD-731-06684B
...
4
SHOULDER SCREW MTD-738-04507
...
5
SCREW M6-1 x 45 GR8.8 MTD-710-05122
...
6
HEX NUT MTD-712-0691
...
7
KNOB MTD-720-04153
...
8
CORD RETAINER MTD-731-07757
...
9
CABLE GUIDE MTD-731-07761
...
10
SPACER MTD-750-05403A
...
11
SPACER MTD-750-05405
...
12
FLAT WASHER MTD-736-0685
...
13
Screw, Carriage, M6-1, 20.00 MTD-710-1687
...
14
MID HANDLE MTD-749-04691-0637
...
15
LOWER LIFT HANDLE MTD-749-04699A
...
16
UPPER HANDLE MTD-749-04690
...
17
HEX NUT MTD-712-0691
...
18
KNOB MTD-720-04153
...
19
LOWER CHUTE MTD-731-07627
...
20
UPPER CHUTE MTD-731-07628A
...
21
CHUTE BRACKET MTD-790-00466
...
22
COMPRESSION SPRING MTD-732-04874
...
23
SPRING WASHER BELL MTD-736-0270
...
24
SCREW M4.2 x 1.4 x 13 MTD-710-05137
...
25
SCREW M6.3 x 1.8 x 20 MTD-710-05148
...
26
ROLLER WHEEL MTD-731-07636
...
27
TOP COVER MTD-731-07629A
...
28
LOWER MOTOR COVER MTD-731-07630A
...
29
BELT COVER MTD-731-07634A
...
30
Blade, Scraper MTD-731-07640
...
31
AUGER HOUSING RED MTD-731-07682A
...
31
AUGER HOUSING MTD-731-07625A
...
32
FRONT COVER RED MTD-731-07684
...
32
FRONT COVER MTD-731-07637
...
33
CORD HOLDER BRACKET MTD-731-07722
...
34
Screw, Hex Screw, M6 x 8mm MTD-710-05132
...
35
ROLLER WHEEL SHAFT MTD-911-05381
...
36
FLAT WASHER MTD-736-0685
