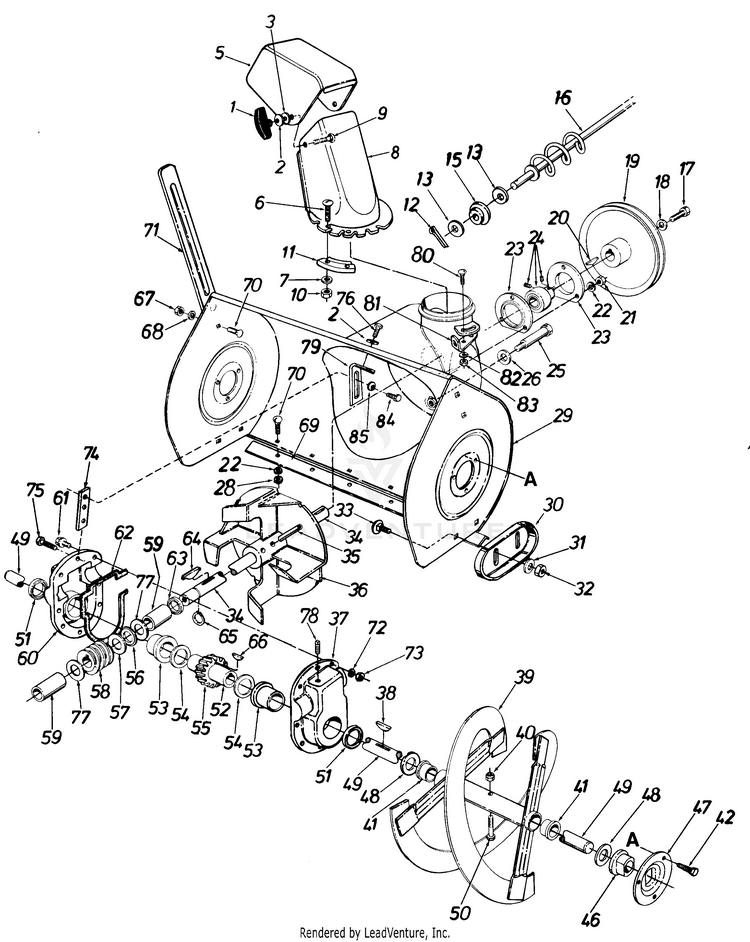

MTD 31965-9 (1989) Snow Thrower

Model: 31965-9 (1989)

Back To Assemblies

Save Part Not Listed?
product name

Snow

...
...
1
Star Knob MTD-720-04072A
...
2
Bell-Wash. .345 I.D. x .88 O.D. x .060 MTD-736-0242
...
3
Fl. Wash. .312 I.D. x 1.125 O.D. x .125 MTD-736-0231
...
5
Chute, Upper, 6.0 MTD-731-0846C
...
6
Truss Mach. Scr. 1/4-20 x.75" Lg. MTD-710-0924
...
7
Fl-Wash. 1/4" I.D. MTD-736-0142
...
8
Chute MTD-931-0840B
...
9
Carr. Bolt 5/16-18 x 1.00" Lg. MTD-710-0276
...
10
Hex L-Nut 1/4-20 Thd MTD-912-0107
...
11
Chute Flange Keeper MTD-731-0851A
...
12
Cotter Pin MTD-714-0507
...
13
Fl-Wash. .385" I.D. x .62" MTD-736-0140
...
15
BUSHING .380 ID MTD-941-0475
...
16
CRANK ASSEMBLY MTD-05981
...
17
SCREW 5/16-18 x .750 MTD-710-1880
...
18
Bell-Wash. .345 I.D. x .88 MTD-736-0242
...
19
V-Pulley .875 I.D. x 10.12 MTD-756-0243
...
20
#9 Hi-Pro Key 3/16 x 3/4" Dia. MTD-714-0126
...
21
HEX NUT 5/16-18 MTD-712-3010
...
22
Lock Wash. 5/16" I.D. MTD-936-0119
...
23
Bearing Hsg.-Self Aligning Brg. MTD-05244B
...
24
Self Aligning Brg. .875 I.D. MTD-941-0185
...
25
Stud 3/8-16 x 2.75" Lg. MTD-711-0640
...
26
Bell-Wash. .400 I.D. x .88 O.D. x .060 MTD-736-0105
...
28
HEX NUT 5/16-18 MTD-712-3010
...
29
BLOWER HOUSING ASSEMBLY MTD-784-5011
...
30
Skid Shoe MTD-784-5038B-0637
...
31
Bell-Wash. .400 I.D. x .88 O.D. x .060 MTD-736-0105
...
32
Jam Nut, 3/8-16 MTD-912-3008
...
33
CARRIAGE BOLT 3/8-16 X .75 MTD-710-0389
...
34
Blower Axle MTD-738-0276
...
35
Spring Pin Spiral 5/16" Dia. x 1.75" Lg. MTD-715-0118
...
36
BLOWER FAN ASS'Y. MTD-05812
...
37
GEAR BOX HOUSING KIT (Incl. Bearing) MTD-753-0889
...
38
#91 Woodruff Key 1/4" x 3/4" Dia. MTD-714-0135
...
39
SPIRAL ASSEMBLY MTD-05461
...
xx
SPIRAL ASSEMBLY MTD-05462
...
40
Hex Ins. L-Nut 5/16-18 Thd. MTD-712-0429
...
41
Plastic Bushing MTD-741-0494
...
42
Hex Wash. Hd. Tap Scr. 5/16-24 x .62" Lg. MTD-710-0726
...
46
Flange Bearing w/ Flats MTD-941-0170
...
47
Bearing Hsg.-Spiral Hsg. MTD-05845C-0637
...
48
Fl-Wash. 1.06 I.D. x 1.75" O.D. x .100 MTD-736-0250
...
49
SPIRAL AXLE MTD-738-0491
...
50
Hex Bolt 5/16-18 x 1.75" Lg. MTD-710-0891
...
51
Oil Seal 1.50" I.D. MTD-921-0146
...
52
Worm Gear Shaft MTD-738-0275
...
53
BEARING, FLANGE MTD-741-0182
...
54
FLAT WASHER MTD-736-0266
...
55
Double Threaded Worm Gear MTD-917-1425
...
56
Thrust Brg. .88 I.D. x 1.44 O.D. x .078 MTD-741-0184
...
57
Fl-Wash. .88 I.D. x 1.40 O.D. MTD-736-0291
...
58
Double Threaded Worm-L.H. MTD-917-0299
...
59
Sleeve Brg. .875 I.D. MTD-941-0217
...
60
GEAR BOX HOUSING KIT (Incl. Ref. Nos. 51 & 53) MTD-753-0889
...
61
Hex Bolt 5/16-18 x 1.0" Lg. MTD-710-0376
...
62
Gasket MTD-921-0144
...
63
Oil Seal .875" I.D. MTD-921-0145
...
64
#9 Hi-Pro Key 3/16 x 3/4" Dia. MTD-714-0126
...
65
Snap Ring .875" Dia. MTD-716-0111
...
66
#91 Woodruff Key 1/4 x 3/4" Dia. MTD-714-0135
...
67
HEX NUT 5/16-18 MTD-712-3010
...
68
Lock Wash. 5/16" I.D. MTD-936-0119
...
69
Shave Place MTD-05378-0637
...
70
Carriage Bolt 5/16-18 x.62 MTD-710-0260A
...
71
Drift Cutter MTD-790-00181-0637
...
72
SPRING WASHER .317 X .625 X .020 MTD-936-0271
...
73
Hex Ins. L-Nut 5/16-18 Thd. MTD-712-0429
...
74
SUPPORT PLATE-GEAR MTD-784-5075
...
75
Hex Bolt 5/16-18 x 1.25 MTD-710-0528
...
76
Hex Wash. Hd. Self-Tap Scr. 5/16-18 x .75" Lg. MTD-710-0726
...
77
Fl-Wash. .88 I.D. x 1.40 O.D. MTD-736-0291
...
78
Filler Plug MTD-737-0175
...
79
Gear Hsg. Support Brkt. MTD-784-5076-0637
...
80
Carr. Bolt 5/16-18 x .75" Lg. MTD-710-0451
...
81
BRACKET-CHUTE CRAN MTD-784-5123-0637
...
82
Bell-Wash. .345 I.D. x .88" MTD-736-0242
...
83
HEX NUT 5/16-18 MTD-712-3010
...
84
Hex Bolt 1/4-28 x .75" Lg. MTD-710-0412
...
85
SPRING WASHER BELL MTD-736-0270
