MTD 319-225-000 (1989) Snow Thrower

Model: 319-225-000 (1989)

Save
 Part Not Listed?Part Not Listed?
product name

Parts

...
...

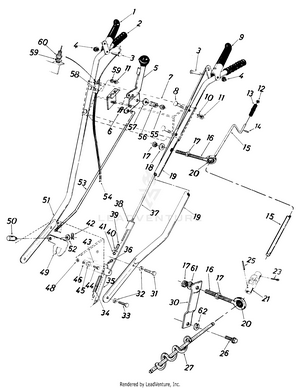

1
Drive Clutch Grip Ass'y. (R.H.) MTD-05507
...
2
Grip MTD-720-0204
...
3
Clevis Pin .375" Dia. MTD-711-0415
...
4
Push Cap 3/8" Rod MTD-726-0100
...
5
Shifting Handle Ass'y. MTD-05805A
...
6
Int. Cotter Pin 5/16" Dia. MTD-714-0104
...
7
Handle Panel Ass'y. MTD-784-5231
...
8
Carriage Bolt 5/16-18 x 1.75" Lg.* MTD-710-0458
...
9
Auger Clutch Grip Ass'y. (L.H.) MTD-05506
...
10
Bell-Wash. .345" I.D. x .88" O.D. MTD-736-0242
...
11
HEX NUT 5/16-18 MTD-712-3010
...
12
Push Nut 3/8" Rod MTD-726-0100
...
13
Black Knob MTD-720-0201A
...
14
Rolled Pin, 1/8 x .63 MTD-915-0138
...
15
Chute Crank .375" Dia. x 34.5" Lg. MTD-747-0438
...
16
Eye Bolt 5/16-18 x 3.0" Lg. MTD-747-0481A
...
17
HEX NUT 5/16-18 MTD-712-3010
...
18
Bell-Wash. .34" I.D. x .88" O.D. MTD-736-0242
...
19
Handle-L.H. MTD-749-0203A
...
20
BUSHING .380 ID MTD-941-0475
...
21
Joint Block Assembly MTD-684-04350
...
23
Cotter Pin 3/32" Dia. x 1.00" Lg. MTD-714-0111
...
25
Spring Pin Roll 3/32" Dia. x .50" Lg. MTD-715-0129
...
26
Hex Self-Tap Scr. 3/8-16 x .75" Lg. MTD-710-0623
...
27
Chute Crank Ass'y.-R.H. 10" Lg. MTD-784-5064
...
30
Chute Crank Supt. Plate 1.25" x 4.12" Lg. MTD-784-5063
...
31
Hex Self-Tap Scr. 3/8-16 x .75" Lg. MTD-710-0623
...
32
Bell-Wash. .44" I.D. x .88 O.D. MTD-736-0105
...
33
Hex Self-Tap Scr. 3/8-16 x .75" Lg. MTD-710-0623
...
34
Extension Spring .38" O.D. x 3.25" Lg. MTD-932-0320
...
35
Frame Cover MTD-05790
...
36
Hex Self-Tap Scr. 1/4-20 x .50" Lg. MTD-710-0599
...
37
Clutch Rod .214" Dia. x 32.0" Lg. MTD-747-0154
...
38
Auger Clutch Rod Ass'y. MTD-05567
...
39
Compression Spring .39" O.D. x .75" Lg. MTD-732-0337
...
40
Fl-Wash. .28" I.D. x .75" O.D. MTD-736-0173
...
41
Hex Ins. L-Nut 1/4-20 Thd. MTD-712-0324
...
42
Cotter Pin 3/32" Dia. x .75" Lg. MTD-714-0507
...
43
Clutch Bracket MTD-05559
...
44
HEX BOLT 5/16-18 x 1 LG.* MTD-710-0322
...
45
Shoulder Spacer MTD-748-0233
...
46
Fl-Wash. .34" I.D. x 1.12" O.D. MTD-736-0231
...
48
Hex Cent. L.-Nut 5/16-18 Thd. MTD-912-0158
...
49
Shifting Bracket MTD-05962
...
50
Engagement Ferru MTD-911-0677
...
51
Handle-R.H. MTD-749-0204A
...
52
Fl-Wash. .344" I.D. x .62" O.D. MTD-736-0264
...
53
Shifting Rod MTD-747-0671
...
54
CLUTCH CONTROL CABLE MTD-946-0374
...
55
Hex Ins. Jam L-Nut 3/8-24 Thd. MTD-712-0116
...
56
Compression Spring .60" O.D. x .88" Lg. MTD-732-0193
...
57
Bell-Wash. .40" I.D. x .88" O.D. MTD-736-0105
...
58
Cable Support Brkt. MTD-05554
...
59
Lock Wash. 5/16" I.D. MTD-936-0119
...
60
Hex Jam Nut 5/16-24 Thd. MTD-712-0256
...
61
Bell-Wash. .345" I.D. x .88" O.D. MTD-736-0242
...
62
L-Wash. 3/8" I.D. MTD-736-0169

Parts

...
...

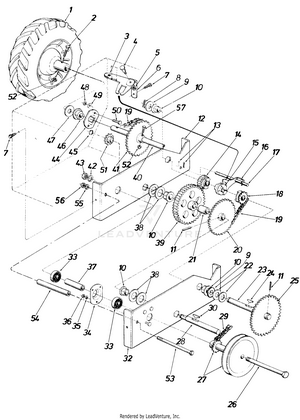

1
Wheel Ass'y.-Comp. 10 x 2.75-R.H. MTD-734-0468
...
xx
Wheel Ass'y.-Comp. 10 x 2.75-L.H. (Not Shown) MTD-734-0835
...
2
Hex Bolt 5/16-24 x 1.75" Lg.-H.T. MTD-710-0409
...
3
Shifting Bracket MTD-05962
...
4
Shld. Scr. .438" Dia. x .180 Lg. MTD-738-0140
...
5
Hex Ins. L-Nut 5/16-18 Thd. MTD-712-0429
...
6
Shifting Bracket Support MTD-05808
...
7
Hex Wash. Hd. Self-Tap Scr. 5/16-24 x .50 MTD-710-0600
...
8
Cotter Pin 3/32 Dia. x 1.00" Lg. MTD-714-0111
...
9
Fl-Wash. .64 I.D. x 1.25 O.D. x .060 MTD-736-0187
...
10
Hex Flange Brg. MTD-948-0229
...
11
H-Spring Pin Spiral 1/4" Dia. x 1.50 Lg. MTD-715-0114
...
12
Drive Housing Bracket-R.H. MTD-05792A
...
13
Internal Cotter Pin 3/8" Dia. MTD-714-0104
...
14
Spur Gear-21 Teeth MTD-748-0163
...
15
Clutch Collar MTD-748-0161
...
16
Shifting Yoke MTD-05054
...
17
Rod MTD-738-0315
...
18
Sprocket-10 Teeth MTD-748-0164
...
19
#41 Chain-1/2" Pitch x 33 Links MTD-713-0263
...
xx
Master Link for #41 Chain MTD-913-0723
...
20
28 Teeth-Sprocket Hub Ass'y. MTD-05093
...
21
Spacer-.62 I.D. x .88 O.D. x 1.030 MTD-750-0229
...
22
Fl-Wash. .64 I.D. x 1.25 O.D. x .100 MTD-736-0237
...
23
Shifting Shaft MTD-738-0459
...
24
Hi-Pro Key 3/16 x 3/4" Dia. x 1.062 MTD-714-0137
...
25
32 Teeth Sprocket Hub Ass'y. MTD-05137
...
26
Hex Scr. 1/2-20 x 5.50" Lg. MTD-710-0506
...
27
5.25" O.D. Pulley with 9 Teeth Sprocket MTD-756-0325
...
28
Shaft MTD-738-0564
...
29
#41 Chain 1/2 Pitch x 47 Links MTD-713-0265
...
xx
Master Link for #41 Chain MTD-913-0723
...
30
Hi-Pro Key-3/16 x 3/4" Dia. MTD-714-0126
...
32
Drive Housing Bracket Ass'y.-L. H . MTD-05789
...
33
Ball Bearing .500 I.D. x 1.38 O.D. x .438 MTD-741-0133
...
34
Bearing Housing MTD-05034A
...
35
L-Wash. 1/4" I.D. MTD-936-0329
...
36
Hex Nut 1/4-20 Thd. MTD-912-0287
...
37
Spacer-.52 I.D. x .62 O.D. x 2.69 MTD-750-0295
...
38
Fl-Wash. 1.06 I.D. x 1.75 O.D. x .100 MTD-736-0250
...
39
Spur Gear-62 Teeth MTD-748-0162
...
40
Wheel Axle MTD-738-0460
...
41
28 Teeth-Sprocket Hub Ass'y. MTD-713-0243
...
42
L-Wash. 1/2" I.D. MTD-736-0921
...
43
Hex Ins. L-Nut 1/2-20 Thd. MTD-712-0200A
...
44
Bearing Plate MTD-10470
...
45
Snap Ring .562" Dia. Shaft MTD-716-0397
...
46
Flange Brg. w/Flats .75" I.D. MTD-941-0490
...
47
Fl-Wash. .81 I.D. x 1.25 O.D. x .060 MTD-736-0287
...
48
HEX NUT 5/16-18 MTD-712-3010
...
49
Bell-Wash. 5/16" I.D. MTD-736-0242
...
50
Carriage Bolt 5/16-18 x .75" Lg. MTD-710-0451
...
51
8 Teeth Sprocket #41 Chain MTD-713-0337
...
52
NUT MTD-912-0273
...
53
Hex Bolt 5/16-18 x 4.0" Lg. MTD-710-0190
...
54
Spacer 3.25" Lg. MTD-750-0324
...
55
Lock Wash. 5/16" I.D. MTD-936-0119
...
56
HEX NUT 5/16-18 MTD-712-3010
...
57
Hex Bolt 5/16-24 x 1.5" Lg. MTD-710-0624

Parts

...
...

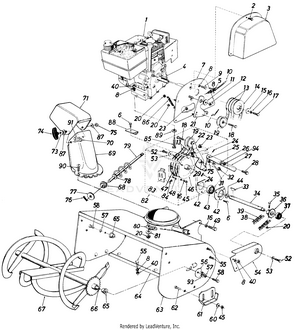

1
Engine MTD-NA
...
2
Hex Bolt 1/4-20 x .50" Lg. MTD-910-0289
...
3
Belt Cover MTD-05621
...
4
KEY, SPINDLE MTD-914-0105
...
5
Hex Jam Nut 5/16-24 Thd. MTD-712-0256
...
6
Hex Wash. Hd. Self-Tap Scr. 5/16-24 x .50" Lg. MTD-710-0600
...
7
Engine Plate Ass'y. MTD-05821
...
8
Lock Wash. 5/16" I.D. MTD-936-0119
...
9
Hex Bolt 5/16-24 x .62" Lg. MTD-710-0237
...
10
CLUTCH CONTROL CABLE MTD-946-0374
...
11
Shld. Spacer .625" I.D. MTD-938-0347
...
12
Hex Ins. Jam L-Nut 3/8-24 Thd. MTD-712-0116
...
13
V-BELT 3/8 x 31.68 MTD-954-0205
...
14
Engine Pulley MTD-756-0257
...
15
Fl-Wash. .40 I.D. x 1.25 O.D. x .1 57 MTD-736-0247
...
16
L-Wash. 3/8" I.D. MTD-736-0169
...
17
Hex Bolt 3/8-24 x 1.25" Lg. MTD-710-0191
...
18
Hex Bolt 3/8-16 x 1.25" Lg.* MTD-710-0723
...
19
Flat Idler 2.25 O.D. MTD-756-0137
...
20
Hex L-Nut 1/4-20 Thd MTD-912-0107
...
21
Drive Idler Bracket Ass'y. MTD-05823
...
22
Thrower Idler Bracket Ass'y. MTD-05556
...
23
JAM LOCK NUT MTD-712-0266A
...
24
Cotter Pin 3/32" Dia. x .75" MTD-714-0507
...
25
Clutch Rod 5/16" Dia. x 2.88 Lg. MTD-747-0174
...
26
Shoulder Spacer MTD-748-0234
...
27
Thrower Clutch Bracket MTD-05559
...
28
HEX BOLT 5/16-18 x 1 LG.* MTD-710-0322
...
29
Shoulder Scr. .625" Dia. x .1 70" MTD-738-0281
...
31
Fl-Wash. .34 I.D. x 1.12 O.D. x .125 MTD-736-0231
...
32
JAM LOCK NUT MTD-712-0266A
...
33
Woodruff Key 5/32 x 5/8 Dia. MTD-714-0138
...
34
Thrower Shaft 20" and Snap Ring MTD-753-0206
...
35
Hex Bolt 1/4-20 x 1.5" Lg. MTD-710-0606
...
36
14 Teeth Sprocket Hub Ass'y. MTD-05156
...
37
Bearing .62" I.D. x 1.38" O.D. x .437" Thk. MTD-941-0155
...
38
#41 Chain-1/2" Pitch x 63 Links MTD-713-0106
...
39
Master Link for #41 Chain MTD-913-0723
...
40
HEX NUT 5/16-18 MTD-712-3010
...
42
Bearing Hsg.-Self Aligning Brg. MTD-05244B
...
43
Self Aligning Brg. MTD-941-0174
...
44
See Ref. No. 34 MTD-NA
...
45
Jam Nut, 3/8-16 MTD-912-3008
...
46
1/2" V-Pulley .753 I.D. MTD-756-0258
...
47
5.25" O.D. Pulley with 9 Teeth Sprocket MTD-756-0325
...
48
Shoulder Screw MTD-938-0481A
...
49
Hex Self-Tap Scr. 3/8-16 x .75" MTD-710-0623
...
52
Hex L-Bolt 5/16-18 x .62" Lg. MTD-710-0538
...
53
Belleville Wash. .34 I.D. x .88 O.D. x .060 MTD-736-0242
...
54
Chain Guard MTD-05563A
...
55
Carriage Bolt 5/16-18 x.62 MTD-710-0260A
...
56
Chain Adjuster MTD-06605
...
57
L-Wash. 3/8" I.D. MTD-736-0169
...
58
Hex Bolt 3/8-24 x 1" Lg. MTD-710-1039
...
xx
Jam Nut, 3/8-16 MTD-912-3008
...
60
Belleville Wash. .40 I.D. x .88 O.D. MTD-736-0105
...
61
Slide Shoe MTD-05002-0637
...
62
CARRIAGE BOLT 3/8-16 X .75 MTD-710-0389
...
63
Spiral Housing Ass'y. 20" MTD-784-5034
...
64
Shave Plate MTD-05001
...
65
Flange Bearing .630 I.D. MTD-748-0110
...
66
Spiral Shaft MTD-711-0520
...
67
Spiral Ass'y.-20" MTD-05539
...
68
Hex Bushing MTD-741-0403
...
69
Chute MTD-931-0840B
...
70
Carriage Bolt 5/16-18 x 1.0" MTD-710-0276
...
71
Chute, Upper, 6.0 MTD-731-0846C
...
73
Belleville Wash. .34 I.D. x .88 MTD-736-0242
...
74
Star Knob MTD-720-04072A
...
75
Hex Cent. L.-Nut 5/16-18 Thd. MTD-912-0158
...
76
Cotter Pin 3/32" Dia. x .75" MTD-714-0507
...
77
Fl-Wash. .406" I.D. x 1.25" MTD-736-0133
...
78
Fl-Wash. .385" I.D. x .62" MTD-736-0140
...
79
Chute Crank Ass'y. 10" Lg. MTD-784-5064
...
80
Chute Flange Keeper MTD-731-0851A
...
81
Fl-Wash..281" I.D. MTD-736-0142
...
82
Frame Ass'y. MTD-05963
...
83
Belt Guard Plate MTD-05673
...
84
Hex Wash. Self-Tap Scr. 5/16-18 x .75" Lg. MTD-710-0726
...
85
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
86
Ext. Spring .38n O.D. x 2.5" MTD-932-0264
...
87
Fl-Wash. .344 I.D. MTD-736-0231
...
88
Belt Guard MTD-05810
...
89
Fl-Wash. .34 I.D. x .62 O.D. x .060 MTD-736-0264
...
90
Truss Mach. Scr. 1/4-20 x.75" Lg. MTD-710-0924
...
91
Truss Mach. Scr. 5/16-18 x .75" MTD-710-0323
...
93
Fl-Wash. .385" I.D. x 1.0" O.D. MTD-736-0258
...
94
Fl-Wash. .33" I.D. x 1.25" O.D. MTD-736-0343
...
xx
Key (Not Shown) MTD-TC-35062
...
...
...
