MTD 318-960-105 Snow Thrower

Model: 318-960-105

Save
 Part Not Listed?Part Not Listed?
product name

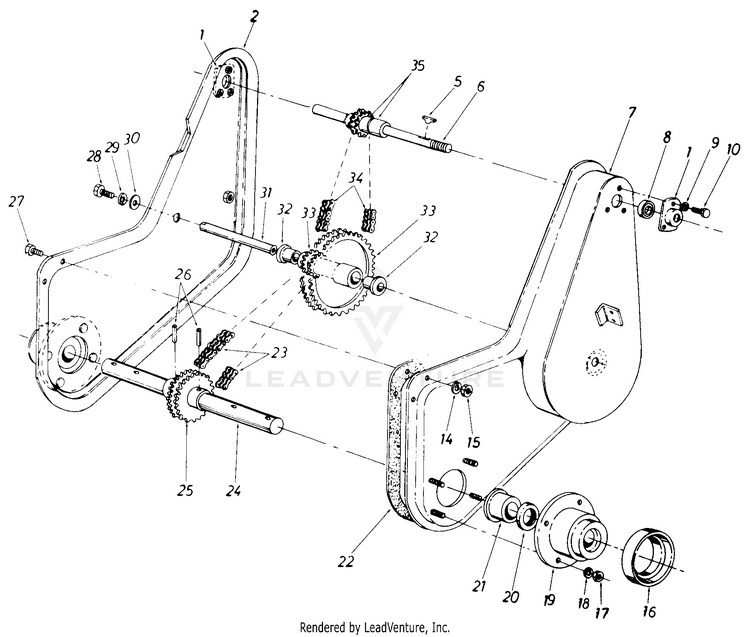

Chain Case Assembly

...
...
1
Bearing Housing MTD-05034A
...
2
Housing Assembly R.H. MTD-14895
...
5
#6 Hi-Pro Key 5/32" x .62" Lg. MTD-714-0136
...
6
Input Shaft Assembly MTD-14892
...
7
Housing Assembly L.H. MTD-14894
...
8
Bearing .62" I.D. x 1.38" O.D. x .437" Thk. MTD-941-0155
...
9
L-Wash. 1/4" I.D. MTD-936-0329
...
10
Hex Bolt 1/4-20 X .62" Lg. MTD-710-0258
...
14
L-Wash. 1/4" I.D. MTD-936-0329
...
15
Hex Nut 1/4-20 Thd. MTD-912-0287
...
16
Dust Cap Cover MTD-04973
...
17
Hex Cent. L.-Nut 5/16-18 Thd. MTD-912-0158
...
18
Lock Wash. 5/16" I.D. MTD-936-0119
...
19
Cast Bearing Housing MTD-94530
...
20
Oil Seal MTD-721-0117
...
21
Flange Bearing 1.25" I.D. x 1.75" O.D. MTD-748-0194
...
22
Gasket MTD-721-0119
...
23
Roller Chain #40-2 x 34.0" Lg. MTD-913-0150
...
24
Tine Shaft MTD-711-0506
...
25
Double Sprocket T24-2 Teeth 1/2" Pitch MTD-717-0189
...
26
Spiral Pin 3/8" Dia. x 2.00" Lg. MTD-915-0125
...
27
Hex Bolt 1/4-20 x .62" Lg. MTD-710-0258
...
28
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0118
...
29
Lock Wash. 5/16" I.D. MTD-936-0119
...
30
Fl-Wash. 5.16" I.D. MTD-736-0195
...
31
Sprocket Shaft MTD-711-0504
...
32
Flange Bearing .62" I.D. x .75" O.D. MTD-748-0855
...
33
Double Sprocket Assembly MTD-04529
...
34
Roller Chain #35-2 x 36.75" Lg. MTD-713-0149
...
35
Spacer 5/8" I.D. x 7/8" O.D. MTD-748-0192

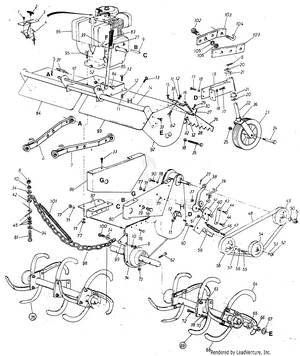

Tiller Attachment

...
...
1
Hex Wash. Hd. Self-Tap Scr. #8 x .50" Lg. MTD-710-0227
...
2
Throttle Control Knob- (Service Only) MTD-731-0108
...
3
Throttle Control Bracket MTD-04971
...
4
Throttle Control Ass'y. Comp. MTD-746-0384
...
5
Internal Cotter Pin MTD-714-0147
...
6
Draft Bar Ass'y.-R.H. (918 & 995) MTD-13130
...
7
Draft Bar Ass'y. - L.H. (918 & 995) MTD-13129A-0637
...
8
Hex Nut 3/8-24 Thd. MTD-712-0241
...
9
Sq. Key 1/4" x 1/4" x 2.00" MTD-914-0114
...
10
L-Wash. 3/8" I.D. MTD-736-0169
...
11
Hex Nut 1/4-28 Thd. MTD-712-0138
...
12
L-Wash. 1/4" I.D. MTD-936-0329
...
13
Hex Bolt 1/4-28 x 50" Lg. MTD-910-0195
...
14
Support Frame Assembly MTD-04966A
...
15
Hex B-Tap Scr. #10 x .38" MTD-910-0429
...
16
#2 Dog Chain x 20" Lg. MTD-727-0225
...
17
Hex Wash. Hd. Self-Tap Scr. 318-24 x .75" Lg. MTD-710-0623
...
18
L-Wash. 3/8" I.D. MTD-736-0169
...
19
Swivel Wheel Support MTD-04978-0637
...
20
Fl-Wash. 3/4" I.D. x 1.50" 0. D. MTD-736-0188
...
21
Flange Bearing 3/4" I.D. x 1.00" O.D. MTD-741-0382
...
22
Swivel Wheel Caster MTD-04981
...
23
WHEEL ASSEMBLY W/TIRE-10.0 x 2.75 MTD-734-0979
...
24
Shoulder Bolt .623" I.D. x 3.62" Lg. MTD-738-0476
...
25
Hex Cent. L-Nut 7/16-14 Thd. MTD-712-0290
...
26
L.H. Shield Hinge Flap MTD-04985
...
xx
R.H. Shield Hinge Flap (Not Shown) MTD-04986
...
27
Cotter Pin 1/8" Dia. x 1.00" Lg.* MTD-714-0115
...
28
L.H Flap Rod MTD-747-0340
...
xx
R.H. Flap Rod (Not Shown) MTD-747-0339
...
29
Hex Bolt 1/4-20 x .62" Lg. MTD-710-0258
...
30
Fl-Wash. 1/4" I.D. MTD-736-0173
...
31
Brace-Tine Shield MTD-14891
...
32
Hex Nut 1/4-20 Thd. MTD-912-0287
...
33
Hex Screw, 1/4-14 x 0.625" MTD-710-0896
...
34
Fl-Wash. .385" I.D. x 1.0" O.D. x .135 Thk. MTD-736-0258
...
35
Hex Bolt 3/8-16 x 1.25" Lg. MTD-710-3005
...
36
Spacer .752" I.D. x 1.25" O.D. MTD-711-0469
...
37
Hex Cent. L.-Nut 5/16-18 Thd. MTD-912-0158
...
38
Clutch Lever MTD-04987
...
39
Clutch Rod MTD-747-0379
...
40
Shoulder Bolt 7/16" Dia. x 1.75" Lg. MTD-738-0140
...
41
Idler Bracket MTD-04992
...
42
Spacer .380" I.D. x 1.010" O.D. x .320 Thk. MTD-711-0242
...
43
Clutch Link 3.62" Lg. MTD-747-0342
...
44
Shoulder Bolt MTD-938-0155
...
45
Fl-Wash. .406" I.D. x .74" O.D. x .063 Thk. MTD-736-0185
...
46
Ext. Spring .62" O.D. x 6.12" MTD-932-0384
...
47
Hex Crown Nut 3/8-24 Thd. MTD-712-0214
...
48
"V"-Belt 1/2" x 43" Lg. (Kevlar) MTD-754-0253
...
49
1/2" "V"-Pulley 4.75" O.D. x .625" Bore MTD-756-0351
...
50
L-Wash. 518" I.D.* MTD-736-0158
...
51
Hex Ins. L-Nut 5/8-18 Thd. MTD-712-0221
...
52
Hex Cent. L-Nut 3/8-16 Thd. MTD-712-0375
...
53
Fl-Wash. 3/8" I.D. MTD-736-0140
...
54
Idler Pulley MTD-756-0487
...
55
Hex Bolt MTD-710-0314
...
56
L-Wash. 7/16" I.D. MTD-736-0171
...
57
Fl-Wash. .438" I.D. x 1.37" O.D. MTD-936-0319
...
58
1/2" "V"-Pulley .475" O.D. x 1.00" Bore MTD-756-0350
...
59
Belt Guard MTD-13819
...
60
Hex Bolt 3/8-16 x 1.50" Lg. MTD-710-0520
...
61
Hex Cent. L.-Nut 5/16-18 Thd. MTD-912-0158
...
62
Hex Bolt 7/16-14 x 2.00" Lg. MTD-710-0780
...
63
Tine Adapter Assembly MTD-04970
...
64
Tine-L.H. MTD-742-0243
...
65
Bearing MTD-931-0374
...
66
Spacer MTD-748-0276
...
67
Thrust Wash. 1.00" I.D. x .030" Thk. MTD-736-0163
...
68
Tine - R.H. MTD-742-0244-0637
...
69
Tine Assembly Comp.-L.H. MTD-04995
...
70
Hex Nut 3/8-24 Thd. MTD-712-0241
...
71
Lock Wash. 5/16" I.D. MTD-936-0119
...
72
Hex Cap Screw 3/8-24 x 1.5 MTD-710-0459A
...
73
Hex Cent. L-Nut 7/16-14 Thd. MTD-712-0290
...
74
Chain Case Ass'y. Comp. MTD-04991
...
75
Tine Assembly Comp.-R.H. MTD-04996
...
76
Hex Bolt 5/16-18 x 1.00" Lg. MTD-710-0376
...
77
HEX NUT 5/16-18 MTD-712-3010
...
78
Hex Bolt 1/2-20 x .88" Lg.(Grade 5) MTD-710-0777
...
79
L-Wash. 1/2" I.D. MTD-736-0921
...
80
Clutch Support Bracket MTD-04988
...
81
Hex Bolt 3/8-24 x 1.75" Lg. MTD-710-0539
...
82
Hex Bolt 1/4-28 x .75" Lg. MTD-710-0412
...
83
Plastic Grip MTD-720-0142
...
84
Shoulder Bolt .498 Dia. x .212 Lg. MTD-738-0183
...
85
Clutch Handle MTD-720-0378
...
86
Clutch Support Shroud MTD-14298-0637
...
87
Engine Mounting Bracket MTD-04519
...
90
HEX SCREW 3/8-16 x .625 GR5 MTD-710-0201
...
92
L.H. - Side Plate MTD-04975-0637
...
xx
R.H.-Side Plate (Not Shown) MTD-04976
...
93
L.H.-Tine Shield MTD-04983
...
94
R.H.-Tine Shield MTD-04984
...
95
Hex Bolt 5/16-18 x 2.00" Lg. MTD-710-3103
...
96
8 H.P. Engine MTD-NA
...
97
Tiller Mounting Shaft 16" Lg. MTD-738-0610
...
98
Chain 23" Lg. MTD-713-0354
...
99
Tiller Mounting Bracket MTD-703-0822
...
100
Hex Bolt 3/8-24 x 1.25" Lg. MTD-710-0191
...
101
Extension Spring MTD-732-0471
...
102
Hex Bolt 5/8-18 x 1.62" Special (990 Only) MTD-710-0622
...
103
Drag Link Extension (990 Only) MTD-35693
...
104
Hitch Chain Hook (990 Only) MTD-711-0754
...
105
L-Wash. 5/8" I.D. (990 Only) MTD-736-0158
...
106
Hex Jam Nut 5/8-18 Thd. (990 Only) MTD-712-0318
...
...
...
