MTD 316E150-129 (1996) Snow Thrower

Model: 316E150-129 (1996)

Back To Assemblies

Save Part Not Listed?
product name

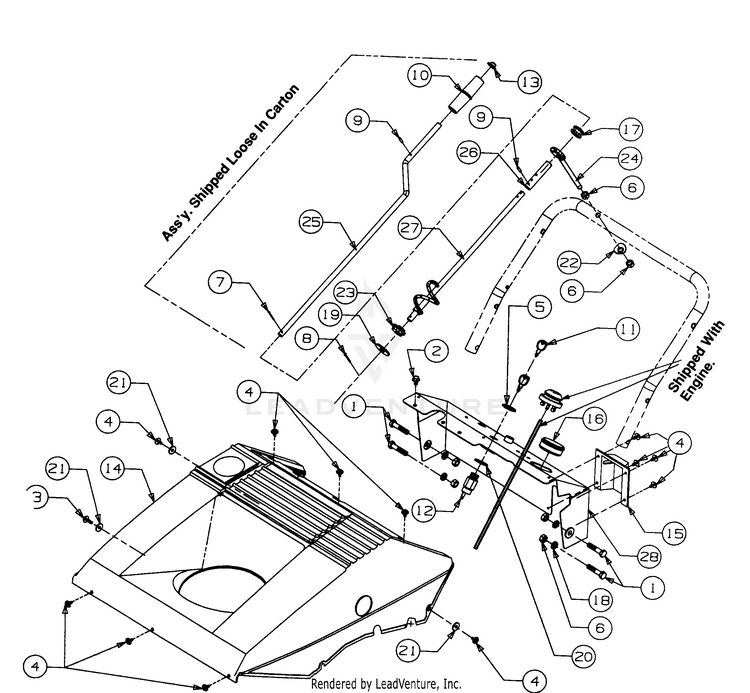

Cover & Dash

...
...
1
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
2
Screw - Hex Washer MTD-710-0653
...
3
Special Screw, #10-16 x .625 MTD-710-04669
...
4
Screw - Hex MTD-710-1268
...
5
Nut - Jam MTD-712-0252
...
6
HEX NUT 5/16-18 MTD-712-3010
...
7
Pin - Cotter MTD-714-0111
...
8
Pin - Cotter MTD-714-0507
...
9
Rolled Pin, 1/8 x .63 MTD-915-0138
...
10
Knob MTD-720-0201A
...
11
Key MTD-925-0201
...
12
Ignition Switch MTD-925-1425
...
13
Cap - Push MTD-726-0100
...
14
SHROUD MTD-731-1087
...
15
COVER MTD-731-1089
...
16
SPARK PLUG CAP MTD-731-1133C
...
17
Grommet - Rubber MTD-735-0234
...
18
Lock Wash. 5/16" I.D. MTD-936-0119
...
19
Washer - Flat MTD-736-0133
...
20
Washer - Lock-Internal MTD-736-0225
...
21
Washer - Flat MTD-736-0400
...
22
Washer - Saddle MTD-736-0451
...
23
BUSHING-HEX MTD-741-0403
...
24
EYEBOLT MTD-747-0697
...
25
Upper Chute Crank MTD-747-0737-0637
...
26
SPACER-.38IDX.500 x 2.50LG MTD-950-0785
...
27
CHUTE CRANK ASSEMBLY MTD-784-5497
...
28
DASH MTD-784-5572
