product name

MTD 316-611D372 (1996) Snow Thrower

Model: 316-611D372 (1996)

Back To Assemblies

Save Part Not Listed?
product name

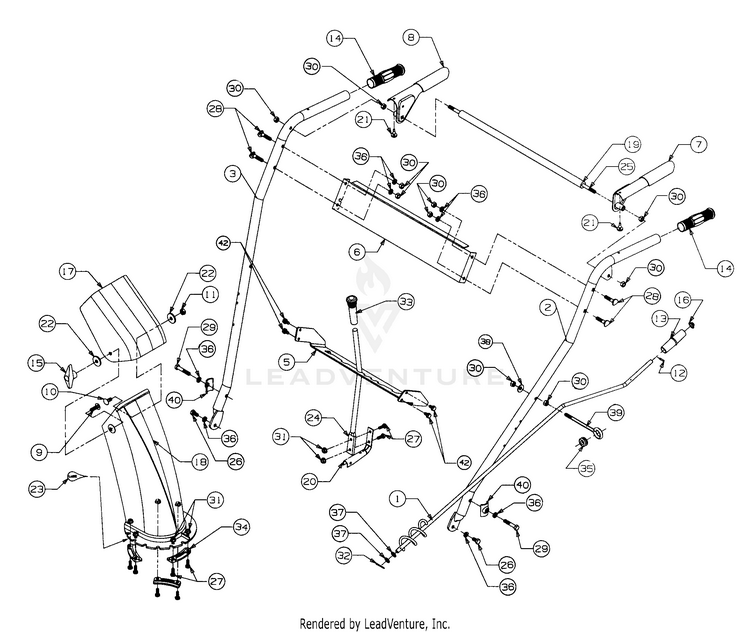

Handle Assembly

...
...
1
Chute Crank Ass'y MTD-984-0022
...
2
HANDLE ASSEMBLY (LH) MTD-684-0047
...
3
HANDLE ASSEMBLY (RH) (POWDER BLACK) MTD-684-0048A-0637
...
?4
Cable "Z" Fitting MTD-946-0778
...
5
5 SPEED PANEL MTD-705-5231
...
6
HANDLE PANEL MTD-705-5232
...
7
CLUTCH LEVER (LH) MTD-705-5233A
...
8
CLUTCH LEVER (RH) MTD-705-5234A
...
9
Screw-Carriage MTD-710-0276
...
10
Screw-Carriage MTD-710-0451
...
11
Hex L-Nut 5/16-18 Thd. MTD-712-3009
...
12
Rolled Pin, 1/8 x .63 MTD-915-0138
...
13
Knob-Chute Crank MTD-720-0201A
...
14
Grip MTD-720-0204
...
15
Knob MTD-720-0284
...
16
Cap-Push MTD-726-0100
...
17
UPPER CHUTE (W/LBL MANUAL TILT) MTD-731-04426C
...
18
Lower Chute MTD-731-1300E
...
19
PIVOT ROD COVER MTD-731-1500
...
20
SHIFT LEVER SPRING MTD-732-0733
...
21
Bumper MTD-735-0199A
...
22
Washer MTD-736-0231
...
23
Grease, Benalene 8 oz tube MTD-737-0300A
...
24
SHIFT LEVER MTD-747-0904-0637
...
25
PIVOT ROD MTD-747-0905
...
26
Screw MTD-710-0538
...
27
Screw MTD-710-0851
...
28
Screw MTD-710-1250
...
29
Screw MTD-710-3180
...
30
HEX NUT 5/16-18 MTD-712-3010
...
31
LOCK NUT 1/4 MTD-912-3027
...
32
Pin-Cotter MTD-714-0507
...
33
Grip-Shift Lever MTD-720-0223
...
34
Keeper-Chute MTD-731-0851A
...
35
Grommet MTD-735-0234
...
36
Lock Wash. 5/16" I.D. MTD-936-0119
...
37
Washer-Flat MTD-736-0140
...
38
Washer-Bell MTD-736-0242
...
39
EYEBOLT MTD-747-0697
...
40
Handle Tab MTD-984-5599
...
?41
Nut Not Shown. Nuts for above fitting. MTD-712-0121
...
42
Screw MTD-710-0896
