MTD 316-174-000 (1986) Snow Thrower

Model: 316-174-000 (1986)

Save
 Part Not Listed?Part Not Listed?
product name

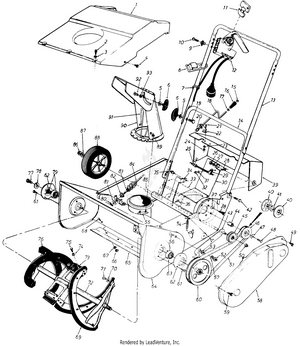

Parts

...
...
1
21" Snow Thrower Shroud MTD-731-0724
...
2
Hex B-Tap Scr. #10 x .38" MTD-910-0429
...
3
Spr.-Wash. .206" I.D. x .448" O.D. MTD-736-0370
...
4
Hex L-Wash. Hd. AB-Tap Scr. 1/4 x.62" Lg. MTD-710-0892
...
5
Bell-Wash. .345" I.D. x .88" O.D. MTD-736-0242
...
6
Star Knob MTD-720-04072A
...
7
Cable Tie MTD-726-0223
...
8
Cord Restraint MTD-725-0899
...
9
Insulating Spacer MTD-725-1112
...
10
Fl-Countersunk Scr. #10-24 x 1 5" Lg. MTD-710-0943
...
11
Key MTD-725-1121
...
12
Electric Control w/Key MTD-725-1120
...
13
Upper Handle MTD-749-0694
...
14
Lower Handle MTD-749-0691
...
15
Push Nut for 3/8" Rod MTD-726-0100
...
16
Knob - Black MTD-920-0171
...
17
Fl-Wash. .385 I.D. x .62" O.D. MTD-736-0140
...
18
Chute Crank Ass'y.-L.H. MTD-784-5179
...
19
Carriage Bolt 5/16-18 x 2 MTD-710-1174
...
20
BUSHING .380 ID MTD-941-0475
...
21
Hex Bolt 1/4-20 x .50" Lg. MTD-910-0289
...
22
Upper Chute Crank Brkt. MTD-784-5178A
...
23
L-Wash. 1/4" I.D. MTD-936-0329
...
24
Hex Nut 1/4-20 Thd. MTD-912-0287
...
25
Cord Restraint MTD-725-0908
...
26
HEX NUT 5/16-18 MTD-712-3010
...
27
Lock Wash. 5/16" I.D. MTD-936-0119
...
28
Truss Mach. Scr. #10-24 x .50" Lg. MTD-710-0473
...
29
Cord Restraint MTD-725-1089
...
30
21" Blower Housing Ass'y. MTD-784-5325
...
31
Ext. L-Wash. #10 Scr. MTD-936-0147
...
32
Hex Nut #10-24 Thd. MTD-712-0121
...
33
Electric Motor 120V MTD-725-1068
...
34
Motor Support Brkt. MTD-784-5187
...
35
Motor Shroud w/Hdwe. MTD-731-0786
...
36
Hex L-Wash. Hd. AB-Tap 1/4" x .62" Lg. MTD-710-0892
...
37
Lock Wash. 5/16" I.D. MTD-936-0119
...
38
Hex Bolt 5/16-18 x .50" Lg. MTD-710-3039
...
39
Dash Panel MTD-784-5184
...
40
Pulley Half, .625 x 2.25 MTD-956-0416B
...
41
Bell-Wash. .345" I.D. x .88" O.D. MTD-736-0242
...
42
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
43
KIT-IDLER/BRAKE BRACKET MTD-753-05156
...
44
Spacer .635" I.D. x .890" O.D. x .80" Lg. MTD-748-0192
...
45
Fl-Idler w/Flanges 2.12" O.D. MTD-756-0313
...
46
Pulley Half, .625 x 2.25 MTD-956-0416B
...
47
Bell-Wash. .345" I.D. x .88" O.D. MTD-736-0242
...
48
Hex Bolt 5/16-24 x .75" Lg. MTD-710-0157
...
49
Hex L-Wash. Hd. AB-Tap 1/4" x .62" Lg. MTD-710-0892
...
50
Hex L-Nut 3/8-24 Thd. MTD-912-0296
...
51
V-Belt 1/2" x 34" Lg. MTD-954-0285
...
52
HEX NUT 5/16-18 MTD-712-3010
...
53
Shld. Spacer. 500" Dia. x .27" Lg. MTD-748-0234
...
54
Extension Spring MTD-732-0474
...
55
Chute Flange Keeper Ass'y. MTD-05783
...
56
Truss Mach. Scr. 5/16-18 x .75" Lg. MTD-710-0323
...
57
Lock Wash. 5/16" I.D. MTD-936-0119
...
58
BELT COVER SINGLE (POWDER BLACK) MTD-790-00045C-0637
...
59
Hex B-Tap Scr. 1/4 x .38" Lg. MTD-710-0352
...
60
Flat Pulley 5.06" O.D. 1/2-20-L.H. MTD-756-0476
...
61
Hex B-Tap Scr. 1/4 x .38" Lg. MTD-710-0352
...
62
Bearing Cup MTD-784-5174-0637
...
63
BALL BEARING MTD-941-0600
...
64
21" Blower Housing Ass'y. MTD-784-5325
...
65
Shave Plate MTD-731-1033
...
66
Hex Nut 1/4-20 Thd. MTD-912-0287
...
67
SPRING WASHER BELL MTD-736-0270
...
68
Carriage Bolt 1/4-20 x .62" Lg.* MTD-710-0134
...
69
Rubber Spiral - L.H. MTD-931-0780A
...
70
Fl-Wash. .281" I.D. x .50" O.D. MTD-736-0142
...
71
Hex Wash. B-Tap Scr. 1/4 x .62" Lg. Spec. MTD-710-0896
...
72
Auger Ass'y. 21" MTD-984-04027A
...
73
Rubber Paddle MTD-931-0782A
...
74
Fl-Wash. .218" I.D. x .62" O.D. MTD-736-0400
...
75
Special Screw, #10-16 x .625 MTD-710-04669
...
76
Rubber Spiral - L.H. MTD-931-0780A
...
77
Hex Wash. TT-Tap Cl-Scr. 1/4-20 x .75" Lg. MTD-710-0875
...
78
L-Wash. 1/4" I.D. MTD-936-0329
...
79
Kit-Bearing and Collar MTD-753-0374
...
80
Cot-Pin 3/32 Dia. x .75" Lg. MTD-714-0507
...
81
Fl-Wash. .385" I.D. x 1.50" O.D. MTD-736-0234
...
82
Hex Bushing .385" I.D. MTD-741-0403
...
83
Fl-Wash. .385" I.D. x .62" O.D. MTD-736-0140
...
84
Chute Crank Ass'y.-L.H. MTD-784-5179
...
85
Wheel Axle Tubing MTD-749-0605
...
86
Push Cap 1/2" Dia. MTD-726-0221
...
87
Fl-Wash. .510" I.D. x .75" O.D. MTD-736-0108
...
88
Plastic Wheel Ass'y. 6 x 1.50" MTD-734-0831
...
89
Hex L-Nut 1/4-20 Thd MTD-912-0107
...
90
5.0" Dia. Chute Ass'y. MTD-784-5332
...
91
Chute Ass'y. Guard MTD-732-0484
...
92
Carriage Bolt 5/16-18 x.62 MTD-710-0260A
...
93
Fl-Wash. .328" I.D. x .68" O.D. MTD-736-0278
...
...
...
