product name

MTD 315E640F000 (1995) Snow Thrower

Model: 315E640F000 (1995)

Save Part Not Listed?
product name

Blower Housing 26 inch

...
...
1
Bearing Hsg.-Spiral Hsg. MTD-05845C-0637
...
2
Bearing Housing MTD-05931A
...
3
GEAR ASSEMBLY 22" MTD-918-0413B
...
3
GEARBOX ASSEMBLY 24" W FITTING MTD-918-0414B
...
3
Gear Assembly: Auger 26" MTD-918-0415B
...
3
Gear Assembly: Auger 28" MTD-918-0416B
...
4
22" HOUSING ASSEMBLY MTD-684-0052C
...
4
24" HOUSING ASSEMBLY MTD-684-0039D
...
4
26" HOUSING ASSEMBLY MTD-684-0040D
...
4
28" HOUSING ASSEMBLY MTD-684-0041D
...
5
12" IMPELLER (3 BLADE) (POWDER BLACK) MTD-684-06276-0637
...
6
Spiral Assembly-R.H. 22" MTD-684-04178-0637
...
6
24" SPIRAL ASSEMBLY (RH) (POWDER BLACK) MTD-684-04180-0637
...
6
Spiral Assembly: RH 26" MTD-684-04182-0637
...
6
Spiral Assembly: RH 28" MTD-684-04184-0637
...
7
22" SPIRAL ASSEMBLY (LH) (POWDER BLACK) MTD-684-04179-0637
...
7
Spiral 24" LH MTD-684-04181-0637
...
7
26" SPIRAL ASSEMBLY (LH) (POWDER BLACK) MTD-684-04183-0637
...
7
28" SPIRAL ASSEMBLY (LH) (POWDER BLACK) MTD-684-04185-0637
...
8
Reinforcement, Chute 5.0 MTD-705-5226
...
9
Bolt, Carriage MTD-710-0134
...
10
Screw, Hex MTD-710-0157
...
11
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177
...
12
Carriage Bolt 5/16-18 x.62 MTD-710-0260A
...
13
Screw, Carriage MTD-710-0451
...
14
Hex Cap Screw 3/8-24 x 1.5 MTD-710-0459A
...
15
SCREW 1/4-20X.75 GR5 MTD-710-0812
...
16
Shear Bolt 5/16-18 x 1.5" Lg. MTD-710-0890A
...
17
Hex Bolt 5/16-18 x .88" Lg. - 650C MTD-710-3038
...
18
Hex Lock Nut MTD-712-0116
...
19
Hex Nut 5/16-24 Thd. MTD-912-3057
...
20
Hex Cent. L.-Nut 5/16-18 Thd. MTD-912-0158
...
21
HEX NUT 5/16-18 MTD-712-3010
...
22
HEX NUT 1/4-20 MTD-912-0287
...
23
LOCK NUT 1/4 MTD-912-3027
...
24
Spring Pin MTD-715-0114
...
25
Adapter Chute MTD-731-1379D
...
26
Ext. Spring 3.6" Lg. MTD-932-0611
...
27
Lock Wash. 5/16" I.D. MTD-936-0119
...
28
Wave Washer MTD-936-0167
...
29
Washer, Flat, .71 I.D. x 1.49 O.D. x .06 MTD-736-0188
...
30
Washer, Bell MTD-736-0242
...
31
L-Wash. 1/4" I.D. MTD-936-0329
...
32
Screw, Shoulder MTD-738-0281
...
33
Plastic Bearing w/Flats MTD-941-0300
...
34
Flange Ball Bearing MTD-941-0309
...
35
BUSHING .380 ID MTD-941-0475
...
36
FLANGE BUSHING MTD-741-0493C
...
37
Idler, Flat MTD-756-0178
...
38
Slide Shoe, Standard Steel (add paint code) MTD-784-5580
...
38
Slide Shoe, Standard Steel (packaged 2 shoes 784-5580) MTD-OEM-784-5580
...
38
Skid Shoe Kit, Standard Polymer (includes 2 shoes and hardware) (Optional Equipment) MTD-753-06206
...
39
Shave Plate 2.25 x 21.66 LG MTD-790-00117-0637
...
39
Shave Plate 24" MTD-790-00120-0637
...
39
Shave Plate: Auger 26" MTD-790-00121-0637
...
39
Shave Plate: Auger 28" MTD-790-00118-0637
...
40
Auger Idler Brkt. MTD-984-0064-0637
...
41
Chute Crank Bracket MTD-784-5647-0637

Engine And V-Belts 10, & 8 HP Electric Starter & 8 HP

...
...
1
BRACKET-IDLR- MTD-05896A
...
2
3-Prong Extension Cord Electric start models Only. MTD-929-0071B
...
3
Hex Bolt 5/16-24 x 1" Lg. MTD-710-0888
...
4
HEX SCREW 1/4-28 x .50 GR5 MTD-710-0230
...
5
Hex Bolt 3/8-16 x 1.25" Lg. MTD-710-3005
...
6
Screw, Hex MTD-710-0627
...
7
Screw, Hex MTD-710-0696
...
8
Hex Screw, 1/4-14 x 0.625" MTD-710-0896
...
9
Screw MTD-710-0888
...
10
Hex Jam Nut MTD-712-0181
...
11
Belt Cover MTD-731-1324
...
12
Extension Spring MTD-932-0710
...
13
Lock Wash. 5/16" I.D. MTD-936-0119
...
14
Washer, Bell MTD-736-0242
...
15
Flat Washer MTD-736-0247
...
16
L-Wash. 1/4" I.D. MTD-936-0329
...
17
Washer, Bell MTD-736-0331
...
18
Washer, Flat MTD-736-0505
...
19
Shoulder Spacer MTD-748-0234
...
20
Adapter Pulley MTD-948-0360
...
21
Eng., HMSK, Tec. 8 H.P., Horz. MTD-NA
...
21
Eng., HMSK, Tec. 10 HP, Horz. MTD-NA
...
22
V - Belt MTD-954-0346
...
23
BELT: 3V X 35.00 LG MTD-954-0430C
...
24
Idler, Flat MTD-756-0313
...
25
Pulley, Half MTD-756-0569
...
26
PULLEY MTD-956-0959
...
27
Pulley, Auger MTD-756-0967
...
28
STARTER MOTOR Electric start models Only. MTD-TC-33329H

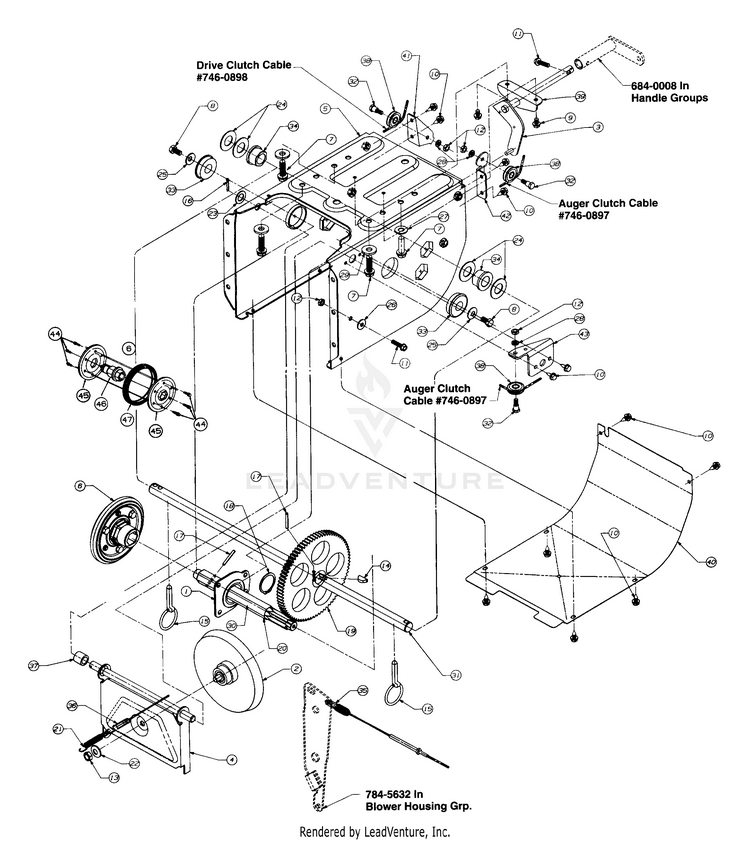

Frame Assembly/Drive Assembly

...
...
1
FRICTION WHEEL BEARING ASSEMBLY MTD-618-0063
...
2
Friction Wheel Disc Ass'y. MTD-956-0012A
...
3
SHAFT ASSEMBLY MTD-684-0013
...
4
BRACKET ASSEMBLY MTD-984-0021-0637
...
5
FRAME MTD-684-0030
...
6
Wheel Assembly Friction MTD-984-0042C
...
7
Hex Self-Tap Screw MTD-710-0502A
...
8
Hex, Screw MTD-710-0538
...
9
Scr., Hex Wash. Hd., TT 1/4-20 x .3 MTD-710-0653
...
10
Hex Screw, 1/4-14 x 0.625" MTD-710-0896
...
11
Screw, Hex MTD-710-0788
...
12
Hex Jam Nut 1/4-20 Thd. MTD-912-0298
...
13
Nut, Hex MTD-712-0711
...
14
Key MTD-714-0126
...
15
Click Pin MTD-714-0143A
...
16
Pin, Cotter MTD-714-0474
...
17
Spring Roll Pin 1.12" Lg. MTD-915-0249
...
18
Ring, Retainer MTD-716-0185
...
19
GEAR-79T MTD-717-1414
...
20
HEX DRIVE SHAFT MTD-717-1415A
...
21
Ext. Spring .38n O.D. x 2.5" MTD-932-0264
...
22
Washer, Bell MTD-736-0105
...
23
Flat Washer MTD-736-0160
...
24
Washer, Flat MTD-736-0188
...
25
Washer, Bell MTD-736-0242
...
26
SPRING WASHER BELL MTD-736-0270
...
27
Flat Washer MTD-736-0300
...
28
L-Wash. 1/4" I.D. MTD-936-0329
...
29
Washer, Flat MTD-736-3052
...
30
Lubricant MTD-NA
...
31
Axle MTD-738-0869
...
31
AXLE .750X24.5 Used with 13" Wheels (For models 610, 611, 613, 641, 661) MTD-738-0830
...
32
SCREW, SHOULDER Used with 16" Wheels (For models 633, 640, 643, 660, 663) MTD-738-0870
...
33
BALL BEARING MTD-941-0563
...
34
Hex Flange Brg. .752" I.D. MTD-941-0598
...
35
Cable-Auger Clutch MTD-946-0897
...
36
Cable-Drive Clutch MTD-946-0898
...
37
Spacer MTD-748-0190
...
38
Roller, Cable MTD-756-0625
...
39
Frame, Shift Bracket MTD-784-5590
...
40
FRAME COVER MTD-784-5638A
...
41
BRACKET-DR MTD-784-5644
...
42
AUGER CABLE GUIDE BRKT MTD-784-5646
...
43
SUPPORT BRACKET MTD-784-5658-0637
...
44
Hex Wash Hd. TT-Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599
...
45
FRICTION PLATE MTD-784-5677
...
46
HUB-FRICTION WHEEL MTD-718-0240
...
47
Rubber Only MTD-935-0243B

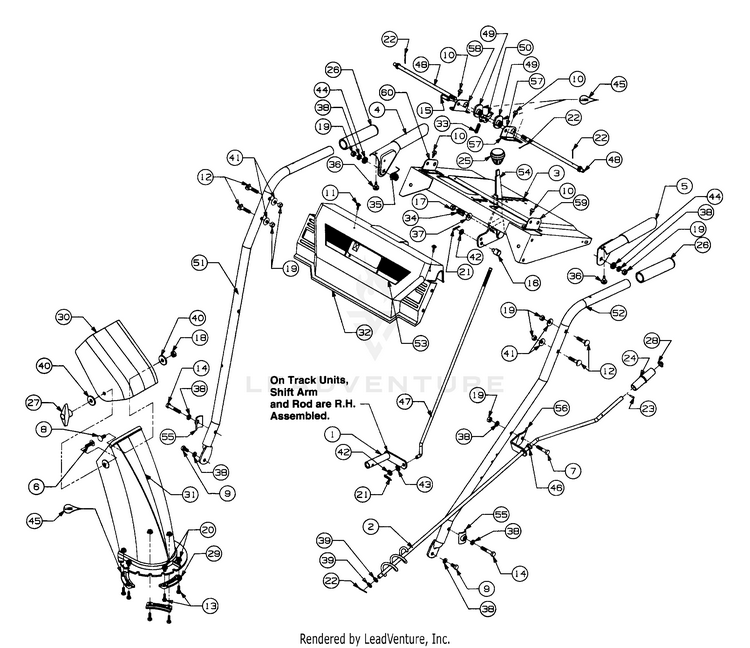

Handle Assembly

...
...
1
SHIFT ARM ASSEMBLY (POWDER BLACK) MTD-684-0008A-0637
...
2
Chute Crank Ass'y MTD-984-0022
...
3
HANDLE PANEL SUPPORT MTD-684-0033A
...
4
HANDLE-ENGAGEMENT (RH) MTD-684-0036A
...
5
HANDLE-ENGAGEMENT (LH) MTD-684-0037B
...
6
Screw Carriage MTD-710-0276
...
7
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
8
Bolt, Carriage MTD-710-0451
...
9
Screw, Hex MTD-710-0538
...
10
Hex Screw, 1/4-14 x 0.625" MTD-710-0896
...
11
Special Screw, #10-16 x .625 MTD-710-04669
...
12
Bolt, Curved Carriage MTD-710-1250
...
13
Hex Cap Screw MTD-710-3015
...
14
Hex Screw MTD-710-3180
...
15
Pin, Clevis MTD-711-0653
...
16
Engagement Ferru MTD-911-0677
...
17
Hex Lock Nut MTD-712-0116
...
18
Hex Cent. L.-Nut 5/16-18 Thd. MTD-912-0158
...
19
HEX NUT 5/16-18 MTD-712-3010
...
20
LOCK NUT 1/4 MTD-912-3027
...
21
Pin, Cotter MTD-714-0104
...
22
Pin, Cotter MTD-714-0507
...
23
Rolled Pin, 1/8 x .63 MTD-915-0138
...
24
Knob, Chute Crank MTD-720-0201A
...
25
Knob MTD-920-0232
...
26
Grip MTD-720-0274
...
27
Knob, L/Wing Nut MTD-720-0284
...
28
Cap, Push MTD-726-0100
...
29
Chute, Flange Keeper MTD-731-0851A
...
30
UPPER CHUTE (W/LBL MANUAL TILT) MTD-731-04426C
...
31
Lower Chute MTD-731-1300E
...
32
Panel-Black MTD-731-1391
...
33
Spring MTD-732-0145
...
34
Spring MTD-732-0193
...
35
Spring MTD-732-0746
...
36
Bumper MTD-735-0199A
...
37
Washer, Bell MTD-736-0105
...
38
Lock Wash. 5/16" I.D. MTD-936-0119
...
39
Flat Washer MTD-736-0140
...
40
Washer MTD-736-0231
...
41
Washer, Bell MTD-736-0242
...
42
Washer, Flat MTD-736-0264
...
43
SPRING WASHER .317 X .625 X .020 MTD-936-0271
...
44
Washer MTD-736-0509
...
45
Lubricant MTD-NA
...
46
BUSHING .380 ID MTD-941-0475
...
47
Shift Rod MTD-747-0798A
...
48
Rod, Cam MTD-747-0877
...
49
Cam Handle Lock MTD-748-0362
...
50
Handle Lock Pawl MTD-948-0363
...
51
HANDLE (RH) MTD-749-0910C-0637
...
52
HANDLE (LH) MTD-749-0911A
...
53
LABEL-MTD PLS.LOGO MTD-777-2643
...
54
HANDLE-SHI MTD-784-0297
...
55
Handle Tab MTD-984-5599
...
56
BRACKET MTD-784-5678
...
57
HANDLE BRACKET (LH) MTD-784-5679-0637
...
58
Brkt., Handle Support - RH MTD-784-5680-0637
...
59
Brkt., Handle Support L.H. MTD-784-5681
...
60
Brkt., Handle Support - RH MTD-784-5682-0637

Snow Thrower Accessories

...
...
xx
SNOW HOG TIRE CHAIN 13 x 4.0 Fit For model 611D with Sno Hog tires. O.E. #390-062. MTD-723-0432
...
xx
CHAIN - TI Fits For model 550 series snow throwers without Sno Hog tires. MTD-OEM-390-139
...
xx
Tire Chains 13" x 5"., Packaged 2 per box . Fits For models E620E & 631E with Sno Hog tires. O.E. #390-139. MTD-OEM-390-142
...
xx
CHAIN - TI Fits 450 series snow throwers without Sno Hog tires. O.E. #390-143. MTD-OEM-390-143
...
xx
CHAIN - TI Fits 586 & 840 series snow threowers without Sno Hog tires. O.E. #390-145. MTD-OEM-390-145
...
xx
CHAIN - TI Fits 900 series snow throwers without Sno Hog tires. O.E. #390-146. MTD-OEM-390-146
...
xx
Tire Chains Fits E660G & E980l series snow throwers with Sno Hog tires. O.E. #390-655. MTD-490-241-0029
...
xx
Tire Chains Fits For model E640F with Sno Hog tires. O.E. #390-991. MTD-490-241-0028
...
xx
KIT-HEADLI Fits all MTD 2-stage snow throwers. O.E. #390-255. MTD-OEM-390-255
...
xx
DRIFT CUTTER KIT Fits all MTD 2-stage snow throwers. O.E. #390-679. MTD-OEM-390-679
...
xx
ELECTRIC STARTER MOTOR Fits MTD snow throwers with 4 HP & 5 HP Tecumseh 4-cycle engines. O.E. #390-986. MTD-TC-33290H
...
xx
STARTER KI Fits MTD snow throwers with 4.5 HP Tecumseh 2-cycle engines. O.E. #390-996. MTD-OEM-390-996
...
xx
STARTER MOTOR Fits MTD snow throwers with 8-cycle engines. O.E. #390-987. MTD-TC-33329H
...
xx
Snow Cab Heavy-duty vinyl snow cap fits all MTD 2-stage snow throwers. O.E. #390-674. MTD-490-241-0032
...
xx
OIL:50:1 2 CYCLE 50:1 ratio, smokeless, fuel stabilizer, low ash formula. Contains six 2.6 oz. bottles. O.E. #737-0325. MTD-490-000-0047

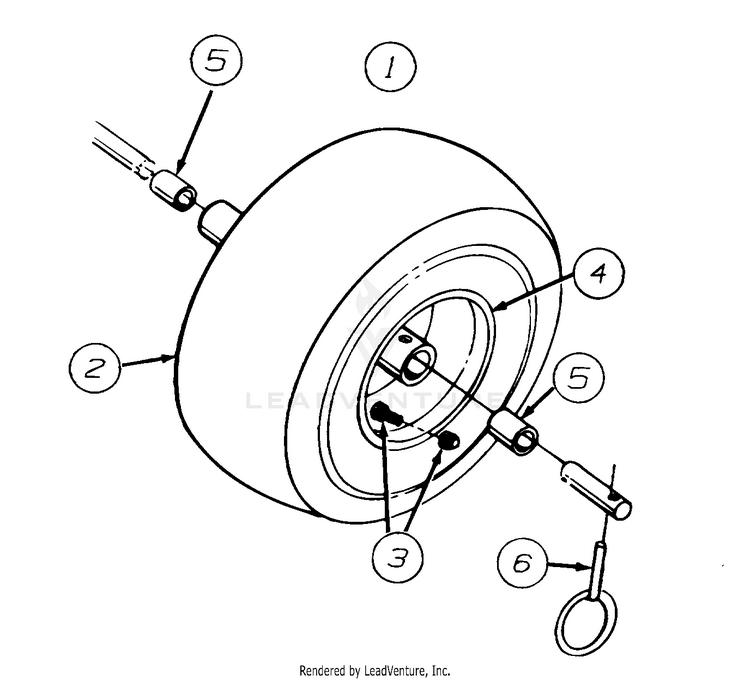

Wheels

...
...
1
WHEEL ASSEMBLY 16X4.8 For model No. 615E640F000 MTD-734-1709
...
2
Tire Only 16 x 4.8 For model No. 615E640F000 MTD-734-1530
...
3
TUBELESS VALVE For model No. 615E640F000 MTD-934-0255
...
4
RIM ASSEMBLY For model No. 615E640F000 MTD-734-1708
...
5
Sleeve Bearing .752" I.D. For model No. 615E640F000 MTD-941-0401
...
6
Click Pin For model No. 615E640F000 MTD-714-0143A
