MTD 315E150-000 (1995) Snow Thrower

Model: 315E150-000 (1995)

Save Part Not Listed?
product name

Chassis

...
...
1
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177
...
2
Carriage Bolt MTD-710-0276
...
3
Pan Head Screw MTD-710-0323
...
4
Carriage Bolt MTD-710-0451
...
5
Hex Washer Screw MTD-710-0642
...
6
Hex Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599
...
7
Hex Washer Screw MTD-710-0773
...
8
Hex Washer Screw MTD-710-0896
...
9
Hex Cap Screw MTD-710-3015
...
10
WHEEL AXLE SERVICE KIT MTD-753-05480
...
11
Hex Center Lock Nut MTD-712-0429
...
12
HEX NUT 5/16-18 MTD-712-3010
...
13
Hex Lock Nut MTD-712-0116
...
14
LOCK NUT 1/4 MTD-912-3027
...
15
LOCK NUT 1/4 MTD-912-3027
...
16
Knob MTD-720-0284
...
17
Chute Keeper MTD-731-0851A
...
18
LOWER CHUTE MTD-731-0915B
...
19
UPPER CHUTE (W/LBL MANUAL TILT) MTD-731-04426C
...
20
Shave Plate MTD-731-1033
...
21
Extension Spring MTD-732-0357A
...
22
Flat Washer MTD-736-0108
...
23
Lock Wash. 5/16" I.D. MTD-936-0119
...
25
Flat Washer MTD-736-0176
...
26
Washer MTD-736-0159
...
27
Flat Washer MTD-736-0326
...
28
L-Wash. 1/4" I.D. MTD-936-0329
...
30
BALL BEARING MTD-941-0600
...
31
Cable, 41.78" MTD-946-0910A
...
32
Spacer MTD-748-0234
...
33
LOWER HANDLE MTD-749-0796
...
34
Flat Idler MTD-756-0313
...
35
BEARING CUP (POWDER BLACK) MTD-784-5174-0637
...
36
BELT COVER SINGLE (POWDER BLACK) MTD-790-00045C-0637
...
37
KIT-IDLER/BRAKE BRACKET MTD-753-05156
...
38
KIT-SNOWTH MTD-753-0713
...
39
AUGER ASSEMBLY MTD-984-04027A
...
40
Auger Rubber Replacement kit MTD-753-0613
...
41
Hex Washer Screw MTD-710-0352
...
42
CRANK BRACKET MTD-784-5720-0637
...
43
Cap Screw MTD-710-0451
...
44
Bell Washer MTD-736-0242
...
45
BUSHING .380 ID MTD-941-0475
...
46
Hex Screw MTD-710-0191
...
xx
WHEEL ASSEMBLY W/TIRE MTD-734-1176

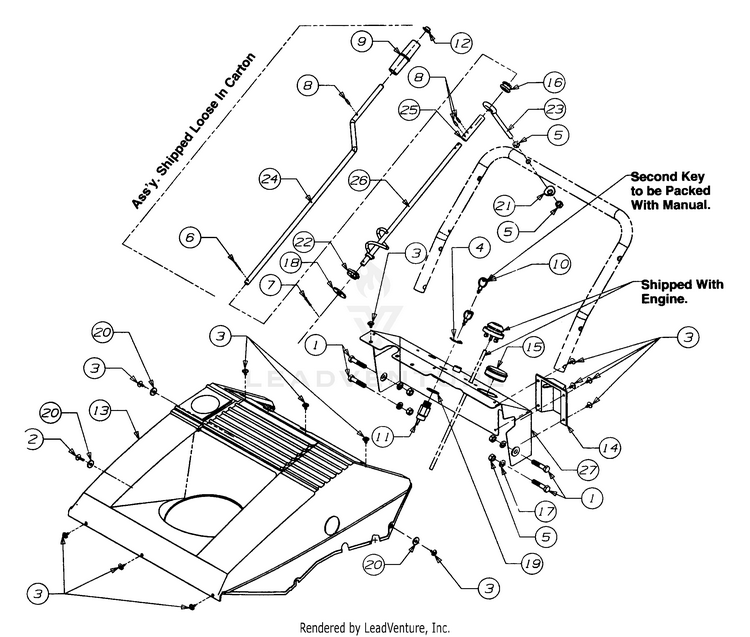

Cover & Dash

...
...
1
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
2
Special Screw, #10-16 x .625 MTD-710-04669
...
3
Screw Hex B-Tap MTD-710-1268
...
4
Nut-Hex MTD-712-0252
...
5
HEX NUT 5/16-18 MTD-712-3010
...
6
Cotter Pin MTD-714-0111
...
7
Cotter Pin MTD-714-0507
...
8
Rolled Pin, 1/8 x .63 MTD-915-0138
...
9
Knob-Chute Crank MTD-720-0201A
...
10
Key MTD-925-0201
...
11
Ignition Switch MTD-925-1425
...
12
Nut Push MTD-726-0100
...
13
SHROUD MTD-731-1087
...
14
COVER MTD-731-1089
...
15
SPARK PLUG CAP MTD-731-1133C
...
16
Grommet MTD-735-0234
...
17
Lock Wash. 5/16" I.D. MTD-936-0119
...
18
Washer Flat MTD-736-0133
...
19
Washer-Internal Lock MTD-736-0225
...
20
Washer Flat MTD-736-0400
...
21
Washer Saddle MTD-736-0451
...
22
BUSHING-HEX MTD-741-0403
...
23
EYEBOLT MTD-747-0697
...
24
Upper Chute Crank MTD-747-0737-0637
...
25
SPACER-.38IDX.500 x 2.50LG MTD-950-0785
...
26
CHUTE CRANK ASSEMBLY MTD-784-5497
...
27
DASH MTD-784-5572

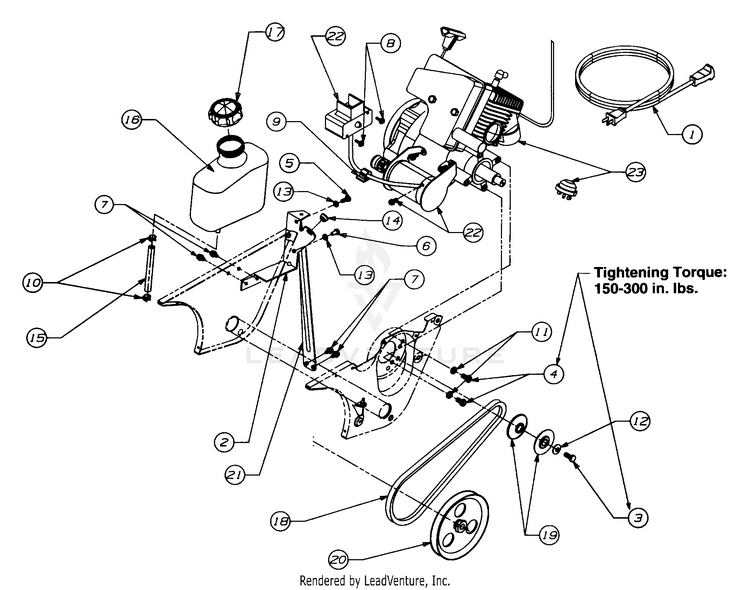

Engine & V-Belt

...
...
1
2 PRONG EXTENSION CORD MTD-629-0236
...
2
BRACKET-TANK SUPPORT MTD-705-5139
...
3
Screw-Hex Tightening Torque: 150-300 in. lbs. MTD-710-0157
...
4
Screw-Hex Tightening Torque: 150-300 in. lbs. MTD-710-0237
...
5
Screw-Hex MTD-710-0258
...
6
Hex Bolt 1/4-20 x .50" Lg. MTD-910-0289
...
7
SCREW 1/4-14 x .625 MTD-710-0892
...
8
Special Screw, #10-16 x .625 MTD-710-04669
...
9
CLAMP-MTG MTD-726-0152
...
10
Clamp-Hose MTD-726-0205
...
11
Lock Wash. 5/16" I.D. MTD-936-0119
...
12
Washer-Bell MTD-736-0242
...
13
L-Wash. 1/4" I.D. MTD-936-0329
...
14
BUSHING .380 ID MTD-941-0475
...
15
FUEL HOSE 1/4-24" MTD-751-22813-24
...
16
FUEL TANK 2 QT. MTD-751-0540
...
17
TANK CAP MTD-751-0603B
...
18
V-Belt 1/2 x 35.0" Lg. MTD-954-0101A
...
19
Pulley Half, .625 x 2.25 MTD-956-0416B
...
20
Pulley MTD-756-0475
...
21
BRACE - FUEL TANK MTD-784-5603
...
22
STARTER KIT MTD-390-996-000
...
23
Obtain From Engine Mfgr. MTD-NA

Handle Assembly

...
...
1
Screw-Oval C-Sink L MTD-710-0605
...
2
Bolt Carriage MTD-710-1174
...
3
Nut Insl. Lock MTD-712-0324
...
4
Knob-Handle MTD-920-0276
...
5
Tie Cable MTD-725-0157
...
6
Body-Lever Control MTD-746-0883
...
7
Std. Control Handle MTD-747-0824B-0637
...
8
UPPER HANDLE No Longer Available MTD-749-0705

Wheel Ass'y

...
...
1
WHEEL ASSEMBLY W/TIRE MTD-734-1176
...
xx
WHEEL-7X1.50 MTD-734-04062A
